ns3::ChannelList Class Reference

the list of simulation channels. More...

#include "channel-list.h"

Public Types
typedef std::vector< Ptr< Channel > >::const_iterator	Iterator
	Channel container iterator. More...

Static Public Member Functions
static uint32_t	Add (Ptr< Channel > channel)
static Iterator	Begin (void)
static Iterator	End (void)
static Ptr< Channel >	GetChannel (uint32_t n)
static uint32_t	GetNChannels (void)

Detailed Description

the list of simulation channels.

Every Channel created is automatically added to this list.

Definition at line 38 of file channel-list.h.

Member Typedef Documentation

Iterator

typedef std::vector< Ptr<Channel> >::const_iterator ns3::ChannelList::Iterator

Channel container iterator.

Definition at line 42 of file channel-list.h.

Member Function Documentation

Add()

uint32_t ns3::ChannelList::Add ( Ptr< Channel >  channel )

static

Parameters

channel

channel to add

Returns

index of channel in list.

This method is called automatically from Channel::Channel so the user has little reason to call it himself.

Definition at line 214 of file channel-list.cc.

References third::channel, ns3::ChannelListPriv::Get(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Channel::Channel().

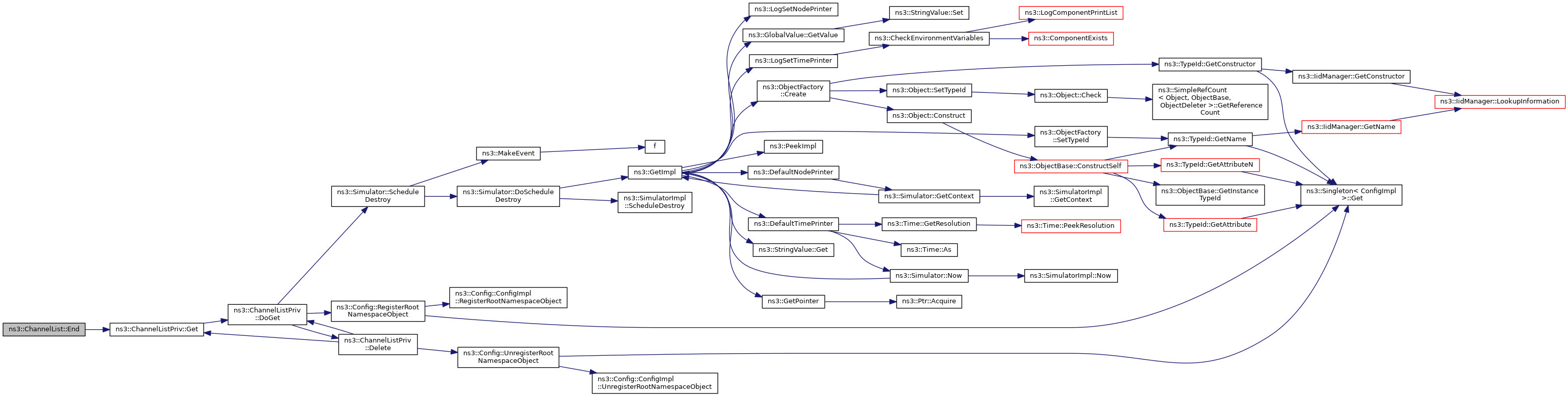

Here is the call graph for this function:

Here is the caller graph for this function:

Begin()

ChannelList::Iterator ns3::ChannelList::Begin ( void  )

static

Returns

a C++ iterator located at the beginning of this list.

Definition at line 221 of file channel-list.cc.

References ns3::ChannelListPriv::Get(), and NS_LOG_FUNCTION_NOARGS.

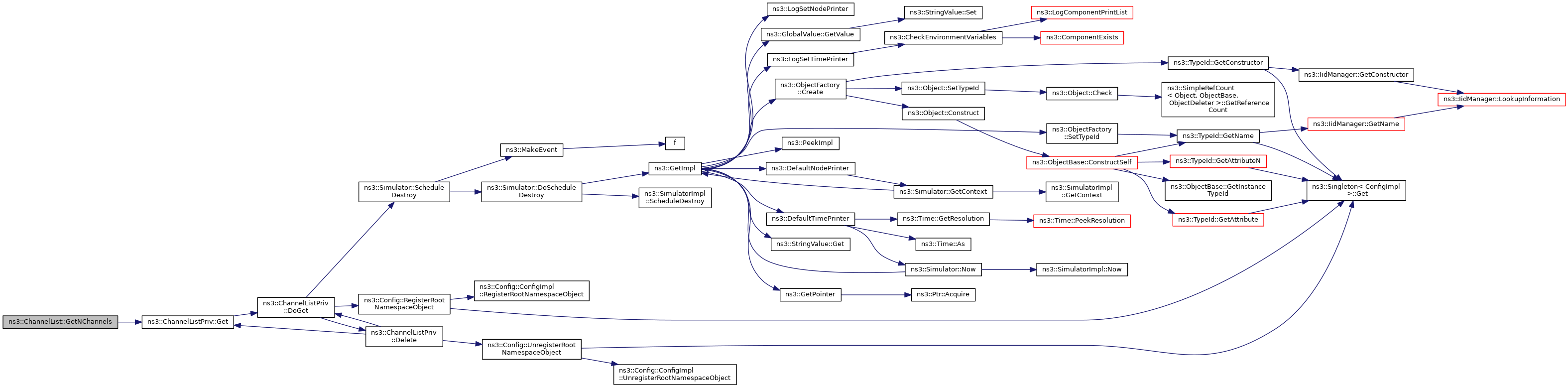

Here is the call graph for this function:

End()

ChannelList::Iterator ns3::ChannelList::End ( void  )

static

Returns

a C++ iterator located at the end of this list.

Definition at line 228 of file channel-list.cc.

References ns3::ChannelListPriv::Get(), and NS_LOG_FUNCTION_NOARGS.

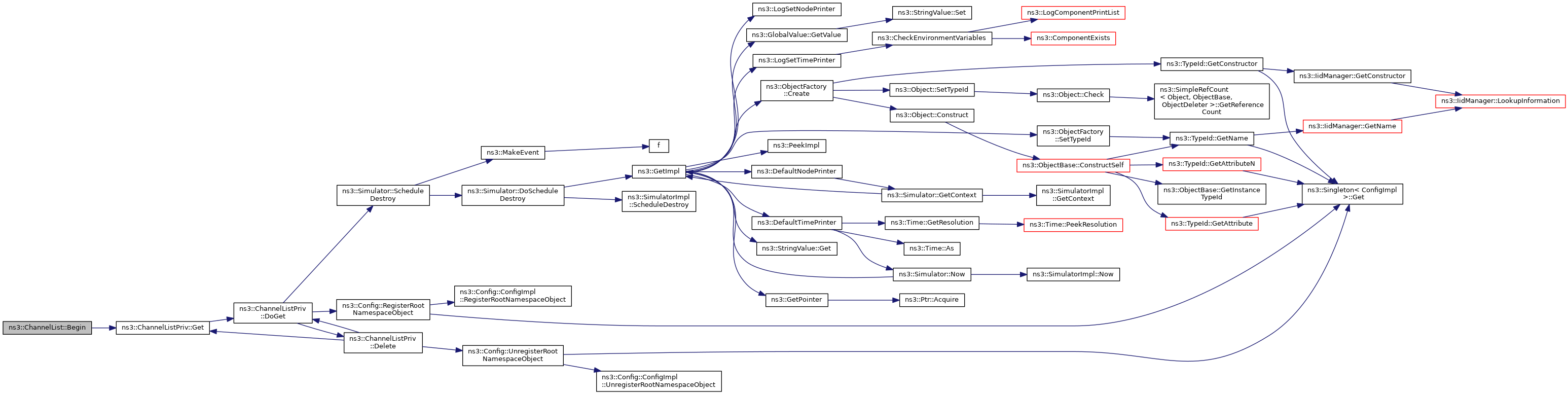

Here is the call graph for this function:

GetChannel()

Ptr< Channel > ns3::ChannelList::GetChannel ( uint32_t  n )

static

Parameters

n	index of requested channel.

Returns

the Channel associated to index n.

Definition at line 235 of file channel-list.cc.

References ns3::ChannelListPriv::Get(), sample-rng-plot::n, and NS_LOG_FUNCTION.

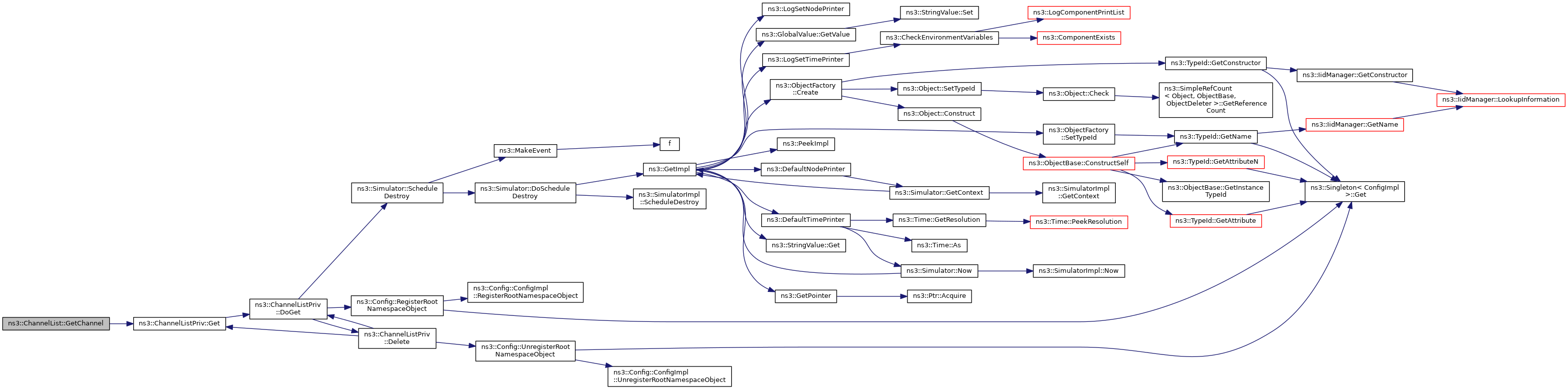

Here is the call graph for this function:

GetNChannels()

uint32_t ns3::ChannelList::GetNChannels ( void  )

static

Returns

the number of channels currently in the list.

Definition at line 242 of file channel-list.cc.

References ns3::ChannelListPriv::Get(), and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/network/model/channel-list.h
• src/network/model/channel-list.cc
