ns3::Config::Resolver Class Reference

Abstract class to parse Config paths into object references. More...

Collaboration diagram for ns3::Config::Resolver:

Public Member Functions
	Resolver (std::string path)
	Construct from a base Config path. More...
virtual	~Resolver ()
	Destructor. More...
void	Resolve (Ptr< Object > root)
	Parse the stored Config path into an object reference, beginning at the indicated root object. More...

Private Member Functions
void	Canonicalize (void)
	Ensure the Config path starts and ends with a '/'. More...
void	DoArrayResolve (std::string path, const ObjectPtrContainerValue &vector)
	Parse an index on the Config path. More...
virtual void	DoOne (Ptr< Object > object, std::string path)=0
	Handle one found object. More...
void	DoResolve (std::string path, Ptr< Object > root)
	Parse the next element in the Config path. More...
void	DoResolveOne (Ptr< Object > object)
	Handle one object found on the path. More...
std::string	GetResolvedPath (void) const
	Get the current Config path. More...

Private Attributes
std::string	m_path
	The Config path. More...
std::vector< std::string >	m_workStack
	Current list of path tokens. More...

Detailed Description

Abstract class to parse Config paths into object references.

Definition at line 268 of file config.cc.

Constructor & Destructor Documentation

Resolver()

ns3::Config::Resolver::Resolver

(

std::string

path

)

Construct from a base Config path.

Parameters

[in]

path

The Config path.

Definition at line 334 of file config.cc.

References Canonicalize(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

~Resolver()

ns3::Config::Resolver::~Resolver ( )

virtual

Destructor.

Definition at line 340 of file config.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Canonicalize()

void ns3::Config::Resolver::Canonicalize ( void  )

private

Ensure the Config path starts and ends with a '/'.

Definition at line 345 of file config.cc.

References m_path, and NS_LOG_FUNCTION.

Referenced by Resolver().

Here is the caller graph for this function:

DoArrayResolve()

void ns3::Config::Resolver::DoArrayResolve ( std::string  path, const ObjectPtrContainerValue &  vector  )

private

Parse an index on the Config path.

Parameters

[in]	path	The remaining Config path.
[in,out]	vector	The resulting list of matching objects.

Definition at line 551 of file config.cc.

References ns3::ObjectPtrContainerValue::Begin(), DoResolve(), ns3::ObjectPtrContainerValue::End(), m_workStack, ns3::Config::ArrayMatcher::Matches(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by DoResolve().

Here is the call graph for this function:

Here is the caller graph for this function:

DoOne()

virtual void ns3::Config::Resolver::DoOne ( Ptr< Object >  object, std::string  path  )

privatepure virtual

Handle one found object.

Parameters

[in]	object	The found object.
[in]	path	The matching Config path context.

Referenced by DoResolveOne().

Here is the caller graph for this function:

DoResolve()

void ns3::Config::Resolver::DoResolve ( std::string  path, Ptr< Object >  root  )

private

Parse the next element in the Config path.

Parameters

[in]	path	The remaining portion of the Config path.
[in]	root	The object corresponding to the current position in the Config path.

Definition at line 395 of file config.cc.

References DoArrayResolve(), DoResolveOne(), ns3::PointerValue::Get(), ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::Object::GetObject(), ns3::TypeId::GetParent(), GetResolvedPath(), ns3::TypeId::LookupByName(), m_workStack, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::PeekPointer().

Referenced by DoArrayResolve(), and Resolve().

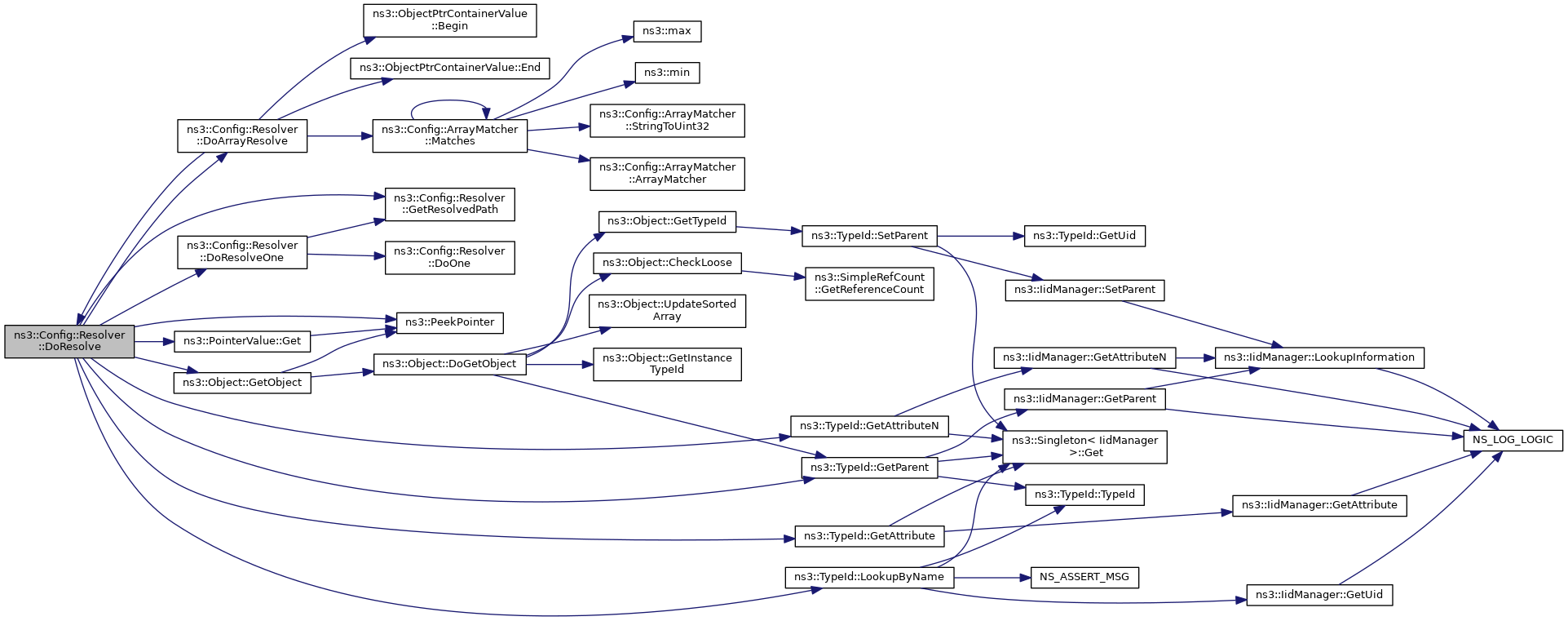

Here is the call graph for this function:

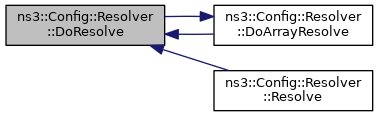

Here is the caller graph for this function:

DoResolveOne()

void ns3::Config::Resolver::DoResolveOne ( Ptr< Object >  object )

private

Handle one object found on the path.

Parameters

[in]

object

The current object on the Config path.

Definition at line 386 of file config.cc.

References DoOne(), GetResolvedPath(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoResolve().

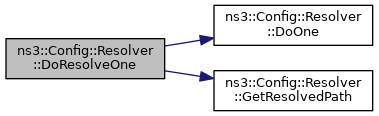

Here is the call graph for this function:

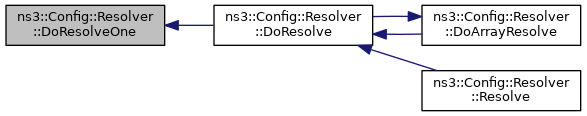

Here is the caller graph for this function:

GetResolvedPath()

std::string ns3::Config::Resolver::GetResolvedPath ( void  ) const

private

Get the current Config path.

Returns

The current Config path.

Definition at line 373 of file config.cc.

References m_workStack, and NS_LOG_FUNCTION.

Referenced by DoResolve(), and DoResolveOne().

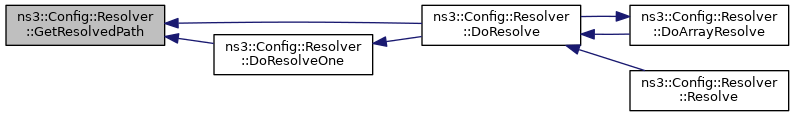

Here is the caller graph for this function:

Resolve()

void ns3::Config::Resolver::Resolve

(

Ptr< Object >

root

)

Parse the stored Config path into an object reference, beginning at the indicated root object.

Parameters

[in]

root

The object corresponding to the current position in in the Config path.

Definition at line 365 of file config.cc.

References DoResolve(), m_path, and NS_LOG_FUNCTION.

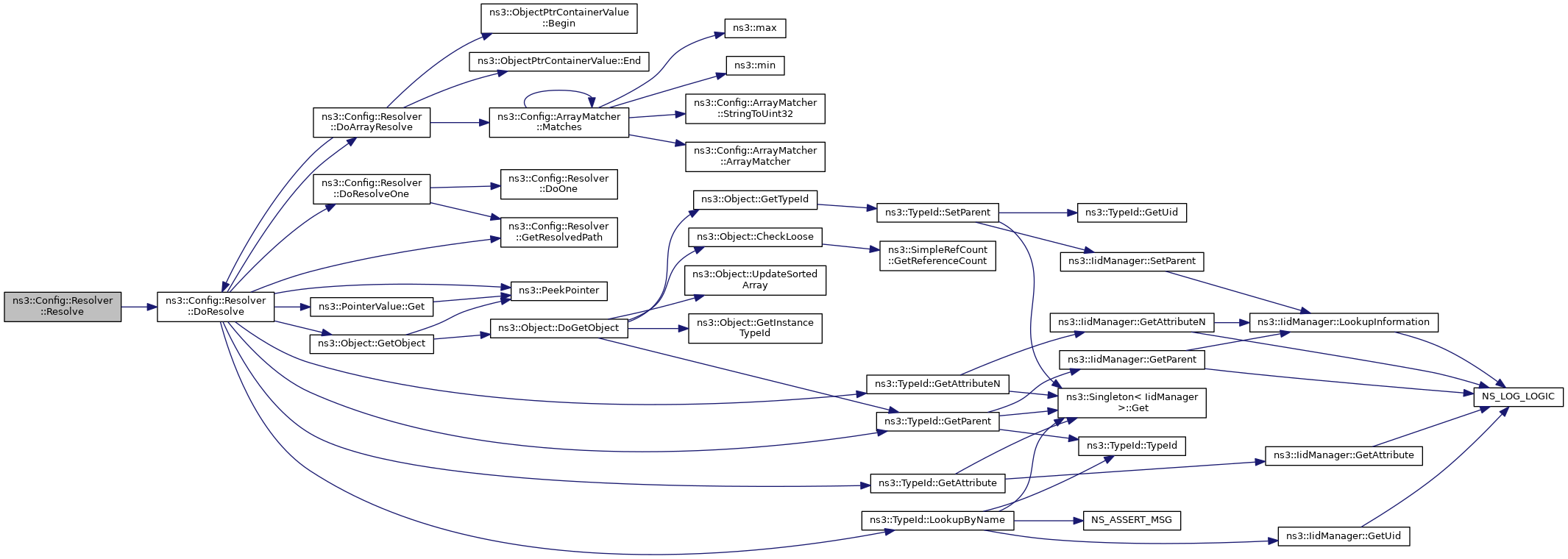

Here is the call graph for this function:

Member Data Documentation

m_path

std::string ns3::Config::Resolver::m_path

private

The Config path.

Definition at line 330 of file config.cc.

Referenced by Canonicalize(), and Resolve().

m_workStack

std::vector<std::string> ns3::Config::Resolver::m_workStack

private

Current list of path tokens.

Definition at line 328 of file config.cc.

Referenced by DoArrayResolve(), DoResolve(), and GetResolvedPath().

---

The documentation for this class was generated from the following file:

• src/core/model/config.cc
