ns3::DlMap Class Reference

This class implements DL-MAP as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.1 Compressed DL-MAP, page 402. More...

#include "dl-mac-messages.h"

+ Inheritance diagram for ns3::DlMap:

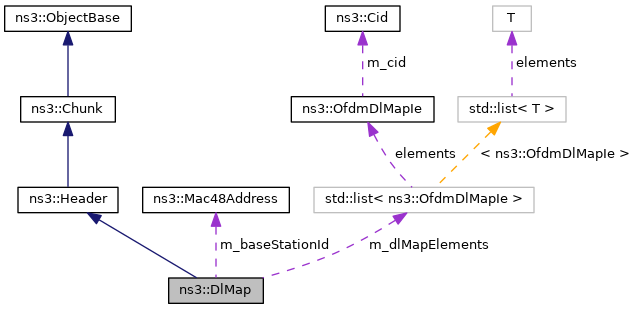

+ Collaboration diagram for ns3::DlMap:

Public Member Functions

 DlMap (void)

virtual ~DlMap (void)

void AddDlMapElement (OfdmDlMapIe dlMapElement)
 Add DL Map element field. More...

uint32_t Deserialize (Buffer::Iterator start)

Mac48Address GetBaseStationId (void) const
 Get base station ID field. More...

uint8_t GetDcdCount (void) const
 Get DCD count field. More...

std::list< OfdmDlMapIeGetDlMapElements (void) const
 Get DL Map elements field. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

std::string GetName (void) const
 Get name field. More...

uint32_t GetSerializedSize (void) const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetBaseStationId (Mac48Address baseStationID)
 Set base station ID field. More...

void SetDcdCount (uint8_t dcdCount)
 Set DCD count field. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Mac48Address m_baseStationId
 base station ID More...

uint8_t m_dcdCount
 DCD count. More...

std::list< OfdmDlMapIem_dlMapElements
 DL Map elements. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This class implements DL-MAP as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.1 Compressed DL-MAP, page 402.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 541 of file dl-mac-messages.h.

Constructor & Destructor Documentation

◆ DlMap()

ns3::DlMap::DlMap ( void  )

Definition at line 550 of file dl-mac-messages.cc.

◆ ~DlMap()

ns3::DlMap::~DlMap ( void  )
virtual

Definition at line 556 of file dl-mac-messages.cc.

Member Function Documentation

◆ AddDlMapElement()

void ns3::DlMap::AddDlMapElement ( OfdmDlMapIe  dlMapElement)

Add DL Map element field.

Parameters
dlMapElementthe DL map element

Definition at line 573 of file dl-mac-messages.cc.

References m_dlMapElements.

Referenced by ns3::BaseStationNetDevice::CreateDlMap(), and Deserialize().

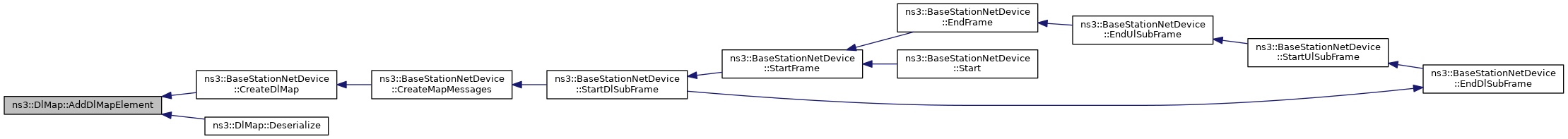

+ Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::DlMap::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 658 of file dl-mac-messages.cc.

References AddDlMapElement(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::OfdmDlMapIe::GetDiuc(), m_baseStationId, m_dcdCount, m_dlMapElements, ns3::OfdmDlMapIe::Read(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

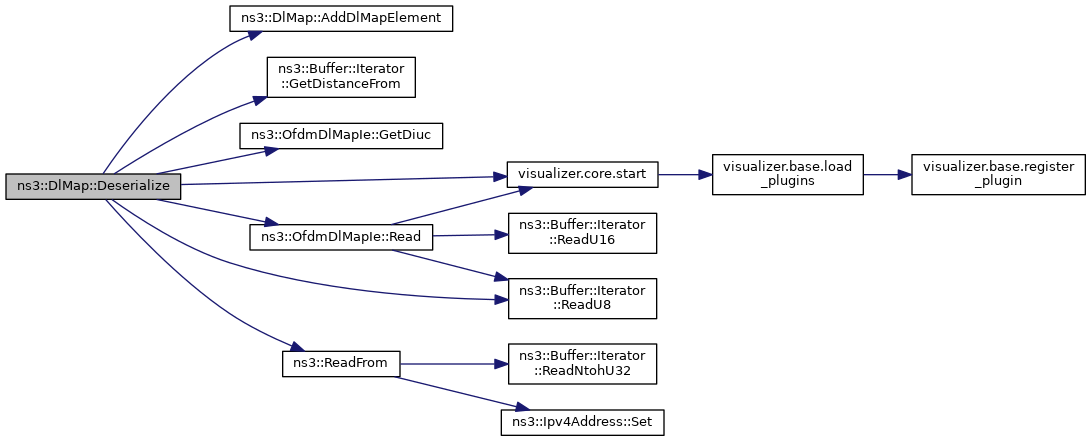

+ Here is the call graph for this function:

◆ GetBaseStationId()

Mac48Address ns3::DlMap::GetBaseStationId ( void  ) const

Get base station ID field.

Returns
the MAC address

Definition at line 585 of file dl-mac-messages.cc.

References m_baseStationId.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

+ Here is the caller graph for this function:

◆ GetDcdCount()

uint8_t ns3::DlMap::GetDcdCount ( void  ) const

Get DCD count field.

Returns
the DCD count

Definition at line 579 of file dl-mac-messages.cc.

References m_dcdCount.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

+ Here is the caller graph for this function:

◆ GetDlMapElements()

std::list< OfdmDlMapIe > ns3::DlMap::GetDlMapElements ( void  ) const

Get DL Map elements field.

Returns
the DL map elements

Definition at line 591 of file dl-mac-messages.cc.

References m_dlMapElements.

Referenced by ns3::SubscriberStationNetDevice::ProcessDlMap().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::DlMap::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 614 of file dl-mac-messages.cc.

References GetTypeId().

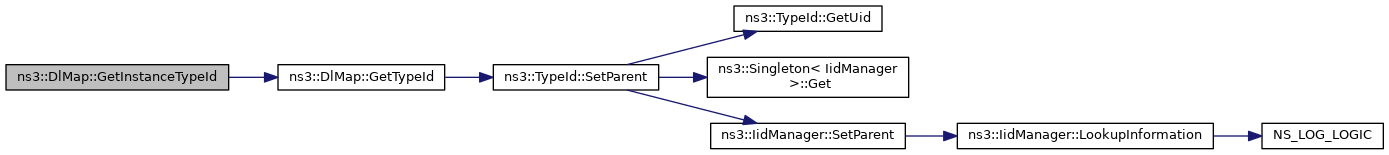

+ Here is the call graph for this function:

◆ GetName()

std::string ns3::DlMap::GetName ( void  ) const

Get name field.

Returns
the name string

Definition at line 597 of file dl-mac-messages.cc.

◆ GetSerializedSize()

uint32_t ns3::DlMap::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 628 of file dl-mac-messages.cc.

References ns3::OfdmDlMapIe::GetSize(), and m_dlMapElements.

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::DlMap::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 603 of file dl-mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

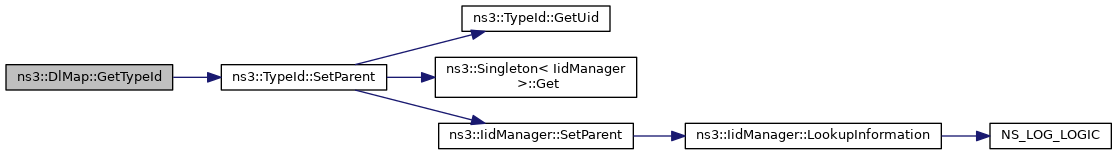

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::DlMap::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 620 of file dl-mac-messages.cc.

References m_baseStationId, m_dcdCount, and m_dlMapElements.

◆ Serialize()

void ns3::DlMap::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 643 of file dl-mac-messages.cc.

References m_baseStationId, m_dcdCount, m_dlMapElements, visualizer.core::start(), ns3::OfdmDlMapIe::Write(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

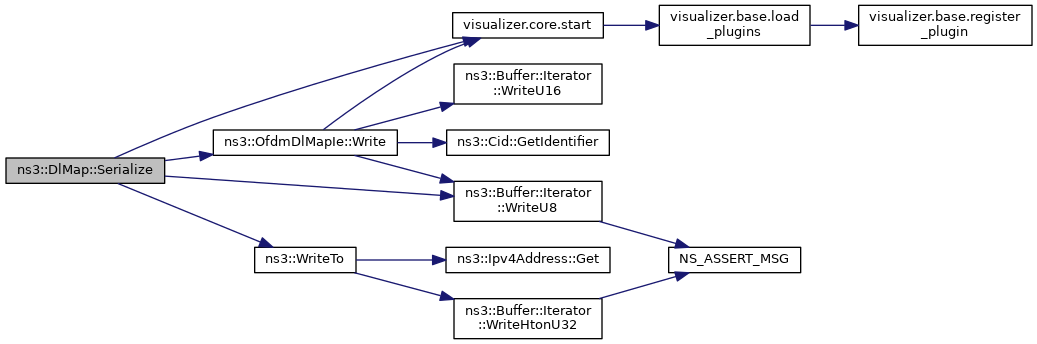

+ Here is the call graph for this function:

◆ SetBaseStationId()

void ns3::DlMap::SetBaseStationId ( Mac48Address  baseStationID)

Set base station ID field.

Parameters
baseStationIDthe base station ID

Definition at line 567 of file dl-mac-messages.cc.

References m_baseStationId.

Referenced by ns3::BaseStationNetDevice::CreateDlMap().

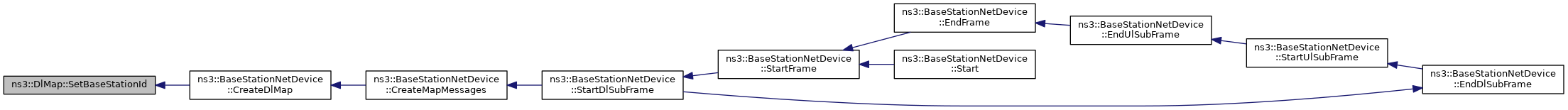

+ Here is the caller graph for this function:

◆ SetDcdCount()

void ns3::DlMap::SetDcdCount ( uint8_t  dcdCount)

Set DCD count field.

Parameters
dcdCountthe DCD count

Definition at line 561 of file dl-mac-messages.cc.

References m_dcdCount.

Referenced by ns3::BaseStationNetDevice::CreateDlMap().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_baseStationId

Mac48Address ns3::DlMap::m_baseStationId
private

base station ID

Definition at line 596 of file dl-mac-messages.h.

Referenced by Deserialize(), GetBaseStationId(), Print(), Serialize(), and SetBaseStationId().

◆ m_dcdCount

uint8_t ns3::DlMap::m_dcdCount
private

DCD count.

Definition at line 595 of file dl-mac-messages.h.

Referenced by Deserialize(), GetDcdCount(), Print(), Serialize(), and SetDcdCount().

◆ m_dlMapElements

std::list<OfdmDlMapIe> ns3::DlMap::m_dlMapElements
private

DL Map elements.

Definition at line 597 of file dl-mac-messages.h.

Referenced by AddDlMapElement(), Deserialize(), GetDlMapElements(), GetSerializedSize(), Print(), and Serialize().
