Implements the IEEE 802.11 DSSS SIG PHY header. More...

#include "wifi-phy-header.h"

Inheritance diagram for ns3::DsssSigHeader:

Collaboration diagram for ns3::DsssSigHeader:

Public Member Functions
	DsssSigHeader ()

virtual	~DsssSigHeader ()

uint32_t	Deserialize (Buffer::Iterator start)

TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint16_t	GetLength (void) const
	Return the LENGTH field of L-SIG (in bytes). More...

uint64_t	GetRate (void) const
	Return the RATE field of L-SIG (in bit/s). More...

uint32_t	GetSerializedSize (void) const

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetLength (uint16_t length)
	Fill the LENGTH field of L-SIG (in bytes). More...

void	SetRate (uint64_t rate)
	Fill the RATE field of L-SIG (in bit/s). More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_length
	LENGTH field. More...

uint8_t	m_rate
	RATE field. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implements the IEEE 802.11 DSSS SIG PHY header.

Introspection did not find any typical Config paths.

See section 16.2.2 in IEEE 802.11-2016.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 34 of file wifi-phy-header.h.

Constructor & Destructor Documentation

◆ DsssSigHeader()

ns3::DsssSigHeader::DsssSigHeader ( )

Definition at line 27 of file wifi-phy-header.cc.

◆ ~DsssSigHeader()

ns3::DsssSigHeader::~DsssSigHeader ( )

virtual

Definition at line 33 of file wifi-phy-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::DsssSigHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 143 of file wifi-phy-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_length, m_rate, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

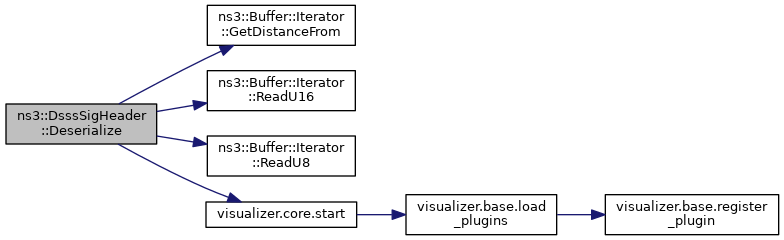

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::DsssSigHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 49 of file wifi-phy-header.cc.

References GetTypeId().

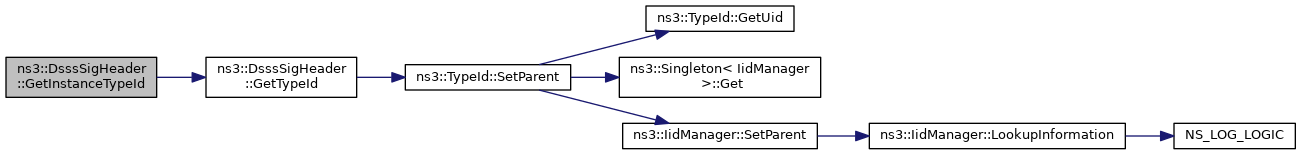

Here is the call graph for this function:

◆ GetLength()

uint16_t ns3::DsssSigHeader::GetLength ( void ) const

Return the LENGTH field of L-SIG (in bytes).

Returns: the LENGTH field of L-SIG expressed in bytes

Definition at line 128 of file wifi-phy-header.cc.

References m_length.

◆ GetRate()

uint64_t ns3::DsssSigHeader::GetRate ( void ) const

Return the RATE field of L-SIG (in bit/s).

Returns: the RATE field of L-SIG expressed in bit/s

Definition at line 97 of file wifi-phy-header.cc.

References m_rate, and NS_ASSERT_MSG().

Referenced by Print(), and ns3::WifiPhy::StartReceivePreamble().

Here is the call graph for this function:

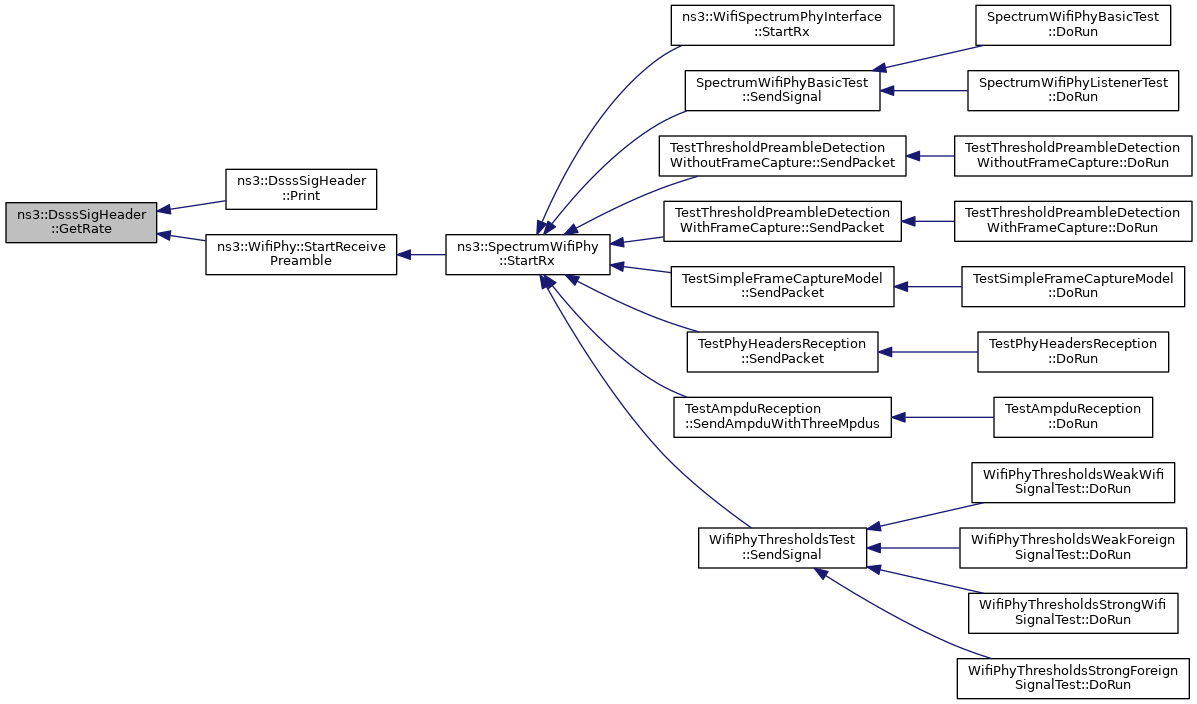

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::DsssSigHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 62 of file wifi-phy-header.cc.

◆ GetTypeId()

TypeId ns3::DsssSigHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file wifi-phy-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

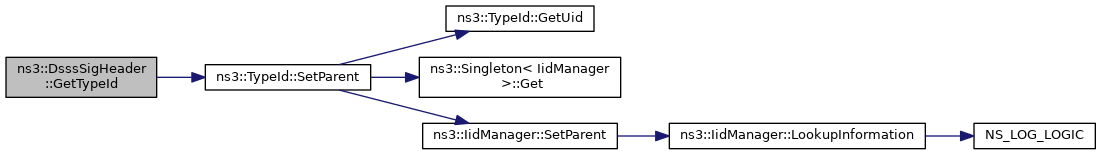

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::DsssSigHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 55 of file wifi-phy-header.cc.

References GetRate(), and m_length.

Here is the call graph for this function:

◆ Serialize()

void ns3::DsssSigHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 134 of file wifi-phy-header.cc.

References m_length, m_rate, and visualizer.core::start().

Here is the call graph for this function:
