ns3::Event Class Reference

handles interference calculations More...

#include "interference-helper.h"

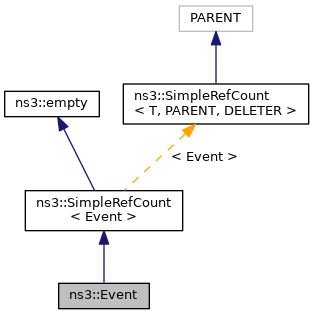

Inheritance diagram for ns3::Event:

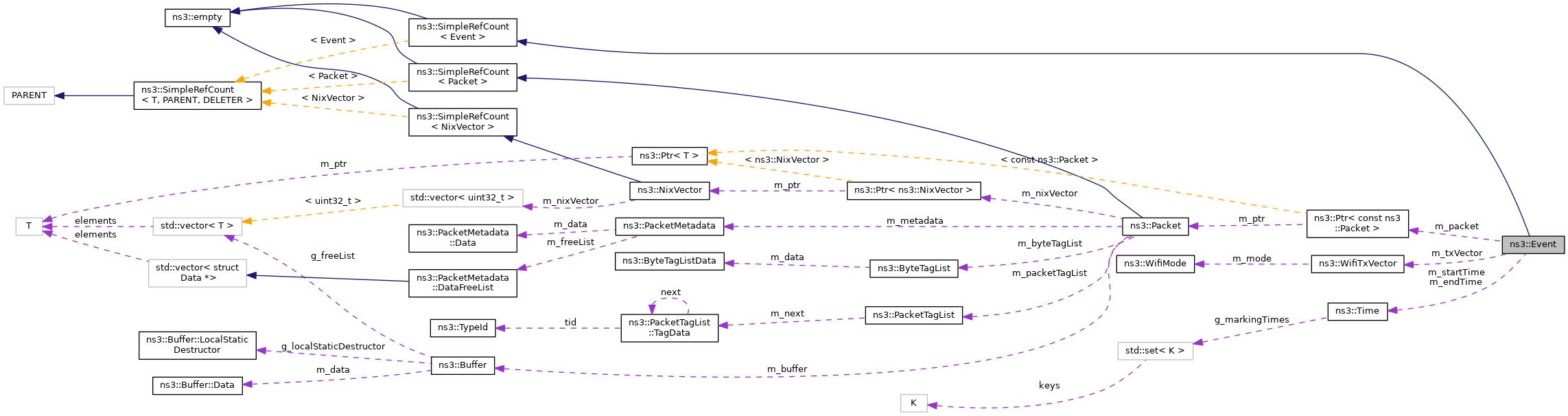

Collaboration diagram for ns3::Event:

Public Member Functions
	Event (Ptr< const Packet > packet, WifiTxVector txVector, Time duration, double rxPower)
	Create an Event with the given parameters. More...
	~Event ()
Time	GetEndTime (void) const
	Return the end time of the signal. More...
Ptr< const Packet >	GetPacket (void) const
	Return the packet. More...
WifiMode	GetPayloadMode (void) const
	Return the Wi-Fi mode used for the payload. More...
double	GetRxPowerW (void) const
	Return the receive power (w). More...
Time	GetStartTime (void) const
	Return the start time of the signal. More...
WifiTxVector	GetTxVector (void) const
	Return the TXVECTOR of the packet. More...
Public Member Functions inherited from ns3::SimpleRefCount< Event >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Time	m_endTime
	end time More...
Ptr< const Packet >	m_packet
	packet More...
double	m_rxPowerW
	receive power in watts More...
Time	m_startTime
	start time More...
WifiTxVector	m_txVector
	TXVECTOR. More...

Detailed Description

handles interference calculations

signal event for a packet.

Definition at line 38 of file interference-helper.h.

Constructor & Destructor Documentation

Event()

ns3::Event::Event	(	Ptr< const Packet >	packet,
		WifiTxVector	txVector,
		Time	duration,
		double	rxPower
	)

Create an Event with the given parameters.

Parameters

packet	the packet
txVector	TXVECTOR of the packet
duration	duration of the signal
rxPower	the receive power (w)

Definition at line 38 of file interference-helper.cc.

~Event()

ns3::Event::~Event

(

)

Definition at line 47 of file interference-helper.cc.

Member Function Documentation

GetEndTime()

Time ns3::Event::GetEndTime

(

void

)

const

Return the end time of the signal.

Returns

the end time of the signal

Definition at line 64 of file interference-helper.cc.

References m_endTime.

GetPacket()

Ptr< const Packet > ns3::Event::GetPacket

(

void

)

const

Return the packet.

Returns

the packet

Definition at line 52 of file interference-helper.cc.

References m_packet.

GetPayloadMode()

WifiMode ns3::Event::GetPayloadMode

(

void

)

const

Return the Wi-Fi mode used for the payload.

Returns

the Wi-Fi mode used for the payload

Definition at line 82 of file interference-helper.cc.

References ns3::WifiTxVector::GetMode(), and m_txVector.

Here is the call graph for this function:

GetRxPowerW()

double ns3::Event::GetRxPowerW

(

void

)

const

Return the receive power (w).

Returns

the receive power (w)

Definition at line 70 of file interference-helper.cc.

References m_rxPowerW.

GetStartTime()

Time ns3::Event::GetStartTime

(

void

)

const

Return the start time of the signal.

Returns

the start time of the signal

Definition at line 58 of file interference-helper.cc.

References m_startTime.

GetTxVector()

WifiTxVector ns3::Event::GetTxVector

(

void

)

const

Return the TXVECTOR of the packet.

Returns

the TXVECTOR of the packet

Definition at line 76 of file interference-helper.cc.

References m_txVector.

Member Data Documentation

m_endTime

Time ns3::Event::m_endTime

private

end time

Definition at line 93 of file interference-helper.h.

Referenced by GetEndTime().

m_packet

Ptr<const Packet> ns3::Event::m_packet

private

packet

Definition at line 90 of file interference-helper.h.

Referenced by GetPacket().

m_rxPowerW

double ns3::Event::m_rxPowerW

private

receive power in watts

Definition at line 94 of file interference-helper.h.

Referenced by GetRxPowerW().

m_startTime

Time ns3::Event::m_startTime

private

start time

Definition at line 92 of file interference-helper.h.

Referenced by GetStartTime().

m_txVector

WifiTxVector ns3::Event::m_txVector

private

TXVECTOR.

Definition at line 91 of file interference-helper.h.

Referenced by GetPayloadMode(), and GetTxVector().

---

The documentation for this class was generated from the following files:

• src/wifi/model/interference-helper.h
• src/wifi/model/interference-helper.cc
