ns3::FfMacScheduler Class Referenceabstract

This abstract base class identifies the interface by means of which the helper object can plug on the MAC a scheduler implementation based on the FF MAC Sched API. More...

#include "ff-mac-scheduler.h"

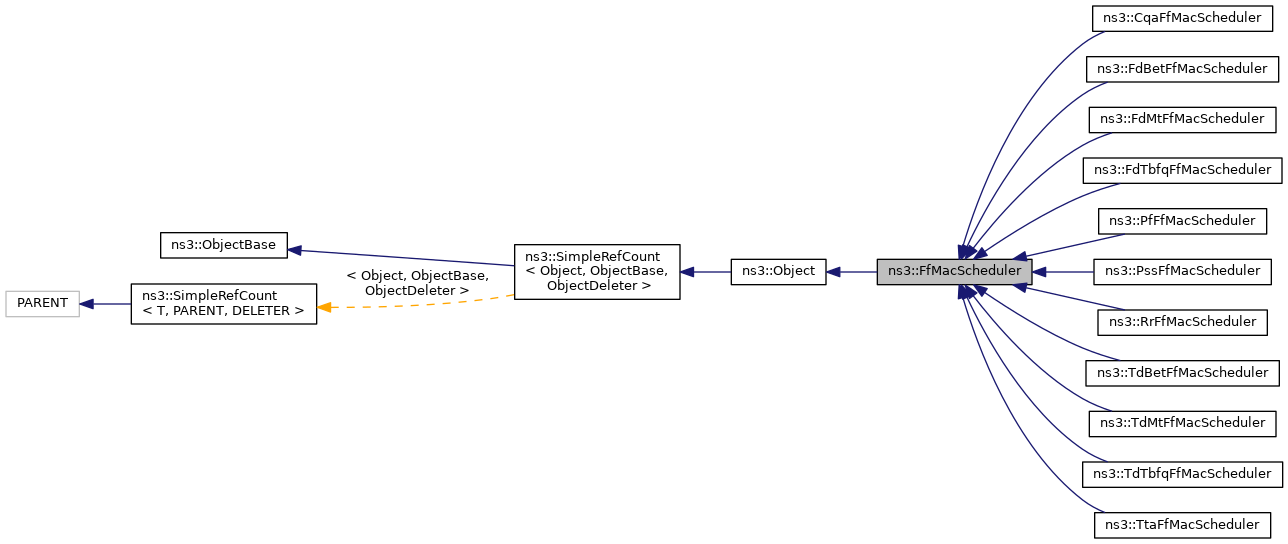

+ Inheritance diagram for ns3::FfMacScheduler:

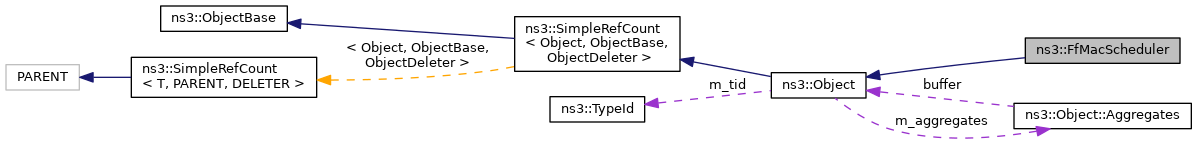

+ Collaboration diagram for ns3::FfMacScheduler:

Public Types

enum  UlCqiFilter_t { SRS_UL_CQI, PUSCH_UL_CQI }
 The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More...


Public Member Functions

 FfMacScheduler ()
 constructor More...

virtual ~FfMacScheduler ()
 destructor More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual FfMacCschedSapProviderGetFfMacCschedSapProvider ()=0

virtual FfMacSchedSapProviderGetFfMacSchedSapProvider ()=0

virtual LteFfrSapUserGetLteFfrSapUser ()=0

virtual void SetFfMacCschedSapUser (FfMacCschedSapUser *s)=0
 set the user part of the FfMacCschedSap that this Scheduler will interact with. More...

virtual void SetFfMacSchedSapUser (FfMacSchedSapUser *s)=0
 set the user part of the FfMacSchedSap that this Scheduler will interact with. More...

virtual void SetLteFfrSapProvider (LteFfrSapProvider *s)=0
 Set the Provider part of the LteFfrSap that this Scheduler will interact with. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Attributes

UlCqiFilter_t m_ulCqiFilter
 UL CQI filter. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This abstract base class identifies the interface by means of which the helper object can plug on the MAC a scheduler implementation based on the FF MAC Sched API.


Config Paths

ns3::FfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]/FfMacScheduler"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]/FfMacScheduler"

Attributes

  • UlCqiFilter: The filter to apply on UL CQIs received
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: SRS_UL_CQI
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 53 of file ff-mac-scheduler.h.

Member Enumeration Documentation

◆ UlCqiFilter_t

The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type)

Enumerator
SRS_UL_CQI
PUSCH_UL_CQI

Definition at line 61 of file ff-mac-scheduler.h.

Constructor & Destructor Documentation

◆ FfMacScheduler()

ns3::FfMacScheduler::FfMacScheduler ( )

constructor

Definition at line 34 of file ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

◆ ~FfMacScheduler()

ns3::FfMacScheduler::~FfMacScheduler ( )
virtual

destructor

Definition at line 41 of file ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::FfMacScheduler::DoDispose ( void  )
virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::FdTbfqFfMacScheduler, ns3::CqaFfMacScheduler, ns3::PssFfMacScheduler, ns3::TdTbfqFfMacScheduler, ns3::FdBetFfMacScheduler, ns3::TdBetFfMacScheduler, ns3::PfFfMacScheduler, ns3::FdMtFfMacScheduler, ns3::TdMtFfMacScheduler, ns3::TtaFfMacScheduler, and ns3::RrFfMacScheduler.

Definition at line 47 of file ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

◆ GetFfMacCschedSapProvider()

◆ GetFfMacSchedSapProvider()

◆ GetLteFfrSapUser()

◆ GetTypeId()

TypeId ns3::FfMacScheduler::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 53 of file ff-mac-scheduler.cc.

References m_ulCqiFilter, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), PUSCH_UL_CQI, ns3::TypeId::SetParent(), and SRS_UL_CQI.

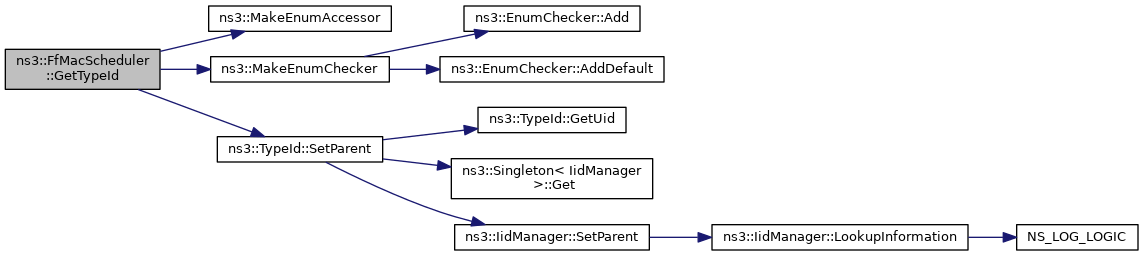

+ Here is the call graph for this function:

◆ SetFfMacCschedSapUser()

virtual void ns3::FfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser s)
pure virtual

set the user part of the FfMacCschedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters
s

Implemented in ns3::FdTbfqFfMacScheduler, ns3::CqaFfMacScheduler, ns3::PssFfMacScheduler, ns3::TdTbfqFfMacScheduler, ns3::FdBetFfMacScheduler, ns3::TdBetFfMacScheduler, ns3::PfFfMacScheduler, ns3::FdMtFfMacScheduler, ns3::TdMtFfMacScheduler, ns3::TtaFfMacScheduler, and ns3::RrFfMacScheduler.

◆ SetFfMacSchedSapUser()

virtual void ns3::FfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser s)
pure virtual

set the user part of the FfMacSchedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters
s

Implemented in ns3::FdTbfqFfMacScheduler, ns3::CqaFfMacScheduler, ns3::PssFfMacScheduler, ns3::TdTbfqFfMacScheduler, ns3::FdBetFfMacScheduler, ns3::TdBetFfMacScheduler, ns3::PfFfMacScheduler, ns3::FdMtFfMacScheduler, ns3::TdMtFfMacScheduler, ns3::TtaFfMacScheduler, and ns3::RrFfMacScheduler.

◆ SetLteFfrSapProvider()

virtual void ns3::FfMacScheduler::SetLteFfrSapProvider ( LteFfrSapProvider s)
pure virtual

Member Data Documentation

◆ m_ulCqiFilter
