HighLatencyRtsTxVectorTag class. More...
#include "tx-vector-tag.h"
Inheritance diagram for ns3::HighLatencyRtsTxVectorTag: Collaboration diagram for ns3::HighLatencyRtsTxVectorTag:Public Member Functions | |
| HighLatencyRtsTxVectorTag () | |
| HighLatencyRtsTxVectorTag (WifiTxVector rtsTxVector) | |
| Constructor. More... | |
| virtual void | Deserialize (TagBuffer i) |
| virtual TypeId | GetInstanceTypeId (void) const |
| Get the most derived TypeId for this Object. More... | |
| WifiTxVector | GetRtsTxVector (void) const |
| virtual uint32_t | GetSerializedSize (void) const |
| virtual void | Print (std::ostream &os) const |
| virtual void | Serialize (TagBuffer i) const |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Tag | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| WifiTxVector | m_rtsTxVector |
| TXVECTOR for data frames. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
HighLatencyRtsTxVectorTag class.
Definition at line 69 of file tx-vector-tag.h.
| ns3::HighLatencyRtsTxVectorTag::HighLatencyRtsTxVectorTag | ( | ) |
Definition at line 85 of file tx-vector-tag.cc.
| ns3::HighLatencyRtsTxVectorTag::HighLatencyRtsTxVectorTag | ( | WifiTxVector | rtsTxVector | ) |
Constructor.
| rtsTxVector | TXVECTOR for RTS frames |
Definition at line 89 of file tx-vector-tag.cc.
|
virtual |
| i | the buffer to read data from. |
Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.
Implements ns3::Tag.
Definition at line 130 of file tx-vector-tag.cc.
References m_rtsTxVector, and ns3::TagBuffer::Read().
Here is the call graph for this function:
|
virtual |
Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 112 of file tx-vector-tag.cc.
References GetTypeId().

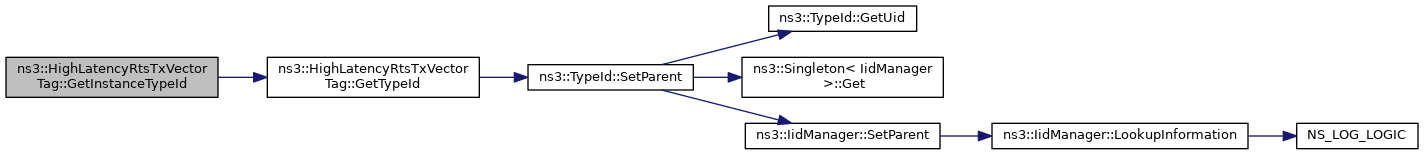

Here is the call graph for this function:| WifiTxVector ns3::HighLatencyRtsTxVectorTag::GetRtsTxVector | ( | void | ) | const |
Definition at line 95 of file tx-vector-tag.cc.
References m_rtsTxVector.
Referenced by ns3::WifiRemoteStationManager::GetRtsTxVector().

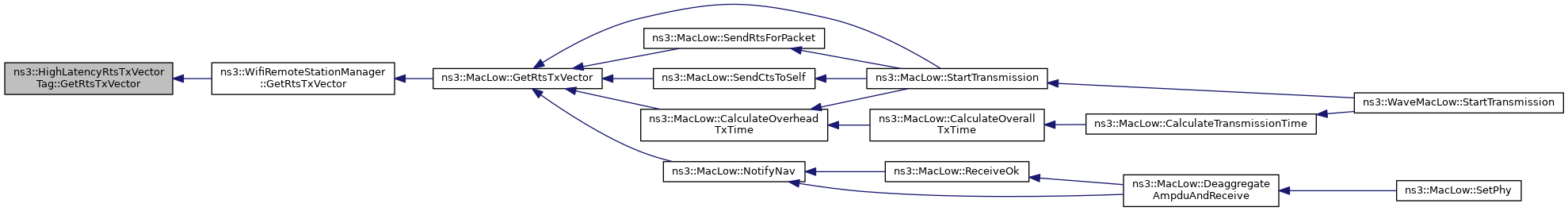

Here is the caller graph for this function:
|
virtual |
This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.
Implements ns3::Tag.
Definition at line 118 of file tx-vector-tag.cc.
|
static |
Get the type ID.
Definition at line 101 of file tx-vector-tag.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().

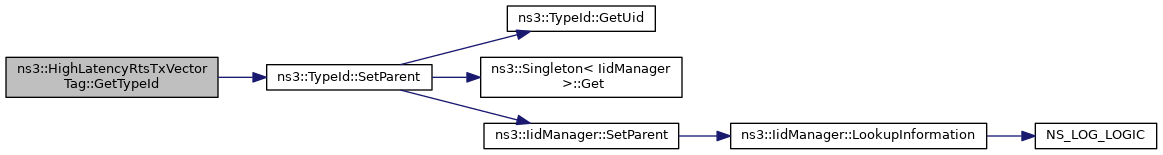

Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
| os | the stream to print to |
This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.
Implements ns3::Tag.
Definition at line 136 of file tx-vector-tag.cc.
References m_rtsTxVector.
|
virtual |
| i | the buffer to write data into. |
Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.
Implements ns3::Tag.
Definition at line 124 of file tx-vector-tag.cc.
References m_rtsTxVector, and ns3::TagBuffer::Write().
Here is the call graph for this function:
|
private |
TXVECTOR for data frames.
Definition at line 97 of file tx-vector-tag.h.
Referenced by Deserialize(), GetRtsTxVector(), Print(), and Serialize().
