ns3::Ipv4Mask Class Reference

a class to represent an Ipv4 address mask More...

#include "ipv4-address.h"

Public Member Functions
	Ipv4Mask ()
	Will initialize to a garbage value (0x66666666) More...
	Ipv4Mask (uint32_t mask)
	Ipv4Mask (char const *mask)
uint32_t	Get (void) const
	Get the host-order 32-bit IP mask. More...
uint32_t	GetInverse (void) const
	Return the inverse mask in host order. More...
uint16_t	GetPrefixLength (void) const
bool	IsEqual (Ipv4Mask other) const
bool	IsMatch (Ipv4Address a, Ipv4Address b) const
void	Print (std::ostream &os) const
	Print this mask to the given output stream. More...
void	Set (uint32_t mask)
	input mask is in host order. More...

Static Public Member Functions
static Ipv4Mask	GetLoopback (void)
static Ipv4Mask	GetOnes (void)
static Ipv4Mask	GetZero (void)

Private Attributes
uint32_t	m_mask
	IP mask. More...

Detailed Description

a class to represent an Ipv4 address mask

The constructor takes arguments according to a few formats. Ipv4Mask ("255.255.255.255"), Ipv4Mask ("/32"), and Ipv4Mask (0xffffffff) are all equivalent.

See also

Ipv4Mask Attribute

Definition at line 258 of file ipv4-address.h.

Constructor & Destructor Documentation

Ipv4Mask() [1/3]

ns3::Ipv4Mask::Ipv4Mask

(

)

Will initialize to a garbage value (0x66666666)

Definition at line 78 of file ipv4-address.cc.

References NS_LOG_FUNCTION.

Referenced by GetLoopback(), GetOnes(), and GetZero().

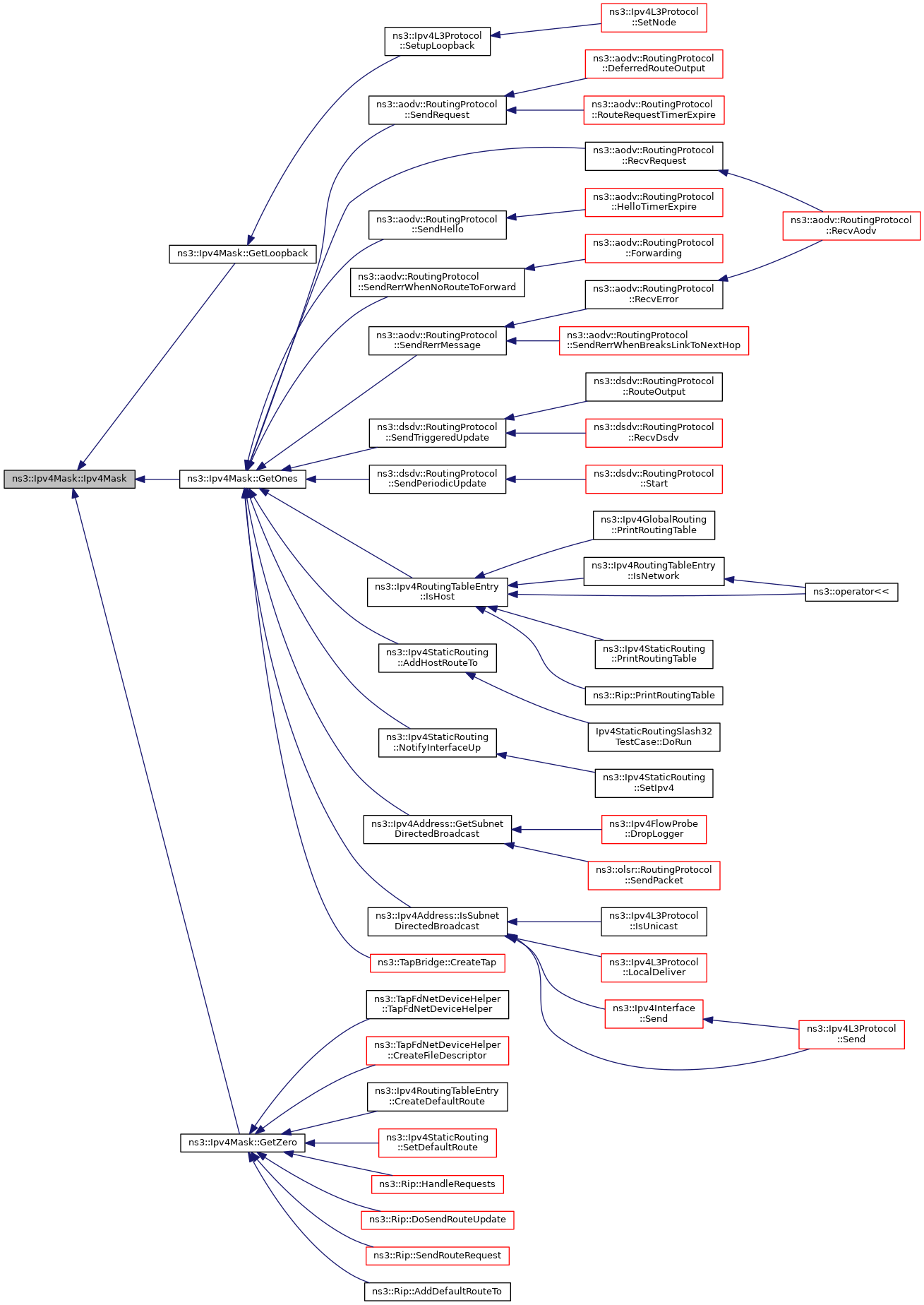

Here is the caller graph for this function:

Ipv4Mask() [2/3]

ns3::Ipv4Mask::Ipv4Mask

(

uint32_t

mask

)

Parameters

mask	bitwise integer representation of the mask

For example, the integer input 0xffffff00 yields a 24-bit mask

Definition at line 84 of file ipv4-address.cc.

References NS_LOG_FUNCTION.

Ipv4Mask() [3/3]

ns3::Ipv4Mask::Ipv4Mask

(

char const *

mask

)

Parameters

mask	String constant either in "255.255.255.0" or "/24" format

Definition at line 90 of file ipv4-address.cc.

References ASCII_SLASH, ns3::AsciiToIpv4Host(), m_mask, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

Get()

uint32_t ns3::Ipv4Mask::Get

(

void

)

const

Get the host-order 32-bit IP mask.

Returns

the host-order 32-bit IP mask

Definition at line 135 of file ipv4-address.cc.

References m_mask, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4Address::CombineMask(), ns3::Ipv4AddressGeneratorImpl::Init(), ns3::Ipv4InterfaceAddress::Ipv4InterfaceAddress(), ns3::GlobalRouter::ProcessBridgedBroadcastLink(), ns3::GlobalRouter::ProcessPointToPointLink(), ns3::GlobalRouter::ProcessSingleBroadcastLink(), ns3::DhcpServer::SendOffer(), ns3::RipRte::Serialize(), and ns3::Ipv4AddressHelper::SetBase().

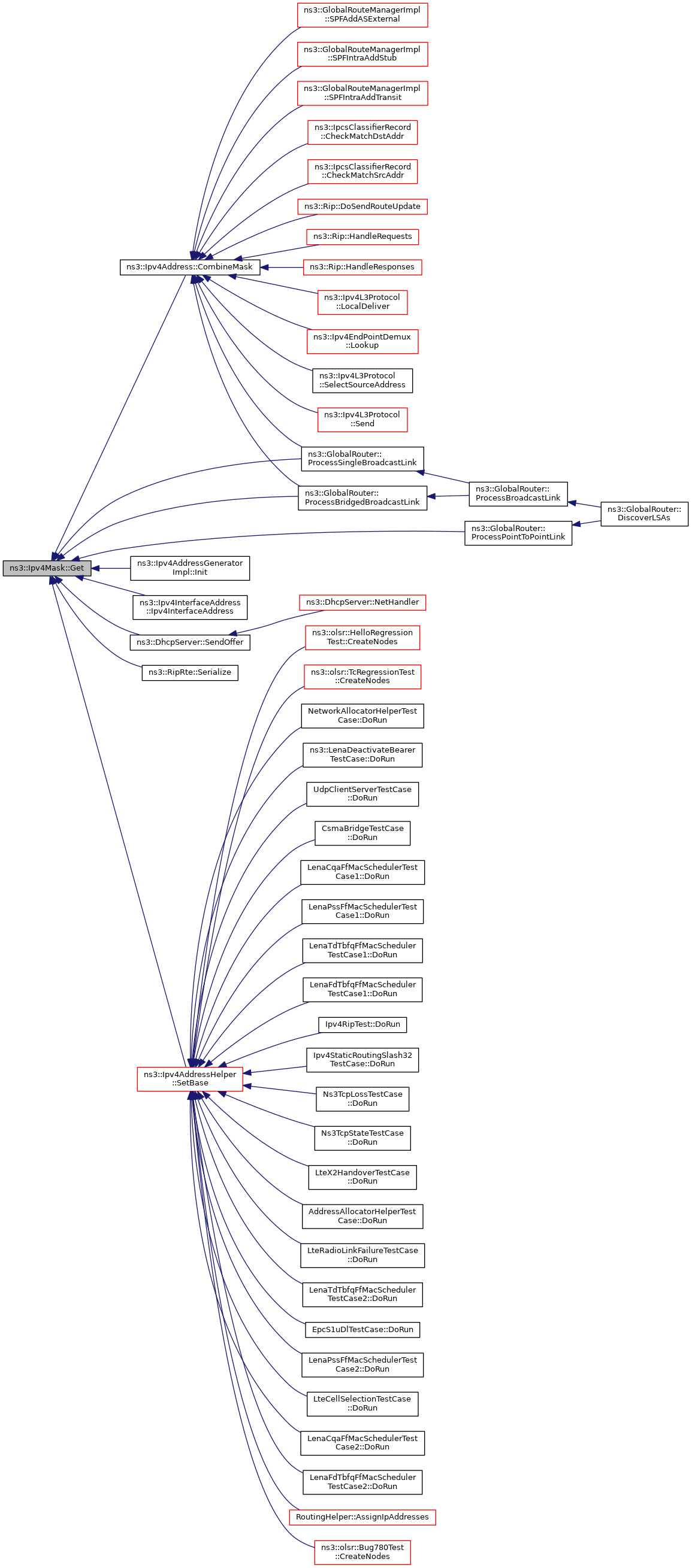

Here is the caller graph for this function:

GetInverse()

uint32_t ns3::Ipv4Mask::GetInverse

(

void

)

const

Return the inverse mask in host order.

Returns

The inverse mask

Definition at line 147 of file ipv4-address.cc.

References m_mask, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4Address::GetSubnetDirectedBroadcast(), and ns3::Ipv4Address::IsSubnetDirectedBroadcast().

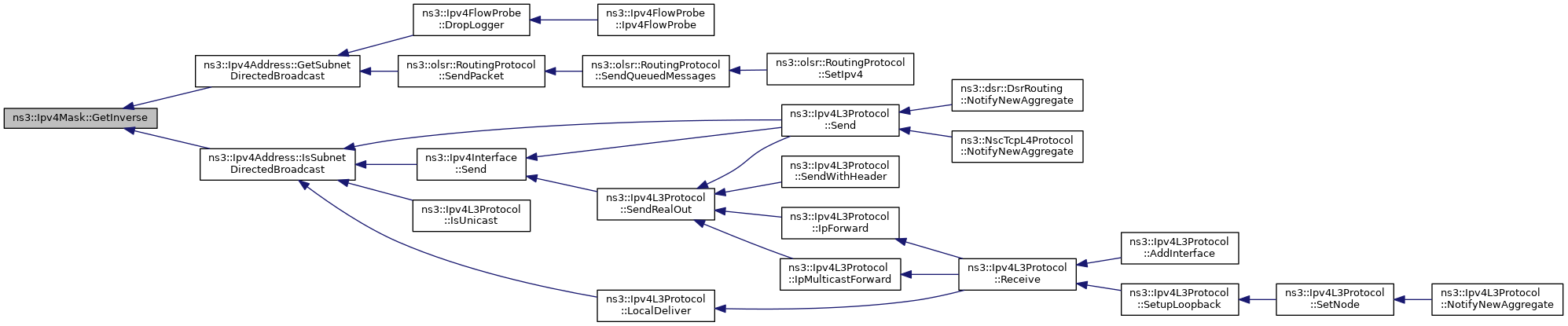

Here is the caller graph for this function:

GetLoopback()

Ipv4Mask ns3::Ipv4Mask::GetLoopback ( void  )

static

Returns

the 255.0.0.0 mask corresponding to a typical loopback address

Definition at line 165 of file ipv4-address.cc.

References Ipv4Mask(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4L3Protocol::SetupLoopback().

Here is the call graph for this function:

Here is the caller graph for this function:

GetOnes()

Ipv4Mask ns3::Ipv4Mask::GetOnes ( void  )

static

Returns

the 255.255.255.255 mask

Definition at line 179 of file ipv4-address.cc.

References Ipv4Mask(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4StaticRouting::AddHostRouteTo(), ns3::TapBridge::CreateTap(), ns3::Ipv4Address::GetSubnetDirectedBroadcast(), ns3::Ipv4RoutingTableEntry::IsHost(), ns3::Ipv4Address::IsSubnetDirectedBroadcast(), ns3::Ipv4StaticRouting::NotifyInterfaceUp(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::SendHello(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), ns3::aodv::RoutingProtocol::SendRequest(), ns3::aodv::RoutingProtocol::SendRerrMessage(), ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

Here is the call graph for this function:

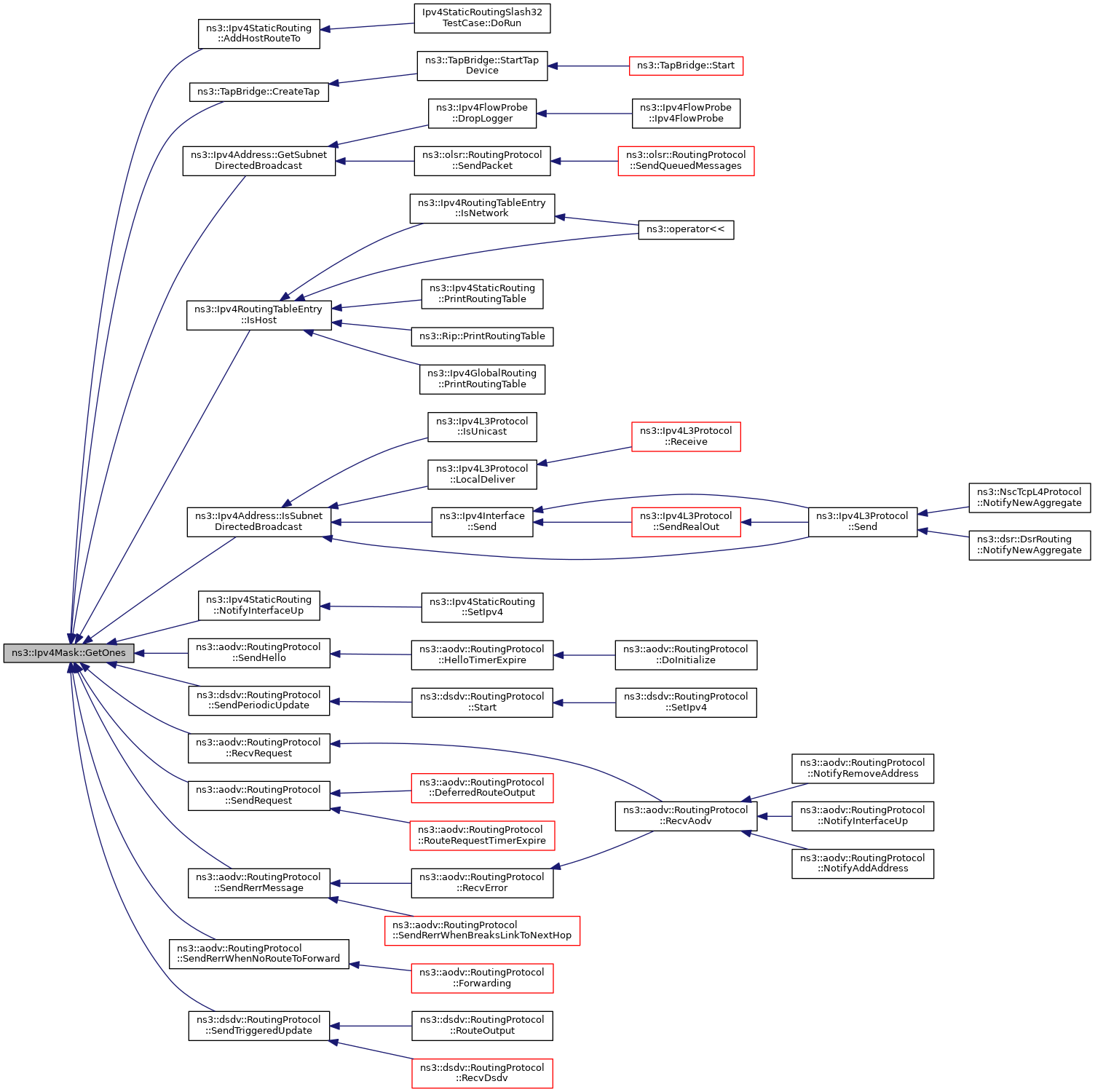

Here is the caller graph for this function:

GetPrefixLength()

uint16_t ns3::Ipv4Mask::GetPrefixLength

(

void

)

const

Returns

the prefix length of mask (the yy in x.x.x.x/yy notation)

Definition at line 187 of file ipv4-address.cc.

References m_mask, and NS_LOG_FUNCTION.

Referenced by ns3::PlanetLabFdNetDeviceHelper::CreateFileDescriptor(), ns3::Ipv4StaticRouting::GetDefaultRoute(), ns3::Ipv4EndPointDemux::Lookup(), ns3::Rip::Lookup(), ns3::Ipv4StaticRouting::LookupStatic(), and ns3::RipRte::Print().

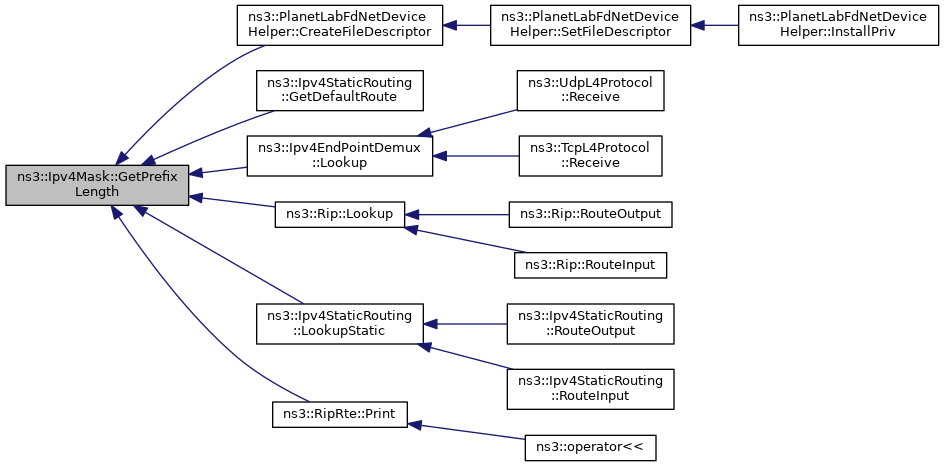

Here is the caller graph for this function:

GetZero()

Ipv4Mask ns3::Ipv4Mask::GetZero ( void  )

static

Returns

the 0.0.0.0 mask

Definition at line 172 of file ipv4-address.cc.

References Ipv4Mask(), NS_LOG_FUNCTION_NOARGS, and zero.

Referenced by ns3::Rip::AddDefaultRouteTo(), ns3::Ipv4RoutingTableEntry::CreateDefaultRoute(), ns3::TapFdNetDeviceHelper::CreateFileDescriptor(), ns3::Rip::DoSendRouteUpdate(), ns3::Rip::HandleRequests(), ns3::Rip::SendRouteRequest(), ns3::Ipv4StaticRouting::SetDefaultRoute(), and ns3::TapFdNetDeviceHelper::TapFdNetDeviceHelper().

Here is the call graph for this function:

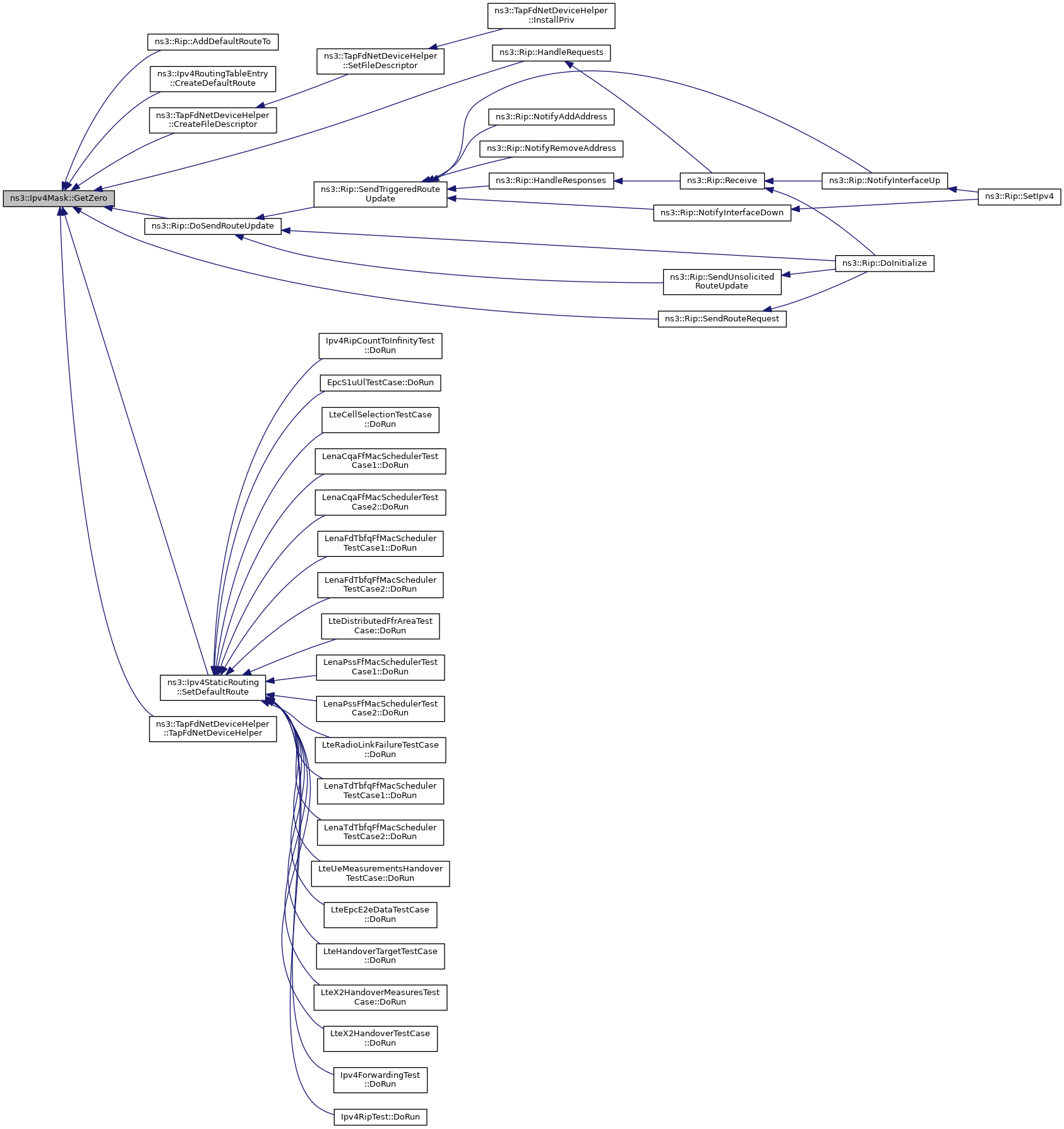

Here is the caller graph for this function:

IsEqual()

bool ns3::Ipv4Mask::IsEqual

(

Ipv4Mask

other

)

const

Parameters

other

a mask to compare

Returns

true if the mask equals the mask passed as input parameter

Definition at line 113 of file ipv4-address.cc.

References m_mask, and NS_LOG_FUNCTION.

Referenced by ns3::TapBridge::CreateTap(), ns3::Ipv4RoutingTableEntry::IsHost(), ns3::operator!=(), and ns3::operator==().

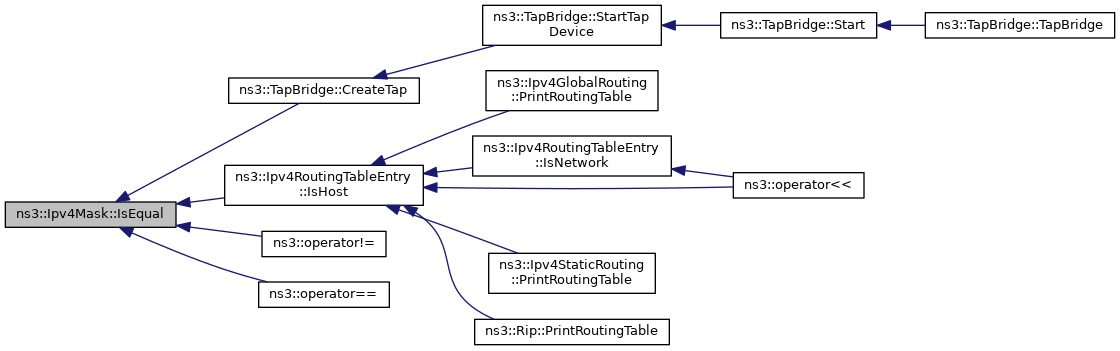

Here is the caller graph for this function:

IsMatch()

bool ns3::Ipv4Mask::IsMatch	(	Ipv4Address	a,
		Ipv4Address	b
	)		const

Parameters

a	first address to compare
b	second address to compare

Returns

true if both addresses are equal in their masked bits, corresponding to this mask

Definition at line 124 of file ipv4-address.cc.

References ns3::Ipv4Address::Get(), m_mask, and NS_LOG_FUNCTION.

Referenced by ns3::Rip::Lookup(), ns3::Ipv4GlobalRouting::LookupGlobal(), and ns3::Ipv4StaticRouting::LookupStatic().

Here is the call graph for this function:

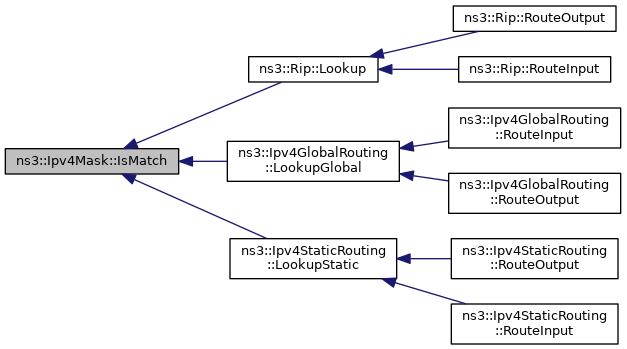

Here is the caller graph for this function:

Print()

void ns3::Ipv4Mask::Print

(

std::ostream &

os

)

const

Print this mask to the given output stream.

The print format is in the typical "255.255.255.0"

Parameters

os	The output stream to which this Ipv4Address is printed

Definition at line 154 of file ipv4-address.cc.

References m_mask, and NS_LOG_FUNCTION.

Referenced by ns3::NscTcpL4Protocol::AddInterface(), and ns3::operator<<().

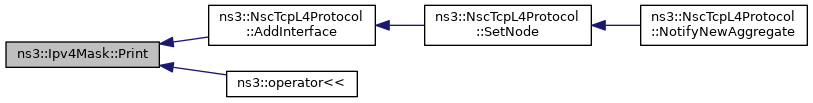

Here is the caller graph for this function:

Set()

void ns3::Ipv4Mask::Set

(

uint32_t

mask

)

input mask is in host order.

Parameters

mask	The host order 32-bit mask

Definition at line 141 of file ipv4-address.cc.

References m_mask, and NS_LOG_FUNCTION.

Referenced by ns3::RipRte::Deserialize(), and EpcTftClassifierTestSuite::EpcTftClassifierTestSuite().

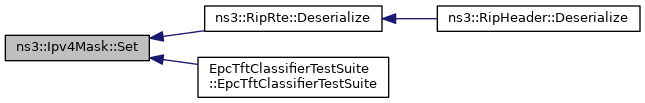

Here is the caller graph for this function:

Member Data Documentation

m_mask

uint32_t ns3::Ipv4Mask::m_mask

private

IP mask.

Definition at line 326 of file ipv4-address.h.

Referenced by Get(), GetInverse(), GetPrefixLength(), Ipv4Mask(), IsEqual(), IsMatch(), Print(), and Set().

---

The documentation for this class was generated from the following files:

• src/network/utils/ipv4-address.h
• src/network/utils/ipv4-address.cc
