ns3::LteFfrRrcSapUser Class Referenceabstract

Service Access Point (SAP) offered by the eNodeB RRC instance to the Frequency Reuse algorithm instance. More...

#include "lte-ffr-rrc-sap.h"

+ Inheritance diagram for ns3::LteFfrRrcSapUser:

Public Member Functions

virtual ~LteFfrRrcSapUser ()

virtual uint8_t AddUeMeasReportConfigForFfr (LteRrcSap::ReportConfigEutra reportConfig)=0
 Request a certain reporting configuration to be fulfilled by the UEs attached to the eNodeB entity. More...

virtual void SendLoadInformation (EpcX2Sap::LoadInformationParams params)=0
 SendLoadInformation. More...

virtual void SetPdschConfigDedicated (uint16_t rnti, LteRrcSap::PdschConfigDedicated pdschConfigDedicated)=0
 Instruct the eNodeB RRC entity to perform RrcConnectionReconfiguration to inform UE about new PdschConfigDedicated (i.e. More...


Detailed Description

Service Access Point (SAP) offered by the eNodeB RRC instance to the Frequency Reuse algorithm instance.

This is the LteFfrRrcSapUser, i.e., the part of the SAP that contains the eNodeB RRC methods called by the Frequency Reuse algorithm instance.

Definition at line 88 of file lte-ffr-rrc-sap.h.

Constructor & Destructor Documentation

◆ ~LteFfrRrcSapUser()

ns3::LteFfrRrcSapUser::~LteFfrRrcSapUser ( )
virtual

Definition at line 34 of file lte-ffr-rrc-sap.cc.

Member Function Documentation

◆ AddUeMeasReportConfigForFfr()

virtual uint8_t ns3::LteFfrRrcSapUser::AddUeMeasReportConfigForFfr ( LteRrcSap::ReportConfigEutra  reportConfig)
pure virtual

Request a certain reporting configuration to be fulfilled by the UEs attached to the eNodeB entity.

Parameters
reportConfigthe UE measurement reporting configuration
Returns
the measurement identity associated with this newly added reporting configuration

The eNodeB RRC entity is expected to configure the same reporting configuration in each of the attached UEs. When later in the simulation a UE measurement report is received from a UE as a result of this configuration, the eNodeB RRC entity shall forward this report to the Frequency Reuse algorithm through the LteFfrRrcSapProvider::ReportUeMeas SAP function.

Note
This function is only valid before the simulation begins.

Implemented in ns3::MemberLteFfrRrcSapUser< C >.

Referenced by ns3::LteFfrDistributedAlgorithm::DoInitialize(), ns3::LteFrSoftAlgorithm::DoInitialize(), ns3::LteFrStrictAlgorithm::DoInitialize(), ns3::LteFfrSoftAlgorithm::DoInitialize(), ns3::LteFfrEnhancedAlgorithm::DoInitialize(), and ns3::LteFfrSimple::DoInitialize().

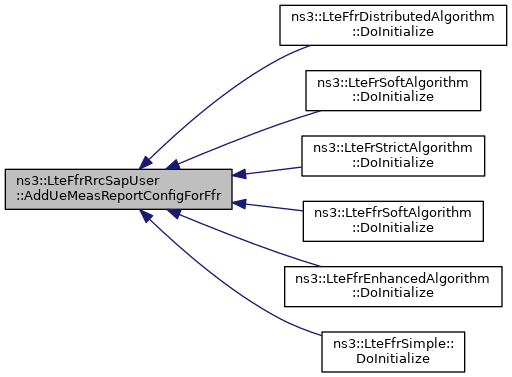

+ Here is the caller graph for this function:

◆ SendLoadInformation()

virtual void ns3::LteFfrRrcSapUser::SendLoadInformation ( EpcX2Sap::LoadInformationParams  params)
pure virtual

SendLoadInformation.

Parameters
paramsthe EpcX2Sap::LoadInformationParams

Implemented in ns3::MemberLteFfrRrcSapUser< C >.

Referenced by ns3::LteFfrDistributedAlgorithm::SendLoadInformation().

+ Here is the caller graph for this function:

◆ SetPdschConfigDedicated()

virtual void ns3::LteFfrRrcSapUser::SetPdschConfigDedicated ( uint16_t  rnti,
LteRrcSap::PdschConfigDedicated  pdschConfigDedicated
)
pure virtual

Instruct the eNodeB RRC entity to perform RrcConnectionReconfiguration to inform UE about new PdschConfigDedicated (i.e.

P_a value). Also Downlink Power Allocation is done based on this value.

Parameters
rntiRadio Network Temporary Identity, an integer identifying the UE which shall perform the handover
pdschConfigDedicatednew PdschConfigDedicated to be configured for UE

This function is used by the Frequency Reuse algorithm entity when it decides that PDSCH for this UE should be allocated with different transmit power.

The process to produce the decision is up to the implementation of Frequency Reuse algorithm. It is typically based on the reported UE measurements, which are received through the LteFfrRrcSapProvider::ReportUeMeas function.

Implemented in ns3::MemberLteFfrRrcSapUser< C >.

Referenced by ns3::LteFfrDistributedAlgorithm::DoReportUeMeas(), ns3::LteFrSoftAlgorithm::DoReportUeMeas(), ns3::LteFrStrictAlgorithm::DoReportUeMeas(), ns3::LteFfrSoftAlgorithm::DoReportUeMeas(), ns3::LteFfrEnhancedAlgorithm::DoReportUeMeas(), and ns3::LteFfrSimple::UpdatePdschConfigDedicated().

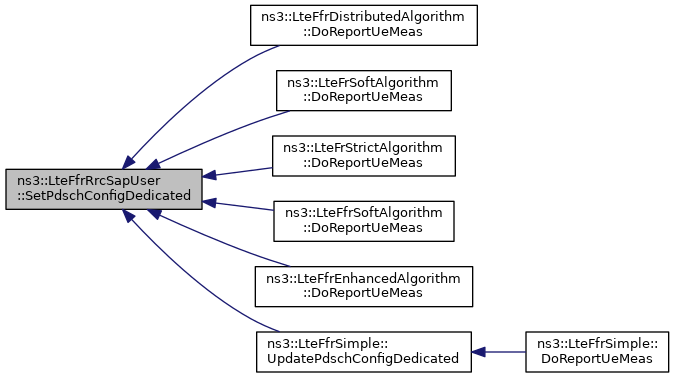

+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
