ns3::LteUeCmacSapUser Class Referenceabstract

Service Access Point (SAP) offered by the UE MAC to the UE RRC. More...

#include "lte-ue-cmac-sap.h"

+ Inheritance diagram for ns3::LteUeCmacSapUser:

Public Member Functions

virtual ~LteUeCmacSapUser ()

virtual void NotifyRandomAccessFailed ()=0
 Notify the RRC that the MAC Random Access procedure failed. More...

virtual void NotifyRandomAccessSuccessful ()=0
 Notify the RRC that the MAC Random Access procedure completed successfully. More...

virtual void SetTemporaryCellRnti (uint16_t rnti)=0


Detailed Description

Service Access Point (SAP) offered by the UE MAC to the UE RRC.

This is the MAC SAP User, i.e., the part of the SAP that contains the RRC methods called by the MAC

Definition at line 137 of file lte-ue-cmac-sap.h.

Constructor & Destructor Documentation

◆ ~LteUeCmacSapUser()

ns3::LteUeCmacSapUser::~LteUeCmacSapUser ( )
virtual

Definition at line 32 of file lte-ue-cmac-sap.cc.

Member Function Documentation

◆ NotifyRandomAccessFailed()

virtual void ns3::LteUeCmacSapUser::NotifyRandomAccessFailed ( )
pure virtual

Notify the RRC that the MAC Random Access procedure failed.

Implemented in ns3::UeMemberLteUeCmacSapUser.

Referenced by ns3::LteUeMac::RaResponseTimeout().

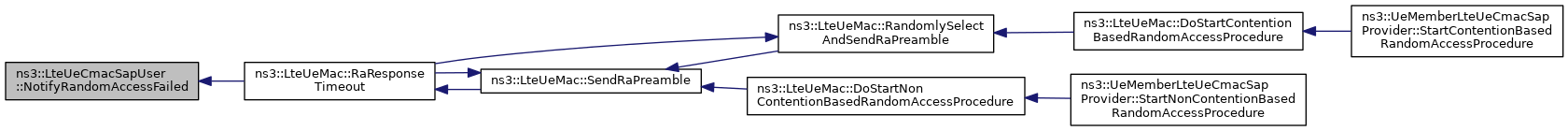

+ Here is the caller graph for this function:

◆ NotifyRandomAccessSuccessful()

virtual void ns3::LteUeCmacSapUser::NotifyRandomAccessSuccessful ( )
pure virtual

Notify the RRC that the MAC Random Access procedure completed successfully.

Implemented in ns3::UeMemberLteUeCmacSapUser.

Referenced by ns3::LteUeMac::RecvRaResponse().

+ Here is the caller graph for this function:

◆ SetTemporaryCellRnti()

virtual void ns3::LteUeCmacSapUser::SetTemporaryCellRnti ( uint16_t  rnti)
pure virtual
Parameters
rntithe T-C-RNTI, which will eventually become the C-RNTI after contention resolution

Implemented in ns3::UeMemberLteUeCmacSapUser.

Referenced by ns3::LteUeMac::RecvRaResponse().

+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
