ns3::LteUeNetDevice Class Reference

The LteUeNetDevice class implements the UE net device. More...

#include "lte-ue-net-device.h"

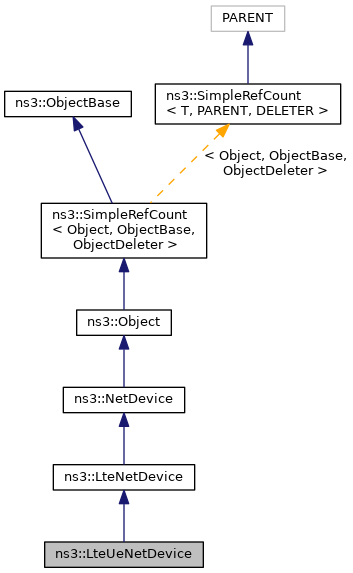

+ Inheritance diagram for ns3::LteUeNetDevice:

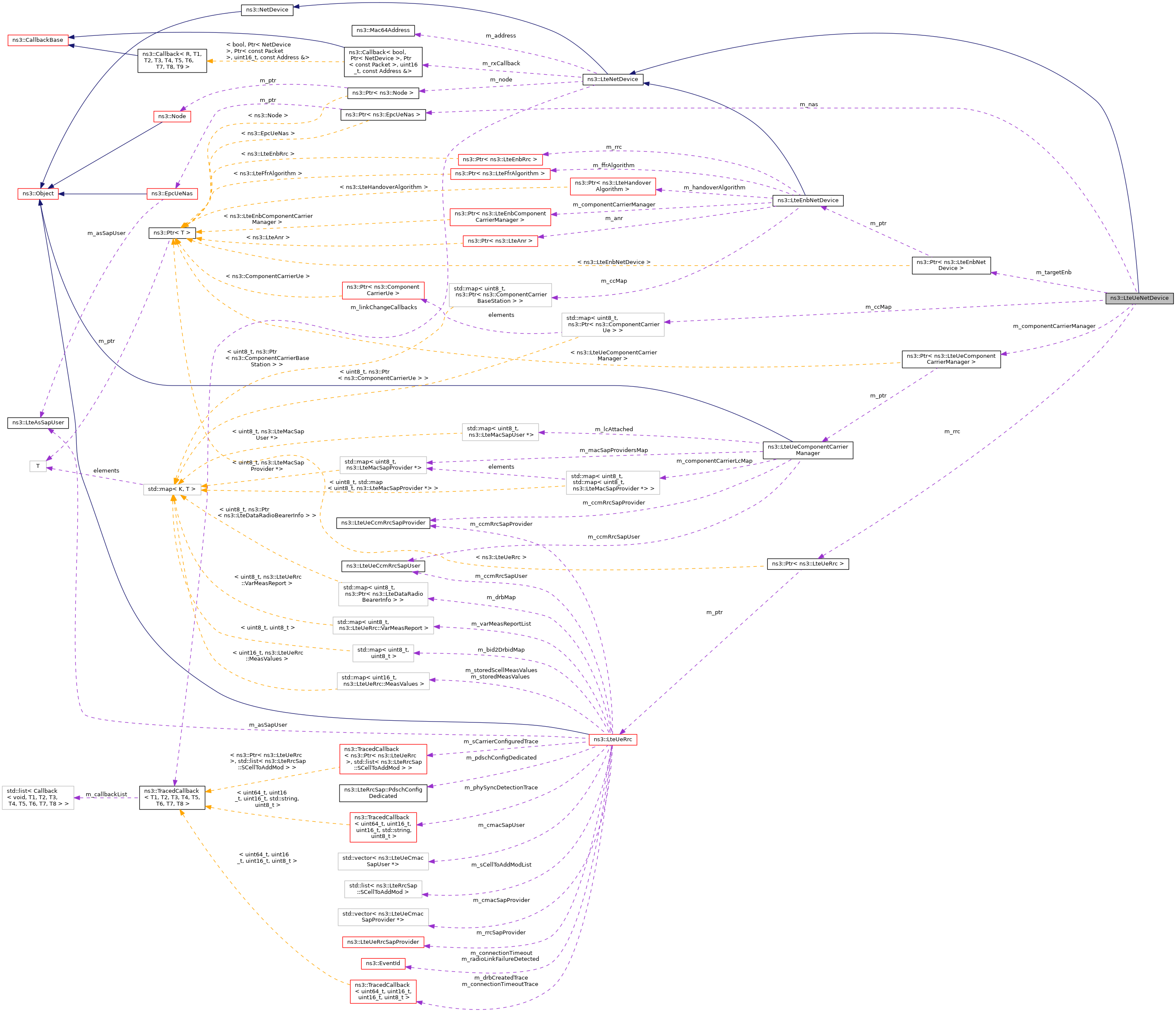

+ Collaboration diagram for ns3::LteUeNetDevice:

Public Member Functions

 LteUeNetDevice (void)

virtual ~LteUeNetDevice (void)

virtual void DoDispose ()
 Destructor implementation. More...

std::map< uint8_t, Ptr< ComponentCarrierUe > > GetCcMap (void)
 Get the ComponentCarrier Map for the UE. More...

Ptr< LteUeComponentCarrierManagerGetComponentCarrierManager (void) const
 Get the componentn carrier manager. More...

uint32_t GetCsgId () const
 Returns the CSG ID the UE is currently a member of. More...

uint32_t GetDlEarfcn () const

uint64_t GetImsi () const
 Get the IMSI. More...

Ptr< LteUeMacGetMac (void) const
 Get the MAC. More...

Ptr< EpcUeNasGetNas (void) const
 Get the NAS. More...

Ptr< LteUePhyGetPhy (void) const
 Get the Phy. More...

Ptr< LteUeRrcGetRrc () const
 Get the RRC. More...

Ptr< LteEnbNetDeviceGetTargetEnb (void)
 Get the target eNB where the UE is registered. More...

virtual bool Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

void SetCcMap (std::map< uint8_t, Ptr< ComponentCarrierUe > > ccm)
 Set the ComponentCarrier Map for the UE. More...

void SetCsgId (uint32_t csgId)
 Enlist the UE device as a member of a particular CSG. More...

void SetDlEarfcn (uint32_t earfcn)

void SetTargetEnb (Ptr< LteEnbNetDevice > enb)
 Set the target eNB where the UE is registered. More...

- Public Member Functions inherited from ns3::LteNetDevice
 LteNetDevice (void)

virtual ~LteNetDevice (void)

virtual void AddLinkChangeCallback (Callback< void > callback)

virtual Address GetAddress (void) const

virtual Address GetBroadcast (void) const

virtual Ptr< ChannelGetChannel (void) const

virtual uint32_t GetIfIndex (void) const

virtual uint16_t GetMtu (void) const

virtual Address GetMulticast (Ipv4Address addr) const
 Make and return a MAC multicast address using the provided multicast group. More...

virtual Address GetMulticast (Ipv6Address addr) const
 Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< NodeGetNode (void) const

virtual bool IsBridge (void) const
 Return true if the net device is acting as a bridge. More...

virtual bool IsBroadcast (void) const

virtual bool IsLinkUp (void) const

virtual bool IsMulticast (void) const

virtual bool IsPointToPoint (void) const
 Return true if the net device is on a point-to-point link. More...

virtual bool NeedsArp (void) const

void Receive (Ptr< Packet > p)
 receive a packet from the lower layers in order to forward it to the upper layers More...

virtual bool SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void SetAddress (Address address)
 Set the address of this interface. More...

virtual void SetIfIndex (const uint32_t index)

virtual bool SetMtu (const uint16_t mtu)

virtual void SetNode (Ptr< Node > node)

virtual void SetPromiscReceiveCallback (PromiscReceiveCallback cb)

virtual void SetReceiveCallback (NetDevice::ReceiveCallback cb)

virtual bool SupportsSendFrom (void) const

- Public Member Functions inherited from ns3::NetDevice
virtual ~NetDevice ()

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::LteNetDevice
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::NetDevice
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoInitialize (void)
 Initialize() implementation. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

void UpdateConfig ()
 Propagate attributes and configuration to sub-modules. More...


Private Attributes

std::map< uint8_t, Ptr< ComponentCarrierUe > > m_ccMap
 CC map. More...

Ptr< LteUeComponentCarrierManagerm_componentCarrierManager
 the component carrier manager More...

uint32_t m_csgId
 the CSG ID More...

uint32_t m_dlEarfcn
 downlink carrier frequency More...

uint64_t m_imsi
 the IMSI More...

bool m_isConstructed
 is constructed? More...

Ptr< EpcUeNasm_nas
 the NAS More...

Ptr< LteUeRrcm_rrc
 the RRC More...

Ptr< LteEnbNetDevicem_targetEnb
 target ENB More...


Additional Inherited Members

- Public Types inherited from ns3::NetDevice
typedef void(* LinkChangeTracedCallback) (void)
 TracedCallback signature for link changed event. More...

enum  PacketType {
  PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST,
  PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST
}
 Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketTypePromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &> ReceiveCallback

- Protected Attributes inherited from ns3::LteNetDevice
NetDevice::ReceiveCallback m_rxCallback
 receive callback More...


Detailed Description

The LteUeNetDevice class implements the UE net device.


Config Paths

ns3::LteUeNetDevice is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice"

Attributes

  • EpcUeNas: The NAS associated to this UeNetDevice
  • LteUeRrc: The RRC associated to this UeNetDevice
  • LteUeComponentCarrierManager: The ComponentCarrierManager associated to this UeNetDevice
  • ComponentCarrierMapUe: List of all component Carrier.
  • Imsi: International Mobile Subscriber Identity assigned to this UE
    • Set with class: ns3::UintegerValue
    • Underlying type: uint64_t 0:18446744073709551615
    • Initial value: 0
    • Flags: construct write read
  • DlEarfcn: Downlink E-UTRA Absolute Radio Frequency Channel Number (EARFCN) as per 3GPP 36.101 Section 5.7.3.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:262143
    • Initial value: 100
    • Flags: construct write read
  • CsgId: The Closed Subscriber Group (CSG) identity that this UE is associated with, i.e., giving the UE access to cells which belong to this particular CSG. This restriction only applies to initial cell selection and EPC-enabled simulation. This does not revoke the UE's access to non-CSG cells.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 0
    • Flags: construct write read

Attributes defined in parent class ns3::LteNetDevice

  • Mtu: The MAC-level Maximum Transmission Unit
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 30000
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 184 bytes (on a 64-bit architecture).

Definition at line 56 of file lte-ue-net-device.h.

Constructor & Destructor Documentation

◆ LteUeNetDevice()

ns3::LteUeNetDevice::LteUeNetDevice ( void  )

Definition at line 116 of file lte-ue-net-device.cc.

References NS_LOG_FUNCTION.

◆ ~LteUeNetDevice()

ns3::LteUeNetDevice::~LteUeNetDevice ( void  )
virtual

Definition at line 122 of file lte-ue-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::LteUeNetDevice::DoDispose ( void  )
virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteNetDevice.

Definition at line 128 of file lte-ue-net-device.cc.

References ns3::LteNetDevice::DoDispose(), m_ccMap, m_componentCarrierManager, m_nas, m_rrc, m_targetEnb, and NS_LOG_FUNCTION.

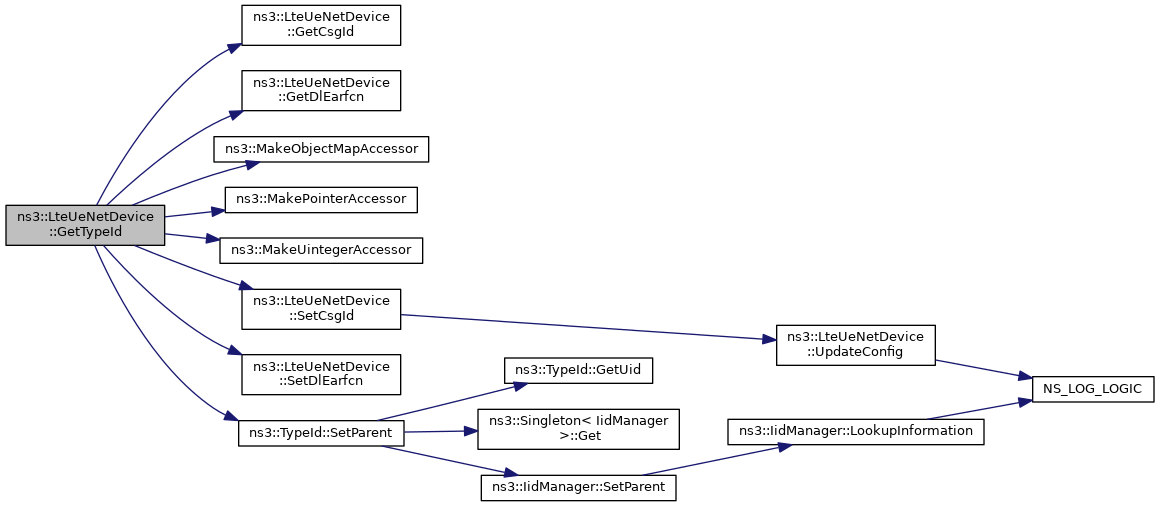

+ Here is the call graph for this function:

◆ DoInitialize()

void ns3::LteUeNetDevice::DoInitialize ( void  )
protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 271 of file lte-ue-net-device.cc.

References m_ccMap, m_isConstructed, m_rrc, NS_LOG_FUNCTION, and UpdateConfig().

+ Here is the call graph for this function:

◆ GetCcMap()

std::map< uint8_t, Ptr< ComponentCarrierUe > > ns3::LteUeNetDevice::GetCcMap ( void  )

Get the ComponentCarrier Map for the UE.

Returns
the map of ComponentCarrierUe

Definition at line 259 of file lte-ue-net-device.cc.

References m_ccMap.

◆ GetComponentCarrierManager()

Ptr< LteUeComponentCarrierManager > ns3::LteUeNetDevice::GetComponentCarrierManager ( void  ) const

Get the componentn carrier manager.

Returns
the LTE UE component carrier manager

Definition at line 194 of file lte-ue-net-device.cc.

References m_componentCarrierManager, and NS_LOG_FUNCTION.

◆ GetCsgId()

uint32_t ns3::LteUeNetDevice::GetCsgId ( ) const

Returns the CSG ID the UE is currently a member of.

Returns
the Closed Subscriber Group identity

Definition at line 229 of file lte-ue-net-device.cc.

References m_csgId, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ GetDlEarfcn()

uint32_t ns3::LteUeNetDevice::GetDlEarfcn ( ) const
Returns
the downlink carrier frequency (EARFCN)

Note that real-life handset typically supports more than one EARFCN, but the sake of simplicity we assume only one EARFCN is supported.

Definition at line 215 of file lte-ue-net-device.cc.

References m_dlEarfcn, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ GetImsi()

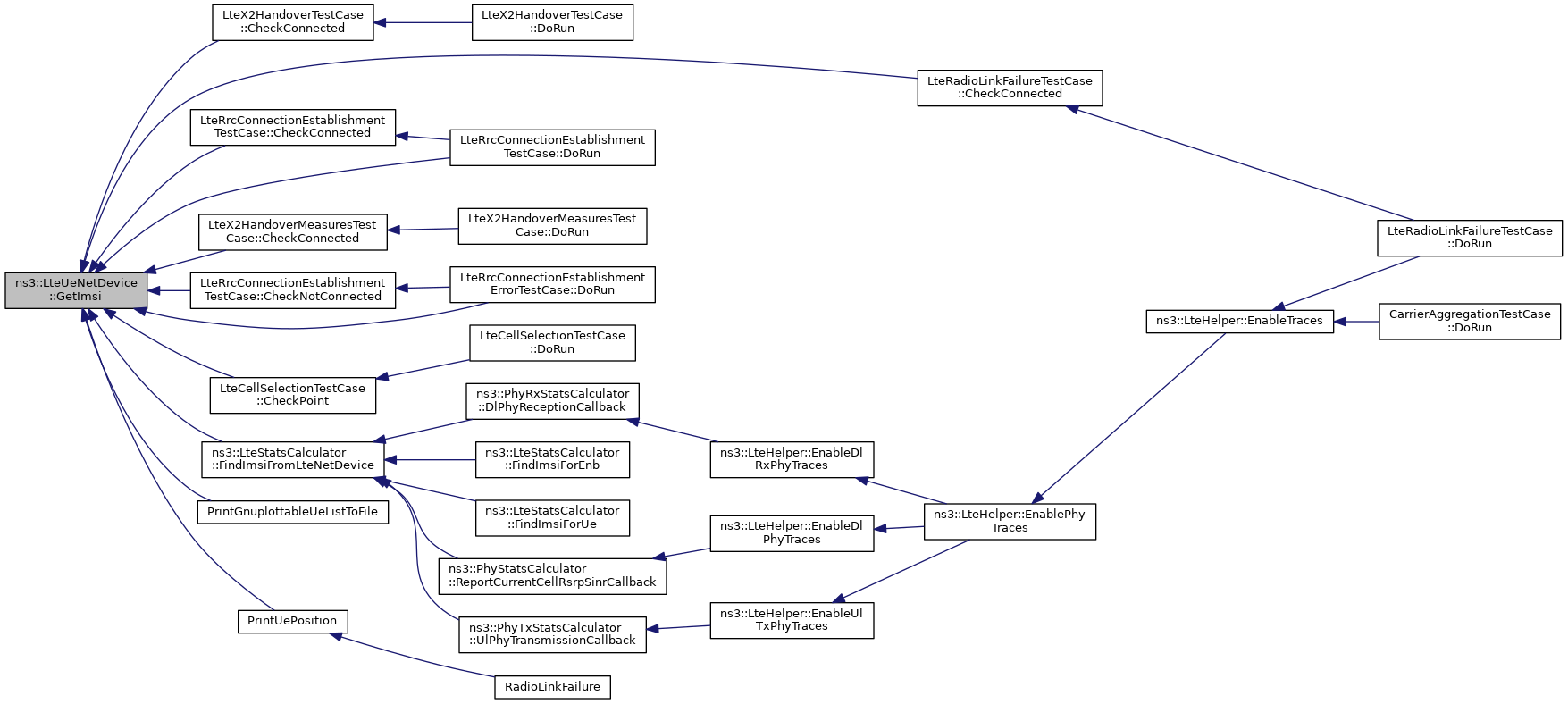

◆ GetMac()

Ptr< LteUeMac > ns3::LteUeNetDevice::GetMac ( void  ) const

Get the MAC.

Returns
the LTE UE MAC

Definition at line 171 of file lte-ue-net-device.cc.

References m_ccMap, and NS_LOG_FUNCTION.

Referenced by LteCqiGenerationDlPowerControlTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetNas()

Ptr< EpcUeNas > ns3::LteUeNetDevice::GetNas ( void  ) const

Get the NAS.

Returns
the LTE UE NAS

Definition at line 201 of file lte-ue-net-device.cc.

References m_nas, and NS_LOG_FUNCTION.

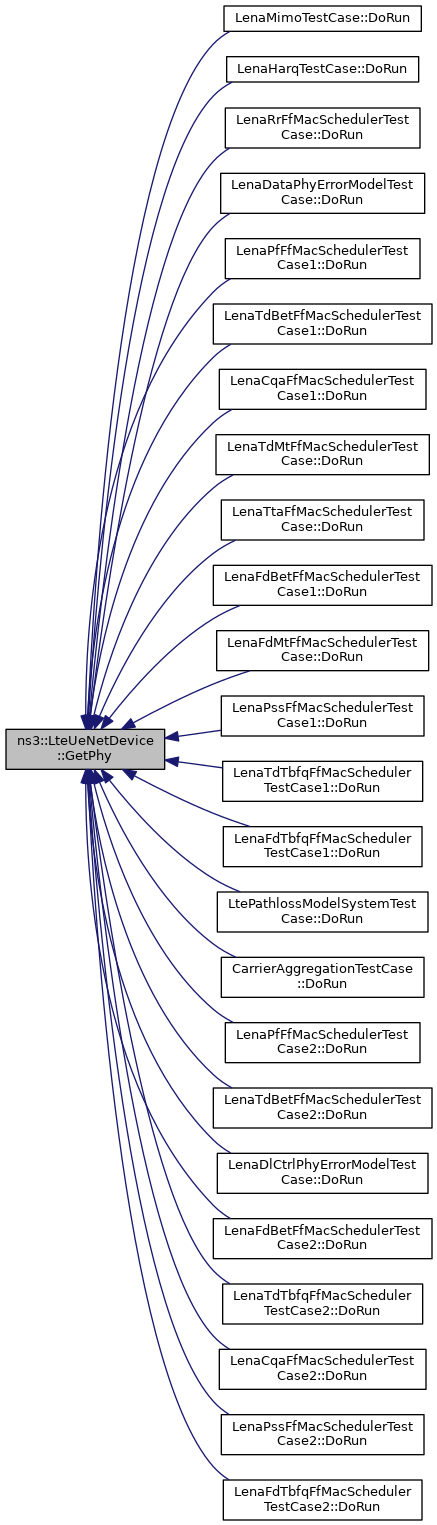

◆ GetPhy()

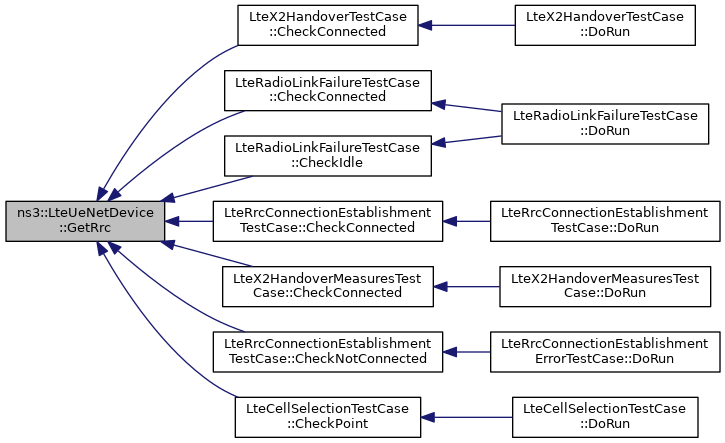

◆ GetRrc()

◆ GetTargetEnb()

Ptr< LteEnbNetDevice > ns3::LteUeNetDevice::GetTargetEnb ( void  )

Get the target eNB where the UE is registered.

Returns
the pointer to the enb

Definition at line 252 of file lte-ue-net-device.cc.

References m_targetEnb, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::LteUeNetDevice::GetTypeId ( void  )
static

◆ Send()

bool ns3::LteUeNetDevice::Send ( Ptr< Packet packet,
const Address dest,
uint16_t  protocolNumber
)
virtual
Parameters
packetpacket sent from above down to Network Device
destmac address of the destination (already resolved)
protocolNumberidentifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns
whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 287 of file lte-ue-net-device.cc.

References m_nas, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, ns3::Ipv6L3Protocol::PROT_NUMBER, and ns3::Ipv4L3Protocol::PROT_NUMBER.

◆ SetCcMap()

void ns3::LteUeNetDevice::SetCcMap ( std::map< uint8_t, Ptr< ComponentCarrierUe > >  ccm)

Set the ComponentCarrier Map for the UE.

Parameters
ccmthe map of ComponentCarrierUe

Definition at line 265 of file lte-ue-net-device.cc.

References m_ccMap.

◆ SetCsgId()

void ns3::LteUeNetDevice::SetCsgId ( uint32_t  csgId)

Enlist the UE device as a member of a particular CSG.

Parameters
csgIdthe intended Closed Subscriber Group identity

UE is associated with a single CSG identity, and thus becoming a member of this particular CSG. As a result, the UE may gain access to cells which belong to this CSG. This does not revoke the UE's access to non-CSG cells.

Note
This restriction only applies to initial cell selection and EPC-enabled simulation.

Definition at line 236 of file lte-ue-net-device.cc.

References m_csgId, NS_LOG_FUNCTION, and UpdateConfig().

Referenced by GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetDlEarfcn()

void ns3::LteUeNetDevice::SetDlEarfcn ( uint32_t  earfcn)
Parameters
earfcnthe downlink carrier frequency (EARFCN)

Note that real-life handset typically supports more than one EARFCN, but the sake of simplicity we assume only one EARFCN is supported.

Definition at line 222 of file lte-ue-net-device.cc.

References m_dlEarfcn, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetTargetEnb()

void ns3::LteUeNetDevice::SetTargetEnb ( Ptr< LteEnbNetDevice enb)

Set the target eNB where the UE is registered.

Parameters
enb

Definition at line 244 of file lte-ue-net-device.cc.

References m_targetEnb, and NS_LOG_FUNCTION.

◆ UpdateConfig()

void ns3::LteUeNetDevice::UpdateConfig ( void  )
private

Propagate attributes and configuration to sub-modules.

Several attributes (e.g., the IMSI) are exported as the attributes of the LteUeNetDevice from a user perspective, but are actually used also in other sub-modules (the RRC, the PHY, etc.). This method takes care of updating the configuration of all these sub-modules so that their copy of attribute values are in sync with the one in the LteUeNetDevice.

Definition at line 147 of file lte-ue-net-device.cc.

References m_csgId, m_imsi, m_isConstructed, m_nas, m_rrc, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Referenced by DoInitialize(), and SetCsgId().

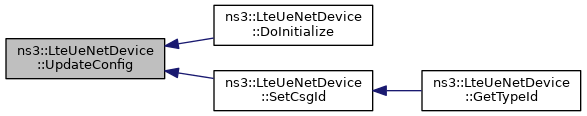

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_ccMap

std::map< uint8_t, Ptr<ComponentCarrierUe> > ns3::LteUeNetDevice::m_ccMap
private

CC map.

Definition at line 202 of file lte-ue-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetCcMap(), GetMac(), GetPhy(), GetTypeId(), and SetCcMap().

◆ m_componentCarrierManager

Ptr<LteUeComponentCarrierManager> ns3::LteUeNetDevice::m_componentCarrierManager
private

the component carrier manager

Definition at line 194 of file lte-ue-net-device.h.

Referenced by DoDispose(), GetComponentCarrierManager(), and GetTypeId().

◆ m_csgId

uint32_t ns3::LteUeNetDevice::m_csgId
private

the CSG ID

Definition at line 200 of file lte-ue-net-device.h.

Referenced by GetCsgId(), SetCsgId(), and UpdateConfig().

◆ m_dlEarfcn

uint32_t ns3::LteUeNetDevice::m_dlEarfcn
private

downlink carrier frequency

Definition at line 198 of file lte-ue-net-device.h.

Referenced by GetDlEarfcn(), and SetDlEarfcn().

◆ m_imsi

uint64_t ns3::LteUeNetDevice::m_imsi
private

the IMSI

Definition at line 196 of file lte-ue-net-device.h.

Referenced by GetImsi(), GetTypeId(), and UpdateConfig().

◆ m_isConstructed

bool ns3::LteUeNetDevice::m_isConstructed
private

is constructed?

Definition at line 177 of file lte-ue-net-device.h.

Referenced by DoInitialize(), and UpdateConfig().

◆ m_nas

Ptr<EpcUeNas> ns3::LteUeNetDevice::m_nas
private

the NAS

Definition at line 193 of file lte-ue-net-device.h.

Referenced by DoDispose(), GetNas(), GetTypeId(), Send(), and UpdateConfig().

◆ m_rrc

Ptr<LteUeRrc> ns3::LteUeNetDevice::m_rrc
private

the RRC

Definition at line 192 of file lte-ue-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetRrc(), GetTypeId(), and UpdateConfig().

◆ m_targetEnb

Ptr<LteEnbNetDevice> ns3::LteUeNetDevice::m_targetEnb
private

target ENB

Definition at line 190 of file lte-ue-net-device.h.

Referenced by DoDispose(), GetTargetEnb(), and SetTargetEnb().


The documentation for this class was generated from the following files:
