ns3::MacTxMiddle Class Reference

Handles sequence numbering of IEEE 802.11 data frames. More...

#include "mac-tx-middle.h"

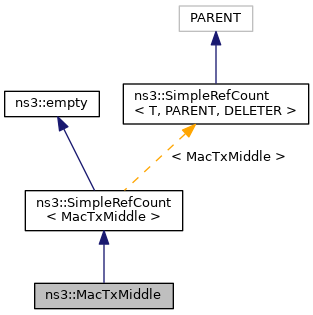

Inheritance diagram for ns3::MacTxMiddle:

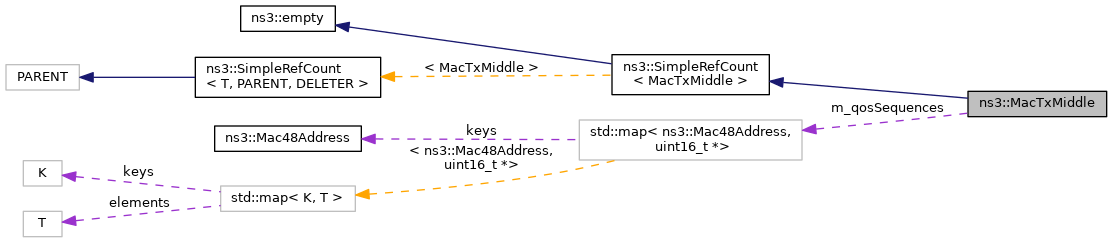

Collaboration diagram for ns3::MacTxMiddle:

Public Member Functions
	MacTxMiddle ()
	~MacTxMiddle ()
uint16_t	GetNextSeqNumberByTidAndAddress (uint8_t tid, Mac48Address addr) const
	Return the next sequence number for the Traffic ID and destination. More...
uint16_t	GetNextSequenceNumberFor (const WifiMacHeader *hdr)
	Return the next sequence number for the given header. More...
uint16_t	PeekNextSequenceNumberFor (const WifiMacHeader *hdr)
	Return the next sequence number for the Traffic ID and destination, but do not pick it (i.e. More...
Public Member Functions inherited from ns3::SimpleRefCount< MacTxMiddle >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
std::map< Mac48Address, uint16_t * >	m_qosSequences
	QOS sequences. More...
uint16_t	m_sequence
	current sequence number More...

Detailed Description

Handles sequence numbering of IEEE 802.11 data frames.

Definition at line 39 of file mac-tx-middle.h.

Constructor & Destructor Documentation

MacTxMiddle()

ns3::MacTxMiddle::MacTxMiddle

(

)

Definition at line 32 of file mac-tx-middle.cc.

References NS_LOG_FUNCTION.

~MacTxMiddle()

ns3::MacTxMiddle::~MacTxMiddle

(

)

Definition at line 38 of file mac-tx-middle.cc.

References m_qosSequences, and NS_LOG_FUNCTION.

Member Function Documentation

GetNextSeqNumberByTidAndAddress()

uint16_t ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress	(	uint8_t	tid,
		Mac48Address	addr
	)		const

Return the next sequence number for the Traffic ID and destination.

Parameters

tid	Traffic ID
addr	destination address

Returns

the next sequence number

Definition at line 114 of file mac-tx-middle.cc.

References m_qosSequences, NS_ASSERT, and NS_LOG_FUNCTION.

GetNextSequenceNumberFor()

uint16_t ns3::MacTxMiddle::GetNextSequenceNumberFor

(

const WifiMacHeader *

hdr

)

Return the next sequence number for the given header.

Parameters

hdr	Wi-Fi header

Returns

the next sequence number

Definition at line 48 of file mac-tx-middle.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), m_qosSequences, m_sequence, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PeekNextSequenceNumberFor()

uint16_t ns3::MacTxMiddle::PeekNextSequenceNumberFor

(

const WifiMacHeader *

hdr

)

Return the next sequence number for the Traffic ID and destination, but do not pick it (i.e.

the current sequence number remains unchanged). This functions is used for A-MPDU aggregation.

Parameters

hdr	Wi-Fi header

Returns

the next sequence number

Definition at line 87 of file mac-tx-middle.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), m_qosSequences, m_sequence, NS_ASSERT, and NS_LOG_FUNCTION.

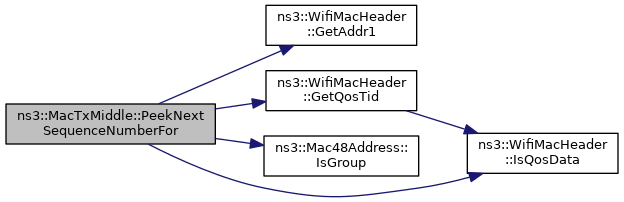

Here is the call graph for this function:

Member Data Documentation

m_qosSequences

std::map<Mac48Address,uint16_t*> ns3::MacTxMiddle::m_qosSequences

private

QOS sequences.

Definition at line 71 of file mac-tx-middle.h.

Referenced by GetNextSeqNumberByTidAndAddress(), GetNextSequenceNumberFor(), PeekNextSequenceNumberFor(), and ~MacTxMiddle().

m_sequence

uint16_t ns3::MacTxMiddle::m_sequence

private

current sequence number

Definition at line 72 of file mac-tx-middle.h.

Referenced by GetNextSequenceNumberFor(), and PeekNextSequenceNumberFor().

---

The documentation for this class was generated from the following files:

• src/wifi/model/mac-tx-middle.h
• src/wifi/model/mac-tx-middle.cc
