MemberLteCcmRrcSapProvider class. More...

#include "lte-ccm-rrc-sap.h"

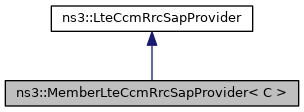

Inheritance diagram for ns3::MemberLteCcmRrcSapProvider< C >:

Collaboration diagram for ns3::MemberLteCcmRrcSapProvider< C >:

Public Member Functions
	MemberLteCcmRrcSapProvider (C *owner)
	Constructor. More...

virtual void	AddLc (LteEnbCmacSapProvider::LcInfo lcInfo, LteMacSapUser *msu)
	Add a new logical channel. More...

virtual void	AddUe (uint16_t rnti, uint8_t state)
	Add a new UE in the LteEnbComponentCarrierManager. More...

virtual LteMacSapUser *	ConfigureSignalBearer (LteEnbCmacSapProvider::LcInfo lcInfo, LteMacSapUser *rlcMacSapUser)
	Add the Signal Bearer for a specific Ue in LteEnbComponenCarrierManager. More...

virtual std::vector< uint8_t >	ReleaseDataRadioBearer (uint16_t rnti, uint8_t lcid)
	Release an existing Data Radio Bearer for a Ue in the LteEnbComponentCarrierManager. More...

virtual void	RemoveUe (uint16_t rnti)
	Remove an existing UE. More...

virtual void	ReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults)
	Reports UE measurements to the component carrier manager. More...

virtual std::vector< LteCcmRrcSapProvider::LcsConfig >	SetupDataRadioBearer (EpsBearer bearer, uint8_t bearerId, uint16_t rnti, uint8_t lcid, uint8_t lcGroup, LteMacSapUser *msu)
	Add a new Bearer for the Ue in the LteEnbComponentCarrierManager. More...

Public Member Functions inherited from ns3::LteCcmRrcSapProvider
virtual	~LteCcmRrcSapProvider ()

Private Attributes
C *	m_owner
	the owner class More...

Detailed Description

template<class C>
class ns3::MemberLteCcmRrcSapProvider< C >

MemberLteCcmRrcSapProvider class.

Definition at line 225 of file lte-ccm-rrc-sap.h.

Constructor & Destructor Documentation

◆ MemberLteCcmRrcSapProvider()

template<class C >

ns3::MemberLteCcmRrcSapProvider< C >::MemberLteCcmRrcSapProvider ( C * owner )

Constructor.

Parameters

owner the owner class

Definition at line 249 of file lte-ccm-rrc-sap.h.

Member Function Documentation

◆ AddLc()

template<class C >

void ns3::MemberLteCcmRrcSapProvider< C >::AddLc	(	LteEnbCmacSapProvider::LcInfo	lcInfo,
		LteMacSapUser *	msu
	)

virtual

Add a new logical channel.

Parameters

lcInfo	- information about newly created logical channel
msu	- pointer to corresponding rlc interface

Implements ns3::LteCcmRrcSapProvider.

Definition at line 267 of file lte-ccm-rrc-sap.h.

◆ AddUe()

template<class C >

void ns3::MemberLteCcmRrcSapProvider< C >::AddUe	(	uint16_t	rnti,
		uint8_t	state
	)

virtual

Add a new UE in the LteEnbComponentCarrierManager.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE.
state	The current rrc state of the UE.

Implements ns3::LteCcmRrcSapProvider.

Definition at line 261 of file lte-ccm-rrc-sap.h.

◆ ConfigureSignalBearer()

template<class C >

LteMacSapUser * ns3::MemberLteCcmRrcSapProvider< C >::ConfigureSignalBearer	(	LteEnbCmacSapProvider::LcInfo	lcInfo,
		LteMacSapUser *	rlcMacSapUser
	)

virtual

Add the Signal Bearer for a specific Ue in LteEnbComponenCarrierManager.

Parameters

lcInfo	this structure it is hard-coded in the LteEnbRrc
rlcMacSapUser	it is the MacSapUser of the Rlc istance

Returns: the LteMacSapUser of the ComponentCarrierManager

Implements ns3::LteCcmRrcSapProvider.

Definition at line 291 of file lte-ccm-rrc-sap.h.

◆ ReleaseDataRadioBearer()

template<class C >

std::vector< uint8_t > ns3::MemberLteCcmRrcSapProvider< C >::ReleaseDataRadioBearer	(	uint16_t	rnti,
		uint8_t	lcid
	)

virtual

Release an existing Data Radio Bearer for a Ue in the LteEnbComponentCarrierManager.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from
lcid	the Logical Channel Id

Returns: vector of integer the componentCarrierId of the componentCarrier where the bearer is enabled

Implements ns3::LteCcmRrcSapProvider.

Definition at line 285 of file lte-ccm-rrc-sap.h.

◆ RemoveUe()

template<class C >

void ns3::MemberLteCcmRrcSapProvider< C >::RemoveUe ( uint16_t rnti )

virtual

Remove an existing UE.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Implements ns3::LteCcmRrcSapProvider.

Definition at line 273 of file lte-ccm-rrc-sap.h.

◆ ReportUeMeas()

template<class C >

void ns3::MemberLteCcmRrcSapProvider< C >::ReportUeMeas	(	uint16_t	rnti,
		LteRrcSap::MeasResults	measResults
	)

virtual

Reports UE measurements to the component carrier manager.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE where the measurement report originates from.
measResults	a single report of one measurement identity

The received measurement report is a result of the UE measurements configuration previously configured by calling LteCcmRrcSapProvider::AddUeMeasReportConfigForComponentCarrier. The report may be stored and utilized for the purpose of making decision if and when to use the secondary carriers.

Implements ns3::LteCcmRrcSapProvider.

Definition at line 255 of file lte-ccm-rrc-sap.h.

◆ SetupDataRadioBearer()

template<class C >

std::vector< LteCcmRrcSapProvider::LcsConfig > ns3::MemberLteCcmRrcSapProvider< C >::SetupDataRadioBearer	(	EpsBearer	bearer,
		uint8_t	bearerId,
		uint16_t	rnti,
		uint8_t	lcid,
		uint8_t	lcGroup,
		LteMacSapUser *	msu
	)

virtual

Add a new Bearer for the Ue in the LteEnbComponentCarrierManager.

Parameters

bearer	a pointer to the EpsBearer object
bearerId	a unique identifier for the bearer
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from
lcid	the Logical Channel id
lcGroup	the Logical Channel group
msu	a pointer to the LteMacSapUser, the LteEnbComponentCarrierManager has to store a LteMacSapUser for each Rlc istance, in order to properly redirect the packet

Returns: vector of LcsConfig contains the lc configuration for each Mac the size of the vector is equal to the number of component carrier enabled.

The Logical Channel configurations for each component carrier depend on the algorithm used to split the traffic between the component carriers themself.

Implements ns3::LteCcmRrcSapProvider.

Definition at line 279 of file lte-ccm-rrc-sap.h.

Member Data Documentation

◆ m_owner

template<class C>

C* ns3::MemberLteCcmRrcSapProvider< C >::m_owner

private

the owner class

Definition at line 245 of file lte-ccm-rrc-sap.h.

The documentation for this class was generated from the following file:

src/lte/model/lte-ccm-rrc-sap.h
