ns3::MgtDelBaHeader Class Reference

Implement the header for management frames of type del block ack. More...

#include "mgt-headers.h"

+ Inheritance diagram for ns3::MgtDelBaHeader:
+ Collaboration diagram for ns3::MgtDelBaHeader:

Public Member Functions

 MgtDelBaHeader ()

uint32_t Deserialize (Buffer::Iterator start)

TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint32_t GetSerializedSize (void) const

uint8_t GetTid (void) const
 Return the Traffic ID (TID). More...

bool IsByOriginator (void) const
 Check if the initiator bit in the DELBA is set. More...

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetByOriginator (void)
 Set the initiator bit in the DELBA. More...

void SetByRecipient (void)
 Un-set the initiator bit in the DELBA. More...

void SetTid (uint8_t tid)
 Set Traffic ID (TID). More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

uint16_t GetParameterSet (void) const
 Return the raw parameter set. More...

void SetParameterSet (uint16_t params)
 Set the parameter set from the given raw value. More...


Private Attributes

uint16_t m_initiator
 initiator More...

uint16_t m_reasonCode
 Not used for now. More...

uint16_t m_tid
 Traffic ID. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Implement the header for management frames of type del block ack.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 1250 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ MgtDelBaHeader()

ns3::MgtDelBaHeader::MgtDelBaHeader ( )

Definition at line 1791 of file mgt-headers.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::MgtDelBaHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1836 of file mgt-headers.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_reasonCode, ns3::Buffer::Iterator::ReadLsbtohU16(), SetParameterSet(), and visualizer.core::start().

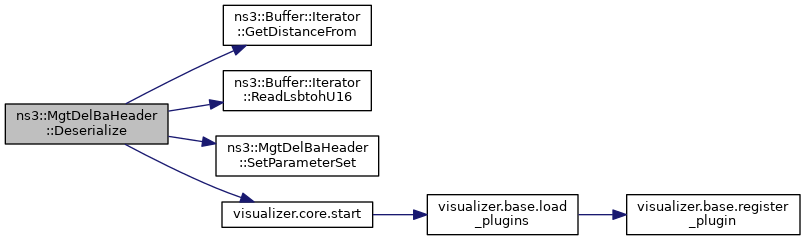

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::MgtDelBaHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1808 of file mgt-headers.cc.

References GetTypeId().

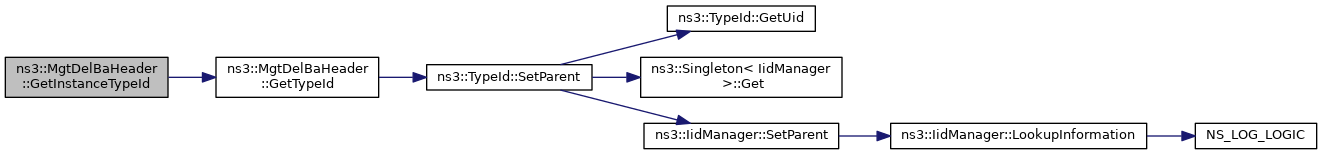

+ Here is the call graph for this function:

◆ GetParameterSet()

uint16_t ns3::MgtDelBaHeader::GetParameterSet ( void  ) const
private

Return the raw parameter set.

Returns
the raw parameter set

Definition at line 1878 of file mgt-headers.cc.

References m_initiator, and m_tid.

Referenced by Serialize().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::MgtDelBaHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1819 of file mgt-headers.cc.

◆ GetTid()

uint8_t ns3::MgtDelBaHeader::GetTid ( void  ) const

Return the Traffic ID (TID).

Returns
TID

Definition at line 1851 of file mgt-headers.cc.

References m_tid, and NS_ASSERT.

Referenced by ns3::GetTid(), ns3::QosTxop::GotAck(), ns3::QosTxop::GotDelBaFrame(), and ns3::RegularWifiMac::Receive().

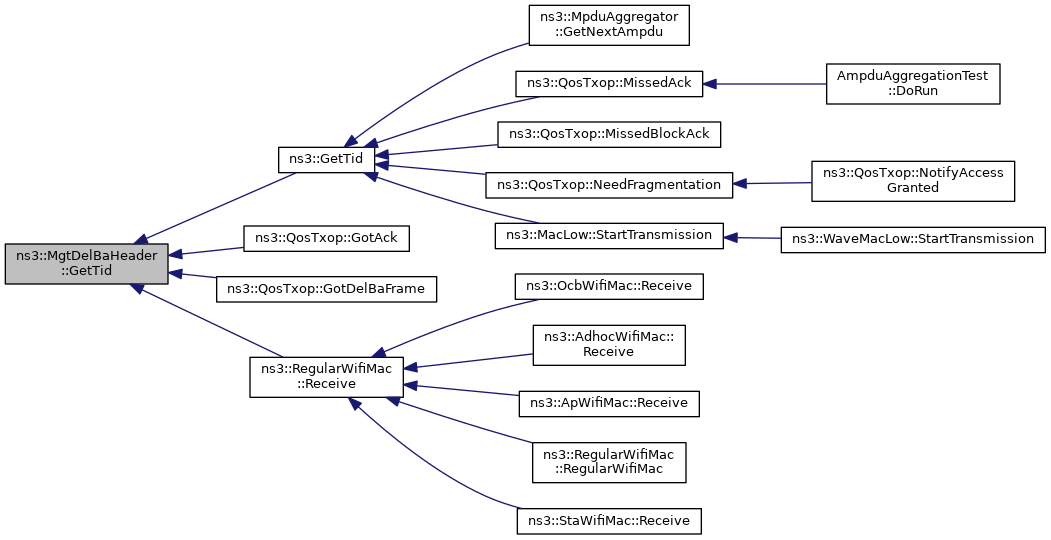

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MgtDelBaHeader::GetTypeId ( void  )
static

Register this type.

Returns
The TypeId.

Definition at line 1797 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

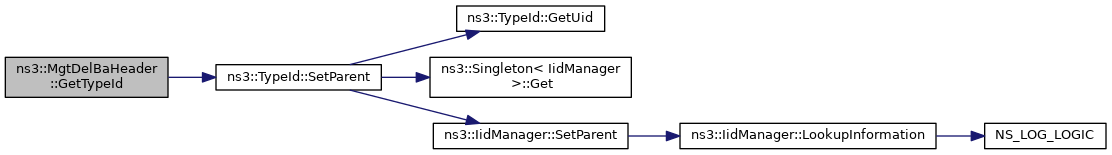

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ IsByOriginator()

bool ns3::MgtDelBaHeader::IsByOriginator ( void  ) const

Check if the initiator bit in the DELBA is set.

Returns
true if the initiator bit in the DELBA is set, false otherwise

Definition at line 1845 of file mgt-headers.cc.

References m_initiator.

Referenced by ns3::QosTxop::GotAck(), and ns3::RegularWifiMac::Receive().

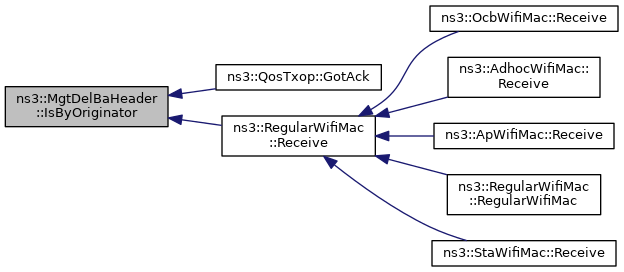

+ Here is the caller graph for this function:

◆ Print()

void ns3::MgtDelBaHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1814 of file mgt-headers.cc.

◆ Serialize()

void ns3::MgtDelBaHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1828 of file mgt-headers.cc.

References GetParameterSet(), m_reasonCode, visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

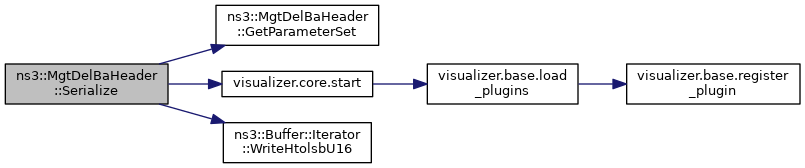

+ Here is the call graph for this function:

◆ SetByOriginator()

void ns3::MgtDelBaHeader::SetByOriginator ( void  )

Set the initiator bit in the DELBA.

Definition at line 1859 of file mgt-headers.cc.

References m_initiator.

Referenced by ns3::QosTxop::SendDelbaFrame().

+ Here is the caller graph for this function:

◆ SetByRecipient()

void ns3::MgtDelBaHeader::SetByRecipient ( void  )

Un-set the initiator bit in the DELBA.

Definition at line 1865 of file mgt-headers.cc.

References m_initiator.

Referenced by ns3::QosTxop::SendDelbaFrame().

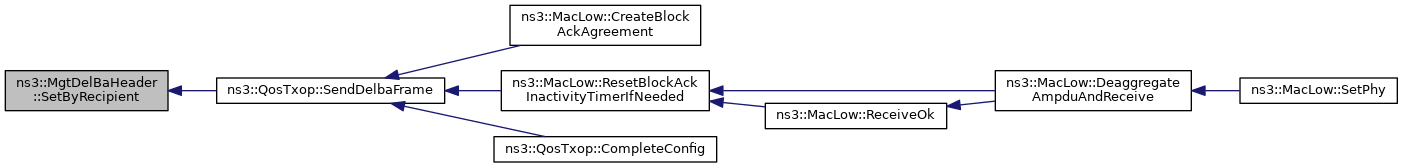

+ Here is the caller graph for this function:

◆ SetParameterSet()

void ns3::MgtDelBaHeader::SetParameterSet ( uint16_t  params)
private

Set the parameter set from the given raw value.

Parameters
paramsraw parameter set value

Definition at line 1887 of file mgt-headers.cc.

References m_initiator, and m_tid.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ SetTid()

void ns3::MgtDelBaHeader::SetTid ( uint8_t  tid)

Set Traffic ID (TID).

Parameters
tidtraffic ID

Definition at line 1871 of file mgt-headers.cc.

References m_tid, and NS_ASSERT.

Referenced by ns3::QosTxop::SendDelbaFrame().

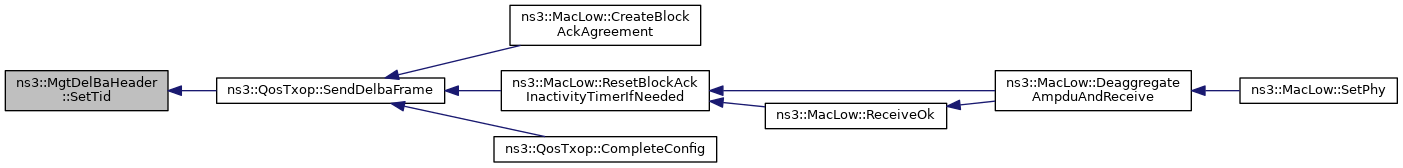

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_initiator

uint16_t ns3::MgtDelBaHeader::m_initiator
private

initiator

Definition at line 1310 of file mgt-headers.h.

Referenced by GetParameterSet(), IsByOriginator(), SetByOriginator(), SetByRecipient(), and SetParameterSet().

◆ m_reasonCode

uint16_t ns3::MgtDelBaHeader::m_reasonCode
private

Not used for now.

Always set to 1: "Unspecified reason"

Definition at line 1312 of file mgt-headers.h.

Referenced by Deserialize(), and Serialize().

◆ m_tid

uint16_t ns3::MgtDelBaHeader::m_tid
private

Traffic ID.

Definition at line 1311 of file mgt-headers.h.

Referenced by GetParameterSet(), GetTid(), SetParameterSet(), and SetTid().


The documentation for this class was generated from the following files:
