ns3::MpduAggregator Class Reference

Aggregator used to construct A-MPDUs. More...

#include "mpdu-aggregator.h"

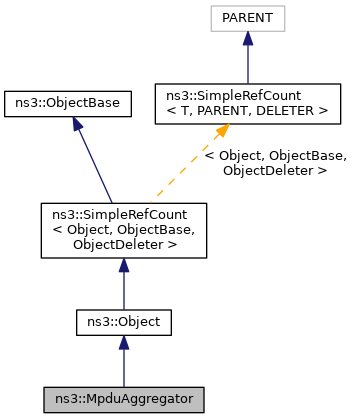

+ Inheritance diagram for ns3::MpduAggregator:

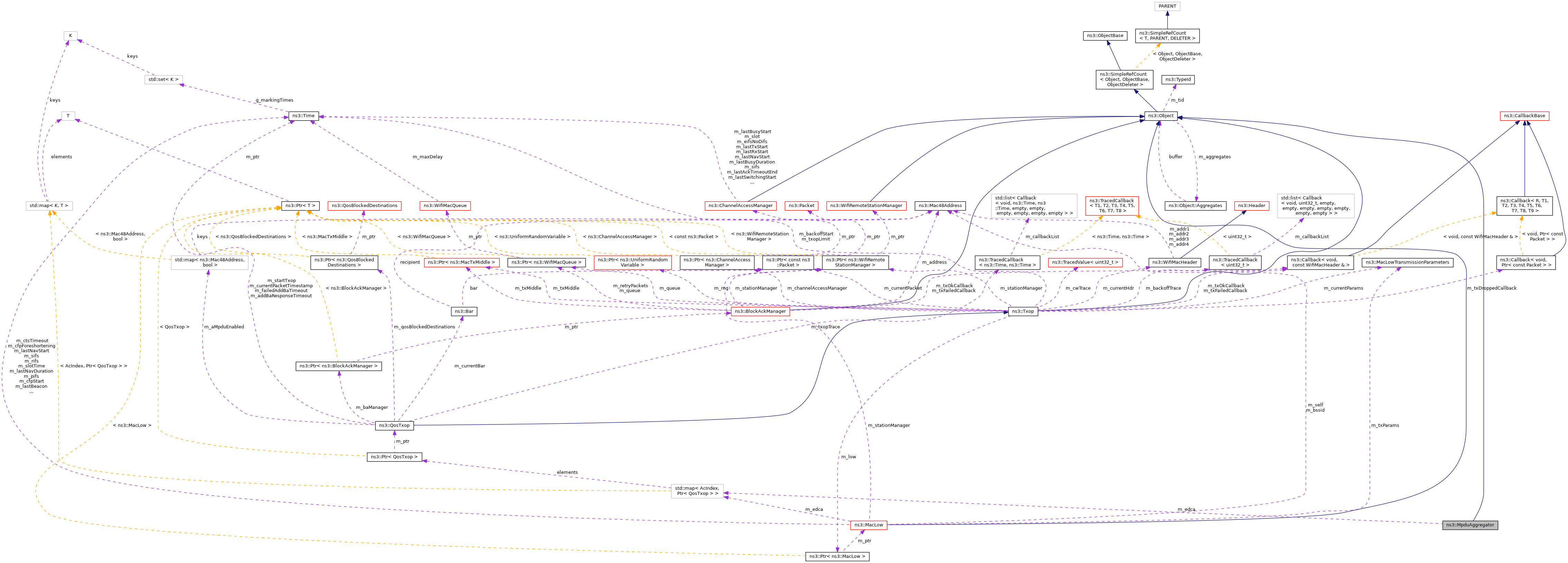

+ Collaboration diagram for ns3::MpduAggregator:

Public Types

typedef std::list< std::pair< Ptr< Packet >, AmpduSubframeHeader > > DeaggregatedMpdus
 A list of deaggregated packets and their A-MPDU subframe headers. More...

typedef std::list< std::pair< Ptr< Packet >, AmpduSubframeHeader > >::const_iterator DeaggregatedMpdusCI
 A constant iterator for a list of deaggregated packets and their A-MPDU subframe headers. More...

typedef std::map< AcIndex, Ptr< QosTxop > > EdcaQueues
 EDCA queues typedef. More...


Public Member Functions

 MpduAggregator ()

virtual ~MpduAggregator ()

uint32_t GetMaxAmpduSize (Mac48Address recipient, uint8_t tid, WifiModulationClass modulation) const
 Determine the maximum size for an A-MPDU of the given TID that can be sent to the given receiver when using the given modulation class. More...

std::vector< Ptr< WifiMacQueueItem > > GetNextAmpdu (Ptr< const WifiMacQueueItem > mpdu, WifiTxVector txVector, Time ppduDurationLimit=Seconds(0)) const
 Attempt to aggregate other MPDUs to the given MPDU, while meeting the following constraints: More...

void SetEdcaQueues (EdcaQueues edcaQueues)
 Set the map of EDCA queues. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static void AddHeaderAndPad (Ptr< Packet > mpdu, bool last, bool isSingleMpdu)

static void Aggregate (Ptr< const WifiMacQueueItem > mpdu, Ptr< Packet > ampdu, bool isSingle)
 Aggregate an MPDU to an A-MPDU. More...

static DeaggregatedMpdus Deaggregate (Ptr< Packet > aggregatedPacket)
 Deaggregates an A-MPDU by removing the A-MPDU subframe header and padding. More...

static uint32_t GetSizeIfAggregated (uint32_t mpduSize, uint32_t ampduSize)
 Compute the size of the A-MPDU resulting from the aggregation of an MPDU of size mpduSize and an A-MPDU of size ampduSize. More...

static TypeId GetTypeId (void)
 Get the type ID. More...

static std::list< Ptr< const Packet > > PeekAmpduSubframes (Ptr< const Packet > aggregatedPacket)
 Peeks the A-MPDU subframes of the provided A-MPDU. More...

static Ptr< const PacketPeekMpduInAmpduSubframe (Ptr< const Packet > ampduSubframe)
 Peeks the MPDU contained in the A-MPDU subframe. More...

static std::list< Ptr< const Packet > > PeekMpdus (Ptr< const Packet > aggregatedPacket)
 Peeks the MPDUs of the provided A-MPDU. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Static Private Member Functions

static uint8_t CalculatePadding (uint32_t ampduSize)


Private Attributes

EdcaQueues m_edca
 the map of EDCA queues More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Aggregator used to construct A-MPDUs.


Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 41 of file mpdu-aggregator.h.

Member Typedef Documentation

◆ DeaggregatedMpdus

A list of deaggregated packets and their A-MPDU subframe headers.

Definition at line 47 of file mpdu-aggregator.h.

◆ DeaggregatedMpdusCI

A constant iterator for a list of deaggregated packets and their A-MPDU subframe headers.

Definition at line 51 of file mpdu-aggregator.h.

◆ EdcaQueues

EDCA queues typedef.

Definition at line 55 of file mpdu-aggregator.h.

Constructor & Destructor Documentation

◆ MpduAggregator()

ns3::MpduAggregator::MpduAggregator ( )

Definition at line 58 of file mpdu-aggregator.cc.

◆ ~MpduAggregator()

ns3::MpduAggregator::~MpduAggregator ( )
virtual

Definition at line 62 of file mpdu-aggregator.cc.

Member Function Documentation

◆ AddHeaderAndPad()

void ns3::MpduAggregator::AddHeaderAndPad ( Ptr< Packet mpdu,
bool  last,
bool  isSingleMpdu
)
static
Parameters
mpduthe MPDU we want to insert into an A-MPDU subframe.
lasttrue if it is the last MPDU.
isSingleMpdutrue if it is a single MPDU

Adds A-MPDU subframe header and padding to each MPDU that is part of an A-MPDU before it is sent.

Definition at line 110 of file mpdu-aggregator.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), CalculatePadding(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, ns3::AmpduSubframeHeader::SetEof(), and ns3::AmpduSubframeHeader::SetLength().

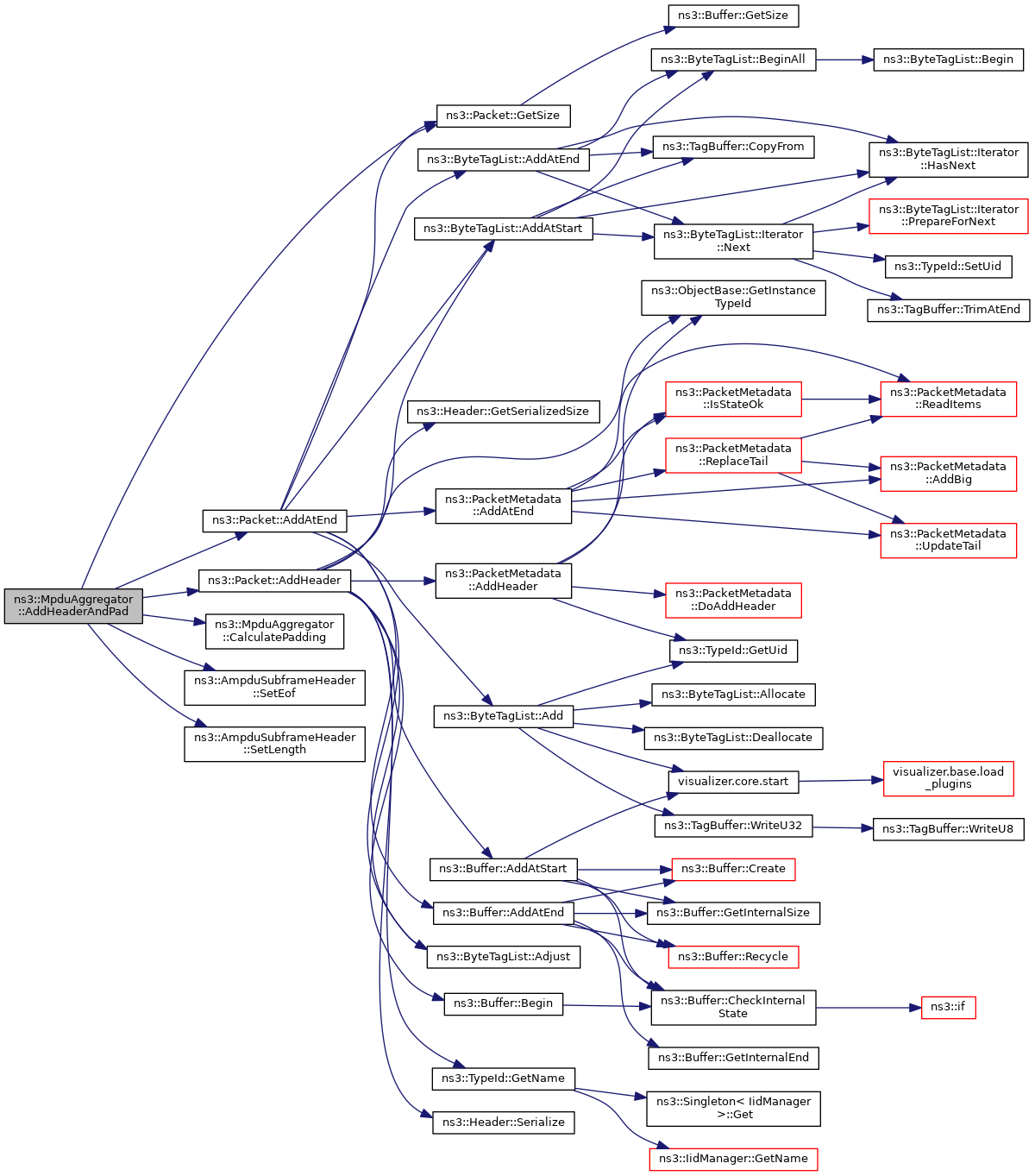

+ Here is the call graph for this function:

◆ Aggregate()

void ns3::MpduAggregator::Aggregate ( Ptr< const WifiMacQueueItem mpdu,
Ptr< Packet ampdu,
bool  isSingle
)
static

Aggregate an MPDU to an A-MPDU.

Parameters
mpduthe MPDU.
ampduthe A-MPDU.
isSinglewhether it is a single MPDU.

Definition at line 73 of file mpdu-aggregator.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::AddWifiMacTrailer(), CalculatePadding(), ns3::Packet::GetSize(), NS_ASSERT, NS_LOG_FUNCTION, ns3::AmpduSubframeHeader::SetEof(), and ns3::AmpduSubframeHeader::SetLength().

Referenced by ns3::WifiPsdu::GetPacket().

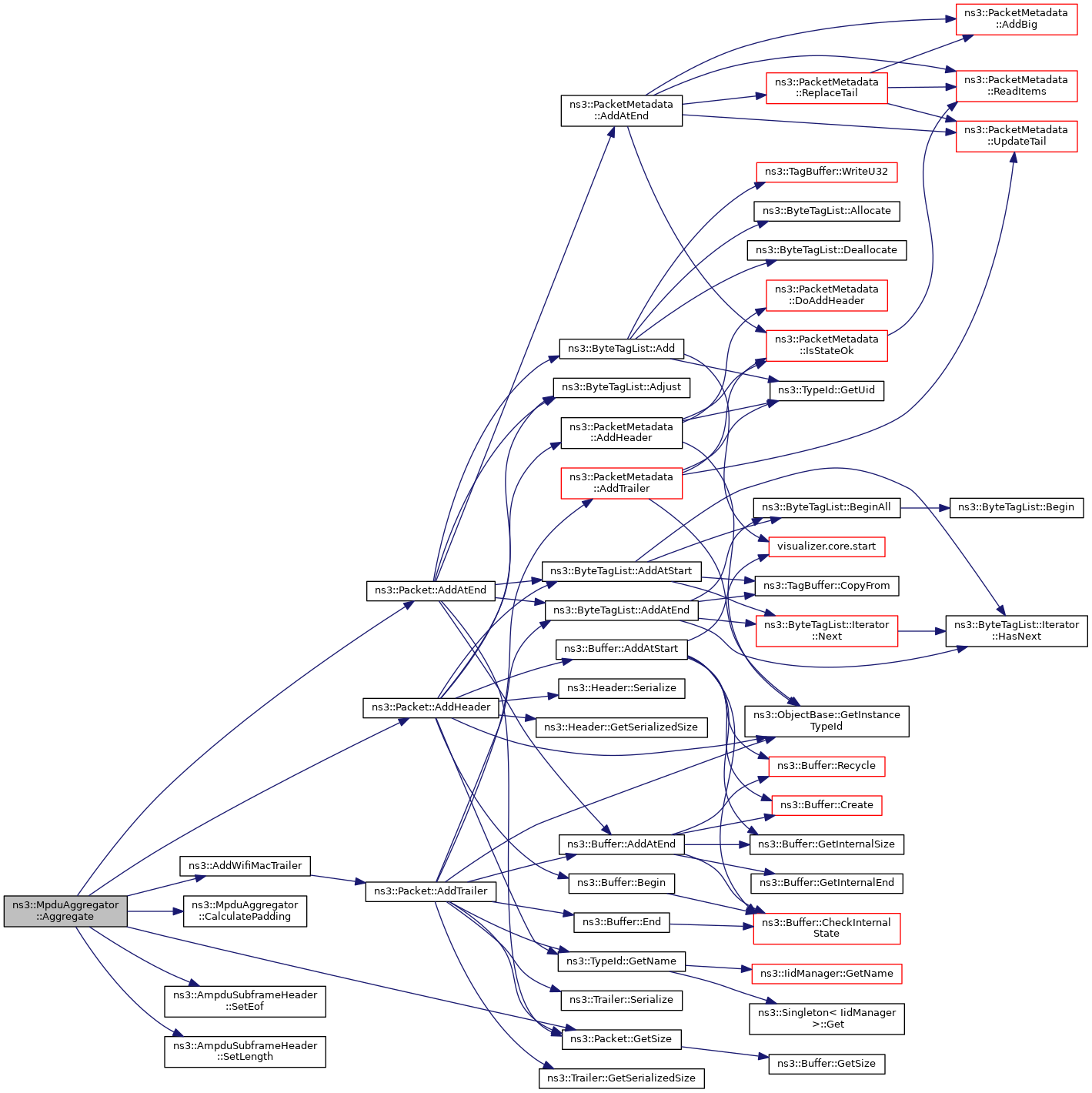

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CalculatePadding()

uint8_t ns3::MpduAggregator::CalculatePadding ( uint32_t  ampduSize)
staticprivate
Parameters
ampduSizethe size of the A-MPDU that needs to be padded
Returns
the size of the padding that must be added to the end of an A-MPDU

Calculates how much padding must be added to the end of an A-MPDU of the given size (once another MPDU is aggregated). Each A-MPDU subframe is padded so that its length is multiple of 4 octets.

Definition at line 220 of file mpdu-aggregator.cc.

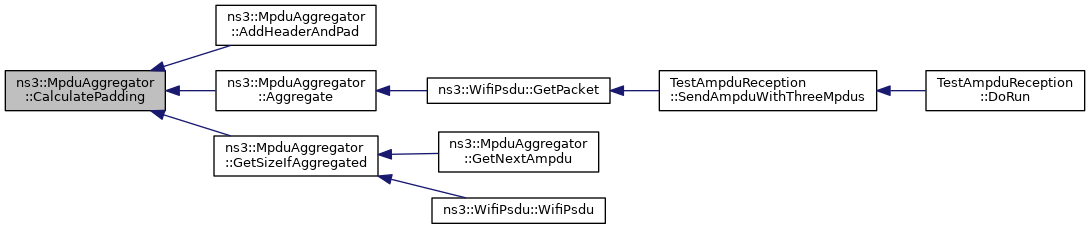

Referenced by AddHeaderAndPad(), Aggregate(), and GetSizeIfAggregated().

+ Here is the caller graph for this function:

◆ Deaggregate()

MpduAggregator::DeaggregatedMpdus ns3::MpduAggregator::Deaggregate ( Ptr< Packet aggregatedPacket)
static

Deaggregates an A-MPDU by removing the A-MPDU subframe header and padding.

Parameters
aggregatedPacketthe aggregated packet
Returns
list of deaggragted packets and their A-MPDU subframe headers

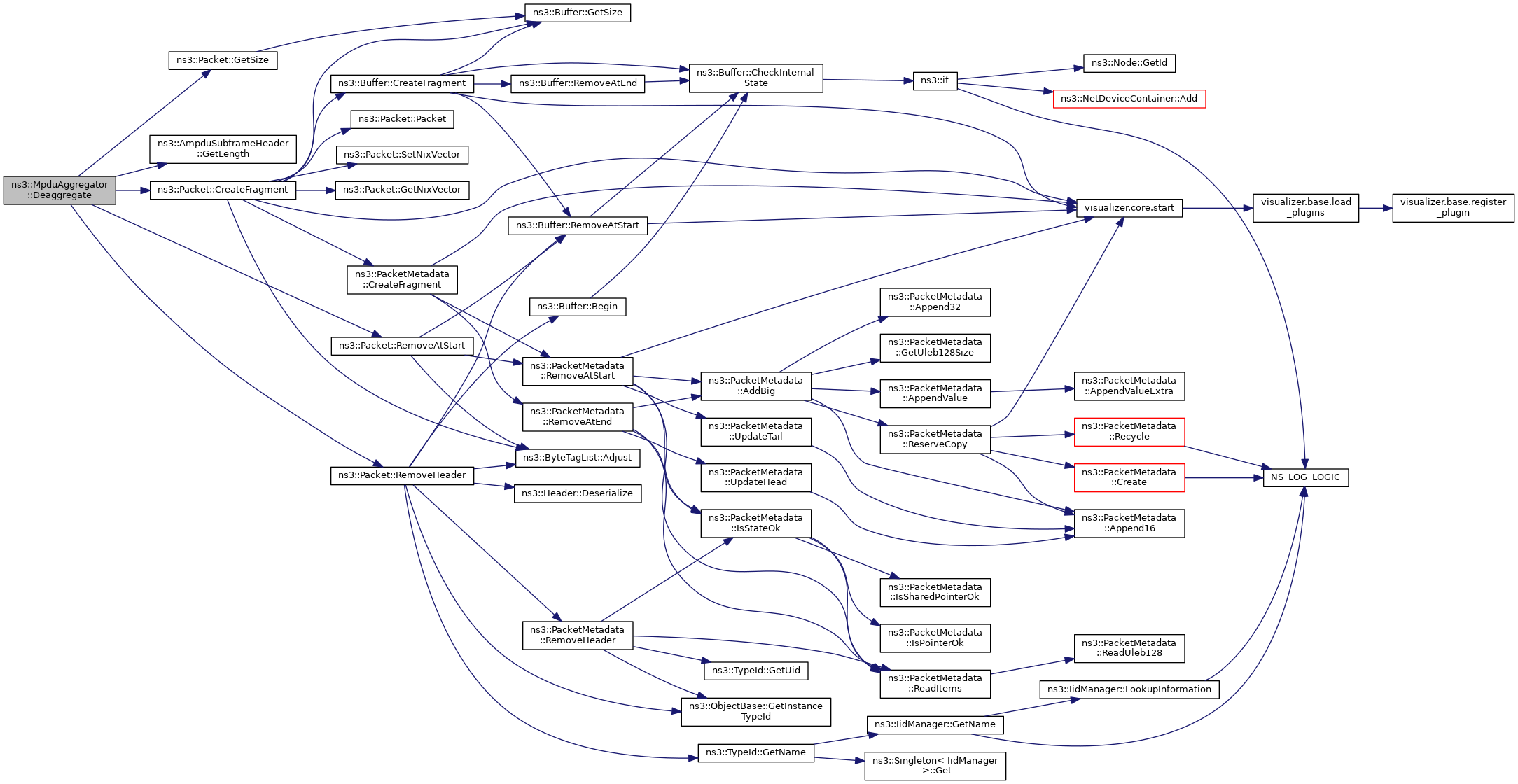

Definition at line 226 of file mpdu-aggregator.cc.

References ns3::Packet::CreateFragment(), ns3::AmpduSubframeHeader::GetLength(), ns3::Packet::GetSize(), NS_LOG_FUNCTION_NOARGS, NS_LOG_INFO, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

Referenced by ns3::MacLow::DeaggregateAmpduAndReceive().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetMaxAmpduSize()

uint32_t ns3::MpduAggregator::GetMaxAmpduSize ( Mac48Address  recipient,
uint8_t  tid,
WifiModulationClass  modulation
) const

Determine the maximum size for an A-MPDU of the given TID that can be sent to the given receiver when using the given modulation class.

Parameters
recipientthe receiver station address.
tidthe TID.
modulationthe modulation class.
Returns
the maximum A-MPDU size.

Definition at line 142 of file mpdu-aggregator.cc.

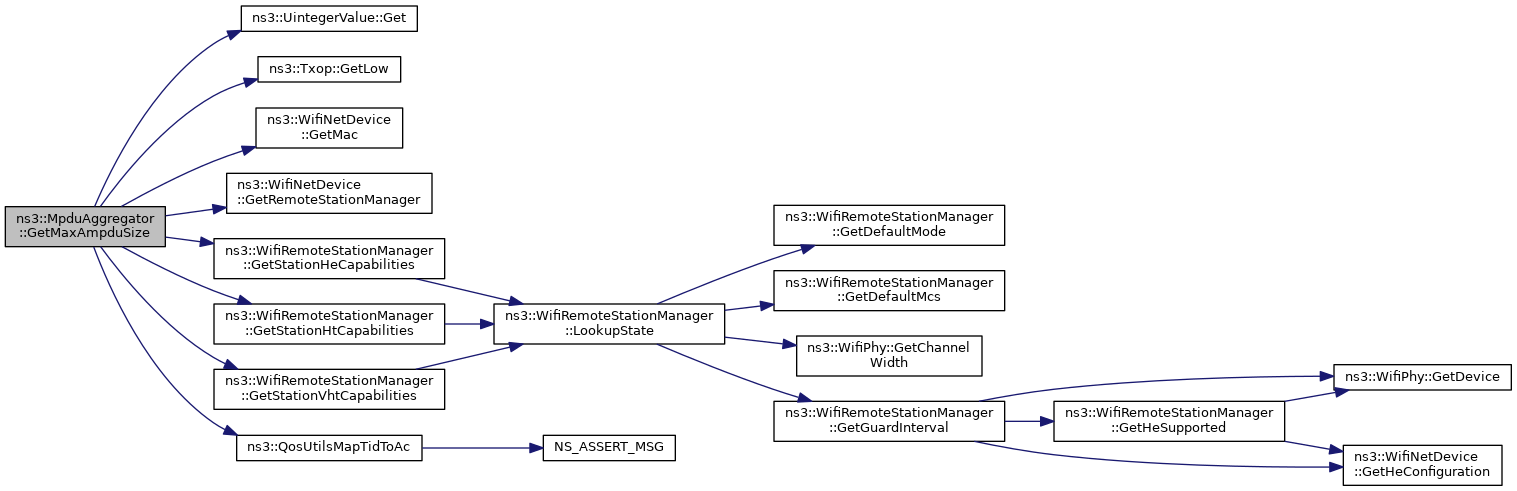

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ns3::UintegerValue::Get(), ns3::Txop::GetLow(), ns3::WifiNetDevice::GetMac(), ns3::WifiNetDevice::GetRemoteStationManager(), ns3::WifiRemoteStationManager::GetStationHeCapabilities(), ns3::WifiRemoteStationManager::GetStationHtCapabilities(), ns3::WifiRemoteStationManager::GetStationVhtCapabilities(), m_edca, min, NS_ABORT_MSG, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by GetNextAmpdu().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetNextAmpdu()

std::vector< Ptr< WifiMacQueueItem > > ns3::MpduAggregator::GetNextAmpdu ( Ptr< const WifiMacQueueItem mpdu,
WifiTxVector  txVector,
Time  ppduDurationLimit = Seconds (0)
) const

Attempt to aggregate other MPDUs to the given MPDU, while meeting the following constraints:

  • the size of the resulting A-MPDU does not exceed the maximum A-MPDU size as determined for the modulation class indicated by the given TxVector
  • the time to transmit the resulting PPDU, according to the given TxVector, does not exceed both the maximum PPDU duration allowed by the corresponding modulation class (if any) and the given PPDU duration limit (if non null)

For now, only non-broadcast QoS Data frames can be aggregated (do not pass other types of frames to this method). MPDUs to aggregate are looked for among those with the same TID and receiver as the given MPDU.

The resulting A-MPDU is returned as a vector of the constituent MPDUs (including the given MPDU), which are not actually aggregated (call the Aggregate method afterwards to get the actual A-MPDU). If aggregation was not possible (aggregation is disabled, there is no Block Ack agreement established with the receiver, or another MPDU to aggregate was not found), the returned vector is empty.

Parameters
mpduthe given MPDU.
txVectorthe TxVector used to transmit the frame
ppduDurationLimitthe limit on the PPDU duration
Returns
the resulting A-MPDU, if aggregation is possible.

Definition at line 318 of file mpdu-aggregator.cc.

References ns3::Copy(), GetMaxAmpduSize(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), GetSizeIfAggregated(), ns3::GetTid(), ns3::Mac48Address::IsBroadcast(), ns3::IsInWindow(), m_edca, ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::QosUtilsMapTidToAc().

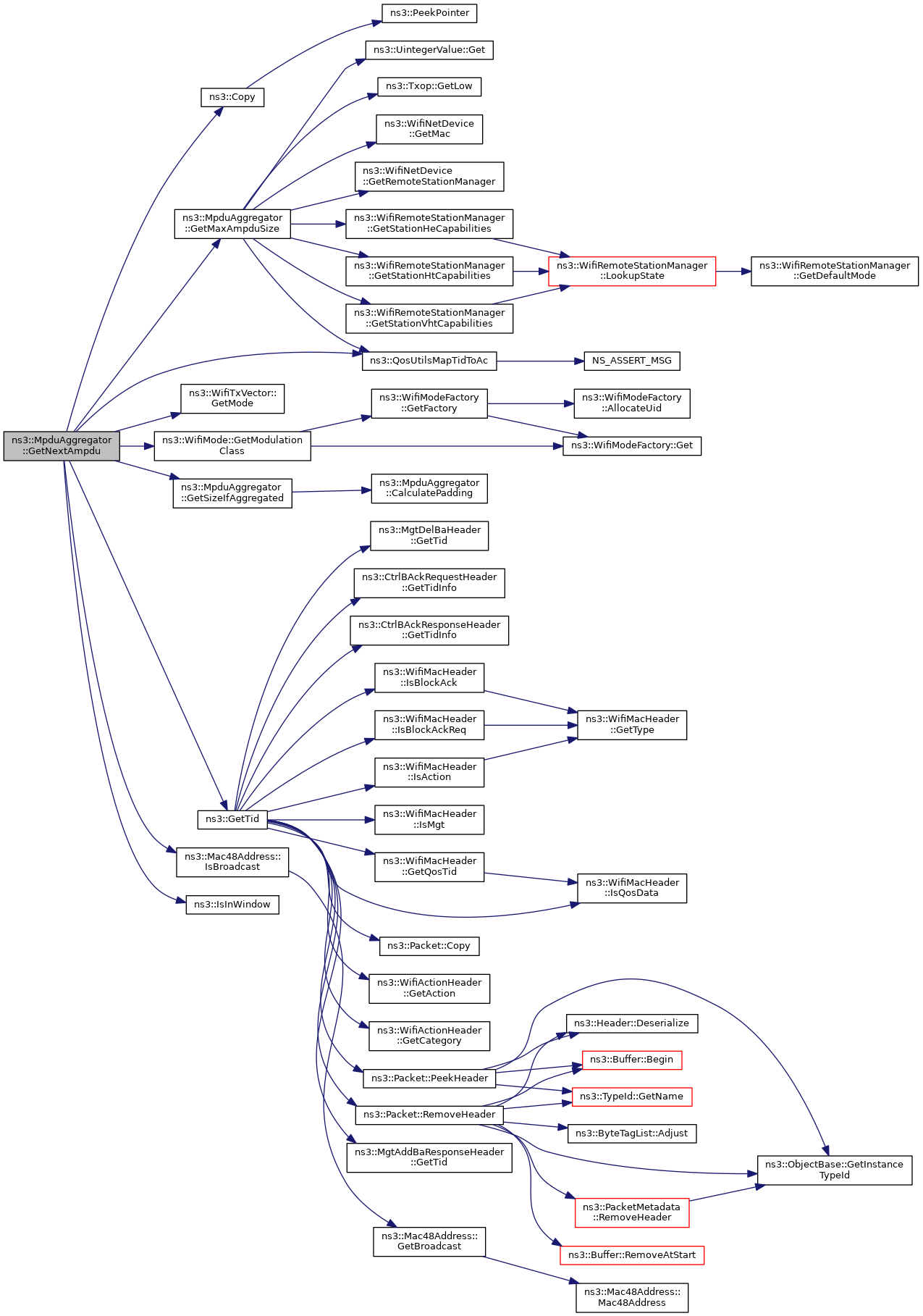

+ Here is the call graph for this function:

◆ GetSizeIfAggregated()

uint32_t ns3::MpduAggregator::GetSizeIfAggregated ( uint32_t  mpduSize,
uint32_t  ampduSize
)
static

Compute the size of the A-MPDU resulting from the aggregation of an MPDU of size mpduSize and an A-MPDU of size ampduSize.

Parameters
mpduSizethe MPDU size.
ampduSizethe A-MPDU size.
Returns
the size of the resulting A-MPDU.

Definition at line 134 of file mpdu-aggregator.cc.

References CalculatePadding(), and NS_LOG_FUNCTION.

Referenced by GetNextAmpdu(), and ns3::WifiPsdu::WifiPsdu().

+ Here is the call graph for this function:

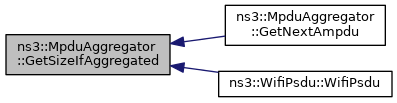

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MpduAggregator::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 48 of file mpdu-aggregator.cc.

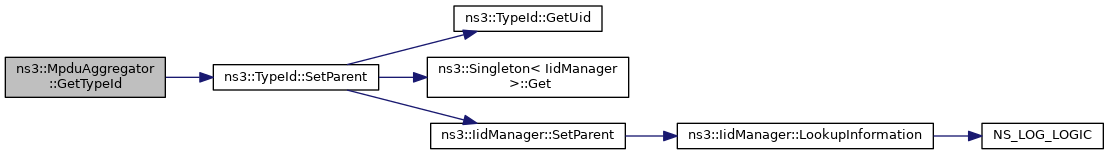

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ PeekAmpduSubframes()

std::list< Ptr< const Packet > > ns3::MpduAggregator::PeekAmpduSubframes ( Ptr< const Packet aggregatedPacket)
static

Peeks the A-MPDU subframes of the provided A-MPDU.

Parameters
aggregatedPacketthe aggregated packet
Returns
list of A-MPDU subframes (i.e. A-MPDU subframe header + MPDU + eventual padding)

Definition at line 262 of file mpdu-aggregator.cc.

References ns3::Packet::CreateFragment(), ns3::AmpduSubframeHeader::GetLength(), ns3::AmpduSubframeHeader::GetSerializedSize(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::Packet::PeekHeader().

Referenced by ns3::WifiPhy::EndReceive(), ns3::WifiPhy::NotifyMonitorSniffRx(), ns3::WifiPhy::NotifyMonitorSniffTx(), and PeekMpdus().

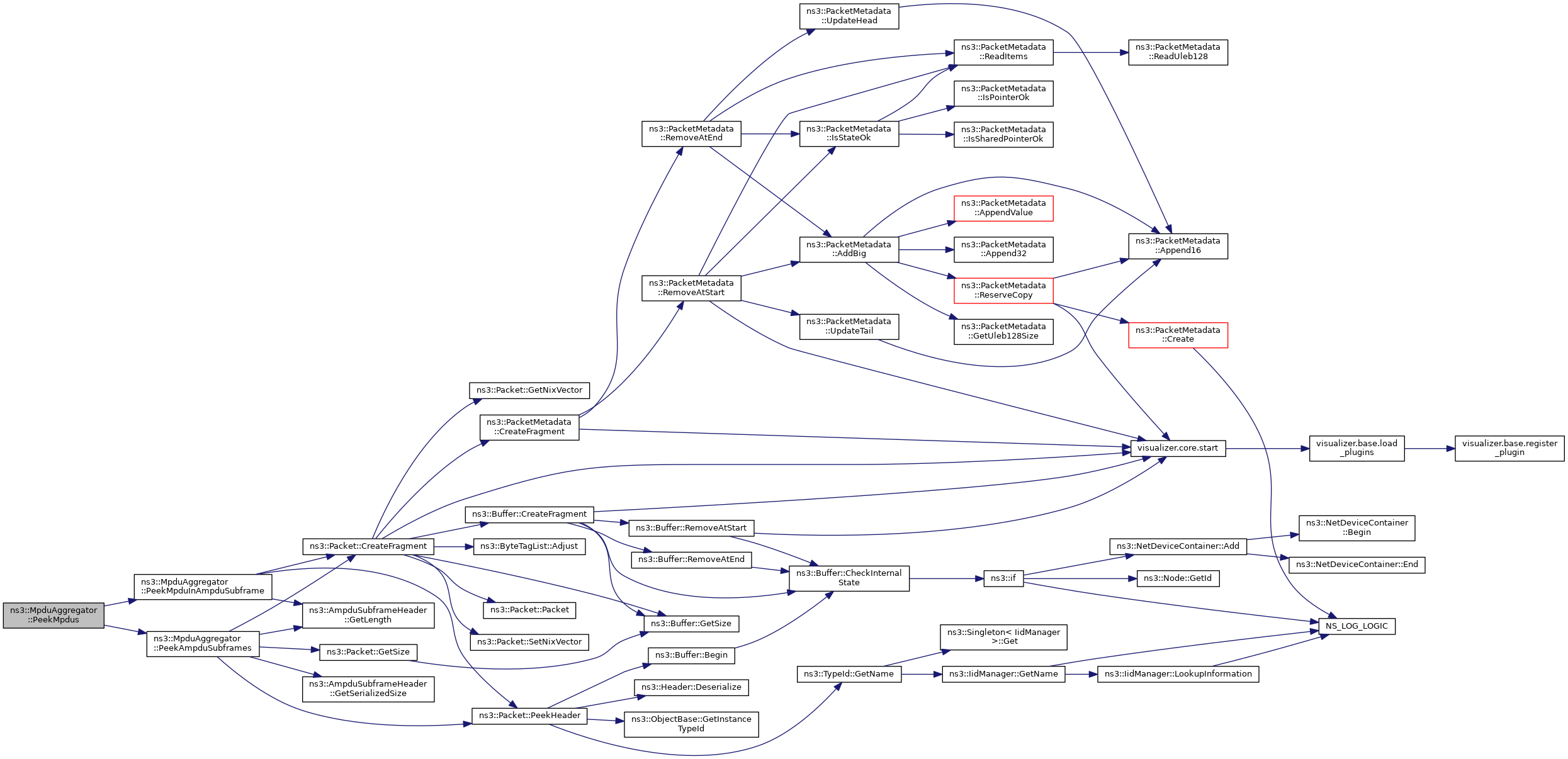

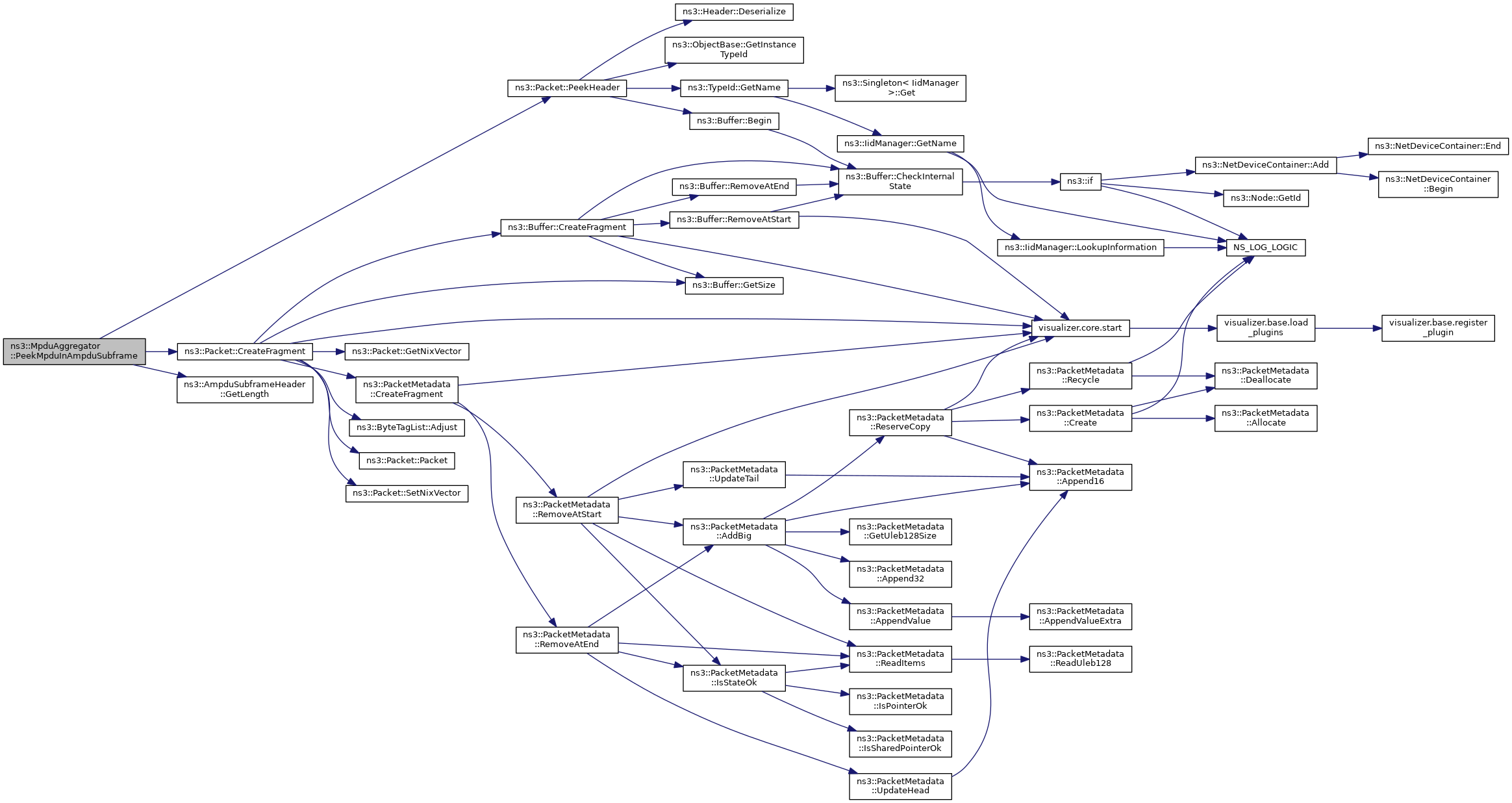

+ Here is the call graph for this function:

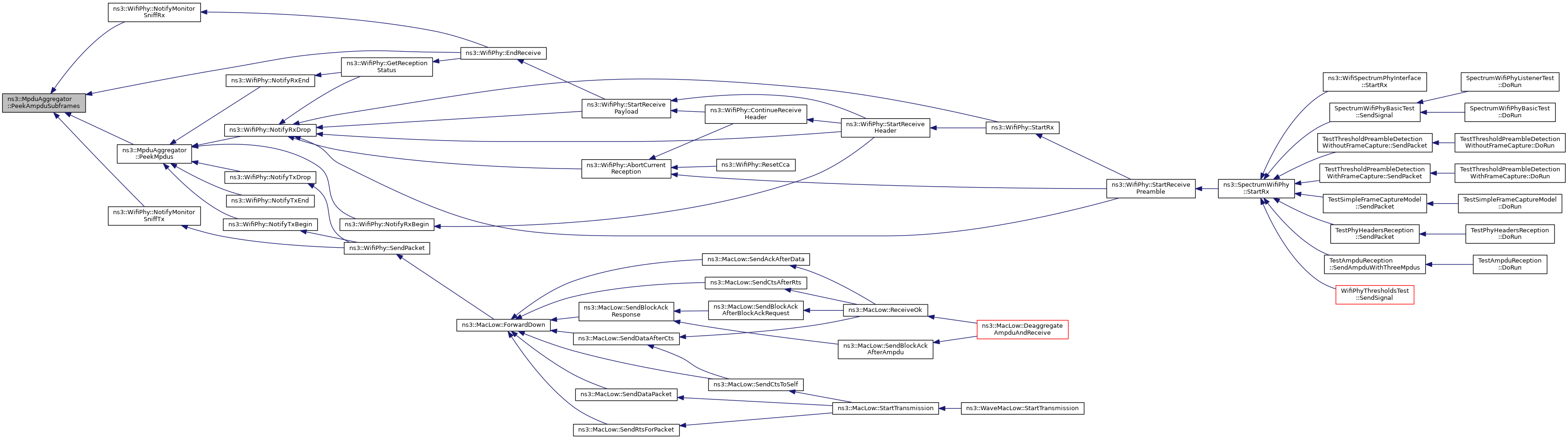

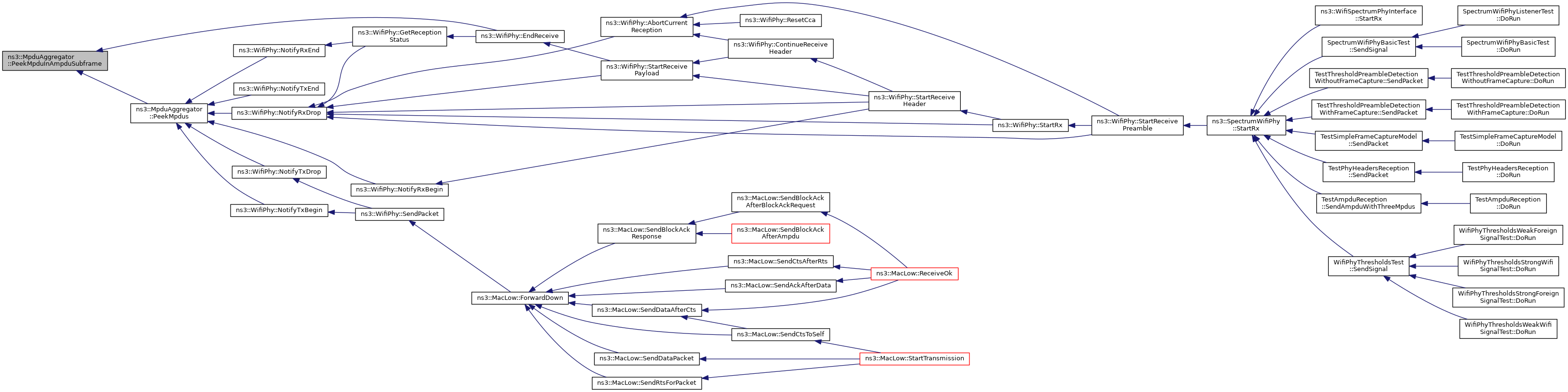

+ Here is the caller graph for this function:

◆ PeekMpduInAmpduSubframe()

Ptr< const Packet > ns3::MpduAggregator::PeekMpduInAmpduSubframe ( Ptr< const Packet ampduSubframe)
static

Peeks the MPDU contained in the A-MPDU subframe.

Parameters
ampduSubframethe A-MPDU subframe
Returns
the MPDU contained in the A-MPDU subframe

Definition at line 309 of file mpdu-aggregator.cc.

References ns3::Packet::CreateFragment(), ns3::AmpduSubframeHeader::GetLength(), NS_LOG_FUNCTION, and ns3::Packet::PeekHeader().

Referenced by ns3::WifiPhy::EndReceive(), and PeekMpdus().

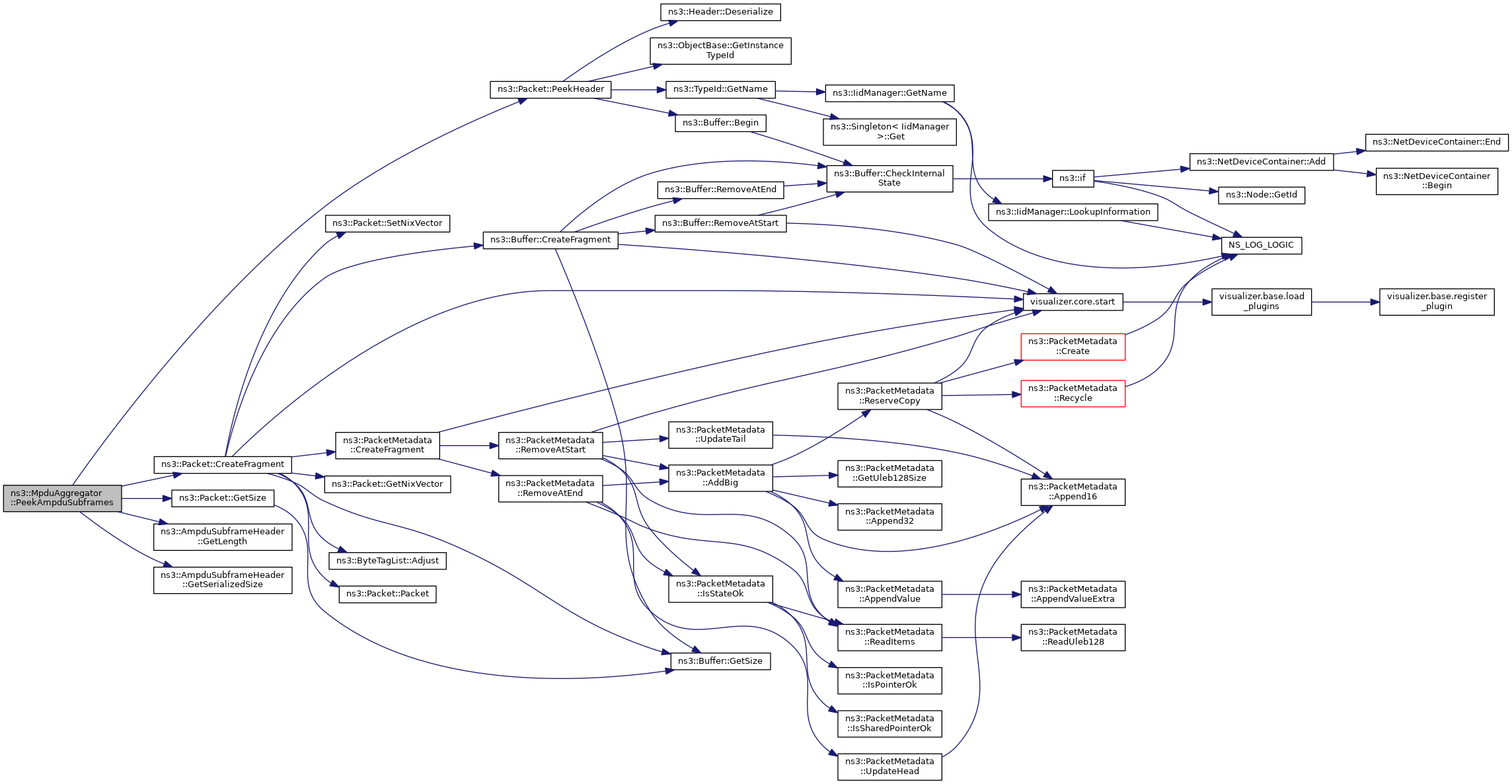

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ PeekMpdus()

std::list< Ptr< const Packet > > ns3::MpduAggregator::PeekMpdus ( Ptr< const Packet aggregatedPacket)
static

Peeks the MPDUs of the provided A-MPDU.

Parameters
aggregatedPacketthe aggregated packet
Returns
list of MPDUs

Definition at line 294 of file mpdu-aggregator.cc.

References NS_LOG_FUNCTION, NS_LOG_INFO, PeekAmpduSubframes(), and PeekMpduInAmpduSubframe().

Referenced by ns3::WifiPhy::NotifyRxBegin(), ns3::WifiPhy::NotifyRxDrop(), ns3::WifiPhy::NotifyRxEnd(), ns3::WifiPhy::NotifyTxBegin(), ns3::WifiPhy::NotifyTxDrop(), and ns3::WifiPhy::NotifyTxEnd().

+ Here is the call graph for this function:

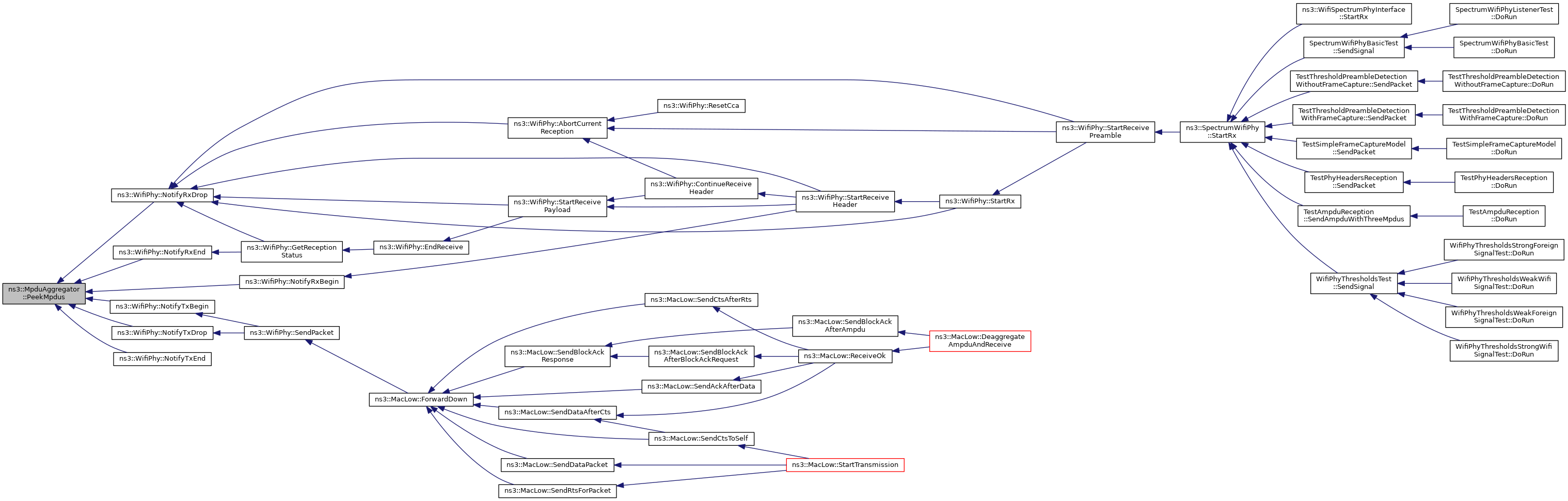

+ Here is the caller graph for this function:

◆ SetEdcaQueues()

void ns3::MpduAggregator::SetEdcaQueues ( EdcaQueues  edcaQueues)

Set the map of EDCA queues.

Parameters
edcaQueuesthe map of EDCA queues.

Definition at line 67 of file mpdu-aggregator.cc.

References m_edca.

Member Data Documentation

◆ m_edca

EdcaQueues ns3::MpduAggregator::m_edca
private

the map of EDCA queues

Definition at line 188 of file mpdu-aggregator.h.

Referenced by GetMaxAmpduSize(), GetNextAmpdu(), and SetEdcaQueues().


The documentation for this class was generated from the following files:
