Network device transmission queue interface. More...

#include "net-device-queue-interface.h"

Inheritance diagram for ns3::NetDeviceQueueInterface:

Collaboration diagram for ns3::NetDeviceQueueInterface:

Public Types
typedef std::function< std::size_t(Ptr< QueueItem >)>	SelectQueueCallback
	Callback invoked to determine the tx queue selected for a given packet. More...

Public Member Functions
	NetDeviceQueueInterface ()
	Constructor. More...

virtual	~NetDeviceQueueInterface ()

std::size_t	GetNTxQueues (void) const
	Get the number of device transmission queues. More...

SelectQueueCallback	GetSelectQueueCallback (void) const
	Get the select queue callback. More...

Ptr< NetDeviceQueue >	GetTxQueue (std::size_t i) const
	Get the i-th transmission queue of the device. More...

void	SetNTxQueues (std::size_t numTxQueues)
	Set the number of device transmission queues to create. More...

void	SetSelectQueueCallback (SelectQueueCallback cb)
	Set the select queue callback. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Dispose of the object. More...

virtual void	NotifyNewAggregate (void)
	Notify that an object was aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
SelectQueueCallback	m_selectQueueCallback
	Select queue callback. More...

std::vector< Ptr< NetDeviceQueue > >	m_txQueuesVector
	Device transmission queues. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Network device transmission queue interface.

Introspection did not find any typical Config paths.

This interface is used by the traffic control layer and by the aggregated device to access the transmission queues of the device. Additionally, through this interface, traffic control aware netdevices can:

set the number of transmission queues
set the method used (by upper layers) to determine the transmission queue in which the netdevice would enqueue a given packet NetDevice helpers create this interface and aggregate it to the device.

Attributes

NTxQueues: The number of device transmission queues
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:65535
- Initial value: 1
- Flags: construct read

No TraceSources are defined for this type.
Size of this type is 88 bytes (on a 64-bit architecture).

Definition at line 223 of file net-device-queue-interface.h.

Member Typedef Documentation

◆ SelectQueueCallback

typedef std::function<std::size_t (Ptr<QueueItem>)> ns3::NetDeviceQueueInterface::SelectQueueCallback

Callback invoked to determine the tx queue selected for a given packet.

Definition at line 265 of file net-device-queue-interface.h.

Constructor & Destructor Documentation

◆ NetDeviceQueueInterface()

ns3::NetDeviceQueueInterface::NetDeviceQueueInterface ( )

Constructor.

Definition at line 183 of file net-device-queue-interface.cc.

References m_selectQueueCallback, and NS_LOG_FUNCTION.

◆ ~NetDeviceQueueInterface()

ns3::NetDeviceQueueInterface::~NetDeviceQueueInterface ( )

virtual

Definition at line 191 of file net-device-queue-interface.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::NetDeviceQueueInterface::DoDispose ( void )

protectedvirtual

Dispose of the object.

Reimplemented from ns3::Object.

Definition at line 210 of file net-device-queue-interface.cc.

References ns3::Object::DoDispose(), m_txQueuesVector, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNTxQueues()

std::size_t ns3::NetDeviceQueueInterface::GetNTxQueues ( void ) const

Get the number of device transmission queues.

Returns: the number of device transmission queues.

Definition at line 204 of file net-device-queue-interface.cc.

References m_txQueuesVector.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetSelectQueueCallback()

NetDeviceQueueInterface::SelectQueueCallback ns3::NetDeviceQueueInterface::GetSelectQueueCallback ( void ) const

Get the select queue callback.

Returns: the select queue callback.

Called by the traffic control layer to get the select queue callback set by a multi-queue device.

Definition at line 253 of file net-device-queue-interface.cc.

References m_selectQueueCallback.

◆ GetTxQueue()

Ptr< NetDeviceQueue > ns3::NetDeviceQueueInterface::GetTxQueue ( std::size_t i ) const

Get the i-th transmission queue of the device.

Parameters

i	the index of the requested queue.

Returns: the i-th transmission queue of the device.

The index of the first transmission queue is zero.

Definition at line 197 of file net-device-queue-interface.cc.

References m_txQueuesVector, and NS_ASSERT.

Referenced by TcFlowControlTestCase::CheckDeviceQueueStopped().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::NetDeviceQueueInterface::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 167 of file net-device-queue-interface.cc.

References ns3::TypeId::ATTR_CONSTRUCT, ns3::TypeId::ATTR_GET, GetNTxQueues(), ns3::MakeUintegerAccessor(), SetNTxQueues(), and ns3::TypeId::SetParent().

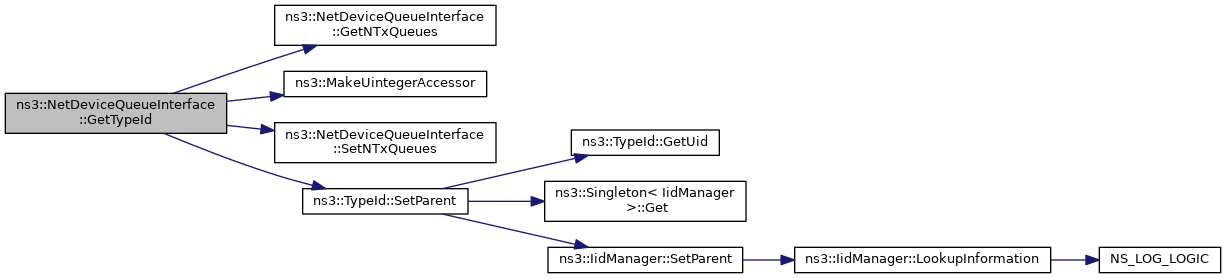

Here is the call graph for this function:

◆ NotifyNewAggregate()

void ns3::NetDeviceQueueInterface::NotifyNewAggregate ( void )

protectedvirtual

Notify that an object was aggregated.

Reimplemented from ns3::Object.

Definition at line 219 of file net-device-queue-interface.cc.

References m_txQueuesVector, ns3::Object::NotifyNewAggregate(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetNTxQueues()

void ns3::NetDeviceQueueInterface::SetNTxQueues ( std::size_t numTxQueues )

Set the number of device transmission queues to create.

Parameters

numTxQueues number of device transmission queues to create.

This method is called when the NTxQueues attribute is set to create the corresponding number of device transmission queues. It cannot be called again afterwards.

Definition at line 232 of file net-device-queue-interface.cc.

References m_txQueuesVector, NS_ABORT_MSG_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:
