ns3::OfdmUlBurstProfile Class Reference

This class implements the UL burst profile as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1.1 Uplink burst profile encodings, page 655. More...

#include "ul-mac-messages.h"

Public Types

enum  Uiuc {
  UIUC_INITIAL_RANGING = 1, UIUC_REQ_REGION_FULL, UIUC_REQ_REGION_FOCUSED, UIUC_FOCUSED_CONTENTION_IE,
  UIUC_BURST_PROFILE_5, UIUC_BURST_PROFILE_6, UIUC_BURST_PROFILE_7, UIUC_BURST_PROFILE_8,
  UIUC_BURST_PROFILE_9, UIUC_BURST_PROFILE_10, UIUC_BURST_PROFILE_11, UIUC_BURST_PROFILE_12,
  UIUC_SUBCH_NETWORK_ENTRY, UIUC_END_OF_MAP
}
 UIUC enumeraton. More...


Public Member Functions

 OfdmUlBurstProfile (void)

 ~OfdmUlBurstProfile (void)

uint8_t GetFecCodeType (void) const
 Get FEC code type. More...

uint8_t GetLength (void) const
 Get length. More...

uint16_t GetSize (void) const
 Get size. More...

uint8_t GetType (void) const
 Get type. More...

uint8_t GetUiuc (void) const
 Get UIUC. More...

Buffer::Iterator Read (Buffer::Iterator start)
 Read item. More...

void SetFecCodeType (uint8_t fecCodeType)
 Set FEC code type. More...

void SetLength (uint8_t length)
 Set length. More...

void SetType (uint8_t type)
 Set type. More...

void SetUiuc (uint8_t uiuc)
 Set UIUC. More...

Buffer::Iterator Write (Buffer::Iterator start) const
 Write item. More...


Private Attributes

uint8_t m_fecCodeType
 FEC code type. More...

uint8_t m_length
 length More...

uint8_t m_type
 type More...

uint8_t m_uiuc
 UIUC. More...


Detailed Description

This class implements the UL burst profile as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1.1 Uplink burst profile encodings, page 655.

Definition at line 203 of file ul-mac-messages.h.

Member Enumeration Documentation

◆ Uiuc

UIUC enumeraton.

Enumerator
UIUC_INITIAL_RANGING
UIUC_REQ_REGION_FULL
UIUC_REQ_REGION_FOCUSED
UIUC_FOCUSED_CONTENTION_IE
UIUC_BURST_PROFILE_5
UIUC_BURST_PROFILE_6
UIUC_BURST_PROFILE_7
UIUC_BURST_PROFILE_8
UIUC_BURST_PROFILE_9
UIUC_BURST_PROFILE_10
UIUC_BURST_PROFILE_11
UIUC_BURST_PROFILE_12
UIUC_SUBCH_NETWORK_ENTRY
UIUC_END_OF_MAP

Definition at line 207 of file ul-mac-messages.h.

Constructor & Destructor Documentation

◆ OfdmUlBurstProfile()

ns3::OfdmUlBurstProfile::OfdmUlBurstProfile ( void  )

Definition at line 166 of file ul-mac-messages.cc.

◆ ~OfdmUlBurstProfile()

ns3::OfdmUlBurstProfile::~OfdmUlBurstProfile ( void  )

Definition at line 174 of file ul-mac-messages.cc.

Member Function Documentation

◆ GetFecCodeType()

uint8_t ns3::OfdmUlBurstProfile::GetFecCodeType ( void  ) const

Get FEC code type.

Returns
the FEC code type

Definition at line 221 of file ul-mac-messages.cc.

References m_fecCodeType.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

+ Here is the caller graph for this function:

◆ GetLength()

uint8_t ns3::OfdmUlBurstProfile::GetLength ( void  ) const

Get length.

Returns
the length

Definition at line 209 of file ul-mac-messages.cc.

References m_length.

◆ GetSize()

uint16_t ns3::OfdmUlBurstProfile::GetSize ( void  ) const

Get size.

Returns
the size

Definition at line 227 of file ul-mac-messages.cc.

Referenced by ns3::Ucd::GetSerializedSize().

+ Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::OfdmUlBurstProfile::GetType ( void  ) const

Get type.

Returns
the type

Definition at line 203 of file ul-mac-messages.cc.

References m_type.

◆ GetUiuc()

uint8_t ns3::OfdmUlBurstProfile::GetUiuc ( void  ) const

Get UIUC.

Returns
the UIUC

Definition at line 215 of file ul-mac-messages.cc.

References m_uiuc.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

+ Here is the caller graph for this function:

◆ Read()

Buffer::Iterator ns3::OfdmUlBurstProfile::Read ( Buffer::Iterator  start)

Read item.

Parameters
startthe iterator
Returns
the updated iterator

Definition at line 244 of file ul-mac-messages.cc.

References m_fecCodeType, m_length, m_type, m_uiuc, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by ns3::Ucd::Deserialize().

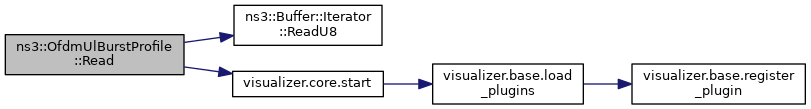

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetFecCodeType()

void ns3::OfdmUlBurstProfile::SetFecCodeType ( uint8_t  fecCodeType)

Set FEC code type.

Parameters
fecCodeTypethe FEC code type

Definition at line 197 of file ul-mac-messages.cc.

References m_fecCodeType.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().

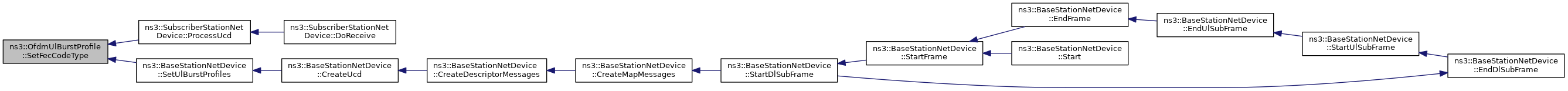

+ Here is the caller graph for this function:

◆ SetLength()

void ns3::OfdmUlBurstProfile::SetLength ( uint8_t  length)

Set length.

Parameters
lengththe length

Definition at line 185 of file ul-mac-messages.cc.

References m_length.

Referenced by ns3::BaseStationNetDevice::SetUlBurstProfiles().

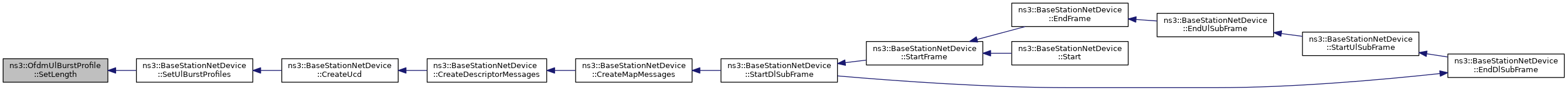

+ Here is the caller graph for this function:

◆ SetType()

void ns3::OfdmUlBurstProfile::SetType ( uint8_t  type)

Set type.

Parameters
typethe type

Definition at line 179 of file ul-mac-messages.cc.

References m_type.

Referenced by ns3::BaseStationNetDevice::SetUlBurstProfiles().

+ Here is the caller graph for this function:

◆ SetUiuc()

void ns3::OfdmUlBurstProfile::SetUiuc ( uint8_t  uiuc)

Set UIUC.

Parameters
uiucthe UIUC

Definition at line 191 of file ul-mac-messages.cc.

References m_uiuc.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().

+ Here is the caller graph for this function:

◆ Write()

Buffer::Iterator ns3::OfdmUlBurstProfile::Write ( Buffer::Iterator  start) const

Write item.

Parameters
startthe iterator
Returns
the updated iterator

Definition at line 233 of file ul-mac-messages.cc.

References m_fecCodeType, m_length, m_type, m_uiuc, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::Ucd::Serialize().

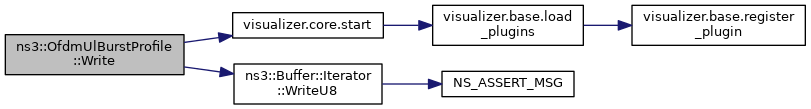

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_fecCodeType

uint8_t ns3::OfdmUlBurstProfile::m_fecCodeType
private

FEC code type.

Definition at line 294 of file ul-mac-messages.h.

Referenced by GetFecCodeType(), Read(), SetFecCodeType(), and Write().

◆ m_length

uint8_t ns3::OfdmUlBurstProfile::m_length
private

length

Definition at line 290 of file ul-mac-messages.h.

Referenced by GetLength(), Read(), SetLength(), and Write().

◆ m_type

uint8_t ns3::OfdmUlBurstProfile::m_type
private

type

Definition at line 289 of file ul-mac-messages.h.

Referenced by GetType(), Read(), SetType(), and Write().

◆ m_uiuc

uint8_t ns3::OfdmUlBurstProfile::m_uiuc
private

UIUC.

Definition at line 291 of file ul-mac-messages.h.

Referenced by GetUiuc(), Read(), SetUiuc(), and Write().


The documentation for this class was generated from the following files:
