A Remote Point-To-Point Channel. More...

#include "point-to-point-remote-channel.h"

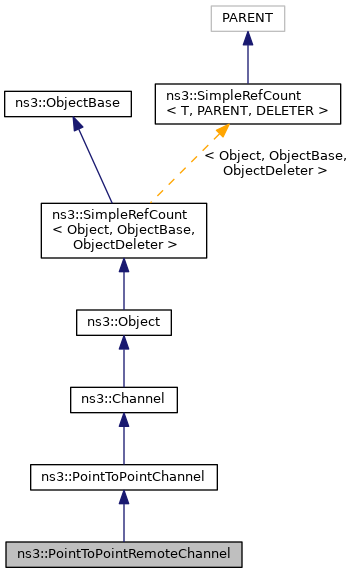

Inheritance diagram for ns3::PointToPointRemoteChannel:

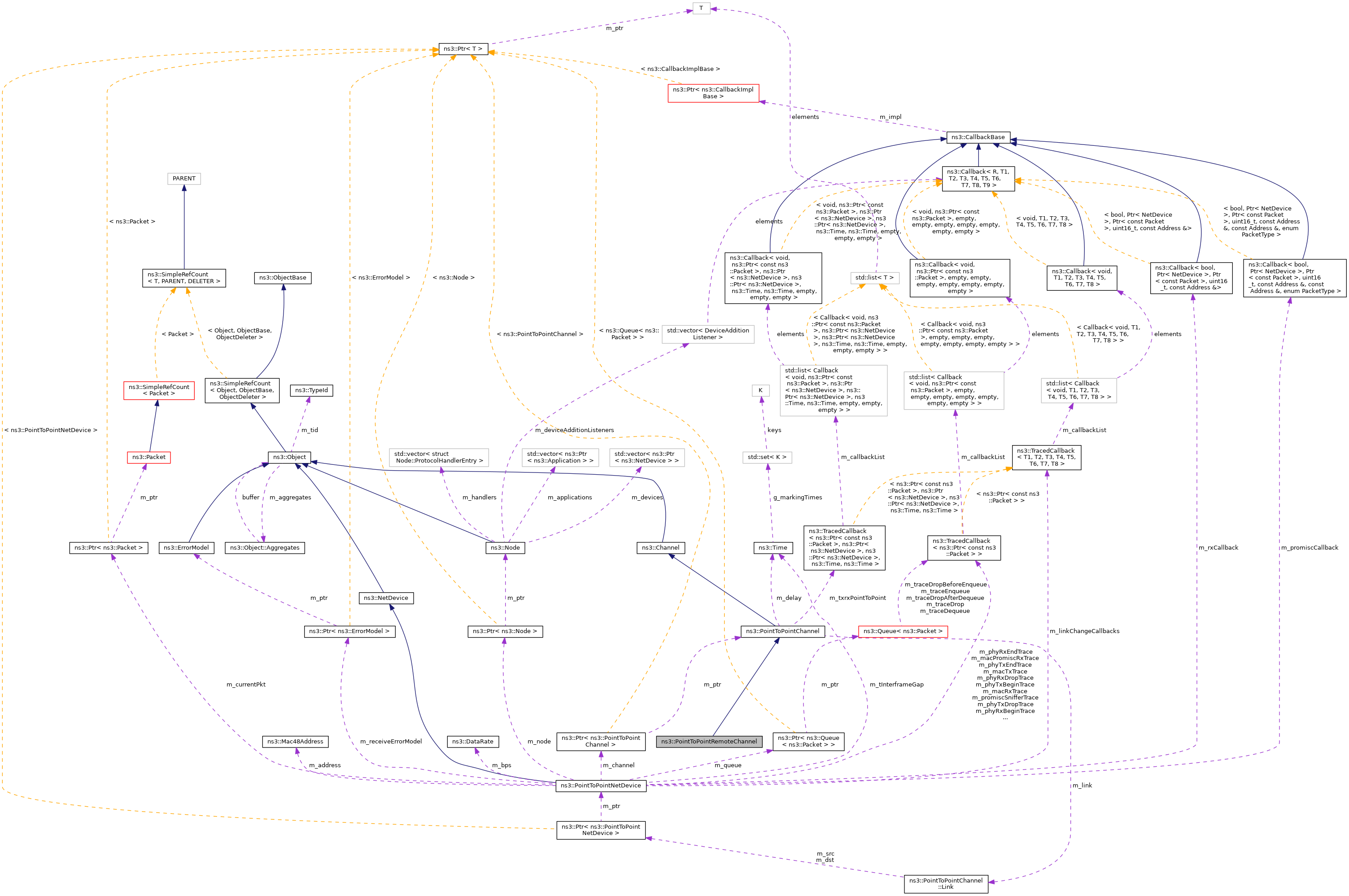

Collaboration diagram for ns3::PointToPointRemoteChannel:

Public Member Functions
	PointToPointRemoteChannel ()
	Constructor. More...

	~PointToPointRemoteChannel ()
	Deconstructor. More...

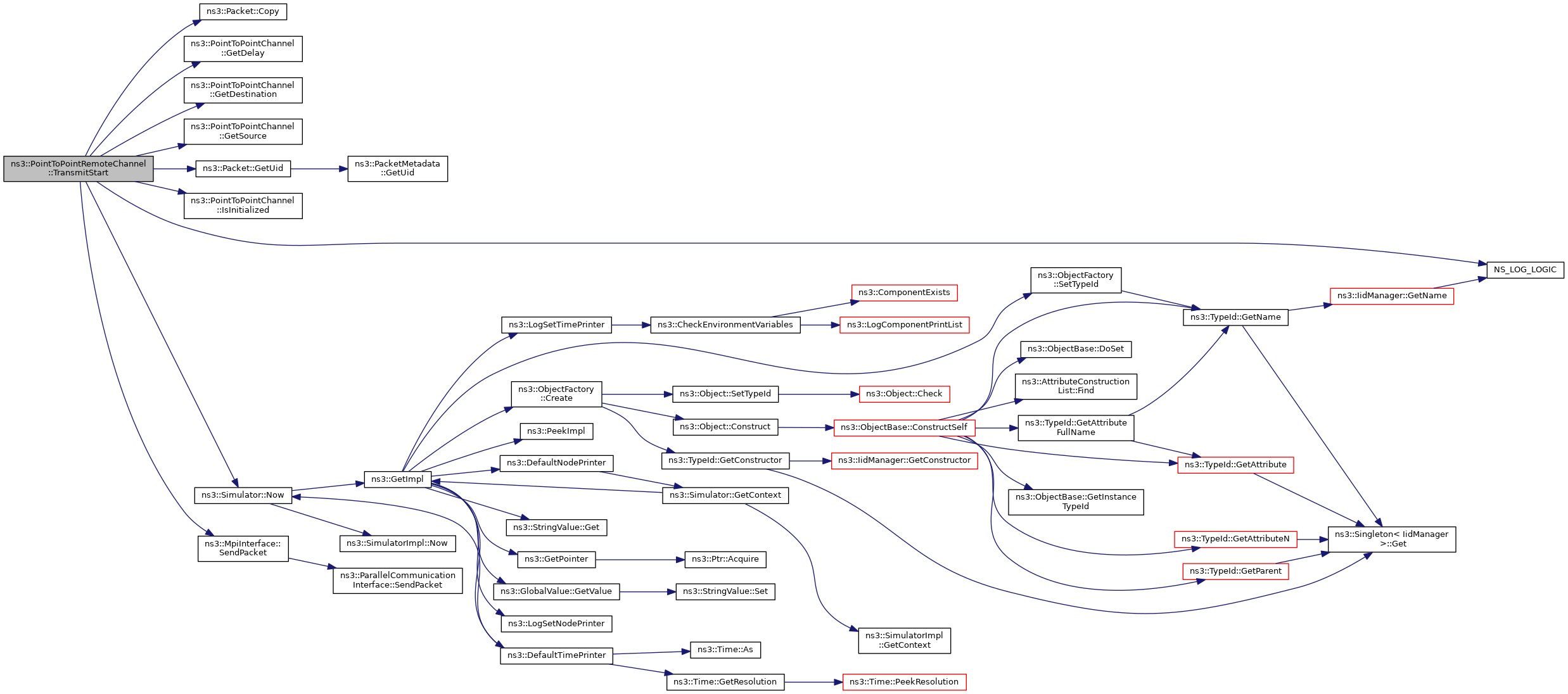

virtual bool	TransmitStart (Ptr< const Packet > p, Ptr< PointToPointNetDevice > src, Time txTime)
	Transmit the packet. More...

Public Member Functions inherited from ns3::PointToPointChannel
	PointToPointChannel ()
	Create a PointToPointChannel. More...

void	Attach (Ptr< PointToPointNetDevice > device)
	Attach a given netdevice to this channel. More...

virtual Ptr< NetDevice >	GetDevice (std::size_t i) const
	Get NetDevice corresponding to index i on this channel. More...

virtual std::size_t	GetNDevices (void) const
	Get number of devices on this channel. More...

Ptr< PointToPointNetDevice >	GetPointToPointDevice (std::size_t i) const
	Get PointToPointNetDevice corresponding to index i on this channel. More...

Public Member Functions inherited from ns3::Channel
	Channel ()

virtual	~Channel ()

uint32_t	GetId (void) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

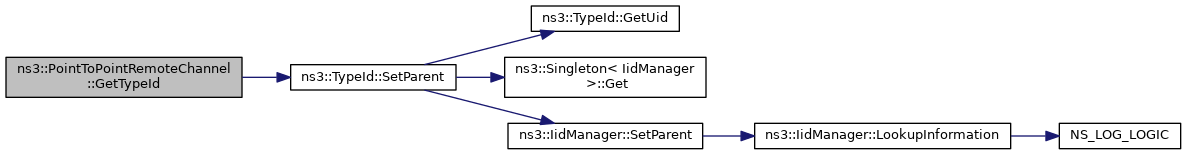

static TypeId	GetTypeId (void)
	Get the TypeId. More...

Static Public Member Functions inherited from ns3::PointToPointChannel
static TypeId	GetTypeId (void)
	Get the TypeId. More...

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Types inherited from ns3::PointToPointChannel
typedef void(*	TxRxAnimationCallback) (Ptr< const Packet > packet, Ptr< NetDevice > txDevice, Ptr< NetDevice > rxDevice, Time duration, Time lastBitTime)
	TracedCallback signature for packet transmission animation events. More...

Protected Member Functions inherited from ns3::PointToPointChannel
Time	GetDelay (void) const
	Get the delay associated with this channel. More...

Ptr< PointToPointNetDevice >	GetDestination (uint32_t i) const
	Get the net-device destination. More...

Ptr< PointToPointNetDevice >	GetSource (uint32_t i) const
	Get the net-device source. More...

bool	IsInitialized (void) const
	Check to make sure the link is initialized. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A Remote Point-To-Point Channel.

This object connects two point-to-point net devices where at least one is not local to this simulator object. It simply override the transmit method and uses an MPI Send operation instead.

Config Paths

ns3::PointToPointRemoteChannel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::PointToPointChannel/$ns3::PointToPointRemoteChannel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::PointToPointRemoteChannel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::PointToPointChannel/$ns3::PointToPointRemoteChannel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::PointToPointRemoteChannel"
"/ChannelList/[i]/$ns3::PointToPointChannel/$ns3::PointToPointRemoteChannel"
"/ChannelList/[i]/$ns3::PointToPointRemoteChannel"

No Attributes are defined for this type.

Attributes defined in parent class ns3::PointToPointChannel

Delay: Propagation delay through the channel
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read

Attributes defined in parent class ns3::Channel

Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::PointToPointChannel

TxRxPointToPoint: Trace source indicating transmission of packet from the PointToPointChannel, used by the Animation interface.
Callback signature: ns3::PointToPointChannel::TxRxAnimationCallback

Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 41 of file point-to-point-remote-channel.h.
