ns3::RawTextConfigLoad Class Reference

A class to enable loading of configuration store from a raw text file. More...

#include "raw-text-config.h"

Inheritance diagram for ns3::RawTextConfigLoad:

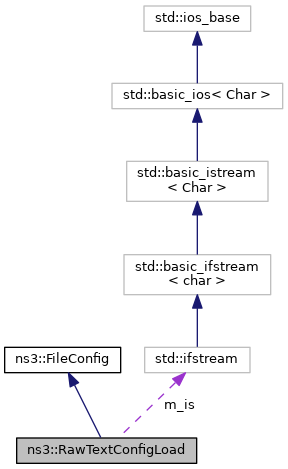

Collaboration diagram for ns3::RawTextConfigLoad:

Public Member Functions
	RawTextConfigLoad ()
virtual	~RawTextConfigLoad ()
virtual void	Attributes (void)
	Load or save the attributes values. More...
virtual void	Default (void)
	Load or save the default values. More...
virtual void	Global (void)
	Load or save the global values. More...
virtual void	SetFilename (std::string filename)
	Set the file name. More...
Public Member Functions inherited from ns3::FileConfig
virtual	~FileConfig ()

Private Member Functions
std::string	Strip (std::string value)
	Strip out attribute value. More...

Private Attributes
std::ifstream *	m_is
	Config store input stream. More...

Detailed Description

A class to enable loading of configuration store from a raw text file.

Definition at line 54 of file raw-text-config.h.

Constructor & Destructor Documentation

RawTextConfigLoad()

ns3::RawTextConfigLoad::RawTextConfigLoad

(

)

Definition at line 115 of file raw-text-config.cc.

References NS_LOG_FUNCTION.

~RawTextConfigLoad()

ns3::RawTextConfigLoad::~RawTextConfigLoad ( )

virtual

Definition at line 120 of file raw-text-config.cc.

References m_is, and NS_LOG_FUNCTION.

Member Function Documentation

Attributes()

void ns3::RawTextConfigLoad::Attributes ( void  )

virtual

Load or save the attributes values.

Implements ns3::FileConfig.

Definition at line 186 of file raw-text-config.cc.

References m_is, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Config::Set(), and Strip().

Referenced by ns3::load_clicked().

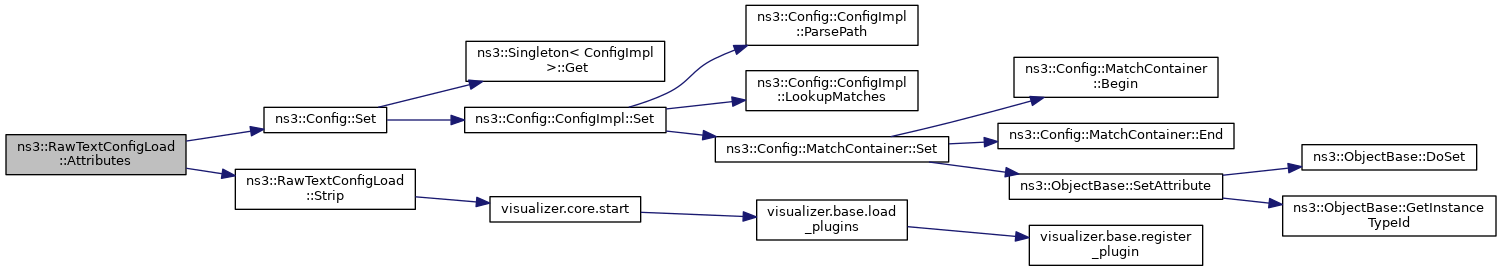

Here is the call graph for this function:

Here is the caller graph for this function:

Default()

void ns3::RawTextConfigLoad::Default ( void  )

virtual

Load or save the default values.

Implements ns3::FileConfig.

Definition at line 148 of file raw-text-config.cc.

References m_is, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Config::SetDefault(), and Strip().

Referenced by ns3::load_clicked_default().

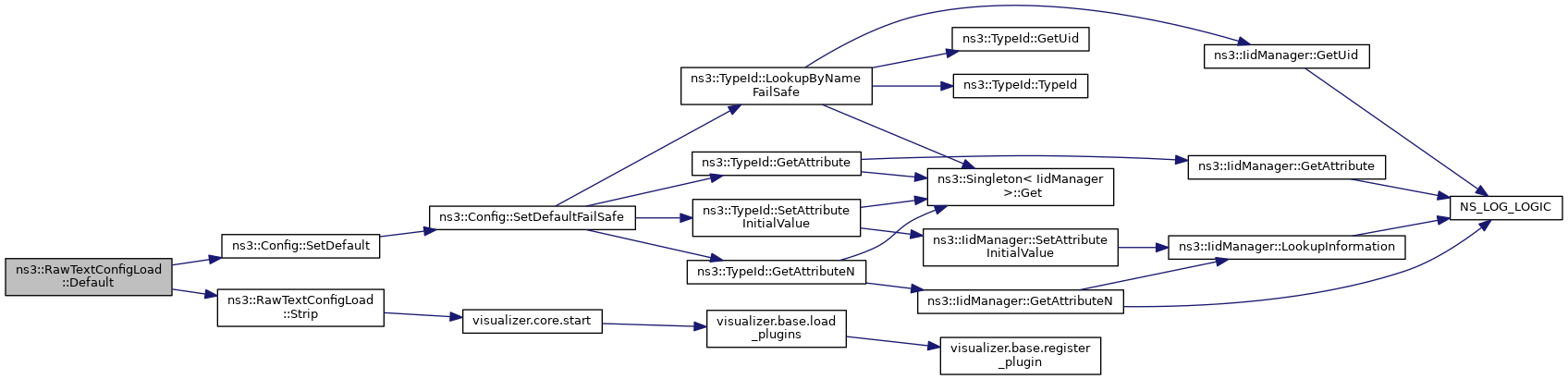

Here is the call graph for this function:

Here is the caller graph for this function:

Global()

void ns3::RawTextConfigLoad::Global ( void  )

virtual

Load or save the global values.

Implements ns3::FileConfig.

Definition at line 167 of file raw-text-config.cc.

References m_is, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Config::SetGlobal(), and Strip().

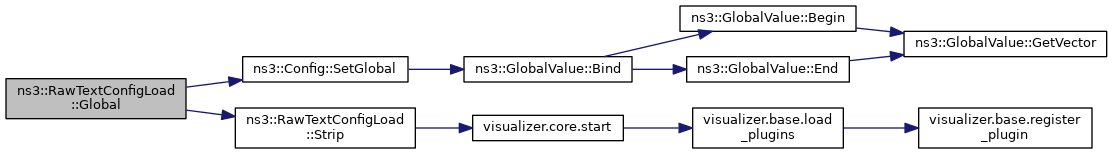

Here is the call graph for this function:

SetFilename()

void ns3::RawTextConfigLoad::SetFilename ( std::string  filename )

virtual

Set the file name.

Parameters

filename

the filename

Implements ns3::FileConfig.

Definition at line 131 of file raw-text-config.cc.

References m_is, and NS_LOG_FUNCTION.

Referenced by ns3::load_clicked(), and ns3::load_clicked_default().

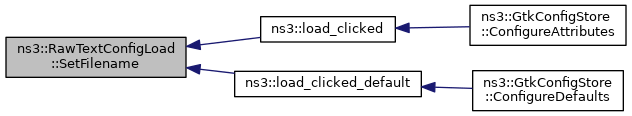

Here is the caller graph for this function:

Strip()

std::string ns3::RawTextConfigLoad::Strip ( std::string  value )

private

Strip out attribute value.

Parameters

value

the input string

Returns

the updated string

Definition at line 138 of file raw-text-config.cc.

References NS_ASSERT, and visualizer.core::start().

Referenced by Attributes(), Default(), and Global().

Here is the call graph for this function:

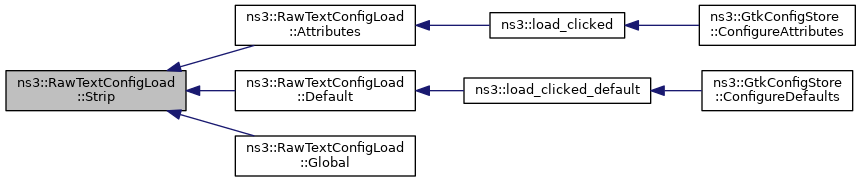

Here is the caller graph for this function:

Member Data Documentation

m_is

std::ifstream* ns3::RawTextConfigLoad::m_is

private

Config store input stream.

Definition at line 71 of file raw-text-config.h.

Referenced by Attributes(), Default(), Global(), SetFilename(), and ~RawTextConfigLoad().

---

The documentation for this class was generated from the following files:

• src/config-store/model/raw-text-config.h
• src/config-store/model/raw-text-config.cc
