Packet header for UDP client/server application. More...

#include "seq-ts-header.h"

Inheritance diagram for ns3::SeqTsHeader:

Collaboration diagram for ns3::SeqTsHeader:

Public Member Functions
	SeqTsHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint32_t	GetSeq (void) const

virtual uint32_t	GetSerializedSize (void) const

Time	GetTs (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetSeq (uint32_t seq)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_seq
	Sequence number. More...

uint64_t	m_ts
	Timestamp. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Packet header for UDP client/server application.

Introspection did not find any typical Config paths.

The header is made of a 32bits sequence number followed by a 64bits time stamp.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 36 of file seq-ts-header.h.

Constructor & Destructor Documentation

◆ SeqTsHeader()

ns3::SeqTsHeader::SeqTsHeader ( )

Definition at line 33 of file seq-ts-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SeqTsHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 97 of file seq-ts-header.cc.

References GetSerializedSize(), m_seq, m_ts, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadNtohU64(), and visualizer.core::start().

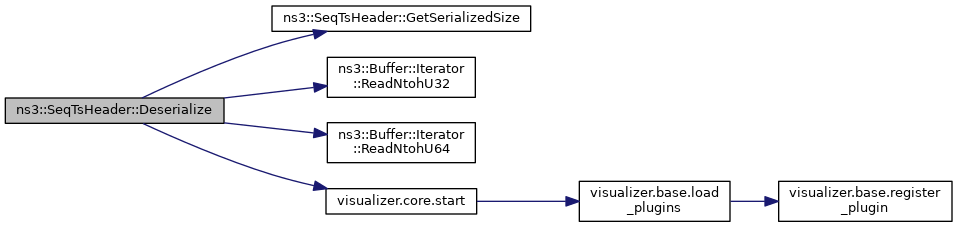

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SeqTsHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 71 of file seq-ts-header.cc.

References GetTypeId().

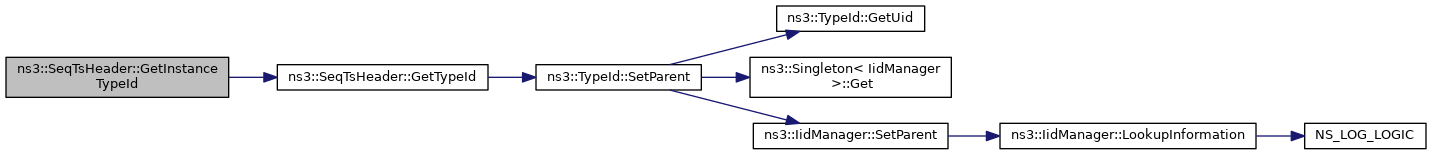

Here is the call graph for this function:

◆ GetSeq()

uint32_t ns3::SeqTsHeader::GetSeq ( void ) const

Returns: the sequence number

Definition at line 47 of file seq-ts-header.cc.

References m_seq, and NS_LOG_FUNCTION.

Referenced by ns3::UdpServer::HandleRead(), and WaveNetDeviceExample::Receive().

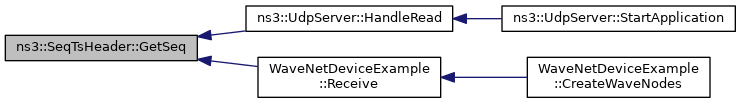

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SeqTsHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 82 of file seq-ts-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetTs()

Time ns3::SeqTsHeader::GetTs ( void ) const

Returns: the time stamp

Definition at line 54 of file seq-ts-header.cc.

References m_ts, NS_LOG_FUNCTION, and ns3::TimeStep().

Referenced by ns3::UdpServer::HandleRead(), and WaveNetDeviceExample::Receive().

Here is the call graph for this function:

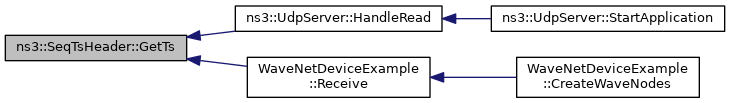

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SeqTsHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 61 of file seq-ts-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

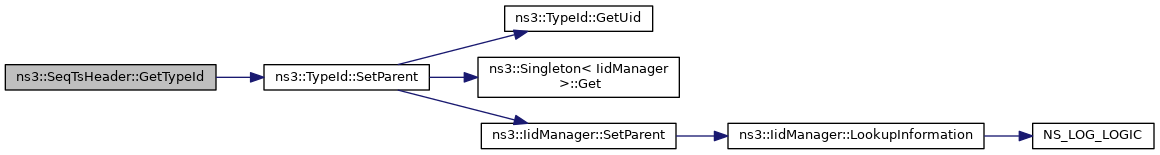

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::SeqTsHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 76 of file seq-ts-header.cc.

References ns3::Time::GetSeconds(), m_seq, m_ts, NS_LOG_FUNCTION, and ns3::TimeStep().

Here is the call graph for this function:

◆ Serialize()

void ns3::SeqTsHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 89 of file seq-ts-header.cc.

References m_seq, m_ts, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteHtonU64().

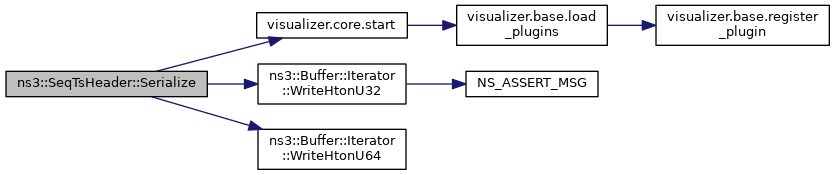

Here is the call graph for this function:

◆ SetSeq()

void ns3::SeqTsHeader::SetSeq ( uint32_t seq )

Parameters

seq	the sequence number

Definition at line 41 of file seq-ts-header.cc.

References m_seq, and NS_LOG_FUNCTION.

Referenced by ns3::UdpClient::Send(), EpsBearerTagUdpClient::Send(), WaveNetDeviceExample::SendIpPacket(), WaveNetDeviceExample::SendOneWsmpPacket(), and ns3::UdpTraceClient::SendPacket().

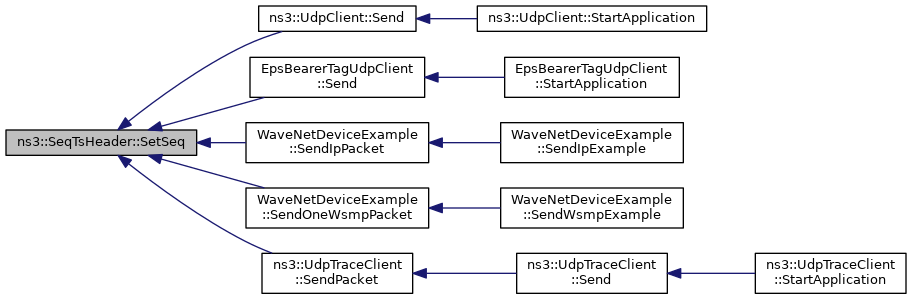

Here is the caller graph for this function:

Member Data Documentation

◆ m_seq

uint32_t ns3::SeqTsHeader::m_seq

private

Sequence number.

Definition at line 67 of file seq-ts-header.h.

Referenced by Deserialize(), GetSeq(), Print(), Serialize(), and SetSeq().

◆ m_ts

uint64_t ns3::SeqTsHeader::m_ts

private

Timestamp.

Definition at line 68 of file seq-ts-header.h.

Referenced by Deserialize(), GetTs(), Print(), and Serialize().

The documentation for this class was generated from the following files:

src/applications/model/seq-ts-header.h
src/applications/model/seq-ts-header.cc
