indicates whether the socket has IPV6_TCLASS set. More...
#include "socket.h"
Inheritance diagram for ns3::SocketIpv6TclassTag: Collaboration diagram for ns3::SocketIpv6TclassTag:Public Member Functions | |
| SocketIpv6TclassTag () | |
| virtual void | Deserialize (TagBuffer i) |
| virtual TypeId | GetInstanceTypeId (void) const |
| Get the most derived TypeId for this Object. More... | |
| virtual uint32_t | GetSerializedSize (void) const |
| uint8_t | GetTclass (void) const |
| Get the tag's Tclass. More... | |
| virtual void | Print (std::ostream &os) const |
| virtual void | Serialize (TagBuffer i) const |
| void | SetTclass (uint8_t tclass) |
| Set the tag's Tclass. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Tag | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| uint8_t | m_ipv6Tclass |
| the Tclass carried by the tag More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
indicates whether the socket has IPV6_TCLASS set.
This tag is for IPv6 socket.
|
virtual |
| i | the buffer to read data from. |
Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.
Implements ns3::Tag.
Definition at line 941 of file socket.cc.
References m_ipv6Tclass, and ns3::TagBuffer::ReadU8().
Here is the call graph for this function:
|
virtual |
Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 923 of file socket.cc.
References GetTypeId().

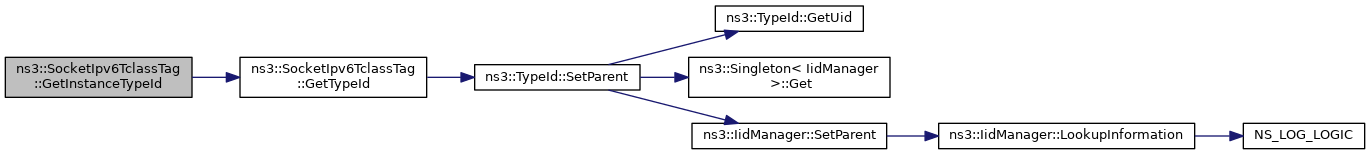

Here is the call graph for this function:
|
virtual |
This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.
Implements ns3::Tag.
| uint8_t ns3::SocketIpv6TclassTag::GetTclass | ( | void | ) | const |
Get the tag's Tclass.
Definition at line 906 of file socket.cc.
References m_ipv6Tclass.
Referenced by ReceivePacket(), and ns3::Ipv6L3Protocol::Send().

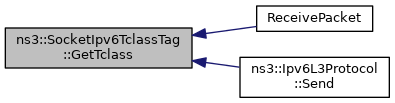

Here is the caller graph for this function:
|
static |
Get the type ID.
Definition at line 912 of file socket.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().

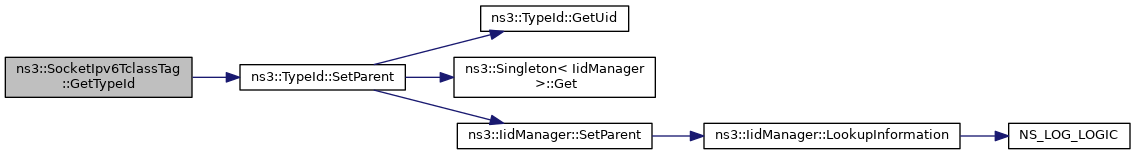

Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
| os | the stream to print to |
This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.
Implements ns3::Tag.
Definition at line 946 of file socket.cc.
References m_ipv6Tclass.
|
virtual |
| i | the buffer to write data into. |
Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.
Implements ns3::Tag.
Definition at line 935 of file socket.cc.
References m_ipv6Tclass, and ns3::TagBuffer::WriteU8().
Here is the call graph for this function:| void ns3::SocketIpv6TclassTag::SetTclass | ( | uint8_t | tclass | ) |
Set the tag's Tclass.
| tclass | the Tclass |
Definition at line 900 of file socket.cc.
References m_ipv6Tclass.
Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp6(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), and ns3::Ipv6RawSocketImpl::SendTo().

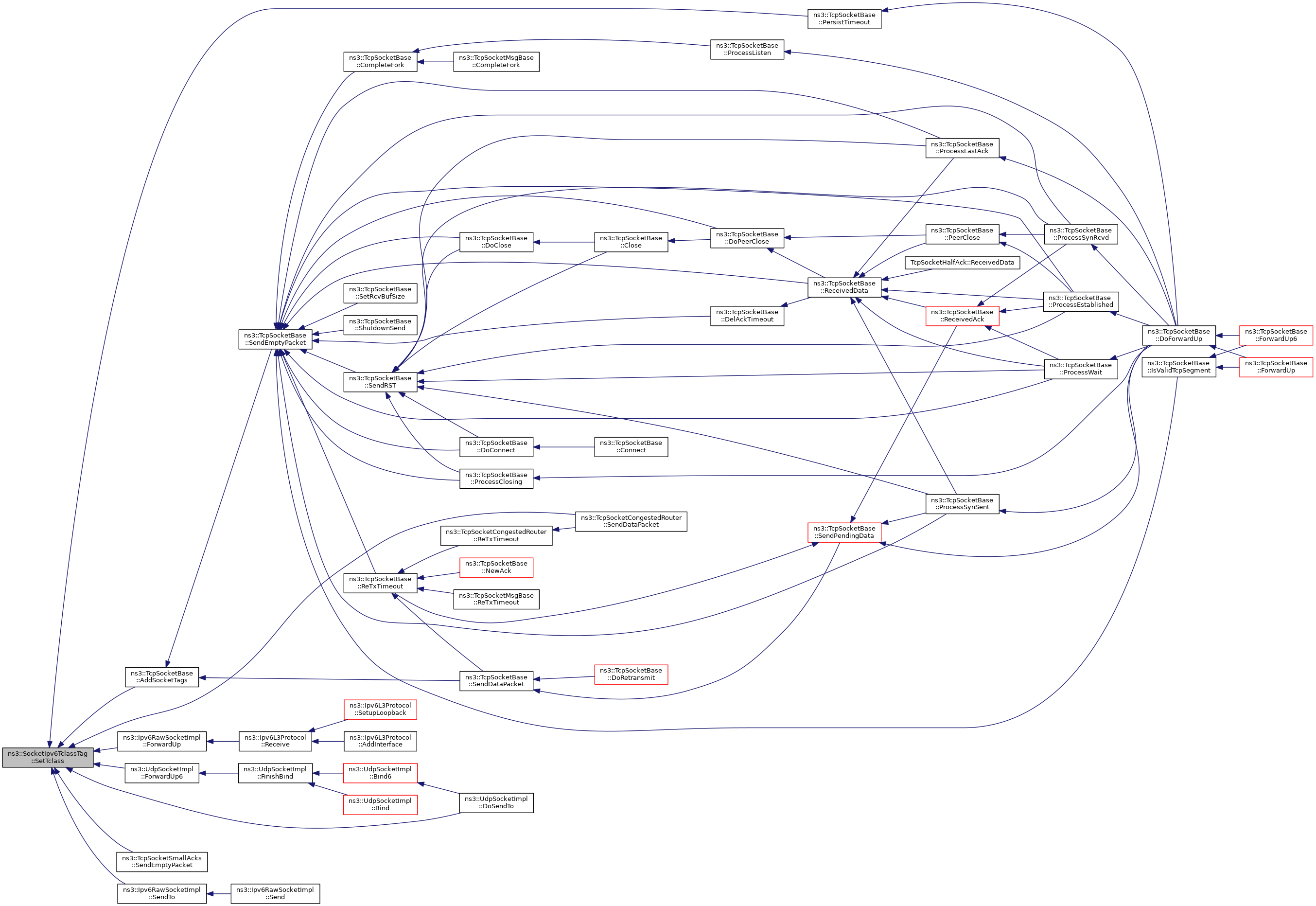

Here is the caller graph for this function:
|
private |
the Tclass carried by the tag
Definition at line 1394 of file socket.h.
Referenced by Deserialize(), GetTclass(), Print(), Serialize(), and SetTclass().
