Virtual base class for all UAN MAC protocols. More...

#include "uan-mac.h"

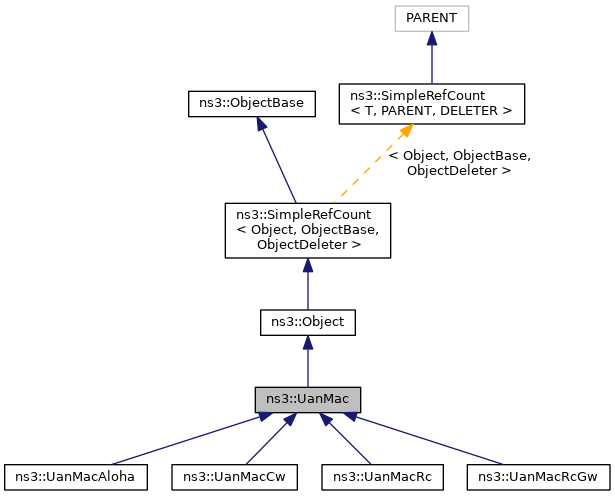

Inheritance diagram for ns3::UanMac:

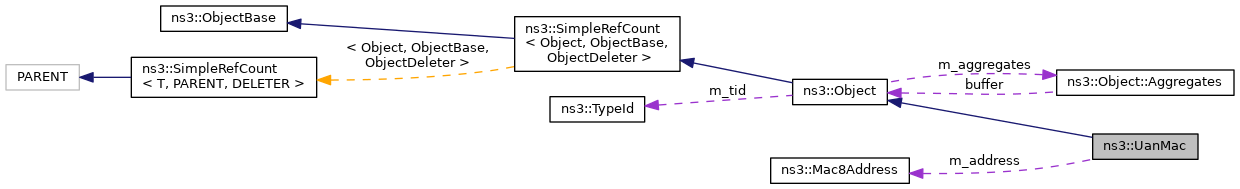

Collaboration diagram for ns3::UanMac:

Public Types
typedef void(*	PacketModeTracedCallback) (Ptr< const Packet > packet, UanTxMode mode)
	TracedCallback signature for packet reception/enqueue/dequeue events. More...

Public Member Functions
	UanMac ()
	Default constructor. More...

virtual int64_t	AssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	AttachPhy (Ptr< UanPhy > phy)=0
	Attach PHY layer to this MAC. More...

virtual void	Clear (void)=0
	Clears all pointer references. More...

virtual bool	Enqueue (Ptr< Packet > pkt, uint16_t protocolNumber, const Address &dest)=0
	Enqueue packet to be transmitted. More...

virtual Address	GetAddress (void)
	Get the MAC Address. More...

virtual Address	GetBroadcast (void) const
	Get the broadcast address. More...

uint32_t	GetTxModeIndex ()

virtual void	SetAddress (Mac8Address addr)
	Set the address. More...

virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, uint16_t, const Mac8Address &> cb)=0
	Set the callback to forward packets up to higher layers. More...

void	SetTxModeIndex (uint32_t txModeIndex)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Mac8Address	m_address
	The MAC address. More...

uint32_t	m_txModeIndex
	Modulation type. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Virtual base class for all UAN MAC protocols.

Config Paths

ns3::UanMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 49 of file uan-mac.h.

Member Typedef Documentation

◆ PacketModeTracedCallback

typedef void(* ns3::UanMac::PacketModeTracedCallback) (Ptr< const Packet > packet, UanTxMode mode)

TracedCallback signature for packet reception/enqueue/dequeue events.

Parameters

[in]	packet	The Packet.
[in]	mode	The UanTxMode.

Definition at line 129 of file uan-mac.h.

Constructor & Destructor Documentation

◆ UanMac()

ns3::UanMac::UanMac ( )

Default constructor.

Definition at line 27 of file uan-mac.cc.

Member Function Documentation

◆ AssignStreams()

virtual int64_t ns3::UanMac::AssignStreams ( int64_t stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream First stream index to use.

Returns: The number of stream indices assigned by this model.

Implemented in ns3::UanMacRc, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacAloha.

◆ AttachPhy()

virtual void ns3::UanMac::AttachPhy ( Ptr< UanPhy > phy )

pure virtual

Attach PHY layer to this MAC.

Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters

phy	Phy layer to attach to this MAC.

Implemented in ns3::UanMacRc, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacAloha.

◆ Clear()

virtual void ns3::UanMac::Clear ( void )

pure virtual

Clears all pointer references.

Implemented in ns3::UanMacRc, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacAloha.

◆ Enqueue()

virtual bool ns3::UanMac::Enqueue	(	Ptr< Packet >	pkt,
		uint16_t	protocolNumber,
		const Address &	dest
	)

pure virtual

Enqueue packet to be transmitted.

Parameters

pkt	Packet to be transmitted.
dest	Destination address.
protocolNumber	The type of the packet.

Returns: True if packet was successfully enqueued.

Implemented in ns3::UanMacRc, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacAloha.

◆ GetAddress()

Address ns3::UanMac::GetAddress ( void )

virtual

Get the MAC Address.

Returns: MAC Address.

Definition at line 55 of file uan-mac.cc.

References m_address.

Referenced by ns3::UanMacRc::Associate(), ns3::UanMacRc::AssociateTimeout(), ns3::UanMacRcGw::EndCycle(), ns3::UanMacCw::EndTx(), ns3::UanMacAloha::Enqueue(), ns3::UanMacCw::Enqueue(), ns3::UanMacRc::IsPhy1Ok(), ns3::UanMacCw::NotifyCcaEnd(), ns3::UanMacCw::NotifyCcaStart(), ns3::UanMacCw::NotifyRxEndError(), ns3::UanMacCw::NotifyRxEndOk(), ns3::UanMacCw::NotifyRxStart(), ns3::UanMacCw::PhyRxPacketGood(), ns3::UanMacRc::ProcessAck(), ns3::UanMacRc::ReceiveOkFromPhy(), ns3::UanMacRcGw::ReceivePacket(), ns3::UanMacRc::RtsTimeout(), ns3::UanMacAloha::RxPacketError(), ns3::UanMacAloha::RxPacketGood(), ns3::UanMacCw::SaveTimer(), ns3::UanMacRc::ScheduleData(), ns3::UanMacCw::SendPacket(), ns3::UanMacRc::SendPacket(), ns3::UanMacRc::SendRts(), ns3::UanMacRcGw::StartCycle(), and ns3::UanMacCw::StartTimer().

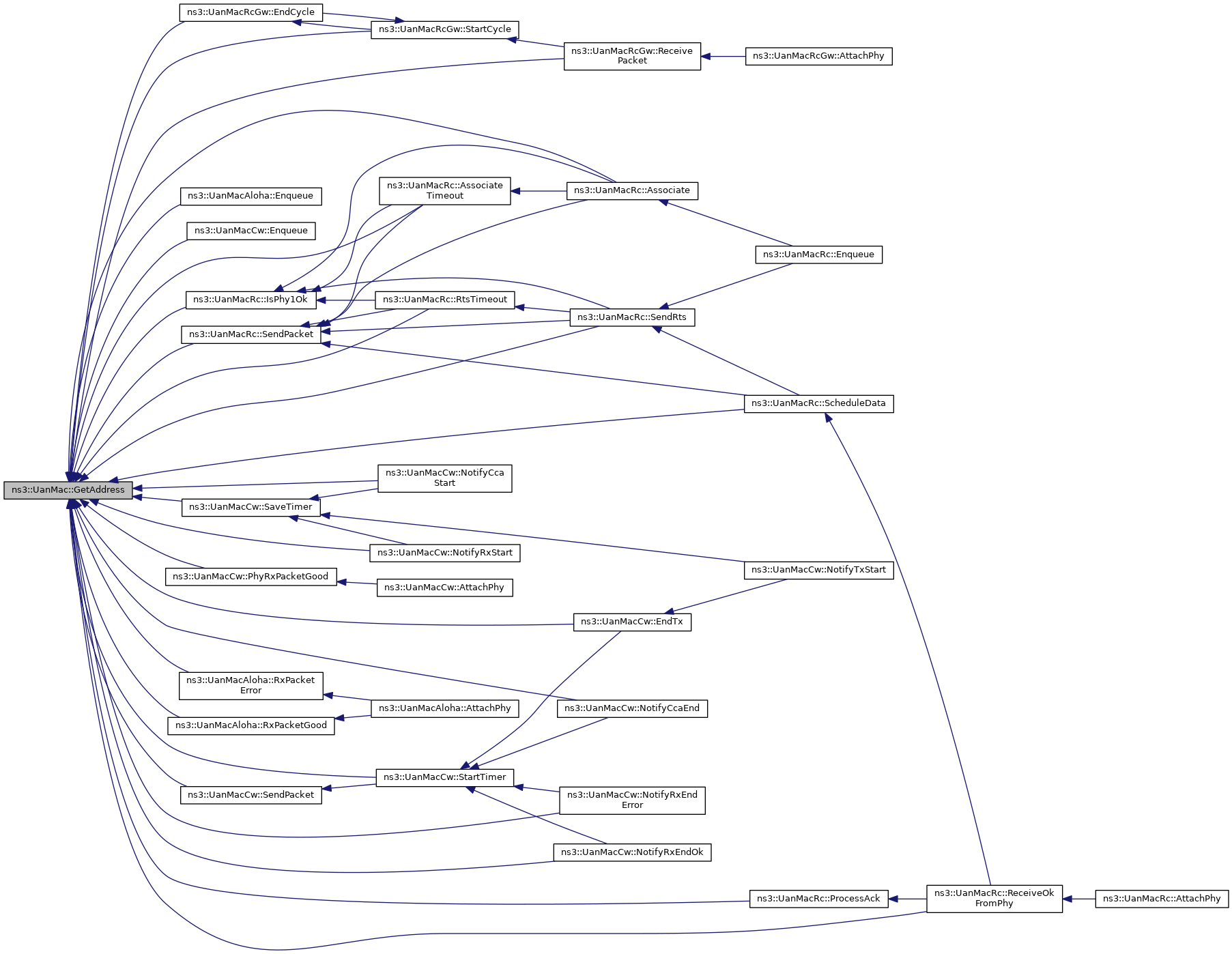

Here is the caller graph for this function:

◆ GetBroadcast()

Address ns3::UanMac::GetBroadcast ( void ) const

virtual

Get the broadcast address.

Returns: The broadcast address.

Definition at line 67 of file uan-mac.cc.

◆ GetTxModeIndex()

uint32_t ns3::UanMac::GetTxModeIndex ( )

Definition at line 49 of file uan-mac.cc.

References m_txModeIndex.

Referenced by ns3::UanMacAloha::Enqueue(), and ns3::UanMacCw::Enqueue().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::UanMac::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 33 of file uan-mac.cc.

References ns3::TypeId::SetParent().

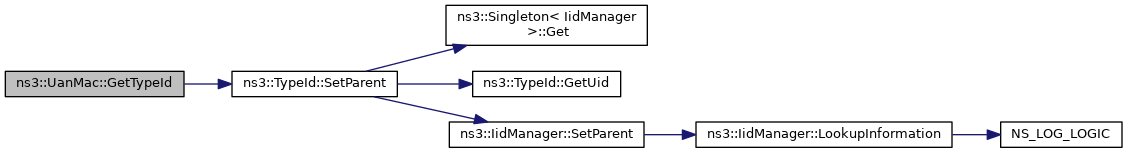

Here is the call graph for this function:

◆ SetAddress()

void ns3::UanMac::SetAddress ( Mac8Address addr )

virtual

Set the address.

Parameters

addr	Mac8Address for this MAC.

Definition at line 61 of file uan-mac.cc.

References m_address.

◆ SetForwardUpCb()

virtual void ns3::UanMac::SetForwardUpCb ( Callback< void, Ptr< Packet >, uint16_t, const Mac8Address &> cb )

pure virtual

Set the callback to forward packets up to higher layers.

Parameters

cb	The callback. packet The packet. address The source address.

Implemented in ns3::UanMacRc, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacAloha.

◆ SetTxModeIndex()

void ns3::UanMac::SetTxModeIndex ( uint32_t txModeIndex )

Definition at line 43 of file uan-mac.cc.

References m_txModeIndex.

Member Data Documentation

◆ m_address

Mac8Address ns3::UanMac::m_address

private

The MAC address.

Definition at line 138 of file uan-mac.h.

Referenced by GetAddress(), and SetAddress().

◆ m_txModeIndex

uint32_t ns3::UanMac::m_txModeIndex

private

Modulation type.

Definition at line 136 of file uan-mac.h.

Referenced by GetTxModeIndex(), and SetTxModeIndex().

The documentation for this class was generated from the following files:

src/uan/model/uan-mac.h
src/uan/model/uan-mac.cc
