ns3::WifiActionHeader Class Reference

See IEEE 802.11 chapter 7.3.1.11 Header format: | category: 1 | action value: 1 |. More...

#include "mgt-headers.h"

+ Inheritance diagram for ns3::WifiActionHeader:
+ Collaboration diagram for ns3::WifiActionHeader:

Classes

union  ActionValue
 typedef for union of different ActionValues More...


Public Types

enum  BlockAckActionValue { BLOCK_ACK_ADDBA_REQUEST = 0, BLOCK_ACK_ADDBA_RESPONSE = 1, BLOCK_ACK_DELBA = 2 }
 Block ACK action field values See 802.11 Table 8-202. More...

enum  CategoryValue {
  BLOCK_ACK = 3, MESH = 13, MULTIHOP = 14, SELF_PROTECTED = 15,
  VENDOR_SPECIFIC_ACTION = 127
}
 CategoryValue enumeration. More...

enum  MeshActionValue {
  LINK_METRIC_REPORT = 0, PATH_SELECTION = 1, PORTAL_ANNOUNCEMENT = 2, CONGESTION_CONTROL_NOTIFICATION = 3,
  MDA_SETUP_REQUEST = 4, MDA_SETUP_REPLY = 5, MDAOP_ADVERTISMENT_REQUEST = 6, MDAOP_ADVERTISMENTS = 7,
  MDAOP_SET_TEARDOWN = 8, TBTT_ADJUSTMENT_REQUEST = 9, TBTT_ADJUSTMENT_RESPONSE = 10
}
 MeshActionValue enumeration. More...

enum  MultihopActionValue { PROXY_UPDATE = 0, PROXY_UPDATE_CONFIRMATION = 1 }
 MultihopActionValue enumeration. More...

enum  SelfProtectedActionValue {
  PEER_LINK_OPEN = 1, PEER_LINK_CONFIRM = 2, PEER_LINK_CLOSE = 3, GROUP_KEY_INFORM = 4,
  GROUP_KEY_ACK = 5
}
 SelfProtectedActionValue enumeration. More...


Public Member Functions

 WifiActionHeader ()

 ~WifiActionHeader ()

uint32_t Deserialize (Buffer::Iterator start)

ActionValue GetAction ()
 Return the action value. More...

CategoryValue GetCategory ()
 Return the category value. More...

TypeId GetInstanceTypeId () const
 Get the most derived TypeId for this Object. More...

uint32_t GetSerializedSize () const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetAction (CategoryValue type, ActionValue action)
 Set action for this Action header. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

std::string CategoryValueToString (CategoryValue value) const
 Category value to string function. More...

std::string SelfProtectedActionValueToString (SelfProtectedActionValue value) const
 Self protected action value to string function. More...


Private Attributes

uint8_t m_actionValue
 Action value. More...

uint8_t m_category
 Category of the action. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

See IEEE 802.11 chapter 7.3.1.11 Header format: | category: 1 | action value: 1 |.

Definition at line 864 of file mgt-headers.h.

Member Enumeration Documentation

◆ BlockAckActionValue

Block ACK action field values See 802.11 Table 8-202.

Enumerator
BLOCK_ACK_ADDBA_REQUEST
BLOCK_ACK_ADDBA_RESPONSE
BLOCK_ACK_DELBA

Definition at line 924 of file mgt-headers.h.

◆ CategoryValue

CategoryValue enumeration.

Enumerator
BLOCK_ACK
MESH
MULTIHOP
SELF_PROTECTED
VENDOR_SPECIFIC_ACTION

Definition at line 876 of file mgt-headers.h.

◆ MeshActionValue

MeshActionValue enumeration.

Enumerator
LINK_METRIC_REPORT
PATH_SELECTION
PORTAL_ANNOUNCEMENT
CONGESTION_CONTROL_NOTIFICATION
MDA_SETUP_REQUEST
MDA_SETUP_REPLY
MDAOP_ADVERTISMENT_REQUEST
MDAOP_ADVERTISMENTS
MDAOP_SET_TEARDOWN
TBTT_ADJUSTMENT_REQUEST
TBTT_ADJUSTMENT_RESPONSE

Definition at line 905 of file mgt-headers.h.

◆ MultihopActionValue

MultihopActionValue enumeration.

Enumerator
PROXY_UPDATE
PROXY_UPDATE_CONFIRMATION

Definition at line 898 of file mgt-headers.h.

◆ SelfProtectedActionValue

SelfProtectedActionValue enumeration.

Enumerator
PEER_LINK_OPEN
PEER_LINK_CONFIRM
PEER_LINK_CLOSE
GROUP_KEY_INFORM
GROUP_KEY_ACK

Definition at line 888 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ WifiActionHeader()

ns3::WifiActionHeader::WifiActionHeader ( )

Definition at line 1162 of file mgt-headers.cc.

◆ ~WifiActionHeader()

ns3::WifiActionHeader::~WifiActionHeader ( )

Definition at line 1166 of file mgt-headers.cc.

Member Function Documentation

◆ CategoryValueToString()

std::string ns3::WifiActionHeader::CategoryValueToString ( CategoryValue  value) const
private

Category value to string function.

Parameters
valuethe category value
Returns
the categoty value string

Definition at line 1352 of file mgt-headers.cc.

References BLOCK_ACK, MESH, SELF_PROTECTED, and VENDOR_SPECIFIC_ACTION.

Referenced by Print().

+ Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::WifiActionHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1429 of file mgt-headers.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_actionValue, m_category, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

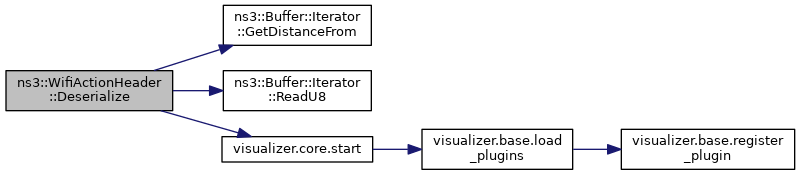

+ Here is the call graph for this function:

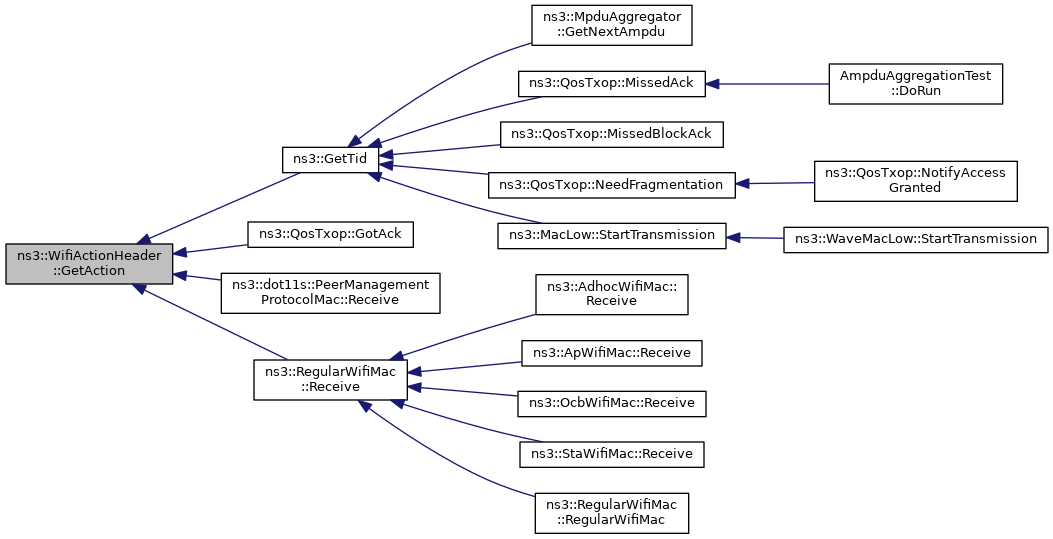

◆ GetAction()

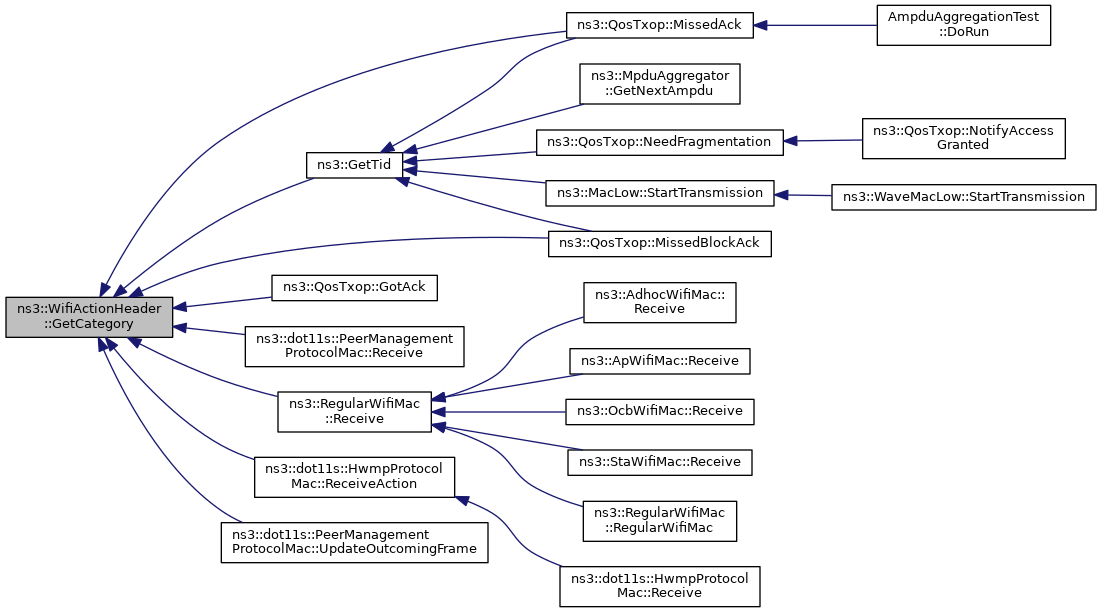

◆ GetCategory()

◆ GetInstanceTypeId()

TypeId ns3::WifiActionHeader::GetInstanceTypeId ( ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1346 of file mgt-headers.cc.

References GetTypeId().

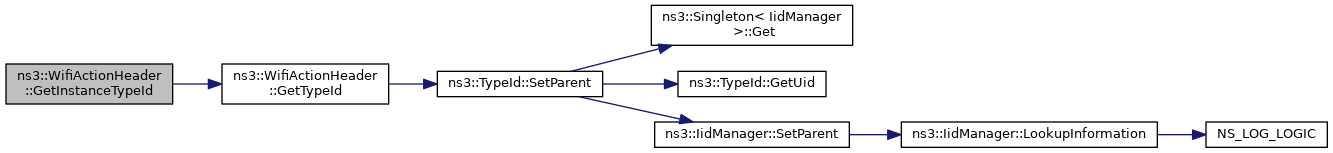

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::WifiActionHeader::GetSerializedSize ( ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1416 of file mgt-headers.cc.

◆ GetTypeId()

TypeId ns3::WifiActionHeader::GetTypeId ( void  )
static

Register this type.

Returns
The TypeId.

Definition at line 1335 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

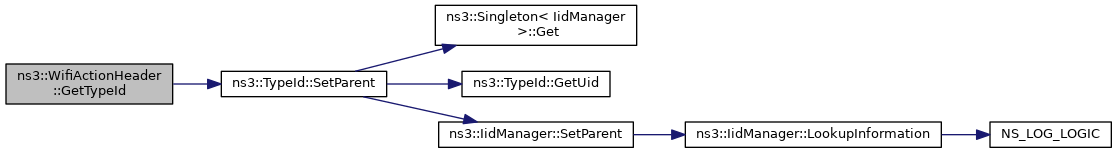

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::WifiActionHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1409 of file mgt-headers.cc.

References CategoryValueToString(), m_actionValue, m_category, and SelfProtectedActionValueToString().

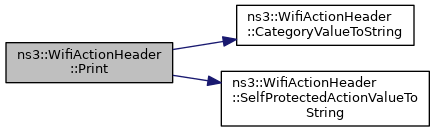

+ Here is the call graph for this function:

◆ SelfProtectedActionValueToString()

std::string ns3::WifiActionHeader::SelfProtectedActionValueToString ( SelfProtectedActionValue  value) const
private

Self protected action value to string function.

Parameters
valuethe protected action value
Returns
the self protected action value string

Definition at line 1378 of file mgt-headers.cc.

References GROUP_KEY_ACK, GROUP_KEY_INFORM, PEER_LINK_CLOSE, PEER_LINK_CONFIRM, and PEER_LINK_OPEN.

Referenced by Print().

+ Here is the caller graph for this function:

◆ Serialize()

void ns3::WifiActionHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1422 of file mgt-headers.cc.

References m_actionValue, m_category, and visualizer.core::start().

+ Here is the call graph for this function:

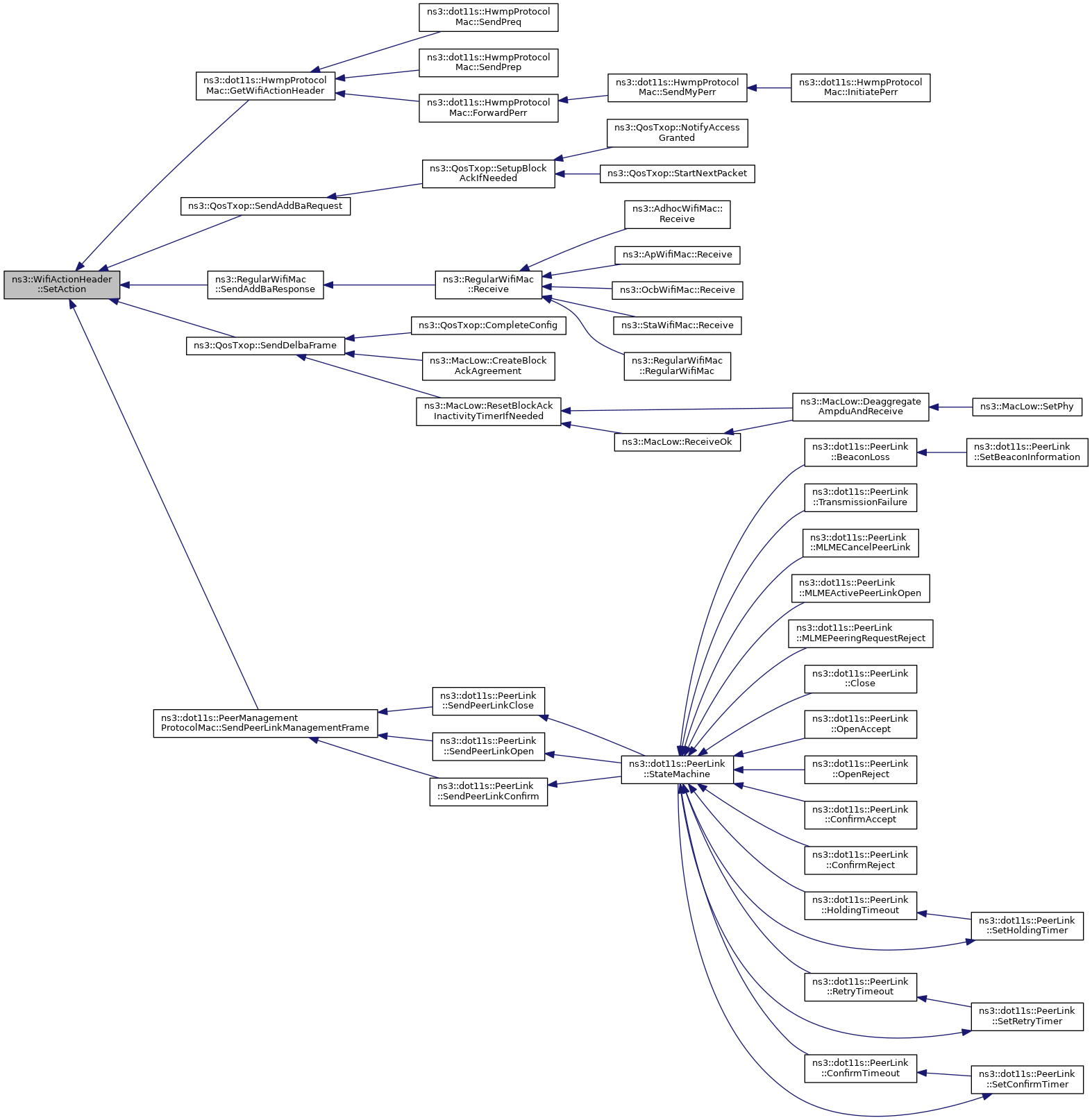

◆ SetAction()

Member Data Documentation

◆ m_actionValue

uint8_t ns3::WifiActionHeader::m_actionValue
private

Action value.

Definition at line 989 of file mgt-headers.h.

Referenced by Deserialize(), GetAction(), Print(), Serialize(), and SetAction().

◆ m_category

uint8_t ns3::WifiActionHeader::m_category
private

Category of the action.

Definition at line 988 of file mgt-headers.h.

Referenced by Deserialize(), GetAction(), GetCategory(), Print(), Serialize(), and SetAction().
