WifiPsdu stores an MPDU, S-MPDU or A-MPDU, by keeping header(s) and payload(s) separate for each constituent MPDU. More...

#include "wifi-psdu.h"

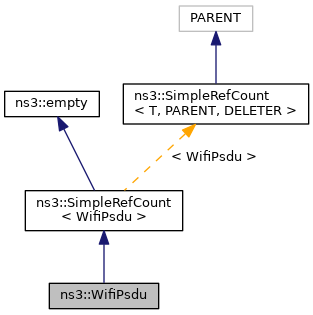

Inheritance diagram for ns3::WifiPsdu:

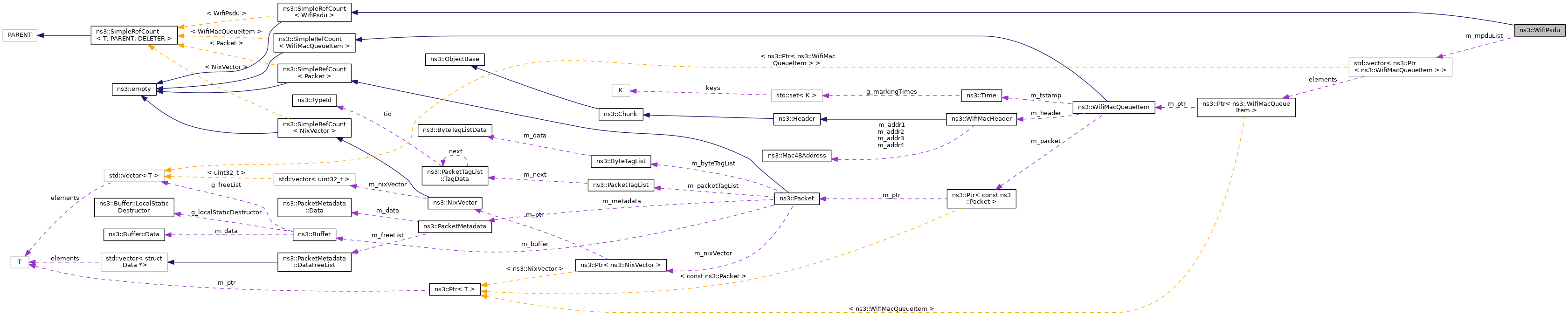

Collaboration diagram for ns3::WifiPsdu:

Public Member Functions
	WifiPsdu (Ptr< const Packet > p, const WifiMacHeader &header)
	Create a PSDU storing an MPDU. More...

	WifiPsdu (Ptr< WifiMacQueueItem > mpdu, bool isSingle)
	Create a PSDU storing an MPDU or S-MPDU. More...

	WifiPsdu (Ptr< const WifiMacQueueItem > mpdu, bool isSingle)
	Create a PSDU storing an MPDU or S-MPDU. More...

	WifiPsdu (std::vector< Ptr< WifiMacQueueItem >> mpduList)
	Create a PSDU storing an S-MPDU or A-MPDU. More...

virtual	~WifiPsdu ()

std::vector< Ptr< WifiMacQueueItem > >::const_iterator	begin (void) const
	Return a const iterator to the first MPDU. More...

std::vector< Ptr< WifiMacQueueItem > >::iterator	begin (void)
	Return an iterator to the first MPDU. More...

std::vector< Ptr< WifiMacQueueItem > >::const_iterator	end (void) const
	Return a const iterator to past-the-last MPDU. More...

std::vector< Ptr< WifiMacQueueItem > >::iterator	end (void)
	Return an iterator to past-the-last MPDU. More...

WifiMacHeader::QosAckPolicy	GetAckPolicyForTid (uint8_t tid) const
	Get the QoS Ack Policy of the QoS Data frames included in the PSDU that have the given TID. More...

Mac48Address	GetAddr1 (void) const
	Get the Receiver Address (RA), which is common to all the MPDUs. More...

Mac48Address	GetAddr2 (void) const
	Get the Transmitter Address (TA), which is common to all the MPDUs. More...

Time	GetDuration (void) const
	Get the duration from the Duration/ID field, which is common to all the MPDUs. More...

const WifiMacHeader &	GetHeader (std::size_t i) const
	Get the header of the i-th MPDU. More...

WifiMacHeader &	GetHeader (std::size_t i)
	Get the header of the i-th MPDU. More...

std::size_t	GetNMpdus (void) const
	Return the number of MPDUs constituting the PSDU. More...

Ptr< const Packet >	GetPacket (void) const
	Get the PSDU as a single packet. More...

Ptr< const Packet >	GetPayload (std::size_t i) const
	Get the payload of the i-th MPDU. More...

uint32_t	GetSize (void) const
	Return the size of the PSDU. More...

std::set< uint8_t >	GetTids (void) const
	Get the set of TIDs of the QoS Data frames included in the PSDU. More...

Time	GetTimeStamp (std::size_t i) const
	Get the timestamp of the i-th MPDU. More...

bool	IsAggregate (void) const
	Return true if the PSDU is an S-MPDU or A-MPDU. More...

bool	IsSingle (void) const
	Return true if the PSDU is an S-MPDU. More...

void	SetAckPolicyForTid (uint8_t tid, WifiMacHeader::QosAckPolicy policy)
	Set the QoS Ack Policy of the QoS Data frames included in the PSDU that have the given TID to the given policy. More...

void	SetDuration (Time duration)
	Set the Duration/ID field on all the MPDUs. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiPsdu >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
bool	m_isSingle
	true for an S-MPDU More...

std::vector< Ptr< WifiMacQueueItem > >	m_mpduList
	list of constituent MPDUs More...

uint32_t	m_size
	the size of the PSDU More...

Detailed Description

WifiPsdu stores an MPDU, S-MPDU or A-MPDU, by keeping header(s) and payload(s) separate for each constituent MPDU.

Definition at line 40 of file wifi-psdu.h.

Constructor & Destructor Documentation

◆ WifiPsdu() [1/4]

ns3::WifiPsdu::WifiPsdu	(	Ptr< const Packet >	p,
		const WifiMacHeader &	header
	)

Create a PSDU storing an MPDU.

Typically used for control and management frames that do not have to keep an associated lifetime and are not stored in an S-MPDU.

Parameters

p	the payload of the MPDU.
header	the Wifi Mac header of the MPDU.

Definition at line 33 of file wifi-psdu.cc.

References ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_mpduList, m_size, and ns3::WIFI_MAC_FCS_LENGTH.

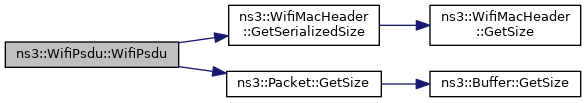

Here is the call graph for this function:

◆ WifiPsdu() [2/4]

ns3::WifiPsdu::WifiPsdu	(	Ptr< WifiMacQueueItem >	mpdu,
		bool	isSingle
	)

Create a PSDU storing an MPDU or S-MPDU.

Typically used for QoS data frames that have to keep an associated lifetime.

Parameters

mpdu	the MPDU.
isSingle	true for an S-MPDU

Definition at line 40 of file wifi-psdu.cc.

References m_mpduList, and m_size.

◆ WifiPsdu() [3/4]

ns3::WifiPsdu::WifiPsdu	(	Ptr< const WifiMacQueueItem >	mpdu,
		bool	isSingle
	)

Create a PSDU storing an MPDU or S-MPDU.

Typically used for QoS data frames that have to keep an associated lifetime.

Parameters

mpdu	the MPDU.
isSingle	true for an S-MPDU

◆ WifiPsdu() [4/4]

ns3::WifiPsdu::WifiPsdu ( std::vector< Ptr< WifiMacQueueItem >> mpduList )

Create a PSDU storing an S-MPDU or A-MPDU.

Parameters

mpduList the list of constituent MPDUs.

Definition at line 57 of file wifi-psdu.cc.

References ns3::MpduAggregator::GetSizeIfAggregated(), m_mpduList, m_size, and NS_ABORT_MSG_IF.

Here is the call graph for this function:

◆ ~WifiPsdu()

ns3::WifiPsdu::~WifiPsdu ( )

virtual

Definition at line 70 of file wifi-psdu.cc.

Member Function Documentation

◆ begin() [1/2]

std::vector< Ptr< WifiMacQueueItem > >::const_iterator ns3::WifiPsdu::begin ( void ) const

Return a const iterator to the first MPDU.

Returns: a const iterator to the first MPDU.

Definition at line 283 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ begin() [2/2]

std::vector< Ptr< WifiMacQueueItem > >::iterator ns3::WifiPsdu::begin ( void )

Return an iterator to the first MPDU.

Returns: an iterator to the first MPDU.

Definition at line 290 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ end() [1/2]

std::vector< Ptr< WifiMacQueueItem > >::const_iterator ns3::WifiPsdu::end ( void ) const

Return a const iterator to past-the-last MPDU.

Returns: a const iterator to past-the-last MPDU.

Definition at line 297 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ end() [2/2]

std::vector< Ptr< WifiMacQueueItem > >::iterator ns3::WifiPsdu::end ( void )

Return an iterator to past-the-last MPDU.

Returns: an iterator to past-the-last MPDU.

Definition at line 304 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ GetAckPolicyForTid()

WifiMacHeader::QosAckPolicy ns3::WifiPsdu::GetAckPolicyForTid ( uint8_t tid ) const

Get the QoS Ack Policy of the QoS Data frames included in the PSDU that have the given TID.

Also, check that all the QoS Data frames having the given TID have the same QoS Ack Policy. Do not call this method if there is no QoS Date frame in the PSDU.

Parameters

tid	the given TID

Returns: the QoS Ack Policy common to all QoS Data frames having the given TID.

Definition at line 193 of file wifi-psdu.cc.

References m_mpduList, NS_ABORT_MSG, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

◆ GetAddr1()

Mac48Address ns3::WifiPsdu::GetAddr1 ( void ) const

Get the Receiver Address (RA), which is common to all the MPDUs.

Returns: the Receiver Address.

Definition at line 115 of file wifi-psdu.cc.

References m_mpduList, NS_ABORT_MSG, and NS_LOG_FUNCTION.

◆ GetAddr2()

Mac48Address ns3::WifiPsdu::GetAddr2 ( void ) const

Get the Transmitter Address (TA), which is common to all the MPDUs.

Returns: the Transmitter Address.

Definition at line 132 of file wifi-psdu.cc.

References m_mpduList, NS_ABORT_MSG, and NS_LOG_FUNCTION.

◆ GetDuration()

Time ns3::WifiPsdu::GetDuration ( void ) const

Get the duration from the Duration/ID field, which is common to all the MPDUs.

Returns: the duration from the Duration/ID field.

Definition at line 149 of file wifi-psdu.cc.

References m_mpduList, NS_ABORT_MSG, and NS_LOG_FUNCTION.

◆ GetHeader() [1/2]

const WifiMacHeader & ns3::WifiPsdu::GetHeader ( std::size_t i ) const

Get the header of the i-th MPDU.

Returns: the header of the i-th MPDU.

Definition at line 248 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun().

Here is the caller graph for this function:

◆ GetHeader() [2/2]

WifiMacHeader & ns3::WifiPsdu::GetHeader ( std::size_t i )

Get the header of the i-th MPDU.

Returns: the header of the i-th MPDU.

Definition at line 255 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ GetNMpdus()

std::size_t ns3::WifiPsdu::GetNMpdus ( void ) const

Return the number of MPDUs constituting the PSDU.

Returns: the number of MPDUs constituting the PSDU.

Definition at line 276 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun().

Here is the caller graph for this function:

◆ GetPacket()

Ptr< const Packet > ns3::WifiPsdu::GetPacket ( void ) const

Get the PSDU as a single packet.

Returns: the PSDU.

Definition at line 89 of file wifi-psdu.cc.

References ns3::Packet::AddHeader(), ns3::AddWifiMacTrailer(), ns3::MpduAggregator::Aggregate(), m_isSingle, m_mpduList, and NS_LOG_FUNCTION.

Referenced by TestAmpduReception::SendAmpduWithThreeMpdus().

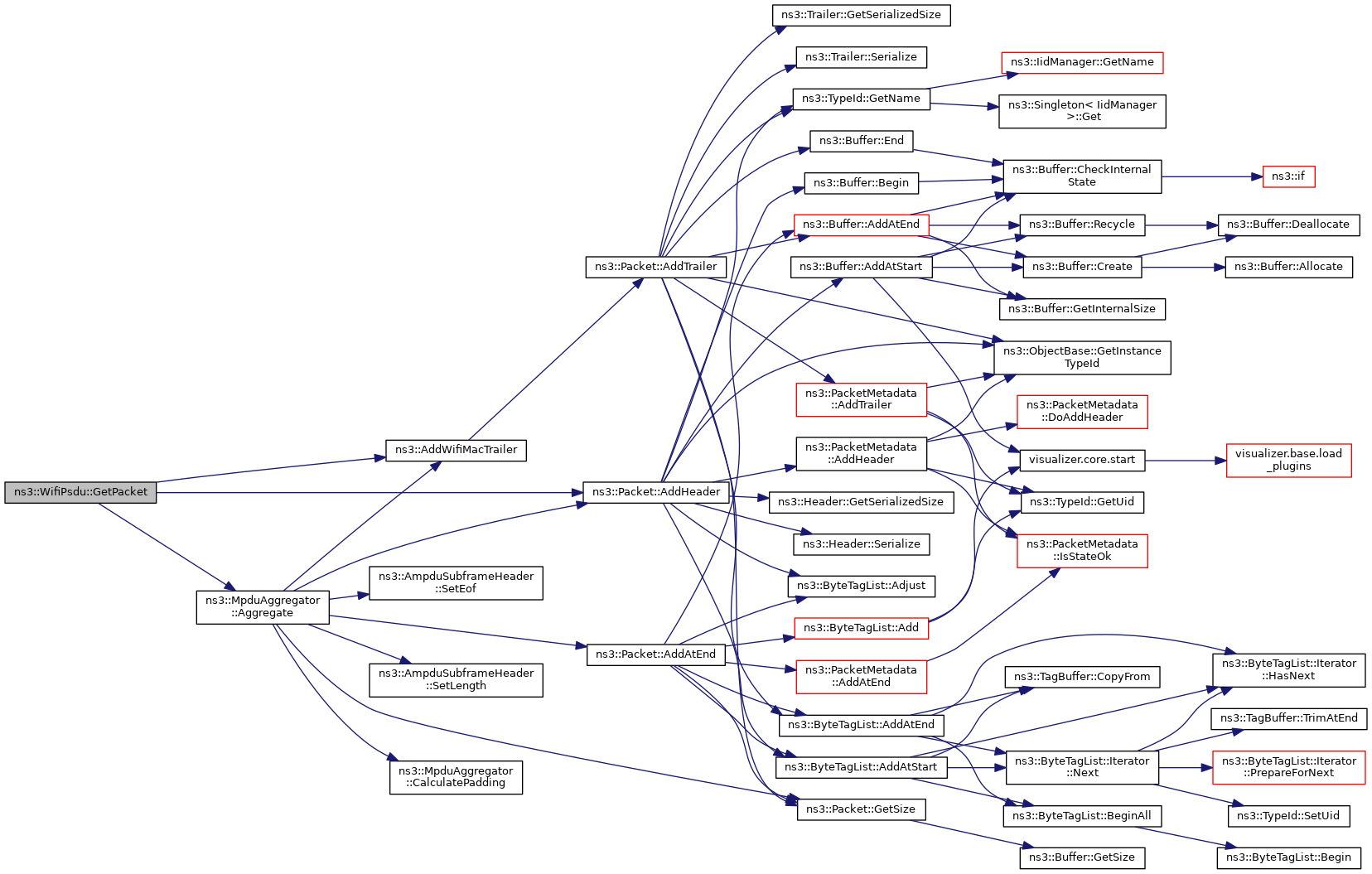

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPayload()

Ptr< const Packet > ns3::WifiPsdu::GetPayload ( std::size_t i ) const

Get the payload of the i-th MPDU.

Returns: the payload of the i-th MPDU.

Definition at line 262 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ GetSize()

uint32_t ns3::WifiPsdu::GetSize ( void ) const

Return the size of the PSDU.

Returns: the size of the PSDU.

Definition at line 241 of file wifi-psdu.cc.

References m_size, and NS_LOG_FUNCTION.

Referenced by AmpduAggregationTest::DoRun(), and TestAmpduReception::SendAmpduWithThreeMpdus().

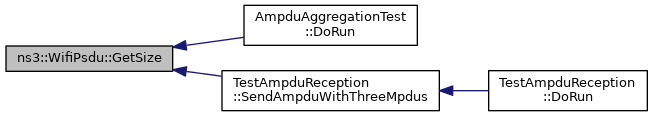

Here is the caller graph for this function:

◆ GetTids()

std::set< uint8_t > ns3::WifiPsdu::GetTids ( void ) const

Get the set of TIDs of the QoS Data frames included in the PSDU.

Note that only single-TID A-MPDUs are currently supported, hence the returned set contains at most one TID value.

Returns: the set of TIDs of the QoS Data frames included in the PSDU.

Definition at line 177 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ GetTimeStamp()

Time ns3::WifiPsdu::GetTimeStamp ( std::size_t i ) const

Get the timestamp of the i-th MPDU.

Returns: the timestamp of the i-th MPDU.

Definition at line 269 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ IsAggregate()

bool ns3::WifiPsdu::IsAggregate ( void ) const

Return true if the PSDU is an S-MPDU or A-MPDU.

Returns: true if the PSDU is an S-MPDU or A-MPDU.

Definition at line 82 of file wifi-psdu.cc.

References m_isSingle, m_mpduList, and NS_LOG_FUNCTION.

◆ IsSingle()

bool ns3::WifiPsdu::IsSingle ( void ) const

Return true if the PSDU is an S-MPDU.

Returns: true if the PSDU is an S-MPDU.

Definition at line 75 of file wifi-psdu.cc.

References m_isSingle, and NS_LOG_FUNCTION.

◆ SetAckPolicyForTid()

void ns3::WifiPsdu::SetAckPolicyForTid	(	uint8_t	tid,
		WifiMacHeader::QosAckPolicy	policy
	)

Set the QoS Ack Policy of the QoS Data frames included in the PSDU that have the given TID to the given policy.

Parameters

tid	the given TID
policy	the given QoS Ack policy

Definition at line 227 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

◆ SetDuration()

void ns3::WifiPsdu::SetDuration ( Time duration )

Set the Duration/ID field on all the MPDUs.

Parameters

duration the value for the Duration/ID field.

Definition at line 166 of file wifi-psdu.cc.

References m_mpduList, and NS_LOG_FUNCTION.

Referenced by TestAmpduReception::SendAmpduWithThreeMpdus().

Here is the caller graph for this function:

Member Data Documentation

◆ m_isSingle

bool ns3::WifiPsdu::m_isSingle

private

true for an S-MPDU

Definition at line 218 of file wifi-psdu.h.

Referenced by GetPacket(), IsAggregate(), and IsSingle().

◆ m_mpduList

std::vector<Ptr<WifiMacQueueItem> > ns3::WifiPsdu::m_mpduList

private

list of constituent MPDUs

Definition at line 219 of file wifi-psdu.h.

Referenced by begin(), end(), GetAckPolicyForTid(), GetAddr1(), GetAddr2(), GetDuration(), GetHeader(), GetNMpdus(), GetPacket(), GetPayload(), GetTids(), GetTimeStamp(), IsAggregate(), SetAckPolicyForTid(), SetDuration(), and WifiPsdu().

◆ m_size

uint32_t ns3::WifiPsdu::m_size

private

the size of the PSDU

Definition at line 220 of file wifi-psdu.h.

Referenced by GetSize(), and WifiPsdu().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-psdu.h
src/wifi/model/wifi-psdu.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ WifiPsdu() [1/4]

◆ WifiPsdu() [2/4]

◆ WifiPsdu() [3/4]

◆ WifiPsdu() [4/4]

◆ ~WifiPsdu()

Member Function Documentation

◆ begin() [1/2]

◆ begin() [2/2]

◆ end() [1/2]

◆ end() [2/2]

◆ GetAckPolicyForTid()

◆ GetAddr1()

◆ GetAddr2()

◆ GetDuration()

◆ GetHeader() [1/2]

◆ GetHeader() [2/2]

◆ GetNMpdus()

◆ GetPacket()

◆ GetPayload()

◆ GetSize()

◆ GetTids()

◆ GetTimeStamp()

◆ IsAggregate()

◆ IsSingle()

◆ SetAckPolicyForTid()

◆ SetDuration()

Member Data Documentation

◆ m_isSingle

◆ m_mpduList

◆ m_size
