A Discrete-Event Network Simulator
API
ns3::dot11s::IeBeaconTimingUnit Class Reference

Information element describing one unit of beacon timing element. More...

#include "ie-dot11s-beacon-timing.h"

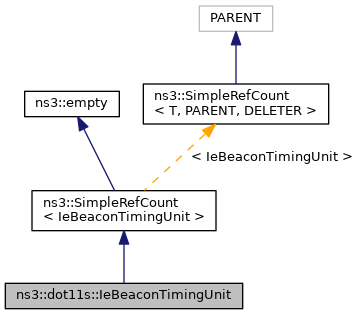

+ Inheritance diagram for ns3::dot11s::IeBeaconTimingUnit:
+ Collaboration diagram for ns3::dot11s::IeBeaconTimingUnit:

Public Member Functions

 IeBeaconTimingUnit ()

uint8_t GetAid () const
 Get AID value. More...

uint16_t GetBeaconInterval () const
 Get beacon interval. More...

uint16_t GetLastBeacon () const
 Get last beacon value. More...

void SetAid (uint8_t aid)
 Set AID value. More...

void SetBeaconInterval (uint16_t beaconInterval)
 Set beacon interval value. More...

void SetLastBeacon (uint16_t lastBeacon)
 Set last beacon value. More...

- Public Member Functions inherited from ns3::SimpleRefCount< IeBeaconTimingUnit >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Private Attributes

uint8_t m_aid
 Least significant octet of AID: More...

uint16_t m_beaconInterval
 Beacon interval of remote mesh point. More...

uint16_t m_lastBeacon
 Last time we received a beacon in accordance with a local TSF measured in 256 microseconds unit. More...


Friends

bool operator== (const IeBeaconTimingUnit &a, const IeBeaconTimingUnit &b)
 equality operator More...


Detailed Description

Information element describing one unit of beacon timing element.

Definition at line 34 of file ie-dot11s-beacon-timing.h.

Constructor & Destructor Documentation

◆ IeBeaconTimingUnit()

ns3::dot11s::IeBeaconTimingUnit::IeBeaconTimingUnit ( )

Definition at line 28 of file ie-dot11s-beacon-timing.cc.

Member Function Documentation

◆ GetAid()

uint8_t ns3::dot11s::IeBeaconTimingUnit::GetAid ( ) const

Get AID value.

Returns
the AID

Definition at line 48 of file ie-dot11s-beacon-timing.cc.

References m_aid.

Referenced by ns3::dot11s::operator==().

+ Here is the caller graph for this function:

◆ GetBeaconInterval()

uint16_t ns3::dot11s::IeBeaconTimingUnit::GetBeaconInterval ( ) const

Get beacon interval.

Returns
the beacon interval

Definition at line 58 of file ie-dot11s-beacon-timing.cc.

References m_beaconInterval.

Referenced by ns3::dot11s::operator==().

+ Here is the caller graph for this function:

◆ GetLastBeacon()

uint16_t ns3::dot11s::IeBeaconTimingUnit::GetLastBeacon ( ) const

Get last beacon value.

Returns
the last beacon

Definition at line 53 of file ie-dot11s-beacon-timing.cc.

References m_lastBeacon.

Referenced by ns3::dot11s::operator==().

+ Here is the caller graph for this function:

◆ SetAid()

void ns3::dot11s::IeBeaconTimingUnit::SetAid ( uint8_t  aid)

Set AID value.

Parameters
aidthe AID

Definition at line 33 of file ie-dot11s-beacon-timing.cc.

References m_aid.

Referenced by ns3::dot11s::IeBeaconTiming::AddNeighboursTimingElementUnit(), and ns3::dot11s::IeBeaconTiming::DeserializeInformationField().

+ Here is the caller graph for this function:

◆ SetBeaconInterval()

void ns3::dot11s::IeBeaconTimingUnit::SetBeaconInterval ( uint16_t  beaconInterval)

Set beacon interval value.

Parameters
beaconIntervalthe beacon interval

Definition at line 43 of file ie-dot11s-beacon-timing.cc.

References m_beaconInterval.

Referenced by ns3::dot11s::IeBeaconTiming::AddNeighboursTimingElementUnit(), and ns3::dot11s::IeBeaconTiming::DeserializeInformationField().

+ Here is the caller graph for this function:

◆ SetLastBeacon()

void ns3::dot11s::IeBeaconTimingUnit::SetLastBeacon ( uint16_t  lastBeacon)

Set last beacon value.

Parameters
lastBeaconthe last beacon

Definition at line 38 of file ie-dot11s-beacon-timing.cc.

References m_lastBeacon.

Referenced by ns3::dot11s::IeBeaconTiming::AddNeighboursTimingElementUnit(), and ns3::dot11s::IeBeaconTiming::DeserializeInformationField().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator==

bool operator== ( const IeBeaconTimingUnit a,
const IeBeaconTimingUnit b
)
friend

equality operator

Parameters
alhs
brhs
Returns
true if equal

Definition at line 185 of file ie-dot11s-beacon-timing.cc.

Member Data Documentation

◆ m_aid

uint8_t ns3::dot11s::IeBeaconTimingUnit::m_aid
private

Least significant octet of AID:

Definition at line 72 of file ie-dot11s-beacon-timing.h.

Referenced by GetAid(), and SetAid().

◆ m_beaconInterval

uint16_t ns3::dot11s::IeBeaconTimingUnit::m_beaconInterval
private

Beacon interval of remote mesh point.

Definition at line 76 of file ie-dot11s-beacon-timing.h.

Referenced by GetBeaconInterval(), and SetBeaconInterval().

◆ m_lastBeacon

uint16_t ns3::dot11s::IeBeaconTimingUnit::m_lastBeacon
private

Last time we received a beacon in accordance with a local TSF measured in 256 microseconds unit.

Definition at line 74 of file ie-dot11s-beacon-timing.h.

Referenced by GetLastBeacon(), and SetLastBeacon().


The documentation for this class was generated from the following files:
