according to IEEE 802.11 - 2012 More...

#include "ie-dot11s-peer-management.h"

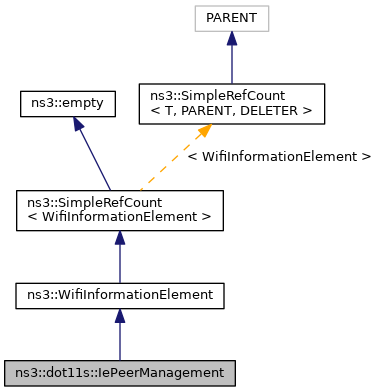

Inheritance diagram for ns3::dot11s::IePeerManagement:

Collaboration diagram for ns3::dot11s::IePeerManagement:

Public Types
enum	Subtype { PEER_OPEN = 1, PEER_CONFIRM = 2, PEER_CLOSE = 3 }
	Subtype enumeration. More...

Public Member Functions
	IePeerManagement ()

virtual uint8_t	DeserializeInformationField (Buffer::Iterator i, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual WifiInformationElementId	ElementId () const

virtual uint8_t	GetInformationFieldSize (void) const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint16_t	GetLocalLinkId () const
	Get local link ID function. More...

uint16_t	GetPeerLinkId () const
	Get peer link ID function. More...

PmpReasonCode	GetReasonCode () const
	Get reason code function. More...

uint8_t	GetSubtype () const
	Get subtype function. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

virtual void	SerializeInformationField (Buffer::Iterator i) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetPeerClose (uint16_t localLinkID, uint16_t peerLinkId, PmpReasonCode reasonCode)
	Set peer close function. More...

void	SetPeerConfirm (uint16_t localLinkID, uint16_t peerLinkId)
	Set peer confirm function. More...

void	SetPeerOpen (uint16_t localLinkId)
	Set peer open function. More...

bool	SubtypeIsClose () const
	Subtype is close function. More...

bool	SubtypeIsConfirm () const
	Subtype is confirm function. More...

bool	SubtypeIsOpen () const
	Subtype is open function. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_length
	length More...

uint16_t	m_localLinkId
	local link ID More...

uint16_t	m_peerLinkId
	Present within confirm and may be present in close. More...

PmpReasonCode	m_reasonCode
	Present only within close frame. More...

uint8_t	m_subtype
	subtype More...

Friends
bool	operator== (const IePeerManagement &a, const IePeerManagement &b)
	equality operator More...

Detailed Description

according to IEEE 802.11 - 2012

Definition at line 50 of file ie-dot11s-peer-management.h.

Member Enumeration Documentation

◆ Subtype

enum ns3::dot11s::IePeerManagement::Subtype

Subtype enumeration.

Enumerator
PEER_OPEN
PEER_CONFIRM
PEER_CLOSE

Definition at line 55 of file ie-dot11s-peer-management.h.

Constructor & Destructor Documentation

◆ IePeerManagement()

ns3::dot11s::IePeerManagement::IePeerManagement ( )

Definition at line 29 of file ie-dot11s-peer-management.cc.

Member Function Documentation

◆ DeserializeInformationField()

uint8_t ns3::dot11s::IePeerManagement::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 123 of file ie-dot11s-peer-management.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_length, m_localLinkId, m_peerLinkId, m_reasonCode, m_subtype, NS_ASSERT, PEER_CLOSE, PEER_CONFIRM, PEER_OPEN, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

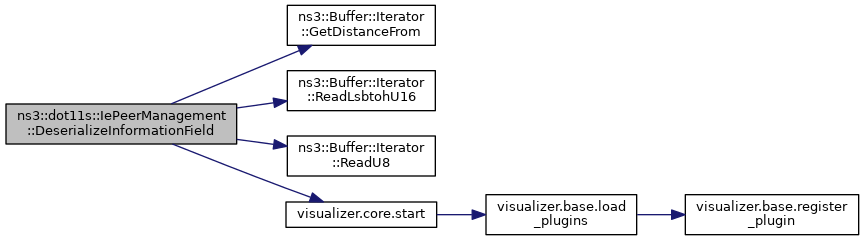

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::dot11s::IePeerManagement::ElementId ( ) const

virtual

Returns: Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 34 of file ie-dot11s-peer-management.cc.

References IE_MESH_PEERING_MANAGEMENT.

◆ GetInformationFieldSize()

uint8_t ns3::dot11s::IePeerManagement::GetInformationFieldSize ( void ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 83 of file ie-dot11s-peer-management.cc.

References m_length.

◆ GetLocalLinkId()

uint16_t ns3::dot11s::IePeerManagement::GetLocalLinkId ( ) const

Get local link ID function.

Returns: the local link id

Definition at line 71 of file ie-dot11s-peer-management.cc.

References m_localLinkId.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame().

Here is the caller graph for this function:

◆ GetPeerLinkId()

uint16_t ns3::dot11s::IePeerManagement::GetPeerLinkId ( ) const

Get peer link ID function.

Returns: the peer link ID

Definition at line 77 of file ie-dot11s-peer-management.cc.

References m_peerLinkId.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame().

Here is the caller graph for this function:

◆ GetReasonCode()

PmpReasonCode ns3::dot11s::IePeerManagement::GetReasonCode ( ) const

Get reason code function.

Returns: the reason code

Definition at line 65 of file ie-dot11s-peer-management.cc.

References m_reasonCode.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame().

Here is the caller graph for this function:

◆ GetSubtype()

uint8_t ns3::dot11s::IePeerManagement::GetSubtype ( ) const

Get subtype function.

Returns: the subtype

Definition at line 88 of file ie-dot11s-peer-management.cc.

References m_subtype.

◆ Print()

void ns3::dot11s::IePeerManagement::Print ( std::ostream & os ) const

virtual

Generate human-readable form of IE.

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 152 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_peerLinkId, m_reasonCode, and m_subtype.

Referenced by ns3::dot11s::operator<<().

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::dot11s::IePeerManagement::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 109 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_peerLinkId, m_reasonCode, m_subtype, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

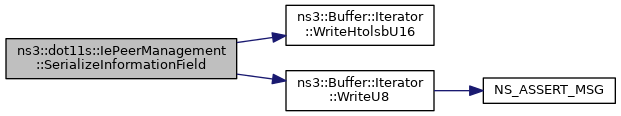

Here is the call graph for this function:

◆ SetPeerClose()

void ns3::dot11s::IePeerManagement::SetPeerClose	(	uint16_t	localLinkID,
		uint16_t	peerLinkId,
		PmpReasonCode	reasonCode
	)

Set peer close function.

Parameters

localLinkID	the local link id
peerLinkId	the peer link id
reasonCode	the reason code

Definition at line 46 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_peerLinkId, m_reasonCode, m_subtype, and PEER_CLOSE.

Referenced by MeshInformationElementVectorBist::DoRun(), and ns3::dot11s::PeerLink::SendPeerLinkClose().

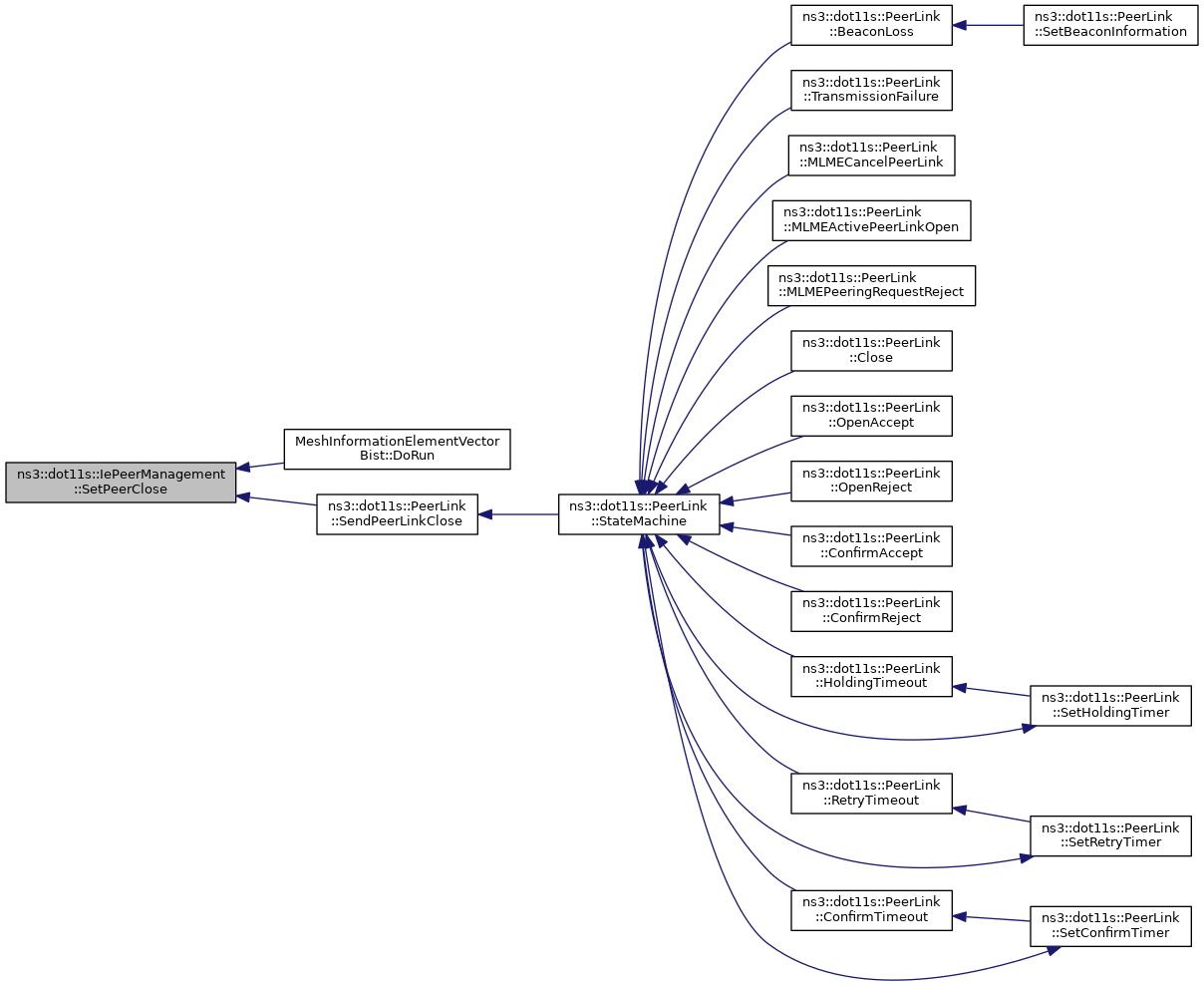

Here is the caller graph for this function:

◆ SetPeerConfirm()

void ns3::dot11s::IePeerManagement::SetPeerConfirm	(	uint16_t	localLinkID,
		uint16_t	peerLinkId
	)

Set peer confirm function.

Parameters

localLinkID	the local link id
peerLinkId	the peer link id

Definition at line 56 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_peerLinkId, m_subtype, and PEER_CONFIRM.

Referenced by MeshInformationElementVectorBist::DoRun(), and ns3::dot11s::PeerLink::SendPeerLinkConfirm().

Here is the caller graph for this function:

◆ SetPeerOpen()

void ns3::dot11s::IePeerManagement::SetPeerOpen ( uint16_t localLinkId )

Set peer open function.

Parameters

localLinkId

Definition at line 39 of file ie-dot11s-peer-management.cc.

References m_length, m_localLinkId, m_subtype, and PEER_OPEN.

Referenced by MeshInformationElementVectorBist::DoRun(), and ns3::dot11s::PeerLink::SendPeerLinkOpen().

Here is the caller graph for this function:

◆ SubtypeIsClose()

bool ns3::dot11s::IePeerManagement::SubtypeIsClose ( ) const

Subtype is close function.

Returns: true if closed

Definition at line 98 of file ie-dot11s-peer-management.cc.

References m_subtype, and PEER_CLOSE.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

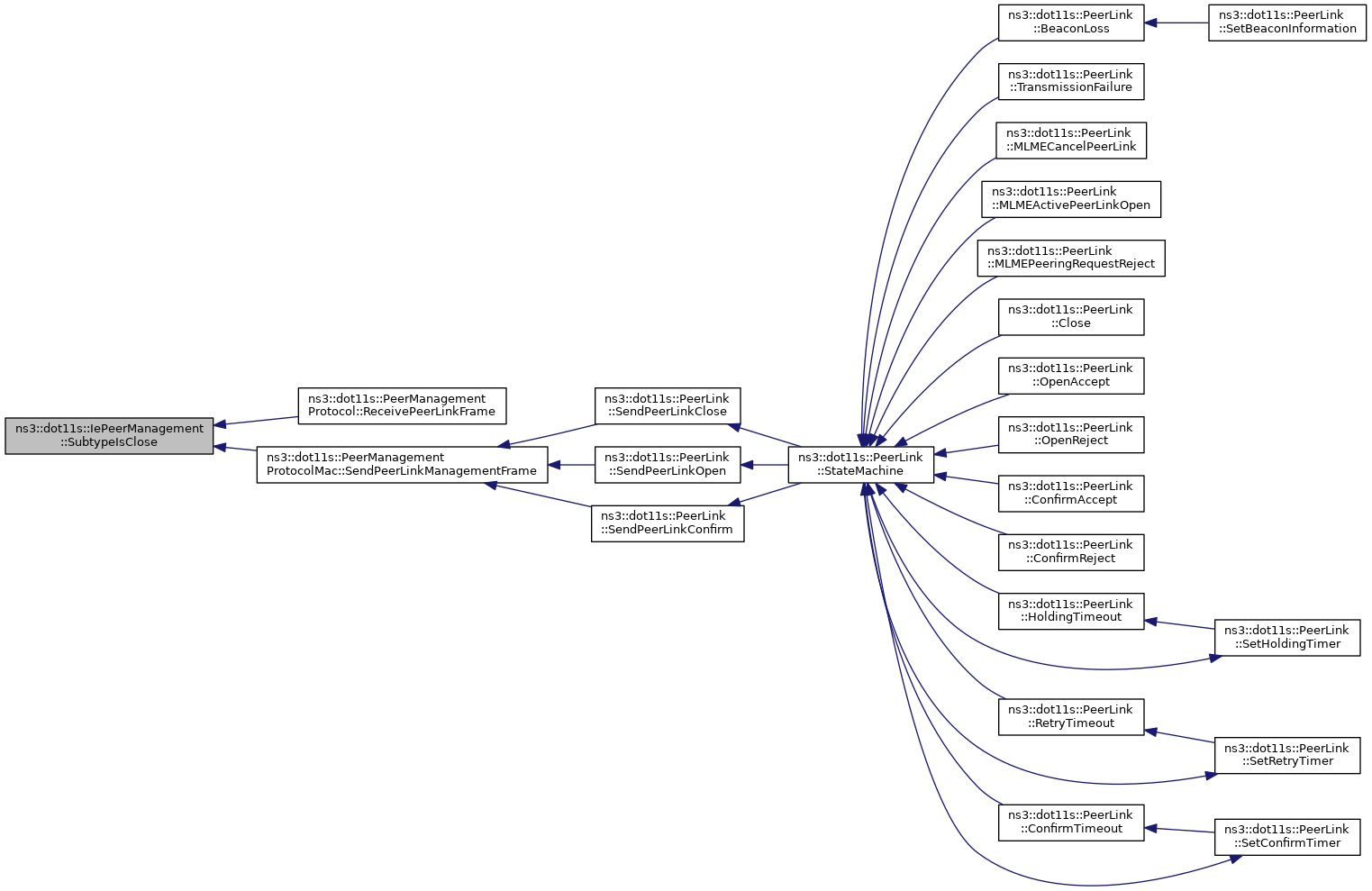

Here is the caller graph for this function:

◆ SubtypeIsConfirm()

bool ns3::dot11s::IePeerManagement::SubtypeIsConfirm ( ) const

Subtype is confirm function.

Returns: true if the subtype is confirm

Definition at line 103 of file ie-dot11s-peer-management.cc.

References m_subtype, and PEER_CONFIRM.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

Here is the caller graph for this function:

◆ SubtypeIsOpen()

bool ns3::dot11s::IePeerManagement::SubtypeIsOpen ( ) const

Subtype is open function.

Returns: true if open

Definition at line 93 of file ie-dot11s-peer-management.cc.

References m_subtype, and PEER_OPEN.

Referenced by ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator==

bool operator==	(	const IePeerManagement &	a,
		const IePeerManagement &	b
	)

friend

equality operator

Parameters

a	lhs
b	rhs

Returns: true if equal

Definition at line 162 of file ie-dot11s-peer-management.cc.

Member Data Documentation

◆ m_length

uint8_t ns3::dot11s::IePeerManagement::m_length

private

length

Definition at line 124 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetInformationFieldSize(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), SetPeerClose(), SetPeerConfirm(), and SetPeerOpen().

◆ m_localLinkId

uint16_t ns3::dot11s::IePeerManagement::m_localLinkId

private

local link ID

Definition at line 126 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetLocalLinkId(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), SetPeerClose(), SetPeerConfirm(), and SetPeerOpen().

◆ m_peerLinkId

uint16_t ns3::dot11s::IePeerManagement::m_peerLinkId

private

Present within confirm and may be present in close.

Definition at line 130 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetPeerLinkId(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), SetPeerClose(), and SetPeerConfirm().

◆ m_reasonCode

PmpReasonCode ns3::dot11s::IePeerManagement::m_reasonCode

private

Present only within close frame.

Definition at line 134 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetReasonCode(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), and SetPeerClose().

◆ m_subtype

uint8_t ns3::dot11s::IePeerManagement::m_subtype

private

subtype

Definition at line 125 of file ie-dot11s-peer-management.h.

Referenced by DeserializeInformationField(), GetSubtype(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), SetPeerClose(), SetPeerConfirm(), SetPeerOpen(), SubtypeIsClose(), SubtypeIsConfirm(), and SubtypeIsOpen().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/ie-dot11s-peer-management.h
src/mesh/model/dot11s/ie-dot11s-peer-management.cc

Public Types

Public Member Functions

Private Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ Subtype

Constructor & Destructor Documentation

◆ IePeerManagement()

Member Function Documentation

◆ DeserializeInformationField()

◆ ElementId()

◆ GetInformationFieldSize()

◆ GetLocalLinkId()

◆ GetPeerLinkId()

◆ GetReasonCode()

◆ GetSubtype()

◆ Print()

◆ SerializeInformationField()

◆ SetPeerClose()

◆ SetPeerConfirm()

◆ SetPeerOpen()

◆ SubtypeIsClose()

◆ SubtypeIsConfirm()

◆ SubtypeIsOpen()

Friends And Related Function Documentation

◆ operator==

Member Data Documentation

◆ m_length

◆ m_localLinkId

◆ m_peerLinkId

◆ m_reasonCode

◆ m_subtype
