#include "dsdv-packet-queue.h"

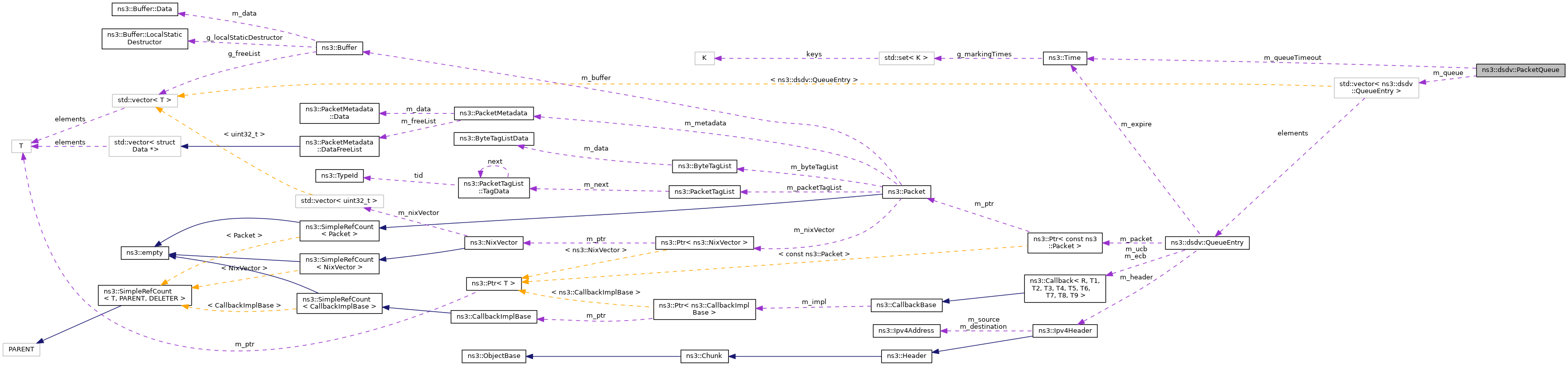

Collaboration diagram for ns3::dsdv::PacketQueue:

Public Member Functions
	PacketQueue ()
	Default c-tor. More...

bool	Dequeue (Ipv4Address dst, QueueEntry &entry)
	Return first found (the earliest) entry for given destination. More...

void	DropPacketWithDst (Ipv4Address dst)
	Remove all packets with destination IP address dst. More...

bool	Enqueue (QueueEntry &entry)
	Push entry in queue, if there is no entry with the same packet and destination address in queue. More...

bool	Find (Ipv4Address dst)
	Finds whether a packet with destination dst exists in the queue. More...

uint32_t	GetCountForPacketsWithDst (Ipv4Address dst)
	Get count of packets with destination dst in the queue. More...

uint32_t	GetMaxPacketsPerDst () const
	Get maximum packets per destination. More...

uint32_t	GetMaxQueueLen () const
	Get maximum queue length. More...

Time	GetQueueTimeout () const
	Get queue timeout. More...

uint32_t	GetSize ()
	Get the number of entries. More...

void	SetMaxPacketsPerDst (uint32_t len)
	Set maximum packets per destination. More...

void	SetMaxQueueLen (uint32_t len)
	Set maximum queue length. More...

void	SetQueueTimeout (Time t)
	Set queue timeout. More...

Private Member Functions
void	Drop (QueueEntry en, std::string reason)
	Notify that the packet is dropped from queue due to timeout. More...

void	Purge ()
	Remove all expired entries. More...

Static Private Member Functions
static bool	IsEqual (QueueEntry en, const Ipv4Address dst)
	Determine if queue entries are equal. More...

Private Attributes
uint32_t	m_maxLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

uint32_t	m_maxLenPerDst
	The maximum number of packets that we allow per destination to buffer. More...

std::vector< QueueEntry >	m_queue
	the queue More...

Time	m_queueTimeout
	The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds. More...

Detailed Description

DSDV Packet queue.

When a route is not available, the packets are queued. Every node can buffer up to 5 packets per destination. We have implemented a "drop front on full" queue where the first queued packet will be dropped to accommodate newer packets.

Definition at line 183 of file dsdv-packet-queue.h.

Constructor & Destructor Documentation

◆ PacketQueue()

ns3::dsdv::PacketQueue::PacketQueue ( )

inline

Default c-tor.

Definition at line 187 of file dsdv-packet-queue.h.

Member Function Documentation

◆ Dequeue()

bool ns3::dsdv::PacketQueue::Dequeue	(	Ipv4Address	dst,
		QueueEntry &	entry
	)

Return first found (the earliest) entry for given destination.

Parameters

dst	the destination IP address
entry	the queue entry

Returns: true if successful

Definition at line 101 of file dsdv-packet-queue.cc.

References m_queue, NS_LOG_FUNCTION, and Purge().

Referenced by ns3::dsdv::RoutingProtocol::SendPacketFromQueue().

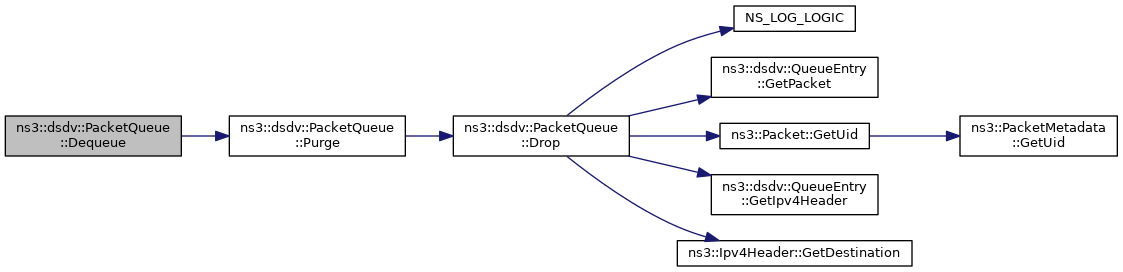

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Drop()

void ns3::dsdv::PacketQueue::Drop	(	QueueEntry	en,
		std::string	reason
	)

private

Notify that the packet is dropped from queue due to timeout.

Parameters

en	the queue entry
reason	the reason for the packet drop

Definition at line 184 of file dsdv-packet-queue.cc.

References ns3::Ipv4Header::GetDestination(), ns3::dsdv::QueueEntry::GetIpv4Header(), ns3::dsdv::QueueEntry::GetPacket(), ns3::Packet::GetUid(), and NS_LOG_LOGIC().

Referenced by DropPacketWithDst(), and Purge().

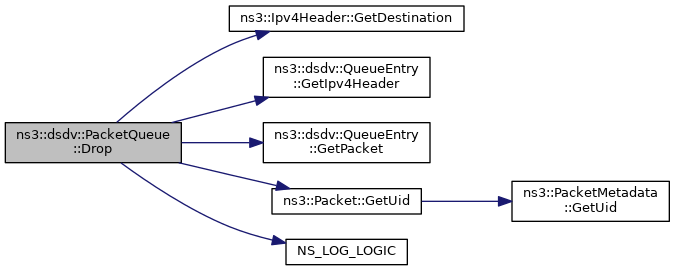

Here is the call graph for this function:

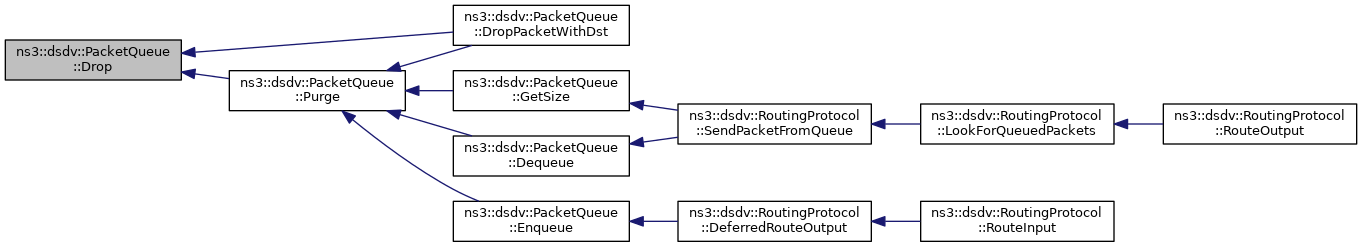

Here is the caller graph for this function:

◆ DropPacketWithDst()

void ns3::dsdv::PacketQueue::DropPacketWithDst ( Ipv4Address dst )

Remove all packets with destination IP address dst.

Parameters

dst	the destination IP address

Definition at line 84 of file dsdv-packet-queue.cc.

References Drop(), IsEqual(), m_queue, NS_LOG_FUNCTION, and Purge().

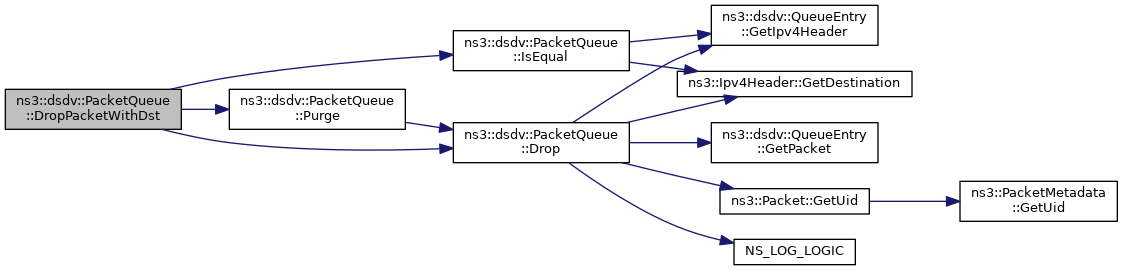

Here is the call graph for this function:

◆ Enqueue()

bool ns3::dsdv::PacketQueue::Enqueue ( QueueEntry & entry )

Push entry in queue, if there is no entry with the same packet and destination address in queue.

Parameters

entry QueueEntry to compare

Returns: true if successful

For Brock Paper comparison

Definition at line 51 of file dsdv-packet-queue.cc.

References GetCountForPacketsWithDst(), ns3::Ipv4Header::GetDestination(), ns3::dsdv::QueueEntry::GetIpv4Header(), ns3::dsdv::QueueEntry::GetPacket(), ns3::Packet::GetUid(), m_maxLen, m_maxLenPerDst, m_queue, m_queueTimeout, NS_LOG_DEBUG, NS_LOG_FUNCTION, Purge(), and ns3::dsdv::QueueEntry::SetExpireTime().

Referenced by ns3::dsdv::RoutingProtocol::DeferredRouteOutput().

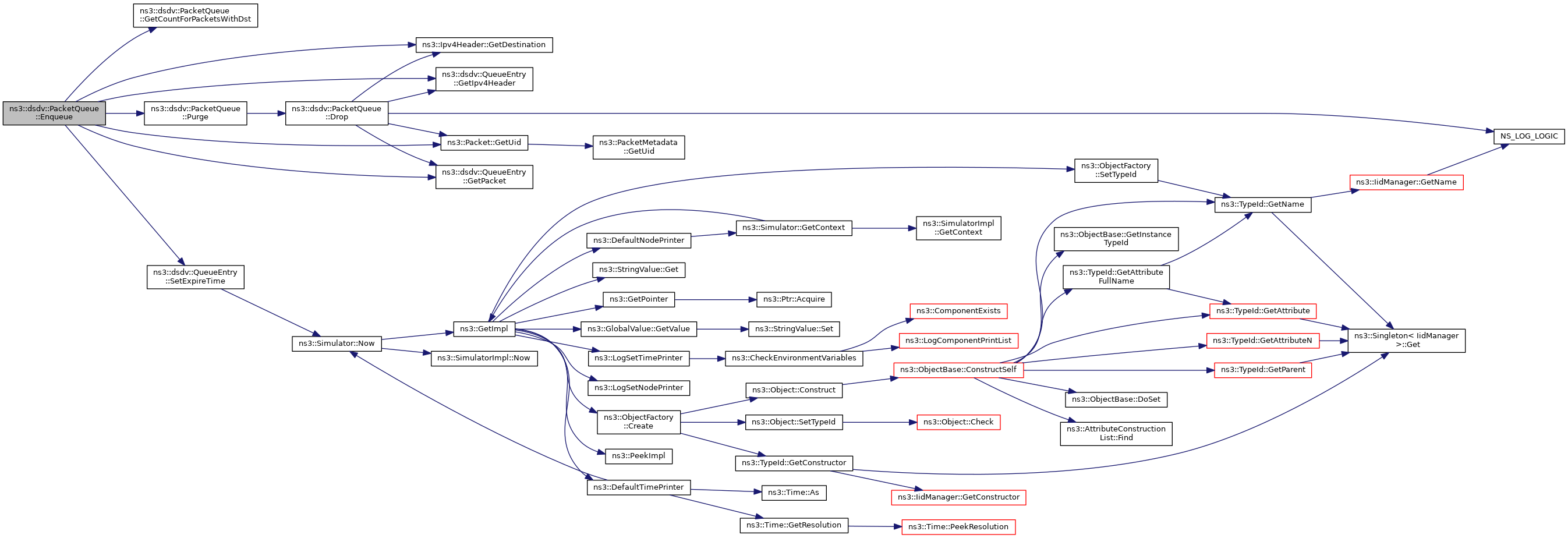

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Find()

bool ns3::dsdv::PacketQueue::Find ( Ipv4Address dst )

Finds whether a packet with destination dst exists in the queue.

Parameters

dst	the destination IP address

Returns: true if a packet found

Definition at line 118 of file dsdv-packet-queue.cc.

References m_queue, and NS_LOG_DEBUG.

Referenced by ns3::dsdv::RoutingProtocol::LookForQueuedPackets(), and ns3::dsdv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ GetCountForPacketsWithDst()

uint32_t ns3::dsdv::PacketQueue::GetCountForPacketsWithDst ( Ipv4Address dst )

Get count of packets with destination dst in the queue.

Parameters

dst	the destination IP address

Returns: the count

Definition at line 133 of file dsdv-packet-queue.cc.

References m_queue.

Referenced by Enqueue().

Here is the caller graph for this function:

◆ GetMaxPacketsPerDst()

uint32_t ns3::dsdv::PacketQueue::GetMaxPacketsPerDst ( ) const

inline

Get maximum packets per destination.

Returns: the maximum packets per destination

Definition at line 249 of file dsdv-packet-queue.h.

References m_maxLenPerDst.

◆ GetMaxQueueLen()

uint32_t ns3::dsdv::PacketQueue::GetMaxQueueLen ( ) const

inline

Get maximum queue length.

Returns: the maximum queue length

Definition at line 233 of file dsdv-packet-queue.h.

References m_maxLen.

◆ GetQueueTimeout()

Time ns3::dsdv::PacketQueue::GetQueueTimeout ( ) const

inline

Get queue timeout.

Returns: the queue timeout

Definition at line 265 of file dsdv-packet-queue.h.

References m_queueTimeout.

◆ GetSize()

uint32_t ns3::dsdv::PacketQueue::GetSize ( void )

Get the number of entries.

Returns: the number of entries

Definition at line 44 of file dsdv-packet-queue.cc.

References m_queue, and Purge().

Referenced by ns3::dsdv::RoutingProtocol::SendPacketFromQueue().

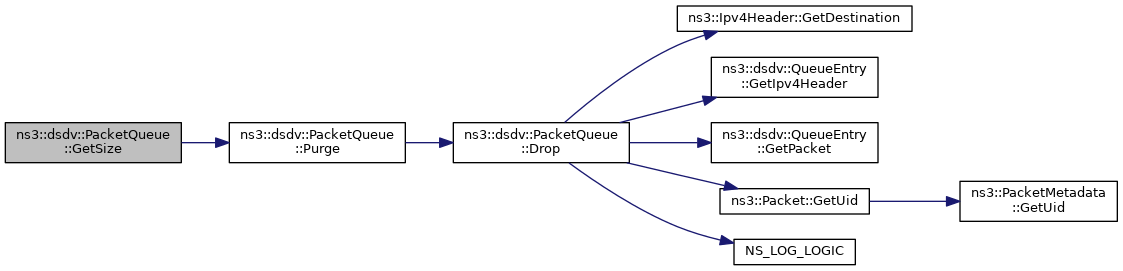

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsEqual()

static bool ns3::dsdv::PacketQueue::IsEqual	(	QueueEntry	en,
		const Ipv4Address	dst
	)

inlinestaticprivate

Determine if queue entries are equal.

Parameters

en	the queue entry
dst	the IPv4 destination address

Returns: true if the entry is for the destination address

Definition at line 300 of file dsdv-packet-queue.h.

References ns3::Ipv4Header::GetDestination(), and ns3::dsdv::QueueEntry::GetIpv4Header().

Referenced by DropPacketWithDst().

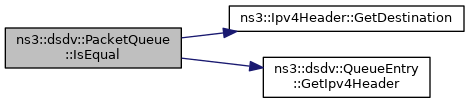

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Purge()

void ns3::dsdv::PacketQueue::Purge ( )

private

Remove all expired entries.

Definition at line 166 of file dsdv-packet-queue.cc.

References Drop(), m_queue, and NS_LOG_DEBUG.

Referenced by Dequeue(), DropPacketWithDst(), Enqueue(), and GetSize().

Here is the call graph for this function:

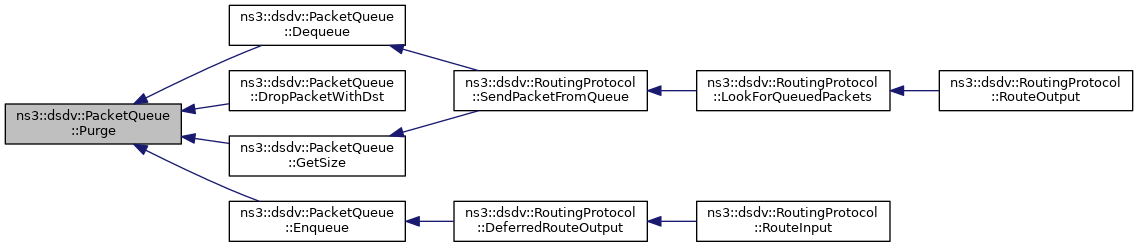

Here is the caller graph for this function:

◆ SetMaxPacketsPerDst()

void ns3::dsdv::PacketQueue::SetMaxPacketsPerDst ( uint32_t len )

inline

Set maximum packets per destination.

Parameters

len	The maximum packets per destination

Definition at line 257 of file dsdv-packet-queue.h.

References m_maxLenPerDst.

Referenced by ns3::dsdv::RoutingProtocol::Start().

Here is the caller graph for this function:

◆ SetMaxQueueLen()

void ns3::dsdv::PacketQueue::SetMaxQueueLen ( uint32_t len )

inline

Set maximum queue length.

Parameters

len	the maximum queue length

Definition at line 241 of file dsdv-packet-queue.h.

References m_maxLen.

Referenced by ns3::dsdv::RoutingProtocol::Start().

Here is the caller graph for this function:

◆ SetQueueTimeout()

void ns3::dsdv::PacketQueue::SetQueueTimeout ( Time t )

inline

Set queue timeout.

Parameters

t	The queue timeout

Definition at line 273 of file dsdv-packet-queue.h.

References m_queueTimeout.

Referenced by ns3::dsdv::RoutingProtocol::Start().

Here is the caller graph for this function:

Member Data Documentation

◆ m_maxLen

uint32_t ns3::dsdv::PacketQueue::m_maxLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 289 of file dsdv-packet-queue.h.

Referenced by Enqueue(), GetMaxQueueLen(), and SetMaxQueueLen().

◆ m_maxLenPerDst

uint32_t ns3::dsdv::PacketQueue::m_maxLenPerDst

private

The maximum number of packets that we allow per destination to buffer.

Definition at line 291 of file dsdv-packet-queue.h.

Referenced by Enqueue(), GetMaxPacketsPerDst(), and SetMaxPacketsPerDst().

◆ m_queue

std::vector<QueueEntry> ns3::dsdv::PacketQueue::m_queue

private

the queue

Definition at line 279 of file dsdv-packet-queue.h.

Referenced by Dequeue(), DropPacketWithDst(), Enqueue(), Find(), GetCountForPacketsWithDst(), GetSize(), and Purge().

◆ m_queueTimeout

Time ns3::dsdv::PacketQueue::m_queueTimeout

private

The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds.

Definition at line 293 of file dsdv-packet-queue.h.

Referenced by Enqueue(), GetQueueTimeout(), and SetQueueTimeout().

The documentation for this class was generated from the following files:

src/dsdv/model/dsdv-packet-queue.h
src/dsdv/model/dsdv-packet-queue.cc
