DSR send buffer. More...

#include "dsr-rsendbuff.h"

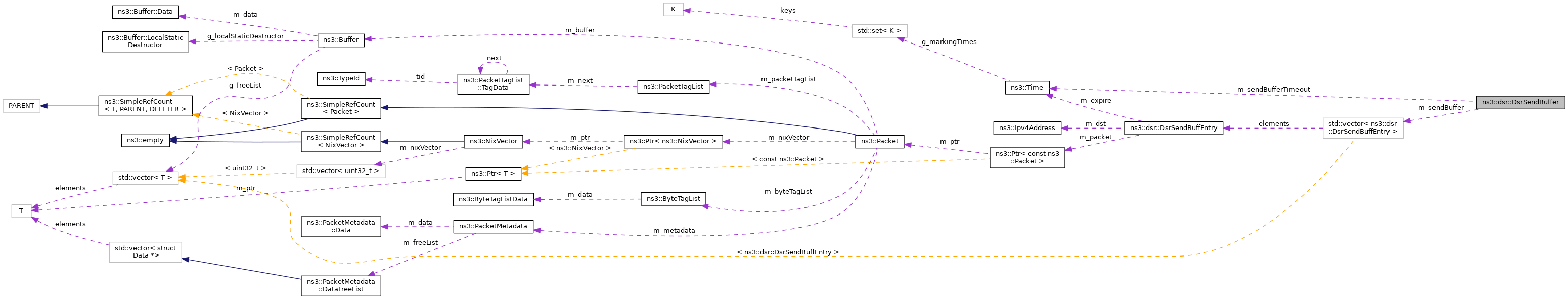

Collaboration diagram for ns3::dsr::DsrSendBuffer:

Public Member Functions
	DsrSendBuffer ()
	Default constructor. More...

bool	Dequeue (Ipv4Address dst, DsrSendBuffEntry &entry)
	Return first found (the earliest) entry for the given destination. More...

void	DropPacketWithDst (Ipv4Address dst)
	Remove all packets with destination IP address dst. More...

bool	Enqueue (DsrSendBuffEntry &entry)
	Push entry in queue, if there is no entry with the same packet and destination address in queue. More...

bool	Find (Ipv4Address dst)
	Check if a packet with destination dst exists in the queue. More...

std::vector< DsrSendBuffEntry > &	GetBuffer ()
	Return a pointer to the internal queue. More...

uint32_t	GetMaxQueueLen () const
	Return the maximum queue length. More...

Time	GetSendBufferTimeout () const
	Return the entry lifetime in the queue. More...

uint32_t	GetSize ()
	Number of entries. More...

void	SetMaxQueueLen (uint32_t len)
	Set the maximum queue length. More...

void	SetSendBufferTimeout (Time t)
	Set the entry lifetime in the queue. More...

Private Member Functions
void	Drop (DsrSendBuffEntry en, std::string reason)
	Notify that packet is dropped from queue by timeout. More...

void	Purge ()
	Remove all expired entries. More...

Static Private Member Functions
static bool	IsEqual (DsrSendBuffEntry en, const Ipv4Address dst)
	Check if the send buffer entry is the same or not. More...

Private Attributes
uint32_t	m_maxLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

std::vector< DsrSendBuffEntry >	m_sendBuffer
	The send buffer to cache unsent packet. More...

Time	m_sendBufferTimeout
	The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds. More...

Detailed Description

DSR send buffer.

Definition at line 156 of file dsr-rsendbuff.h.

Constructor & Destructor Documentation

◆ DsrSendBuffer()

ns3::dsr::DsrSendBuffer::DsrSendBuffer ( )

inline

Default constructor.

Definition at line 162 of file dsr-rsendbuff.h.

Member Function Documentation

◆ Dequeue()

bool ns3::dsr::DsrSendBuffer::Dequeue	(	Ipv4Address	dst,
		DsrSendBuffEntry &	entry
	)

Return first found (the earliest) entry for the given destination.

Parameters

dst	IPv4 address of the destination
entry	pointer to entry to return

Returns: true if successfully dequeued, false otherwise

Definition at line 104 of file dsr-rsendbuff.cc.

References ns3::dsr::DsrSendBuffEntry::GetPacket(), ns3::Packet::GetSize(), m_sendBuffer, NS_LOG_DEBUG, and Purge().

Referenced by DsrSendBuffTest::DoRun(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

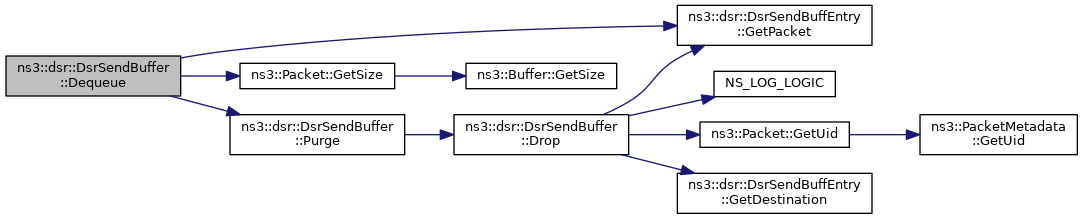

Here is the call graph for this function:

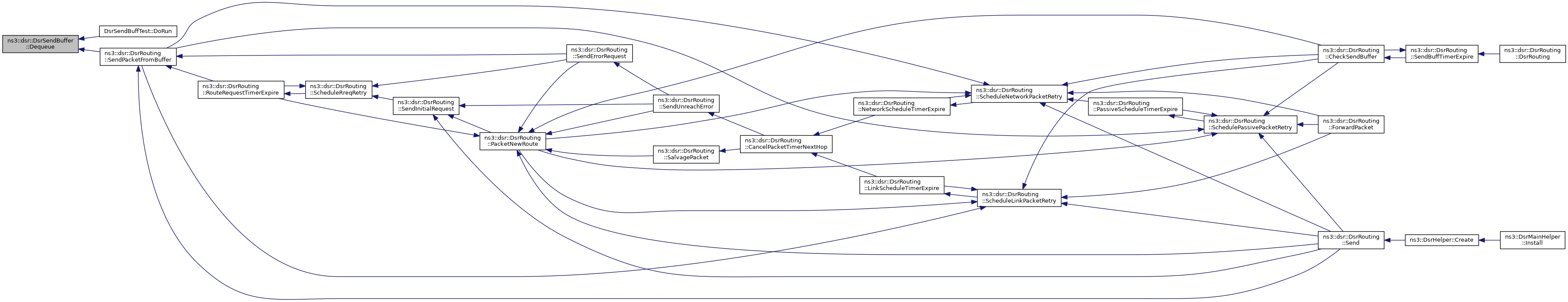

Here is the caller graph for this function:

◆ Drop()

void ns3::dsr::DsrSendBuffer::Drop	(	DsrSendBuffEntry	en,
		std::string	reason
	)

private

Notify that packet is dropped from queue by timeout.

Parameters

en	BuffEntry Buffer entry
reason	Drop reason

Definition at line 178 of file dsr-rsendbuff.cc.

References ns3::dsr::DsrSendBuffEntry::GetDestination(), ns3::dsr::DsrSendBuffEntry::GetPacket(), ns3::Packet::GetUid(), and NS_LOG_LOGIC().

Referenced by DropPacketWithDst(), Enqueue(), and Purge().

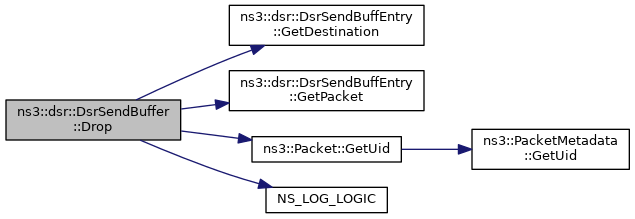

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DropPacketWithDst()

void ns3::dsr::DsrSendBuffer::DropPacketWithDst ( Ipv4Address dst )

Remove all packets with destination IP address dst.

Parameters

dst	IPv4 address of the destination

Definition at line 84 of file dsr-rsendbuff.cc.

References Drop(), IsEqual(), m_sendBuffer, NS_LOG_FUNCTION, and Purge().

Referenced by DsrSendBuffTest::DoRun(), and ns3::dsr::DsrRouting::RouteRequestTimerExpire().

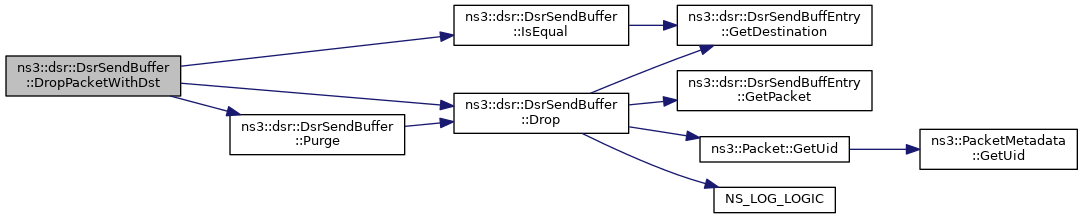

Here is the call graph for this function:

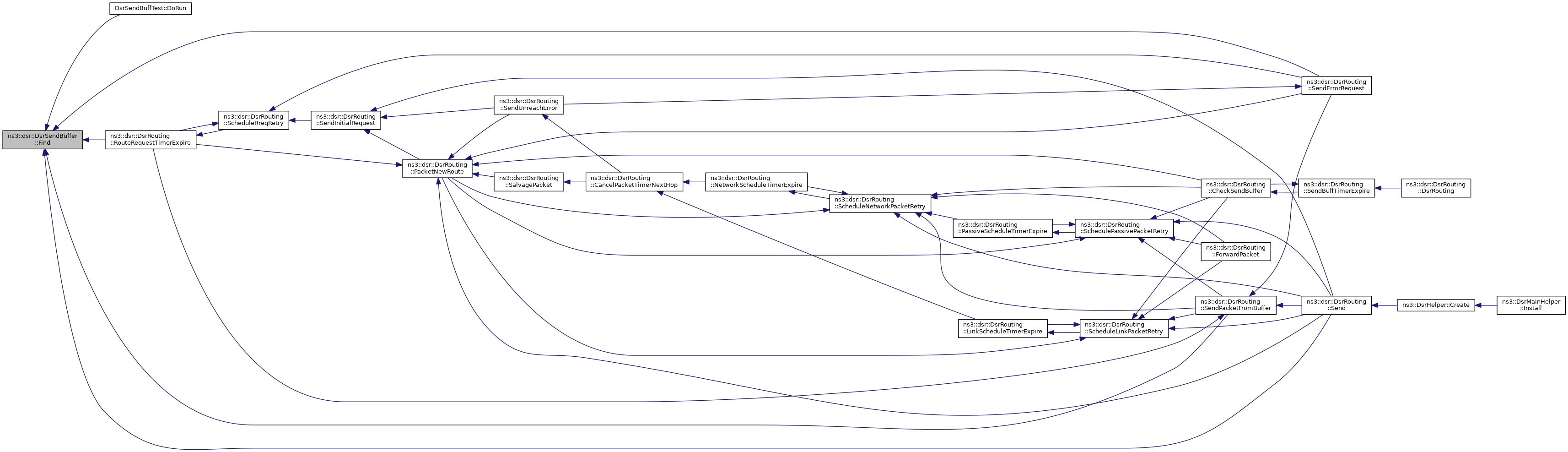

Here is the caller graph for this function:

◆ Enqueue()

bool ns3::dsr::DsrSendBuffer::Enqueue ( DsrSendBuffEntry & entry )

Push entry in queue, if there is no entry with the same packet and destination address in queue.

Parameters

entry DsrSendBuffEntry to put in the queue

Returns: true if successfully enqueued, false otherwise

Definition at line 53 of file dsr-rsendbuff.cc.

References Drop(), ns3::dsr::DsrSendBuffEntry::GetDestination(), ns3::dsr::DsrSendBuffEntry::GetPacket(), ns3::Packet::GetUid(), m_maxLen, m_sendBuffer, m_sendBufferTimeout, Purge(), and ns3::dsr::DsrSendBuffEntry::SetExpireTime().

Referenced by DsrSendBuffTest::CheckSizeLimit(), DsrSendBuffTest::DoRun(), ns3::dsr::DsrRouting::PacketNewRoute(), and ns3::dsr::DsrRouting::Send().

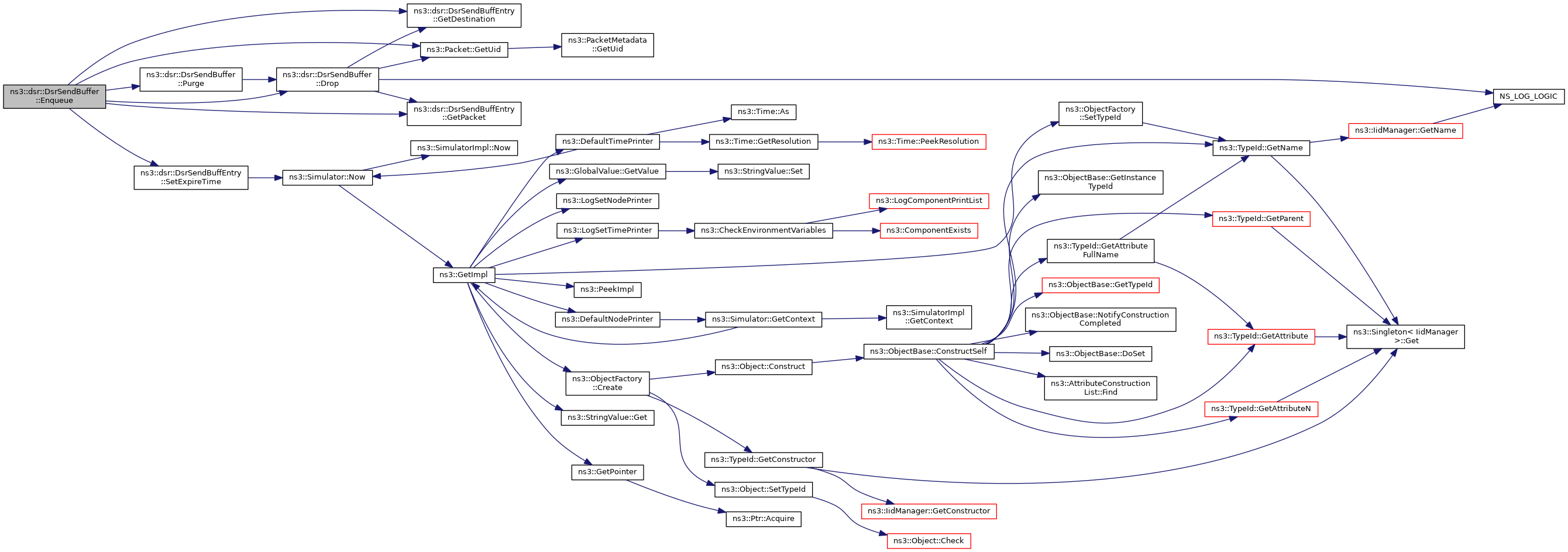

Here is the call graph for this function:

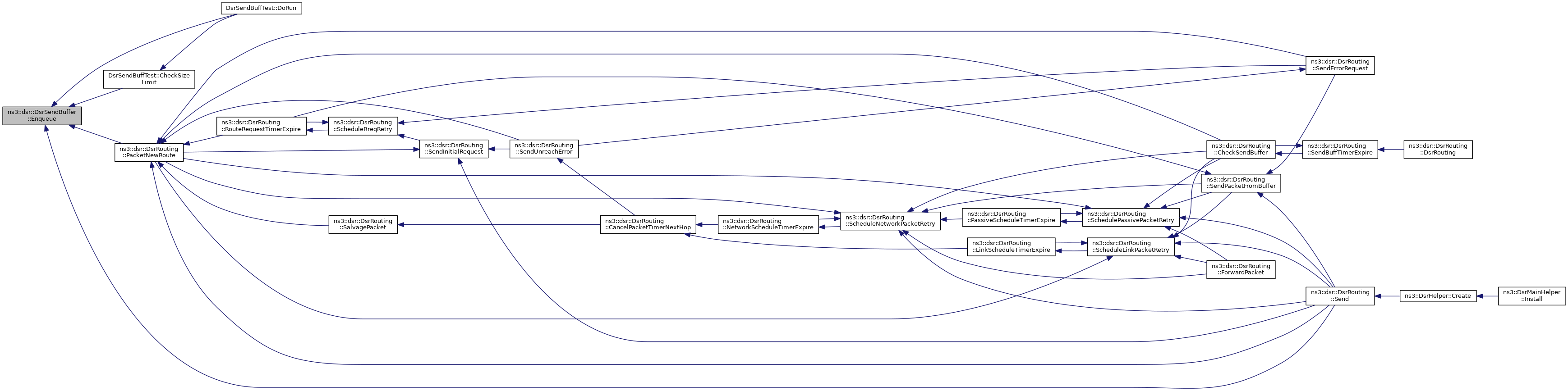

Here is the caller graph for this function:

◆ Find()

bool ns3::dsr::DsrSendBuffer::Find ( Ipv4Address dst )

Check if a packet with destination dst exists in the queue.

Parameters

dst	IPv4 address of the destination

Returns: true if found, false otherwise

Definition at line 124 of file dsr-rsendbuff.cc.

References m_sendBuffer, and NS_LOG_DEBUG.

Referenced by DsrSendBuffTest::DoRun(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

Here is the caller graph for this function:

◆ GetBuffer()

std::vector<DsrSendBuffEntry>& ns3::dsr::DsrSendBuffer::GetBuffer ( )

inline

Return a pointer to the internal queue.

Returns: a pointer to the internal queue

Definition at line 246 of file dsr-rsendbuff.h.

References m_sendBuffer.

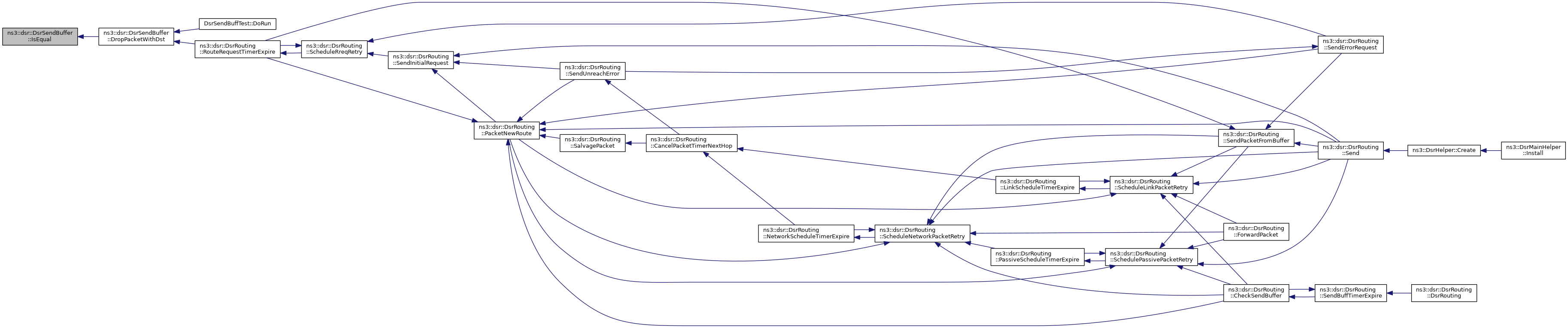

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer().

Here is the caller graph for this function:

◆ GetMaxQueueLen()

uint32_t ns3::dsr::DsrSendBuffer::GetMaxQueueLen ( ) const

inline

Return the maximum queue length.

Returns: the maximum queue length

Definition at line 208 of file dsr-rsendbuff.h.

References m_maxLen.

Referenced by DsrSendBuffTest::CheckSizeLimit(), and DsrSendBuffTest::DoRun().

Here is the caller graph for this function:

◆ GetSendBufferTimeout()

Time ns3::dsr::DsrSendBuffer::GetSendBufferTimeout ( ) const

inline

Return the entry lifetime in the queue.

Returns: the entry lifetime in the queue

Definition at line 226 of file dsr-rsendbuff.h.

References m_sendBufferTimeout.

Referenced by DsrSendBuffTest::DoRun().

Here is the caller graph for this function:

◆ GetSize()

uint32_t ns3::dsr::DsrSendBuffer::GetSize ( void )

Number of entries.

Returns: the number of entries in the queue

Definition at line 46 of file dsr-rsendbuff.cc.

References m_sendBuffer, and Purge().

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), DsrSendBuffTest::CheckSizeLimit(), DsrSendBuffTest::CheckTimeout(), DsrSendBuffTest::DoRun(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

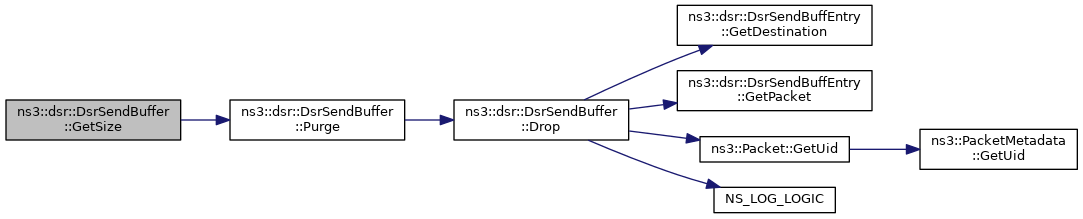

Here is the call graph for this function:

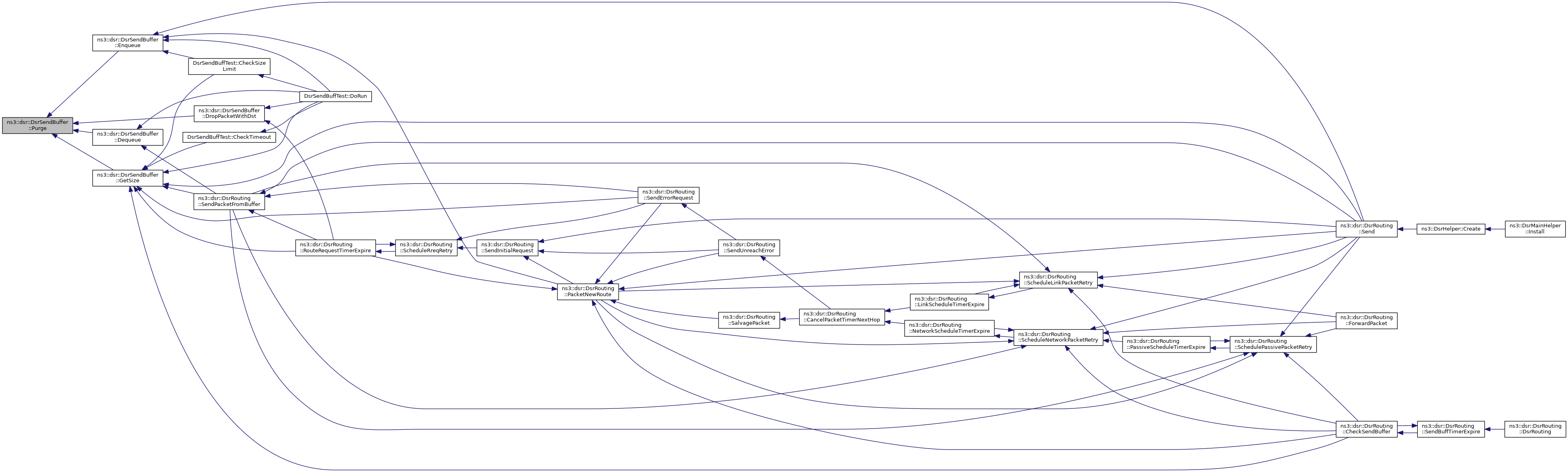

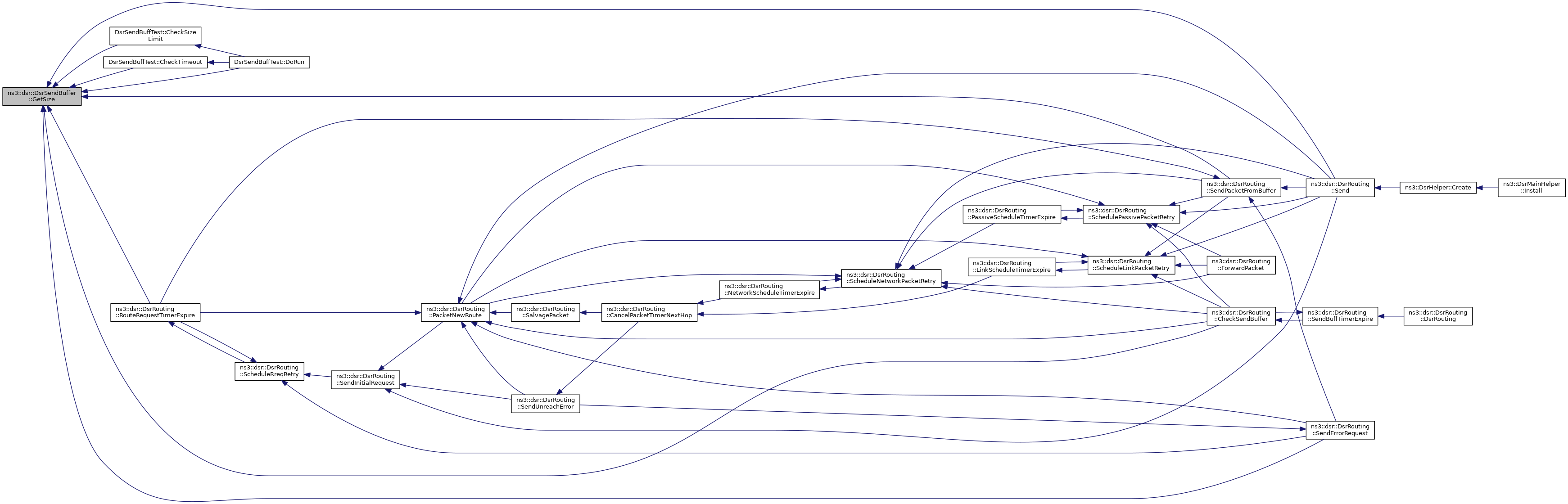

Here is the caller graph for this function:

◆ IsEqual()

static bool ns3::dsr::DsrSendBuffer::IsEqual	(	DsrSendBuffEntry	en,
		const Ipv4Address	dst
	)

inlinestaticprivate

Check if the send buffer entry is the same or not.

Parameters

en	SendBufferEntry
dst	IPv4 address to check

Returns: true if the SendBufferEntry destination is the same, false otherwise

Definition at line 270 of file dsr-rsendbuff.h.

References ns3::dsr::DsrSendBuffEntry::GetDestination().

Referenced by DropPacketWithDst().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Purge()

void ns3::dsr::DsrSendBuffer::Purge ( )

private

Remove all expired entries.

Definition at line 157 of file dsr-rsendbuff.cc.

References Drop(), m_sendBuffer, NS_LOG_DEBUG, and NS_LOG_INFO.

Referenced by Dequeue(), DropPacketWithDst(), Enqueue(), and GetSize().

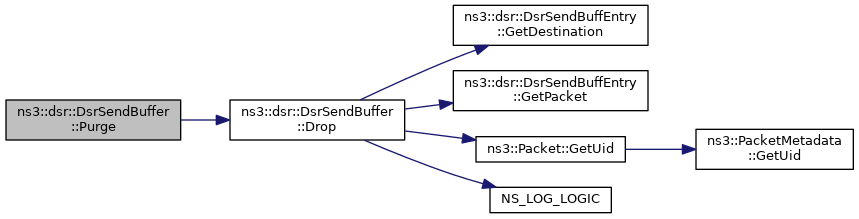

Here is the call graph for this function:

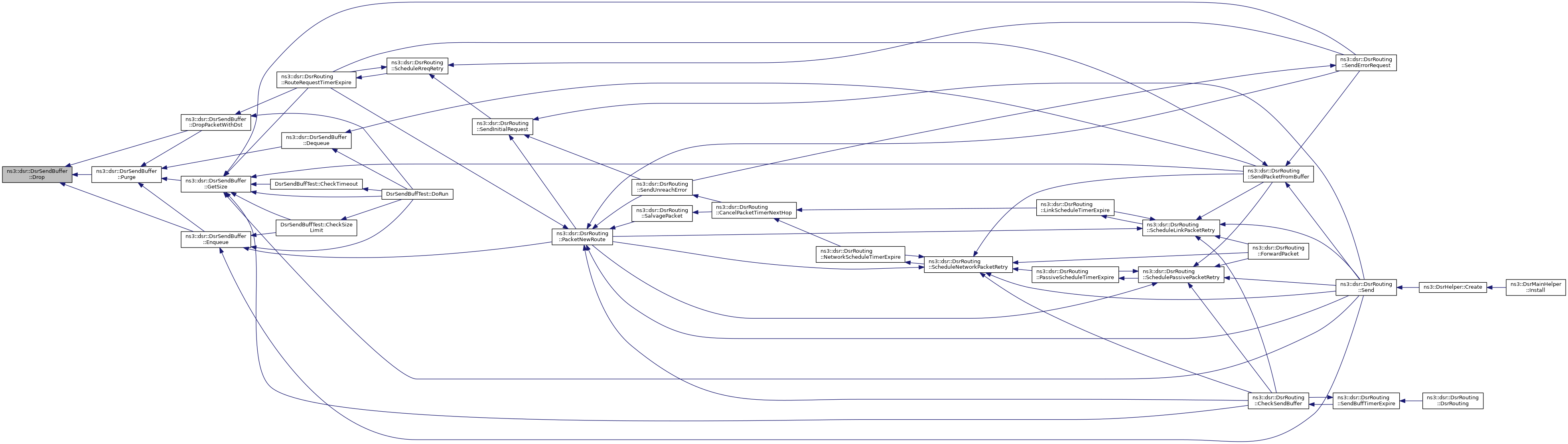

Here is the caller graph for this function:

◆ SetMaxQueueLen()

void ns3::dsr::DsrSendBuffer::SetMaxQueueLen ( uint32_t len )

inline

Set the maximum queue length.

Parameters

len	the maximum queue length

Definition at line 217 of file dsr-rsendbuff.h.

References m_maxLen.

Referenced by DsrSendBuffTest::DoRun(), and ns3::dsr::DsrRouting::Start().

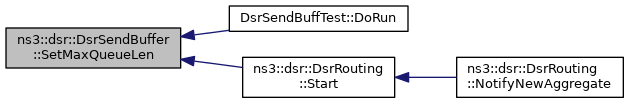

Here is the caller graph for this function:

◆ SetSendBufferTimeout()

void ns3::dsr::DsrSendBuffer::SetSendBufferTimeout ( Time t )

inline

Set the entry lifetime in the queue.

Parameters

t	the entry lifetime in the queue

Definition at line 235 of file dsr-rsendbuff.h.

References m_sendBufferTimeout.

Referenced by DsrSendBuffTest::DoRun(), and ns3::dsr::DsrRouting::Start().

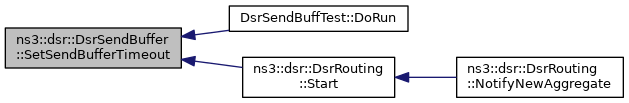

Here is the caller graph for this function:

Member Data Documentation

◆ m_maxLen

uint32_t ns3::dsr::DsrSendBuffer::m_maxLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 260 of file dsr-rsendbuff.h.

Referenced by Enqueue(), GetMaxQueueLen(), and SetMaxQueueLen().

◆ m_sendBuffer

std::vector<DsrSendBuffEntry> ns3::dsr::DsrSendBuffer::m_sendBuffer

private

The send buffer to cache unsent packet.

Definition at line 252 of file dsr-rsendbuff.h.

Referenced by Dequeue(), DropPacketWithDst(), Enqueue(), Find(), GetBuffer(), GetSize(), and Purge().

◆ m_sendBufferTimeout

Time ns3::dsr::DsrSendBuffer::m_sendBufferTimeout

private

The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds.

Definition at line 261 of file dsr-rsendbuff.h.

Referenced by Enqueue(), GetSendBufferTimeout(), and SetSendBufferTimeout().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-rsendbuff.h
src/dsr/model/dsr-rsendbuff.cc
