Attributes

The ns-3 attribute system is the mechanism used in ns-3 to organize, document, and modify the values used by the various component models. More...

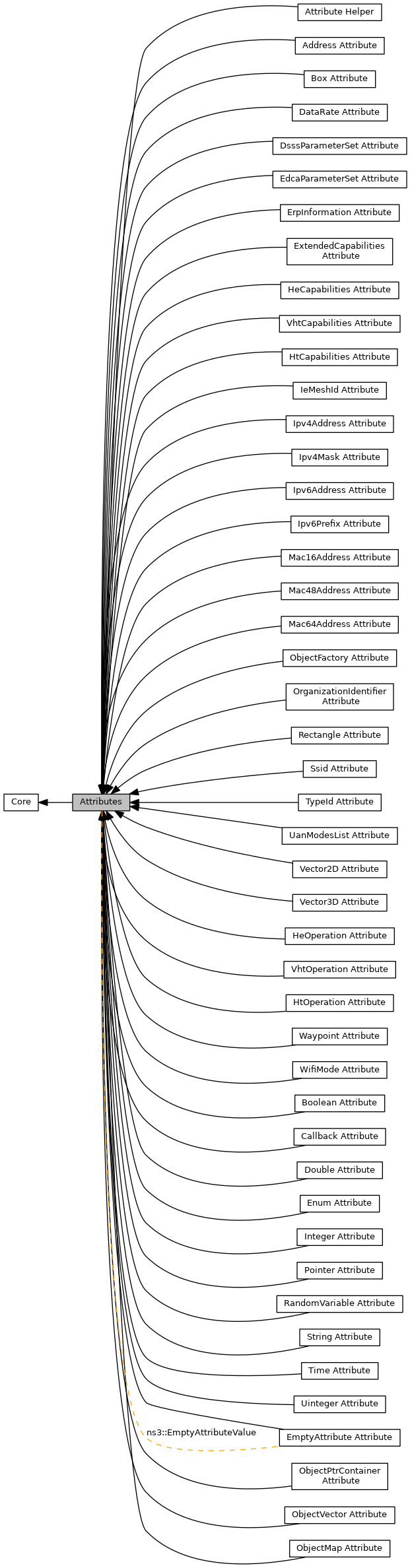

Collaboration diagram for Attributes:

Modules
	Address Attribute
	Attribute implementation for Address
	Attribute Helper
	All these macros can be used to generate automatically the code for subclasses of AttributeValue, AttributeAccessor, and, AttributeChecker, which can be used to give attribute powers to a normal class.
	Boolean Attribute
	Attribute implementation for Boolean
	Box Attribute
	Attribute implementation for Box
	Callback Attribute
	Attribute implementation for Callback
	DataRate Attribute
	Attribute implementation for DataRate
	Double Attribute
	Attribute implementation for Double
	DsssParameterSet Attribute
	Attribute implementation for DsssParameterSet
	EdcaParameterSet Attribute
	Attribute implementation for EdcaParameterSet
	EmptyAttribute Attribute
	Attribute implementation for EmptyAttribute
	Enum Attribute
	Attribute implementation for Enum
	ErpInformation Attribute
	Attribute implementation for ErpInformation
	ExtendedCapabilities Attribute
	Attribute implementation for ExtendedCapabilities
	HeCapabilities Attribute
	Attribute implementation for HeCapabilities
	HeOperation Attribute
	Attribute implementation for HeOperation
	HtCapabilities Attribute
	Attribute implementation for HtCapabilities
	HtOperation Attribute
	Attribute implementation for HtOperation
	IeMeshId Attribute
	Attribute implementation for IeMeshId
	Integer Attribute
	Attribute implementation for Integer
	Ipv4Address Attribute
	Attribute implementation for Ipv4Address
	Ipv4Mask Attribute
	Attribute implementation for Ipv4Mask
	Ipv6Address Attribute
	Attribute implementation for Ipv6Address
	Ipv6Prefix Attribute
	Attribute implementation for Ipv6Prefix
	Mac16Address Attribute
	Attribute implementation for Mac16Address
	Mac48Address Attribute
	Attribute implementation for Mac48Address
	Mac64Address Attribute
	Attribute implementation for Mac64Address
	ObjectFactory Attribute
	Attribute implementation for ObjectFactory
	ObjectMap Attribute
	Attribute implementation for ObjectMap
	ObjectPtrContainer Attribute
	Attribute implementation for ObjectPtrContainer
	ObjectVector Attribute
	Attribute implementation for ObjectVector
	OrganizationIdentifier Attribute
	Attribute implementation for OrganizationIdentifier
	Pointer Attribute
	Attribute implementation for Pointer
	RandomVariable Attribute
	Attribute implementation for RandomVariable
	Rectangle Attribute
	Attribute implementation for Rectangle
	Ssid Attribute
	Attribute implementation for Ssid
	String Attribute
	Attribute implementation for String
	Time Attribute
	Attribute implementation for Time
	TypeId Attribute
	Attribute implementation for TypeId
	UanModesList Attribute
	Attribute implementation for UanModesList
	Uinteger Attribute
	Attribute implementation for Uinteger
	Vector2D Attribute
	Attribute implementation for Vector2D
	Vector3D Attribute
	Attribute implementation for Vector3D
	VhtCapabilities Attribute
	Attribute implementation for VhtCapabilities
	VhtOperation Attribute
	Attribute implementation for VhtOperation
	Waypoint Attribute
	Attribute implementation for Waypoint
	WifiMode Attribute
	Attribute implementation for WifiMode

Files
file	attribute.cc
	ns3::AttributeValue, ns3::AttributeAccessor and ns3::AttributeChecker implementations.
file	attribute.h
	ns3::AttributeValue, ns3::AttributeAccessor and ns3::AttributeChecker declarations.

Classes
class	ns3::AttributeAccessor
	allow setting and getting the value of an attribute. More...
class	ns3::AttributeChecker
	Represent the type of an attribute. More...
class	ns3::AttributeValue
	Hold a value for an Attribute. More...
class	ns3::EmptyAttributeValue
	A class for an empty attribute value. More...

Functions
static Ptr< const AttributeAccessor >	ns3::MakeEmptyAttributeAccessor ()
	Create an empty AttributeAccessor. More...
static Ptr< AttributeChecker >	ns3::MakeEmptyAttributeChecker ()
	Create an empty AttributeChecker. More...

Detailed Description

The ns-3 attribute system is the mechanism used in ns-3 to organize, document, and modify the values used by the various component models.

Attributes also enable the tracing and statistics gathering in the simulator.

See Attribute Helper for macros to ease the declaration and definition of Attributes.

Function Documentation

MakeEmptyAttributeAccessor()

static Ptr<const AttributeAccessor> ns3::MakeEmptyAttributeAccessor ( )

inlinestatic

Create an empty AttributeAccessor.

Returns

The empty AttributeAccessor (runtime exception if used)

Definition at line 284 of file attribute.h.

Referenced by DeprecatedAttribute::GetTypeId().

Here is the caller graph for this function:

MakeEmptyAttributeChecker()

static Ptr<AttributeChecker> ns3::MakeEmptyAttributeChecker ( )

inlinestatic

Create an empty AttributeChecker.

Returns

The empty AttributeChecker (runtime exception if used)

Definition at line 316 of file attribute.h.

Referenced by DeprecatedAttribute::GetTypeId().

Here is the caller graph for this function:
