Virtual Time Timer and Watchdog

The Timer and Watchdog objects both facilitate scheduling functions to execute a specified virtual time in the future. More...

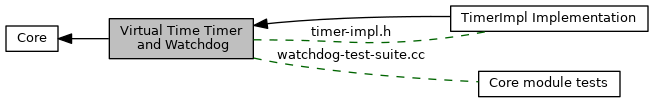

+ Collaboration diagram for Virtual Time Timer and Watchdog:

Modules

 TimerImpl Implementation


Files

file  timer-impl.h
 ns3::TimerImpl declaration and implementation.

file  timer.cc
 ns3::Timer implementation.

file  timer.h
 ns3::Timer class declaration.

file  watchdog-test-suite.cc
 Watchdog test suite.

file  watchdog.cc
 ns3::Watchdog timer class implementation.

file  watchdog.h
 ns3::Watchdog timer class declaration.


Classes

class  ns3::Timer
 A simple Timer class. More...

class  ns3::TimerImpl
 The timer implementation underlying Timer and Watchdog. More...

class  ns3::Watchdog
 A very simple watchdog operating in virtual time. More...


Detailed Description

The Timer and Watchdog objects both facilitate scheduling functions to execute a specified virtual time in the future.

A Watchdog timer cannot be paused or cancelled once it has been started, however it can be lengthened (delayed). A Watchdog takes no action when it is destroyed.

A Timer can be suspended, resumed, cancelled and queried for time left, but it can't be extended (except by suspending and resuming). In addition, it can be configured to take different actions when the Timer is destroyed.
