ns3::TimerImpl Class Reference

The timer implementation underlying Timer and Watchdog. More...

#include "timer-impl.h"

Inheritance diagram for ns3::TimerImpl:

Public Member Functions
virtual	~TimerImpl ()
	Destructor. More...
virtual void	Invoke (void)=0
	Invoke the expire function. More...
virtual EventId	Schedule (const Time &delay)=0
	Schedule the callback for a future time. More...
template<typename T1 >
void	SetArgs (T1 a1)
	Set the arguments to be used when invoking the expire function. More...
template<typename T1 , typename T2 >
void	SetArgs (T1 a1, T2 a2)
template<typename T1 , typename T2 , typename T3 >
void	SetArgs (T1 a1, T2 a2, T3 a3)
template<typename T1 , typename T2 , typename T3 , typename T4 >
void	SetArgs (T1 a1, T2 a2, T3 a3, T4 a4)
template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
void	SetArgs (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
void	SetArgs (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

Detailed Description

The timer implementation underlying Timer and Watchdog.

Definition at line 42 of file timer-impl.h.

Constructor & Destructor Documentation

~TimerImpl()

virtual ns3::TimerImpl::~TimerImpl ( )

inlinevirtual

Destructor.

Definition at line 46 of file timer-impl.h.

Member Function Documentation

Invoke()

virtual void ns3::TimerImpl::Invoke ( void  )

pure virtual

Invoke the expire function.

Referenced by ns3::Watchdog::Expire().

Here is the caller graph for this function:

Schedule()

virtual EventId ns3::TimerImpl::Schedule ( const Time &  delay )

pure virtual

Schedule the callback for a future time.

Parameters

[in]

delay

The amount of time until the timer expires.

Returns

The scheduled EventId.

Referenced by ns3::Timer::Resume(), and ns3::Timer::Schedule().

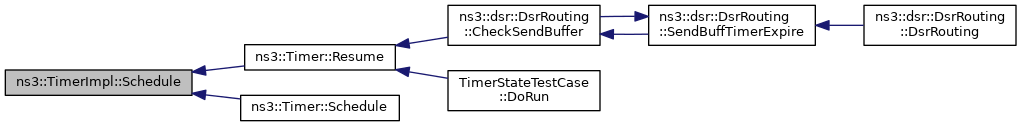

Here is the caller graph for this function:

SetArgs() [1/6]

template<typename T1 >

void ns3::TimerImpl::SetArgs

(

T1

a1

)

Set the arguments to be used when invoking the expire function.

Template Parameters

T1	[deduced] Type of the first argument.

Parameters

[in]

a1

The first argument

Definition at line 974 of file timer-impl.h.

References ns3::if(), and NS_FATAL_ERROR.

Referenced by ns3::Watchdog::SetArguments(), and ns3::Timer::SetArguments().

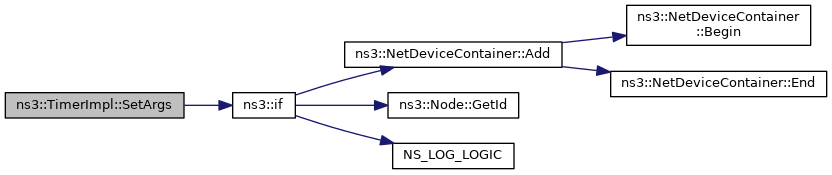

Here is the call graph for this function:

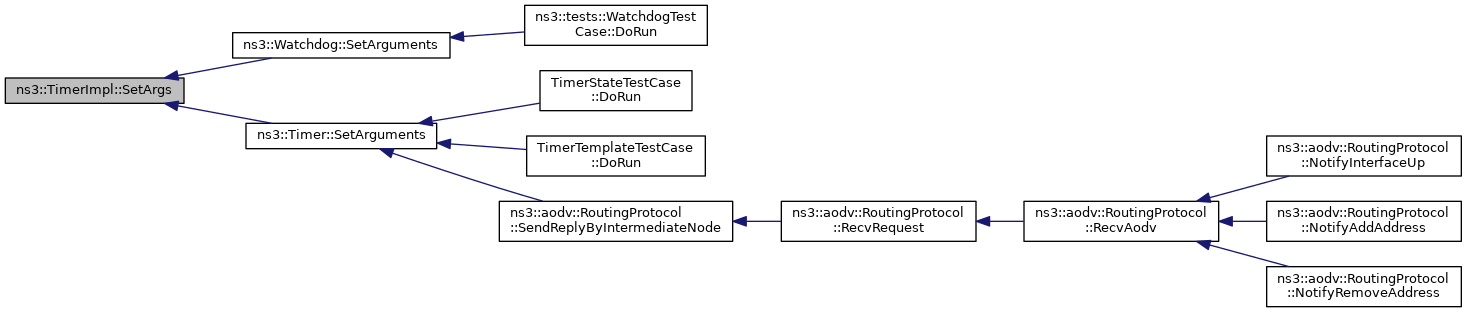

Here is the caller graph for this function:

SetArgs() [2/6]

template<typename T1 , typename T2 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2
	)

Template Parameters

T1	[deduced] Type of the first argument.
T2	[deduced] Type of the second argument.

Parameters

[in]	a1	the first argument
[in]	a2	the second argument

Definition at line 990 of file timer-impl.h.

References ns3::if(), and NS_FATAL_ERROR.

Here is the call graph for this function:

SetArgs() [3/6]

template<typename T1 , typename T2 , typename T3 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2,
		T3	a3
	)

Template Parameters

T1	[deduced] Type of the first argument.
T2	[deduced] Type of the second argument.
T3	[deduced] Type of the third argument.

Parameters

[in]	a1	the first argument
[in]	a2	the second argument
[in]	a3	the third argument

Definition at line 1007 of file timer-impl.h.

References ns3::if(), and NS_FATAL_ERROR.

Here is the call graph for this function:

SetArgs() [4/6]

template<typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Template Parameters

T1	[deduced] Type of the first argument.
T2	[deduced] Type of the second argument.
T3	[deduced] Type of the third argument.
T4	[deduced] Type of the fourth argument.

Parameters

[in]	a1	the first argument
[in]	a2	the second argument
[in]	a3	the third argument
[in]	a4	the fourth argument

Definition at line 1025 of file timer-impl.h.

References ns3::if(), and NS_FATAL_ERROR.

Here is the call graph for this function:

SetArgs() [5/6]

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Template Parameters

T1	[deduced] Type of the first argument.
T2	[deduced] Type of the second argument.
T3	[deduced] Type of the third argument.
T4	[deduced] Type of the fourth argument.
T5	[deduced] Type of the fifth argument.

Parameters

[in]	a1	the first argument
[in]	a2	the second argument
[in]	a3	the third argument
[in]	a4	the fourth argument
[in]	a5	the fifth argument

Definition at line 1044 of file timer-impl.h.

References ns3::if(), and NS_FATAL_ERROR.

Here is the call graph for this function:

SetArgs() [6/6]

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

Template Parameters

T1	[deduced] Type of the first argument.
T2	[deduced] Type of the second argument.
T3	[deduced] Type of the third argument.
T4	[deduced] Type of the fourth argument.
T5	[deduced] Type of the fifth argument.
T6	[deduced] Type of the sixth argument.

Parameters

[in]	a1	the first argument
[in]	a2	the second argument
[in]	a3	the third argument
[in]	a4	the fourth argument
[in]	a5	the fifth argument
[in]	a6	the sixth argument

Definition at line 1064 of file timer-impl.h.

References ns3::if(), and NS_FATAL_ERROR.

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/core/model/timer-impl.h
