A Discrete-Event Network Simulator
API
wifi-mode.h File Reference
#include <vector>
#include "ns3/attribute-helper.h"
+ Include dependency graph for wifi-mode.h:

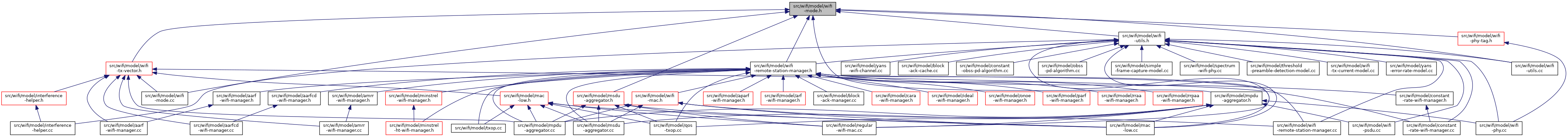

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  ns3::WifiMode
 represent a single transmission modeA WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode. More...

class  ns3::WifiModeChecker

AttributeChecker implementation for WifiModeValue. More...

class  ns3::WifiModeFactory
 create WifiMode class instances and keep track of them. More...

struct  ns3::WifiModeFactory::WifiModeItem
 This is the data associated to a unique WifiMode. More...

class  ns3::WifiModeValue

AttributeValue implementation for WifiMode. More...


Namespaces

 ns3
 Every class exported by the ns3 library is enclosed in the ns3 namespace.


Typedefs

typedef std::vector< WifiMode > ns3::WifiModeList
 In various parts of the code, folk are interested in maintaining a list of transmission modes. More...

typedef WifiModeList::const_iterator ns3::WifiModeListIterator
 An iterator for WifiModeList vector. More...


Enumerations

enum  ns3::WifiCodeRate {
  ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_CODE_RATE_3_4, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_CODE_RATE_1_2,
  ns3::WIFI_CODE_RATE_5_6
}
 This enumeration defines the various convolutional coding rates used for the OFDM transmission modes in the IEEE 802.11 standard. More...

enum  ns3::WifiModulationClass {
  ns3::WIFI_MOD_CLASS_UNKNOWN = 0, ns3::WIFI_MOD_CLASS_IR, ns3::WIFI_MOD_CLASS_FHSS, ns3::WIFI_MOD_CLASS_DSSS,
  ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_ERP_PBCC, ns3::WIFI_MOD_CLASS_DSSS_OFDM, ns3::WIFI_MOD_CLASS_ERP_OFDM,
  ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_MOD_CLASS_HE
}
 This enumeration defines the modulation classes per (Table 9-4 "Modulation classes"; IEEE 802.11-2012). More...


Functions

template<typename T1 >
Ptr< const AttributeAccessor > ns3::MakeWifiModeAccessor (T1 a1)

Create an AttributeAccessor for a class data member, or a lone class get functor or set method. More...

template<typename T1 , typename T2 >
Ptr< const AttributeAccessor > ns3::MakeWifiModeAccessor (T1 a1, T2 a2)

Create an AttributeAccessor using a pair of get functor and set methods from a class. More...

Ptr< const AttributeChecker > ns3::MakeWifiModeChecker (void)

More...

bool ns3::operator< (const WifiMode &a, const WifiMode &b)
 Compare two WifiModes. More...

std::ostream & ns3::operator<< (std::ostream &os, const WifiMode &mode)
 Serialize WifiMode to ostream (human-readable). More...

bool ns3::operator== (const WifiMode &a, const WifiMode &b)
 Check if the two WifiModes are identical. More...

std::istream & ns3::operator>> (std::istream &is, WifiMode &mode)
 Serialize WifiMode from istream (human-readable). More...
