A constant ack policy selector operating based on the values of its attributes. More...

#include "constant-wifi-ack-policy-selector.h"

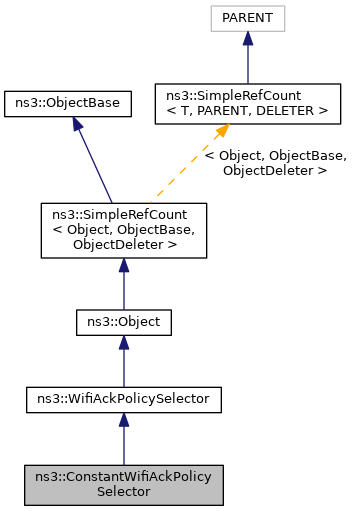

Inheritance diagram for ns3::ConstantWifiAckPolicySelector:

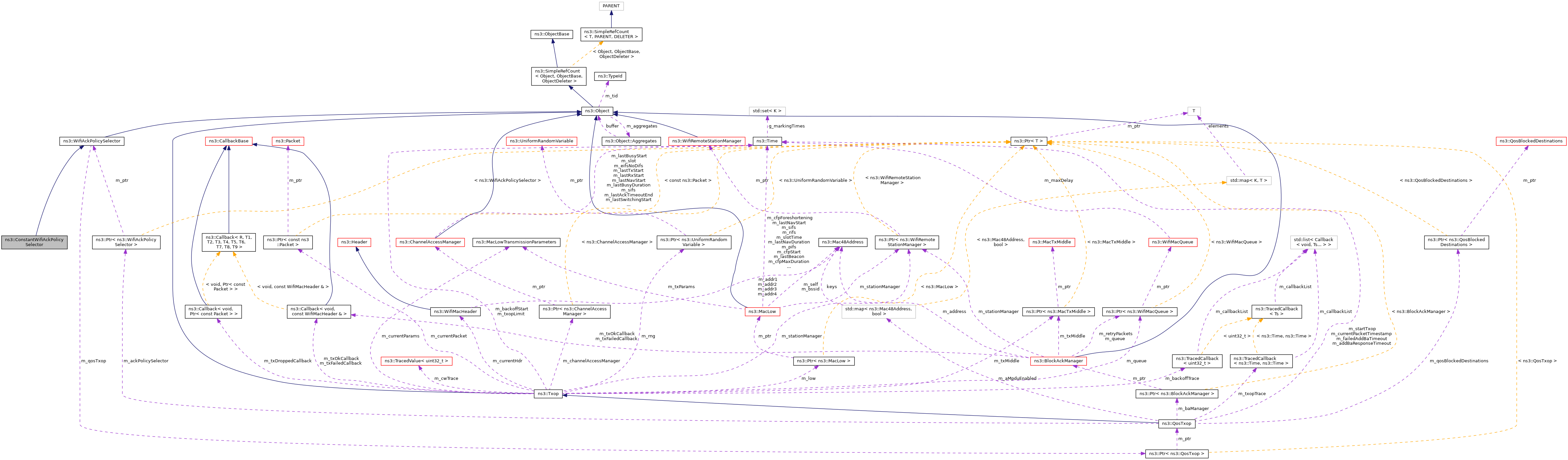

Collaboration diagram for ns3::ConstantWifiAckPolicySelector:

Public Member Functions
	ConstantWifiAckPolicySelector ()

virtual	~ConstantWifiAckPolicySelector ()

virtual void	UpdateTxParams (Ptr< WifiPsdu > psdu, MacLowTransmissionParameters &params)
	Update the transmission parameters related to the acknowledgment policy for the given PSDU. More...

Public Member Functions inherited from ns3::WifiAckPolicySelector
virtual	~WifiAckPolicySelector ()

virtual void	DoDispose (void)
	Destructor implementation. More...

Ptr< QosTxop >	GetQosTxop (void) const
	Get the QoS Txop associated with this ack policy selector. More...

void	SetQosTxop (Ptr< QosTxop > qosTxop)
	Set the QoS Txop associated with this ack policy selector. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject () const

template<>
Ptr< Object >	GetObject (TypeId tid) const

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiAckPolicySelector
static TypeId	GetTypeId (void)
	Get the type ID. More...

static void	SetAckPolicy (Ptr< WifiPsdu > psdu, const MacLowTransmissionParameters &params)
	Set the QoS Ack Policy for the QoS Data frames contained in the given PSDU according to the given MacLow transmission parameters. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
double	m_baThreshold
	Threshold to determine when a BlockAck must be requested. More...

bool	m_useExplicitBar
	true for sending BARs, false for using Implicit BAR ack policy More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::WifiAckPolicySelector
Ptr< QosTxop >	m_qosTxop
	the QoS Txop this selector is associated with More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A constant ack policy selector operating based on the values of its attributes.

Introspection did not find any typical Config paths.

Attributes

UseExplicitBar: Specify whether to send Block Ack Requests (if true) or use Implicit Block Ack Request ack policy (if false).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
BaThreshold: Immediate acknowledgment is requested upon transmission of a frame whose sequence number is distant at least BaThreshold multiplied by the transmit window size from the starting sequence number of the transmit window. Set to zero to request a response for every transmitted frame.
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 33 of file constant-wifi-ack-policy-selector.h.

Constructor & Destructor Documentation

◆ ConstantWifiAckPolicySelector()

ns3::ConstantWifiAckPolicySelector::ConstantWifiAckPolicySelector ( )

Definition at line 56 of file constant-wifi-ack-policy-selector.cc.

References NS_LOG_FUNCTION_NOARGS.

◆ ~ConstantWifiAckPolicySelector()

ns3::ConstantWifiAckPolicySelector::~ConstantWifiAckPolicySelector ( )

virtual

Definition at line 61 of file constant-wifi-ack-policy-selector.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::ConstantWifiAckPolicySelector::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 31 of file constant-wifi-ack-policy-selector.cc.

References m_baThreshold, m_useExplicitBar, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

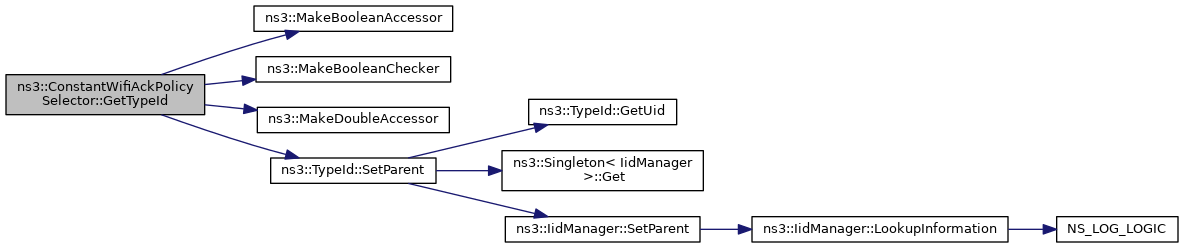

Here is the call graph for this function:

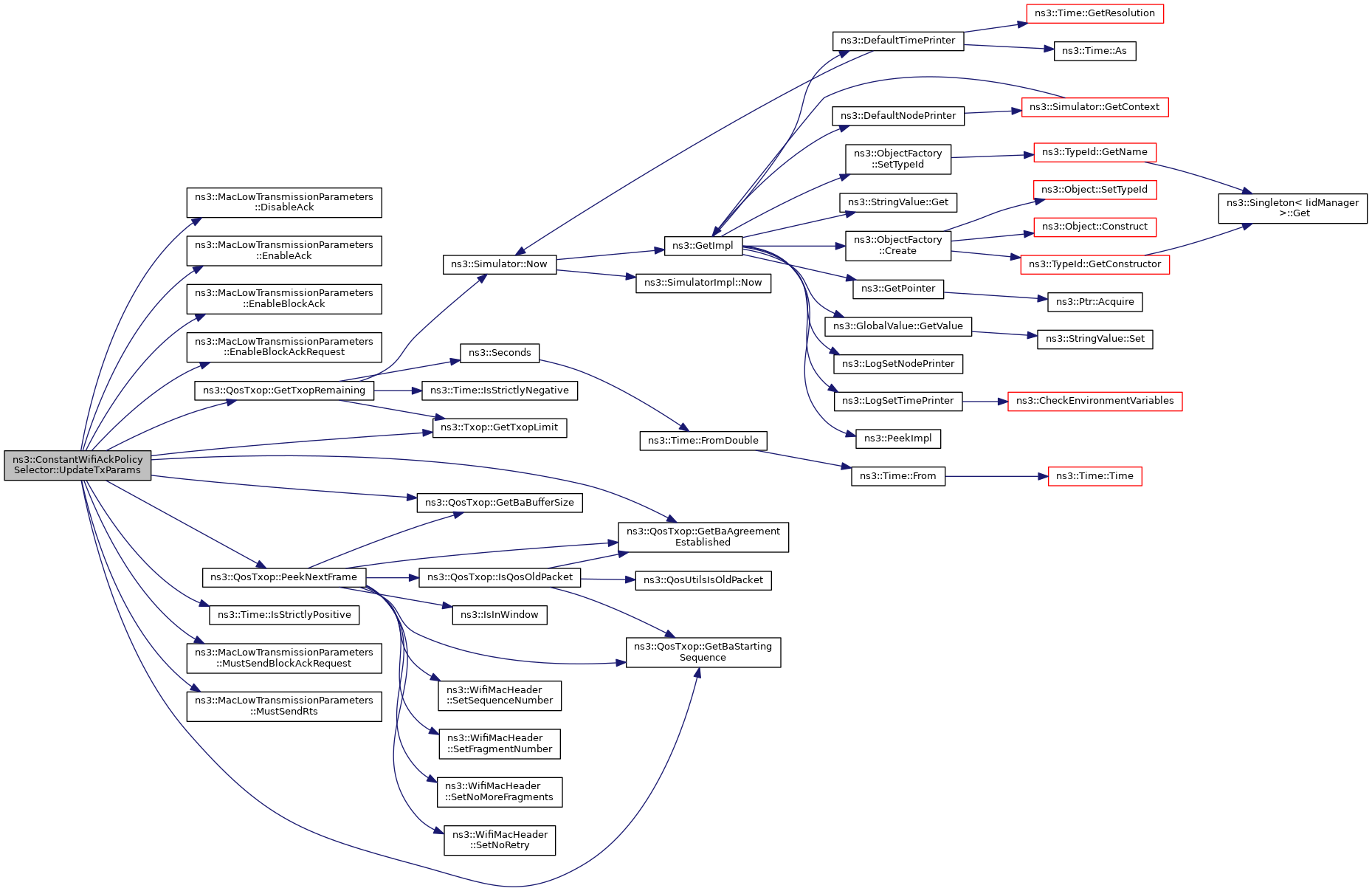

◆ UpdateTxParams()

void ns3::ConstantWifiAckPolicySelector::UpdateTxParams	(	Ptr< WifiPsdu >	psdu,
		MacLowTransmissionParameters &	params
	)

virtual

Update the transmission parameters related to the acknowledgment policy for the given PSDU.

This method is typically called by the MPDU aggregator when trying to aggregate another MPDU to the current A-MPDU. In fact, the AckPolicySelector may switch to a different acknowledgment policy when a new MPDU is aggregated to an A-MPDU. Note that multi-TID A-MPDUs are currently not supported by this method.

Parameters
