ns3::WifiPpdu Class Reference

WifiPpdu stores a preamble, a modulation class, PHY headers and a PSDU. More...

#include "wifi-ppdu.h"

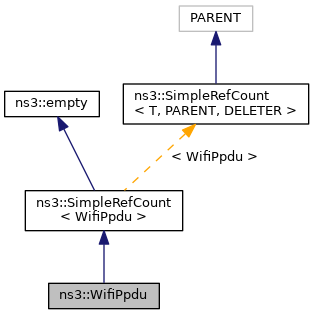

Inheritance diagram for ns3::WifiPpdu:

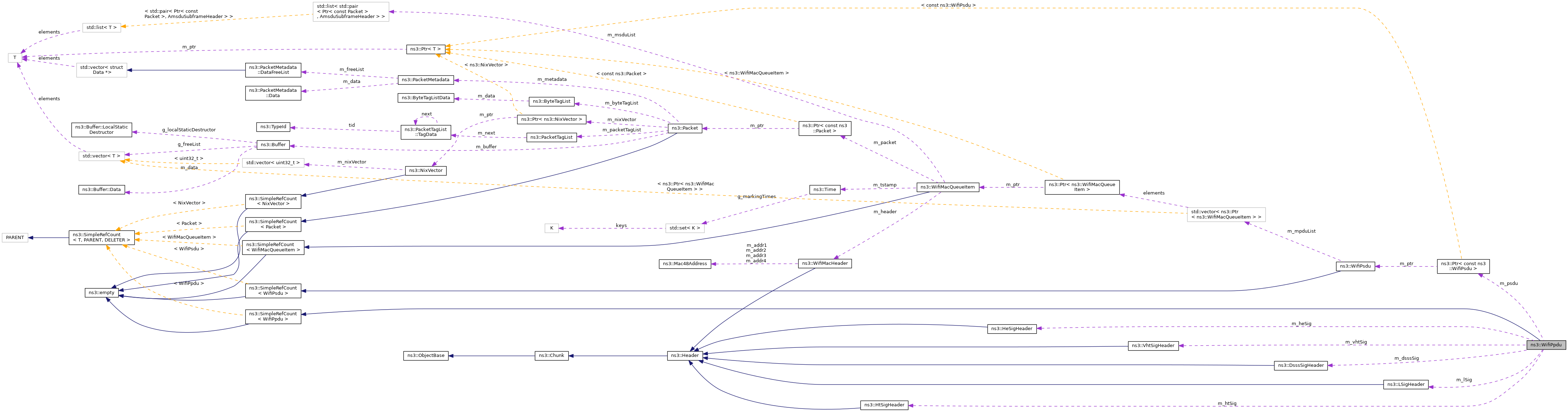

Collaboration diagram for ns3::WifiPpdu:

Public Member Functions
	WifiPpdu (Ptr< const WifiPsdu > psdu, WifiTxVector txVector, Time ppduDuration, uint16_t frequency)
	Create a single user PPDU storing a PSDU. More...
virtual	~WifiPpdu ()
Ptr< const WifiPsdu >	GetPsdu (void) const
	Get the payload of the PPDU. More...
Time	GetTxDuration () const
	Get the total transmission duration of the PPDU. More...
WifiTxVector	GetTxVector (void) const
	Get the TXVECTOR used to send the PPDU. More...
bool	IsTruncatedTx (void) const
	Return true if the PPDU's transmission was aborted due to transmitter switch off. More...
void	Print (std::ostream &os) const
	Print the PPDU contents. More...
void	SetTruncatedTx (void)
	Indicate that the PPDU's transmission was aborted due to transmitter switch off. More...
Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint16_t	m_channelWidth
	the channel width used to transmit that PPDU in MHz More...
DsssSigHeader	m_dsssSig
	the DSSS SIG PHY header More...
uint16_t	m_frequency
	the frequency used to transmit that PPDU in MHz More...
HeSigHeader	m_heSig
	the HE-SIG PHY header More...
HtSigHeader	m_htSig
	the HT-SIG PHY header More...
LSigHeader	m_lSig
	the L-SIG PHY header More...
WifiModulationClass	m_modulation
	the modulation used for the transmission of this PPDU More...
WifiPreamble	m_preamble
	the PHY preamble More...
Ptr< const WifiPsdu >	m_psdu
	the PSDU contained in this PPDU More...
bool	m_truncatedTx
	flag indicating whether the frame's transmission was aborted due to transmitter switch off More...
uint8_t	m_txPowerLevel
	the transmission power level (used only for TX and initializing the returned WifiTxVector) More...
VhtSigHeader	m_vhtSig
	the VHT-SIG PHY header More...

Detailed Description

WifiPpdu stores a preamble, a modulation class, PHY headers and a PSDU.

This class should be extended later on to handle MU PPDUs.

Definition at line 39 of file wifi-ppdu.h.

Constructor & Destructor Documentation

WifiPpdu()

ns3::WifiPpdu::WifiPpdu	(	Ptr< const WifiPsdu >	psdu,
		WifiTxVector	txVector,
		Time	ppduDuration,
		uint16_t	frequency
	)

Create a single user PPDU storing a PSDU.

Parameters

psdu	the PHY payload (PSDU)
txVector	the TXVECTOR that was used for this PPDU
ppduDuration	the transmission duration of this PPDU
frequency	the frequency used for the transmission of this PPDU

Definition at line 32 of file wifi-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiTxVector::GetBssColor(), ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::Time::GetMicroSeconds(), ns3::WifiTxVector::GetMode(), ns3::Time::GetNanoSeconds(), ns3::WifiTxVector::GetNss(), ns3::Is2_4Ghz(), ns3::WifiTxVector::IsAggregation(), ns3::WifiTxVector::IsValid(), m_channelWidth, m_dsssSig, m_heSig, m_htSig, m_lSig, m_modulation, m_preamble, m_vhtSig, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::HtSigHeader::SetAggregation(), ns3::HeSigHeader::SetBssColor(), ns3::HtSigHeader::SetChannelWidth(), ns3::VhtSigHeader::SetChannelWidth(), ns3::HeSigHeader::SetChannelWidth(), ns3::HeSigHeader::SetGuardIntervalAndLtfSize(), ns3::HtSigHeader::SetHtLength(), ns3::DsssSigHeader::SetLength(), ns3::LSigHeader::SetLength(), ns3::HtSigHeader::SetMcs(), ns3::HeSigHeader::SetMcs(), ns3::VhtSigHeader::SetMuFlag(), ns3::HeSigHeader::SetMuFlag(), ns3::VhtSigHeader::SetNStreams(), ns3::HeSigHeader::SetNStreams(), ns3::DsssSigHeader::SetRate(), ns3::LSigHeader::SetRate(), ns3::HtSigHeader::SetShortGuardInterval(), ns3::VhtSigHeader::SetShortGuardInterval(), ns3::VhtSigHeader::SetShortGuardIntervalDisambiguation(), ns3::VhtSigHeader::SetSuMcs(), ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_HE_MU, ns3::WIFI_PREAMBLE_HE_SU, and ns3::WIFI_PREAMBLE_VHT_MU.

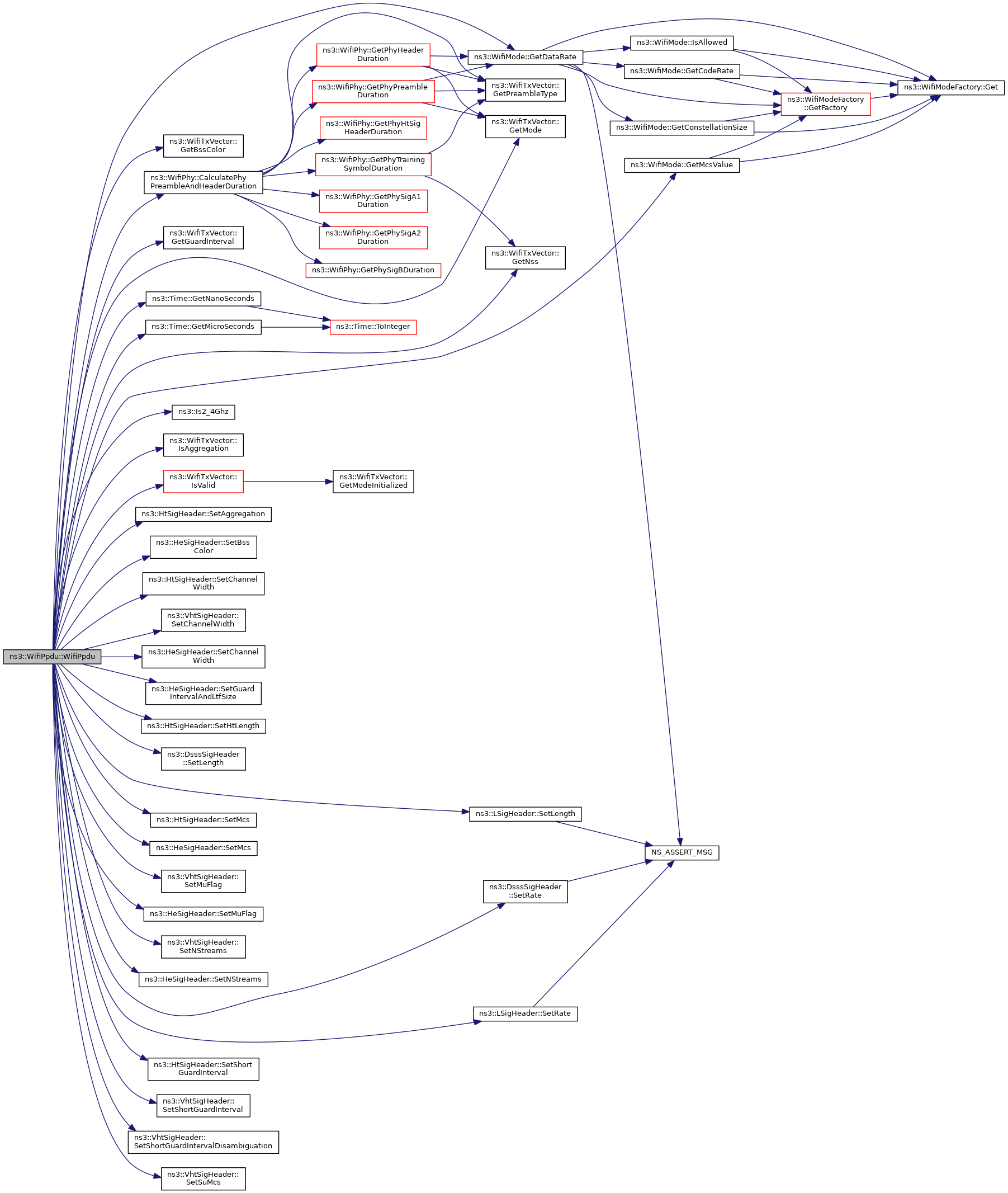

Here is the call graph for this function:

~WifiPpdu()

ns3::WifiPpdu::~WifiPpdu ( )

virtual

Definition at line 127 of file wifi-ppdu.cc.

Member Function Documentation

GetPsdu()

Ptr< const WifiPsdu > ns3::WifiPpdu::GetPsdu

(

void

)

const

Get the payload of the PPDU.

Returns

the PSDU

Definition at line 511 of file wifi-ppdu.cc.

References m_psdu.

GetTxDuration()

Time ns3::WifiPpdu::GetTxDuration

(

void

)

const

Get the total transmission duration of the PPDU.

Returns

the transmission duration of the PPDU

Definition at line 530 of file wifi-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiPhy::CalculateTxDuration(), ns3::WifiTxVector::GetGuardInterval(), ns3::HtSigHeader::GetHtLength(), ns3::DsssSigHeader::GetLength(), ns3::LSigHeader::GetLength(), ns3::Time::GetNanoSeconds(), ns3::VhtSigHeader::GetShortGuardInterval(), ns3::VhtSigHeader::GetShortGuardIntervalDisambiguation(), GetTxVector(), ns3::Is2_4Ghz(), m_dsssSig, m_frequency, m_htSig, m_lSig, m_modulation, m_preamble, m_vhtSig, ns3::MicroSeconds(), ns3::NanoSeconds(), NS_FATAL_ERROR, ns3::Seconds(), ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_HE_MU, and ns3::WIFI_PREAMBLE_HE_SU.

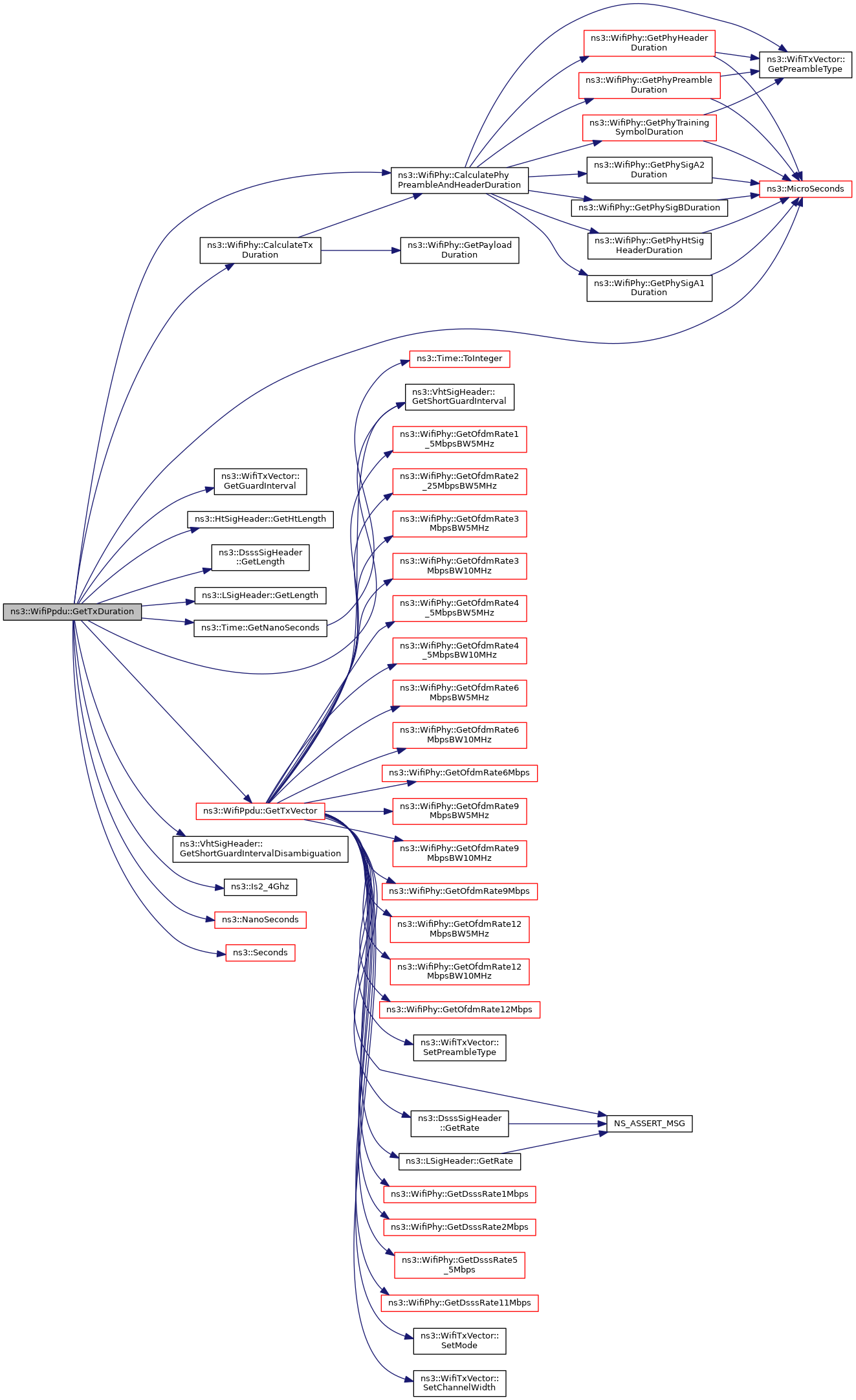

Here is the call graph for this function:

GetTxVector()

WifiTxVector ns3::WifiPpdu::GetTxVector

(

void

)

const

Get the TXVECTOR used to send the PPDU.

Returns

the TXVECTOR of the PPDU.

Definition at line 132 of file wifi-ppdu.cc.

References ns3::HtSigHeader::GetAggregation(), ns3::HeSigHeader::GetBssColor(), ns3::HtSigHeader::GetChannelWidth(), ns3::VhtSigHeader::GetChannelWidth(), ns3::HeSigHeader::GetChannelWidth(), ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), ns3::WifiPhy::GetErpOfdmRate12Mbps(), ns3::WifiPhy::GetErpOfdmRate18Mbps(), ns3::WifiPhy::GetErpOfdmRate24Mbps(), ns3::WifiPhy::GetErpOfdmRate36Mbps(), ns3::WifiPhy::GetErpOfdmRate48Mbps(), ns3::WifiPhy::GetErpOfdmRate54Mbps(), ns3::WifiPhy::GetErpOfdmRate6Mbps(), ns3::WifiPhy::GetErpOfdmRate9Mbps(), ns3::HeSigHeader::GetGuardInterval(), ns3::WifiPhy::GetHeMcs0(), ns3::WifiPhy::GetHeMcs1(), ns3::WifiPhy::GetHeMcs10(), ns3::WifiPhy::GetHeMcs11(), ns3::WifiPhy::GetHeMcs2(), ns3::WifiPhy::GetHeMcs3(), ns3::WifiPhy::GetHeMcs4(), ns3::WifiPhy::GetHeMcs5(), ns3::WifiPhy::GetHeMcs6(), ns3::WifiPhy::GetHeMcs7(), ns3::WifiPhy::GetHeMcs8(), ns3::WifiPhy::GetHeMcs9(), ns3::WifiPhy::GetHtMcs0(), ns3::WifiPhy::GetHtMcs1(), ns3::WifiPhy::GetHtMcs10(), ns3::WifiPhy::GetHtMcs11(), ns3::WifiPhy::GetHtMcs12(), ns3::WifiPhy::GetHtMcs13(), ns3::WifiPhy::GetHtMcs14(), ns3::WifiPhy::GetHtMcs15(), ns3::WifiPhy::GetHtMcs16(), ns3::WifiPhy::GetHtMcs17(), ns3::WifiPhy::GetHtMcs18(), ns3::WifiPhy::GetHtMcs19(), ns3::WifiPhy::GetHtMcs2(), ns3::WifiPhy::GetHtMcs20(), ns3::WifiPhy::GetHtMcs21(), ns3::WifiPhy::GetHtMcs22(), ns3::WifiPhy::GetHtMcs23(), ns3::WifiPhy::GetHtMcs24(), ns3::WifiPhy::GetHtMcs25(), ns3::WifiPhy::GetHtMcs26(), ns3::WifiPhy::GetHtMcs27(), ns3::WifiPhy::GetHtMcs28(), ns3::WifiPhy::GetHtMcs29(), ns3::WifiPhy::GetHtMcs3(), ns3::WifiPhy::GetHtMcs30(), ns3::WifiPhy::GetHtMcs31(), ns3::WifiPhy::GetHtMcs4(), ns3::WifiPhy::GetHtMcs5(), ns3::WifiPhy::GetHtMcs6(), ns3::WifiPhy::GetHtMcs7(), ns3::WifiPhy::GetHtMcs8(), ns3::WifiPhy::GetHtMcs9(), ns3::HtSigHeader::GetMcs(), ns3::HeSigHeader::GetMcs(), ns3::VhtSigHeader::GetNStreams(), ns3::HeSigHeader::GetNStreams(), ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate48Mbps(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate9Mbps(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz(), ns3::DsssSigHeader::GetRate(), ns3::LSigHeader::GetRate(), ns3::HtSigHeader::GetShortGuardInterval(), ns3::VhtSigHeader::GetShortGuardInterval(), ns3::VhtSigHeader::GetSuMcs(), ns3::WifiPhy::GetVhtMcs0(), ns3::WifiPhy::GetVhtMcs1(), ns3::WifiPhy::GetVhtMcs2(), ns3::WifiPhy::GetVhtMcs3(), ns3::WifiPhy::GetVhtMcs4(), ns3::WifiPhy::GetVhtMcs5(), ns3::WifiPhy::GetVhtMcs6(), ns3::WifiPhy::GetVhtMcs7(), ns3::WifiPhy::GetVhtMcs8(), ns3::WifiPhy::GetVhtMcs9(), m_channelWidth, m_dsssSig, m_heSig, m_htSig, m_lSig, m_modulation, m_preamble, m_psdu, m_txPowerLevel, m_vhtSig, NS_ASSERT_MSG(), NS_FATAL_ERROR, ns3::WifiTxVector::SetAggregation(), ns3::WifiTxVector::SetBssColor(), ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetTxPowerLevel(), ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by GetTxDuration().

Here is the caller graph for this function:

IsTruncatedTx()

bool ns3::WifiPpdu::IsTruncatedTx

(

void

)

const

Return true if the PPDU's transmission was aborted due to transmitter switch off.

Returns

true if the PPDU's transmission was aborted due to transmitter switch off

Definition at line 517 of file wifi-ppdu.cc.

References m_truncatedTx.

Print()

void ns3::WifiPpdu::Print

(

std::ostream &

os

)

const

Print the PPDU contents.

Parameters

os	output stream in which the data should be printed.

Definition at line 592 of file wifi-ppdu.cc.

References m_modulation, m_preamble, m_psdu, and m_truncatedTx.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

SetTruncatedTx()

void ns3::WifiPpdu::SetTruncatedTx

(

void

)

Indicate that the PPDU's transmission was aborted due to transmitter switch off.

Definition at line 523 of file wifi-ppdu.cc.

References m_truncatedTx, and NS_LOG_FUNCTION.

Member Data Documentation

m_channelWidth

uint16_t ns3::WifiPpdu::m_channelWidth

private

the channel width used to transmit that PPDU in MHz

Definition at line 96 of file wifi-ppdu.h.

Referenced by GetTxVector(), and WifiPpdu().

m_dsssSig

DsssSigHeader ns3::WifiPpdu::m_dsssSig

private

the DSSS SIG PHY header

Definition at line 86 of file wifi-ppdu.h.

Referenced by GetTxDuration(), GetTxVector(), and WifiPpdu().

m_frequency

uint16_t ns3::WifiPpdu::m_frequency

private

the frequency used to transmit that PPDU in MHz

Definition at line 95 of file wifi-ppdu.h.

Referenced by GetTxDuration().

m_heSig

HeSigHeader ns3::WifiPpdu::m_heSig

private

the HE-SIG PHY header

Definition at line 90 of file wifi-ppdu.h.

Referenced by GetTxVector(), and WifiPpdu().

m_htSig

HtSigHeader ns3::WifiPpdu::m_htSig

private

the HT-SIG PHY header

Definition at line 88 of file wifi-ppdu.h.

Referenced by GetTxDuration(), GetTxVector(), and WifiPpdu().

m_lSig

LSigHeader ns3::WifiPpdu::m_lSig

private

the L-SIG PHY header

Definition at line 87 of file wifi-ppdu.h.

Referenced by GetTxDuration(), GetTxVector(), and WifiPpdu().

m_modulation

WifiModulationClass ns3::WifiPpdu::m_modulation

private

the modulation used for the transmission of this PPDU

Definition at line 92 of file wifi-ppdu.h.

Referenced by GetTxDuration(), GetTxVector(), Print(), and WifiPpdu().

m_preamble

WifiPreamble ns3::WifiPpdu::m_preamble

private

the PHY preamble

Definition at line 91 of file wifi-ppdu.h.

Referenced by GetTxDuration(), GetTxVector(), Print(), and WifiPpdu().

m_psdu

Ptr<const WifiPsdu> ns3::WifiPpdu::m_psdu

private

the PSDU contained in this PPDU

Definition at line 93 of file wifi-ppdu.h.

Referenced by GetPsdu(), GetTxVector(), and Print().

m_truncatedTx

bool ns3::WifiPpdu::m_truncatedTx

private

flag indicating whether the frame's transmission was aborted due to transmitter switch off

Definition at line 94 of file wifi-ppdu.h.

Referenced by IsTruncatedTx(), Print(), and SetTruncatedTx().

m_txPowerLevel

uint8_t ns3::WifiPpdu::m_txPowerLevel

private

the transmission power level (used only for TX and initializing the returned WifiTxVector)

Definition at line 97 of file wifi-ppdu.h.

Referenced by GetTxVector().

m_vhtSig

VhtSigHeader ns3::WifiPpdu::m_vhtSig

private

the VHT-SIG PHY header

Definition at line 89 of file wifi-ppdu.h.

Referenced by GetTxDuration(), GetTxVector(), and WifiPpdu().

---

The documentation for this class was generated from the following files:

• src/wifi/model/wifi-ppdu.h
• src/wifi/model/wifi-ppdu.cc
