Object

Base classes which provide memory management and object aggregation. More...

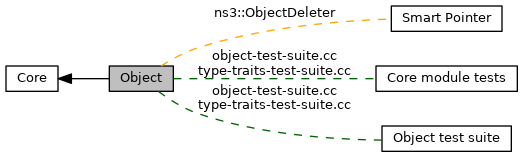

Collaboration diagram for Object:

Files
file	attribute-construction-list.cc
	ns3::AttributeConstructionList implementation.
file	attribute-construction-list.h
	ns3::AttributeConstructionList declaration.
file	object-base.cc
	ns3::ObjectBase class implementation.
file	object-base.h
	ns3::ObjectBase declaration and NS_OBJECT_ENSURE_REGISTERED() madro definition.
file	object-factory.cc
	ns3::ObjectFactory class implementation.
file	object-factory.h
	ns3::ObjectFactory class declaration.
file	object-test-suite.cc
	Object test suite.
file	object.cc
	ns3::Object class implementation.
file	object.h
	ns3::Object class declaration, which is the root of the Object hierarchy and Aggregation.
file	type-id.cc
	ns3::TypeId and ns3::IidManager implementations.
file	type-id.h
	ns3::TypeId declaration; inline and template implementations.
file	type-traits-test-suite.cc
	TypeTraits test suite.
file	type-traits.h
	ns3::TypeTraits introspection declaration and template implementation.

Classes
class	ns3::AttributeConstructionList
	List of Attribute name, value and checker triples used to construct Objects. More...
class	ns3::IidManager
	TypeId information manager. More...
class	ns3::Object
	A base class which provides memory management and object aggregation. More...
class	ns3::ObjectBase
	Anchor the ns-3 type and attribute system. More...
struct	ns3::ObjectDeleter
	Standard Object deleter, used by SimpleRefCount to delete an Object when the reference count drops to zero. More...
class	ns3::ObjectFactory
	Instantiate subclasses of ns3::Object. More...
class	ns3::TypeId
	a unique identifier for an interface. More...
struct	ns3::TypeTraits< T >
	Inspect a type to deduce its features. More...

Macros
#define	IID   "IidManager"
#define	IIDL   IID << ": "
#define	NS_OBJECT_ENSURE_REGISTERED(type)
	Register an Object subclass with the TypeId system. More...
#define	NS_OBJECT_TEMPLATE_CLASS_DEFINE(type, param)
	Explicitly instantiate a template class and register the resulting instance with the TypeId system. More...

Functions
template<typename T >
Ptr< T >	ns3::CreateObjectWithAttributes (std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
	Allocate an Object on the heap and initialize with a set of attributes. More...
template<typename T , typename... Args>
Ptr< T >	ns3::CreateObject (Args &&... args)
	Create an object by type, with varying number of constructor parameters. More...

Detailed Description

Base classes which provide memory management and object aggregation.

Macro Definition Documentation

IID

#define IID   "IidManager"

Internal:

IidManager shorthand for use in NS_LOG

Definition at line 375 of file type-id.cc.

Referenced by ns3::IidManager::AddAttribute(), ns3::IidManager::AddConstructor(), ns3::IidManager::AddTraceSource(), ns3::IidManager::AllocateUid(), ns3::IidManager::GetAttribute(), ns3::IidManager::GetAttributeN(), ns3::IidManager::GetConstructor(), ns3::IidManager::GetGroupName(), ns3::IidManager::GetHash(), ns3::IidManager::GetName(), ns3::IidManager::GetParent(), ns3::IidManager::GetRegistered(), ns3::IidManager::GetRegisteredN(), ns3::IidManager::GetSize(), ns3::IidManager::GetTraceSource(), ns3::IidManager::GetTraceSourceN(), ns3::IidManager::GetUid(), ns3::IidManager::HasAttribute(), ns3::IidManager::HasConstructor(), ns3::IidManager::HasTraceSource(), ns3::IidManager::HideFromDocumentation(), ns3::IidManager::LookupInformation(), ns3::IidManager::MustHideFromDocumentation(), ns3::IidManager::SetAttributeInitialValue(), ns3::IidManager::SetGroupName(), ns3::IidManager::SetParent(), and ns3::IidManager::SetSize().

IIDL

#define IIDL   IID << ": "

Internal:

IidManager shorthand for use in NS_LOG

Definition at line 381 of file type-id.cc.

Referenced by ns3::IidManager::AddAttribute(), ns3::IidManager::AddTraceSource(), ns3::IidManager::AllocateUid(), ns3::IidManager::GetAttribute(), ns3::IidManager::GetAttributeN(), ns3::IidManager::GetGroupName(), ns3::IidManager::GetHash(), ns3::IidManager::GetName(), ns3::IidManager::GetParent(), ns3::IidManager::GetSize(), ns3::IidManager::GetTraceSource(), ns3::IidManager::GetTraceSourceN(), ns3::IidManager::GetUid(), ns3::IidManager::HasAttribute(), ns3::IidManager::HasConstructor(), ns3::IidManager::HasTraceSource(), ns3::IidManager::LookupInformation(), and ns3::IidManager::MustHideFromDocumentation().

NS_OBJECT_ENSURE_REGISTERED

#define NS_OBJECT_ENSURE_REGISTERED

(

type

)

Value:

static struct Object ## type ## RegistrationClass     \
  {                                                     \
    Object ## type ## RegistrationClass () {            \
      ns3::TypeId tid = type::GetTypeId ();             \
      tid.SetSize (sizeof (type));                      \
      tid.GetParent ();                                 \
    }                                                   \
  } Object ## type ## RegistrationVariable

Register an Object subclass with the TypeId system.

This macro should be invoked once for every class which defines a new GetTypeId method.

If the class is in a namespace, then the macro call should also be in the namespace.

Definition at line 45 of file object-base.h.

NS_OBJECT_TEMPLATE_CLASS_DEFINE

#define NS_OBJECT_TEMPLATE_CLASS_DEFINE	(		type,
			param
	)

Value:

template class type<param>;                                          \
  template <> std::string DoGetTypeParamName<type<param> > ()          \
  {                                                                    \
    return #param;                                                     \
  }                                                                    \
  static struct Object ## type ## param ## RegistrationClass           \
  {                                                                    \
    Object ## type ## param ## RegistrationClass () {                  \
      ns3::TypeId tid = type<param>::GetTypeId ();                     \
      tid.SetSize (sizeof (type<param>));                              \
      tid.GetParent ();                                                \
    }                                                                  \
  } Object ## type ## param ## RegistrationVariable

Explicitly instantiate a template class and register the resulting instance with the TypeId system.

This macro should be invoked once for every required instance of a template class which derives from the Object class and defines a new GetTypeId method.

If the template class is in a namespace, then the macro call should also be in the namespace.

Definition at line 67 of file object-base.h.

Function Documentation

CreateObject()

template<typename T , typename... Args>

Ptr<T> ns3::CreateObject

(

Args &&...

args

)

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.

Parameters

[in]

args

Arguments to pass to the constructor.

Returns

The derived object.

Definition at line 563 of file object.h.

References ns3::CompleteConstruct().

Referenced by ns3::Ipv6L3Protocol::AddInterface(), ns3::Ipv4L3Protocol::AddInterface(), TestChildQueueDisc::CheckConfig(), Ipv4L3ProtocolTestCase::DoRun(), PointToPointTest::DoRun(), Ipv6L3ProtocolTestCase::DoRun(), ns3::Ipv4L3Protocol::SetupLoopback(), and ns3::Ipv6L3Protocol::SetupLoopback().

Here is the call graph for this function:

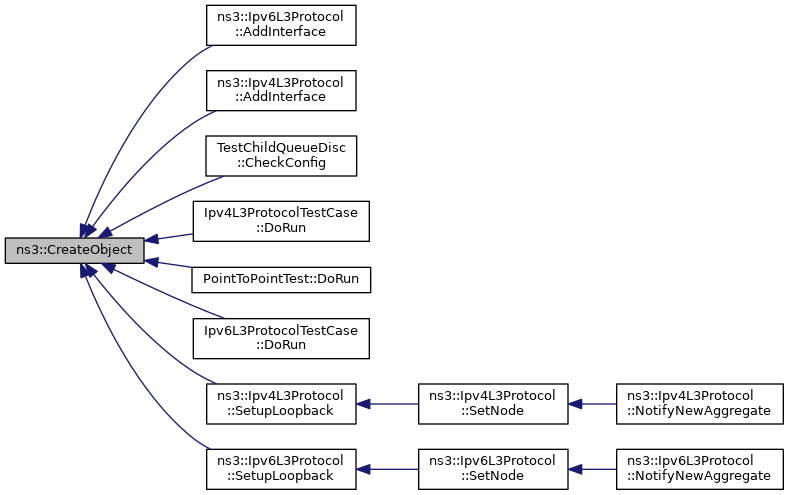

Here is the caller graph for this function:

CreateObjectWithAttributes()

template<typename T >

Ptr< T > ns3::CreateObjectWithAttributes	(	std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue (),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue (),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue (),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue (),
		std::string	n5 = "",
		const AttributeValue &	v5 = EmptyAttributeValue (),
		std::string	n6 = "",
		const AttributeValue &	v6 = EmptyAttributeValue (),
		std::string	n7 = "",
		const AttributeValue &	v7 = EmptyAttributeValue (),
		std::string	n8 = "",
		const AttributeValue &	v8 = EmptyAttributeValue (),
		std::string	n9 = "",
		const AttributeValue &	v9 = EmptyAttributeValue ()
	)

Allocate an Object on the heap and initialize with a set of attributes.

Template Parameters

T	[explicit] The requested Object type.

Parameters

[in]	n1	Name of attribute
[in]	v1	Value of attribute
[in]	n2	Name of attribute
[in]	v2	Value of attribute
[in]	n3	Name of attribute
[in]	v3	Value of attribute
[in]	n4	Name of attribute
[in]	v4	Value of attribute
[in]	n5	Name of attribute
[in]	v5	Value of attribute
[in]	n6	Name of attribute
[in]	v6	Value of attribute
[in]	n7	Name of attribute
[in]	v7	Value of attribute
[in]	n8	Name of attribute
[in]	v8	Value of attribute
[in]	n9	Name of attribute
[in]	v9	Value of attribute

Returns

A pointer to a newly allocated object.

Definition at line 212 of file object-factory.h.

References ns3::ObjectFactory::Create(), ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by ns3::FifoQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), ns3::CobaltQueueDisc::CheckConfig(), and ns3::RedQueueDisc::CheckConfig().

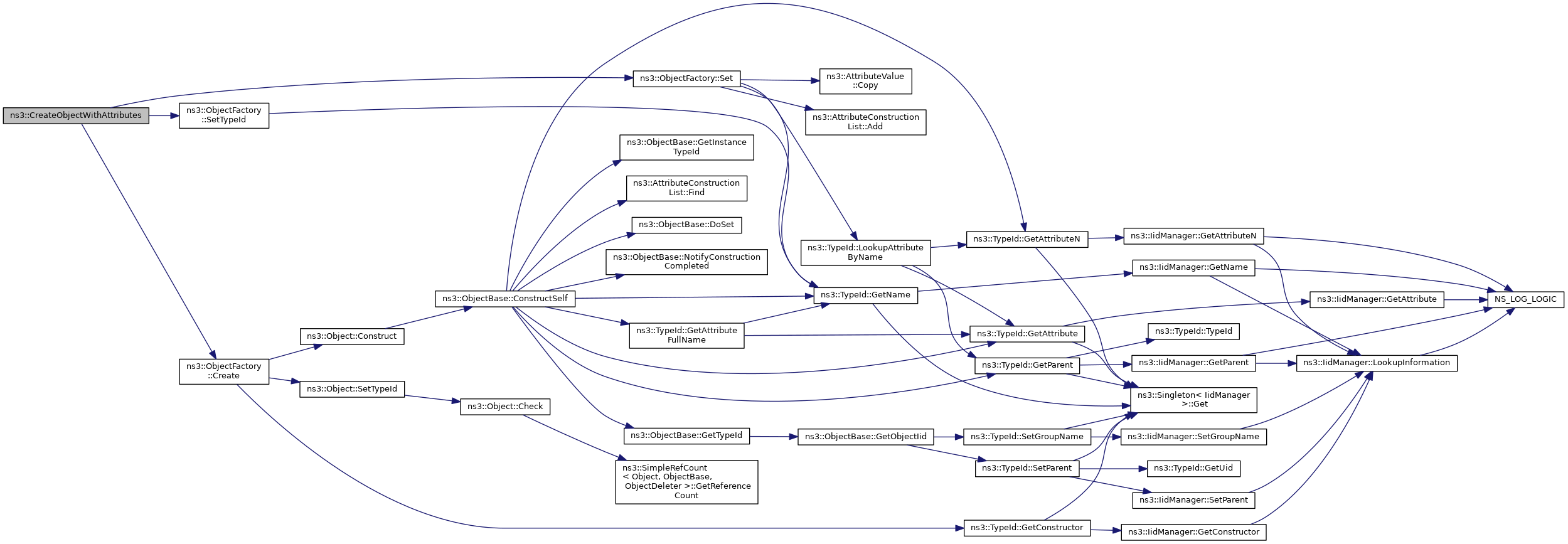

Here is the call graph for this function:

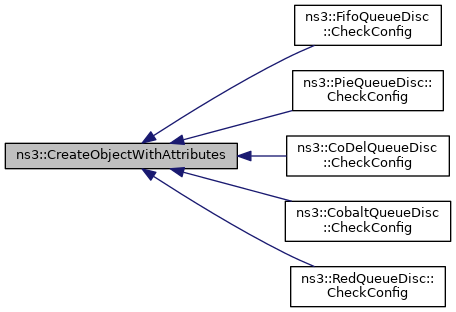

Here is the caller graph for this function:
