olsr-header.h File Reference

#include <stdint.h>
#include <vector>
#include "ns3/header.h"
#include "ns3/ipv4-address.h"
#include "ns3/nstime.h"

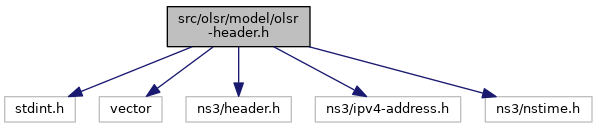

Include dependency graph for olsr-header.h:

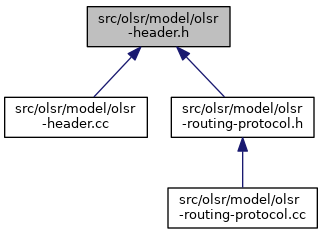

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::olsr::MessageHeader::Hna::Association
	Association item structure. More...
struct	ns3::olsr::MessageHeader::Hello
	HELLO Message Format More...
struct	ns3::olsr::MessageHeader::Hna
	HNA (Host Network Association) Message Format More...
struct	ns3::olsr::MessageHeader::Hello::LinkMessage
	Link message item. More...
class	ns3::olsr::MessageHeader
	This header can store HELP, TC, MID and HNA messages. More...
struct	ns3::olsr::MessageHeader::Mid
	MID Message Format More...
class	ns3::olsr::PacketHeader
	The basic layout of any packet in OLSR is as follows (omitting IP and UDP headers): More...
struct	ns3::olsr::MessageHeader::Tc
	TC Message Format More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.
	ns3::olsr

Typedefs
typedef std::vector< MessageHeader >	ns3::olsr::MessageList

Functions
double	ns3::olsr::EmfToSeconds (uint8_t olsrFormat)
	Converts a number of seconds in the mantissa/exponent format to a decimal number. More...
static std::ostream &	ns3::olsr::operator<< (std::ostream &os, const PacketHeader &packet)
static std::ostream &	ns3::olsr::operator<< (std::ostream &os, const MessageHeader &message)
static std::ostream &	ns3::olsr::operator<< (std::ostream &os, const MessageList &messages)
uint8_t	ns3::olsr::SecondsToEmf (double seconds)
	Converts a decimal number of seconds to the mantissa/exponent format. More...
