A Discrete-Event Network Simulator
Ipv4DeduplicationPerformanceTest Class Reference

IPv4 Deduplication Performance Test. More...

+ Inheritance diagram for Ipv4DeduplicationPerformanceTest:

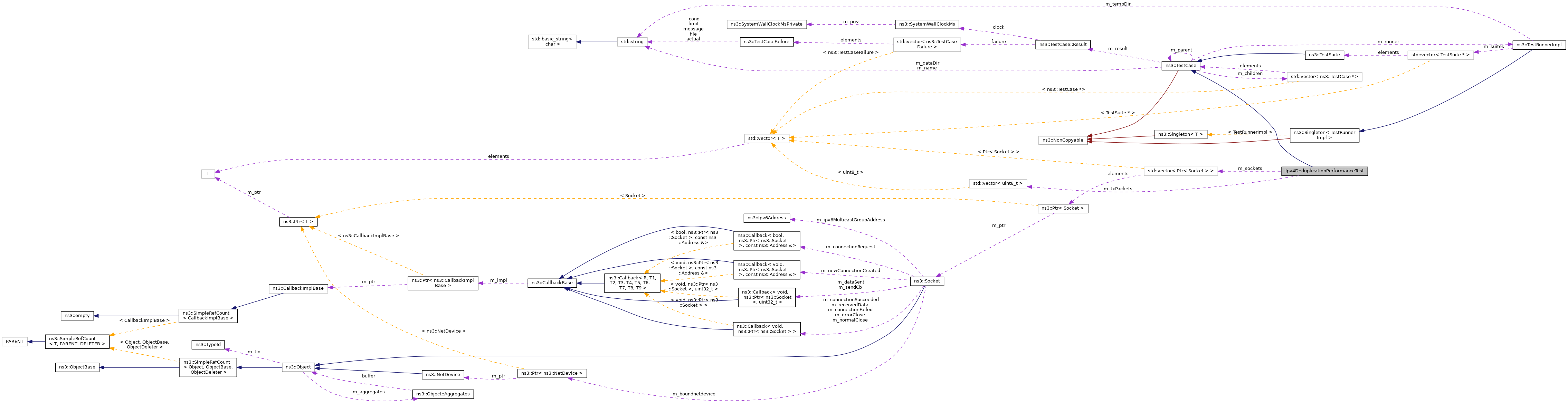

+ Collaboration diagram for Ipv4DeduplicationPerformanceTest:

Public Member Functions

 Ipv4DeduplicationPerformanceTest (void)
virtual void DoRun (void)
 Implementation to actually run this TestCase. More...
- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...
std::string GetName (void) const

Private Member Functions

void DoSendData (Ptr< Socket > socket, Address to, uint8_t socketIndex)

Private Attributes

std::vector< Ptr< Socket > > m_sockets
uint8_t m_target
std::vector< uint8_t > m_txPackets

Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...
- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...
void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...
TestCaseGetParent () const
 Get the parent of this TestCsse. More...
bool IsStatusFailure (void) const
 Check if any tests failed. More...
bool IsStatusSuccess (void) const
 Check if all tests passed. More...
void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...
void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...
bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...
bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...
std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...
std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...

Detailed Description

IPv4 Deduplication Performance Test.

This test case sets up a fully connected network of 10 nodes. Each node transmits 2 packets / second for about 20 seconds. Packets are relayed from every receiver. The test outputs the number of events that have been processed during the course of the simulation. Test runtime is also a metric.

The de-duplication cache entry expiration algorithm has evolved from an event-per-expiry (EPE) algorithm to a periodic event, batch purge (PBP) algorithm. The current metrics are taken from tests on the development box. Periodic batch purge period defaults to 1s.

   Events        Runtime

EVE 656140 29s PBP 337420 29s

Definition at line 529 of file ipv4-deduplication-test.cc.

Constructor & Destructor Documentation

◆ Ipv4DeduplicationPerformanceTest()

Ipv4DeduplicationPerformanceTest::Ipv4DeduplicationPerformanceTest ( void  )

Definition at line 541 of file ipv4-deduplication-test.cc.

References m_target.

Member Function Documentation

◆ DoRun()

◆ DoSendData()

void Ipv4DeduplicationPerformanceTest::DoSendData ( Ptr< Socket socket,
Address  to,
uint8_t  socketIndex

Definition at line 629 of file ipv4-deduplication-test.cc.

References m_sockets, m_target, m_txPackets, ns3::Seconds(), and ns3::Socket::SendTo().

Referenced by DoRun().

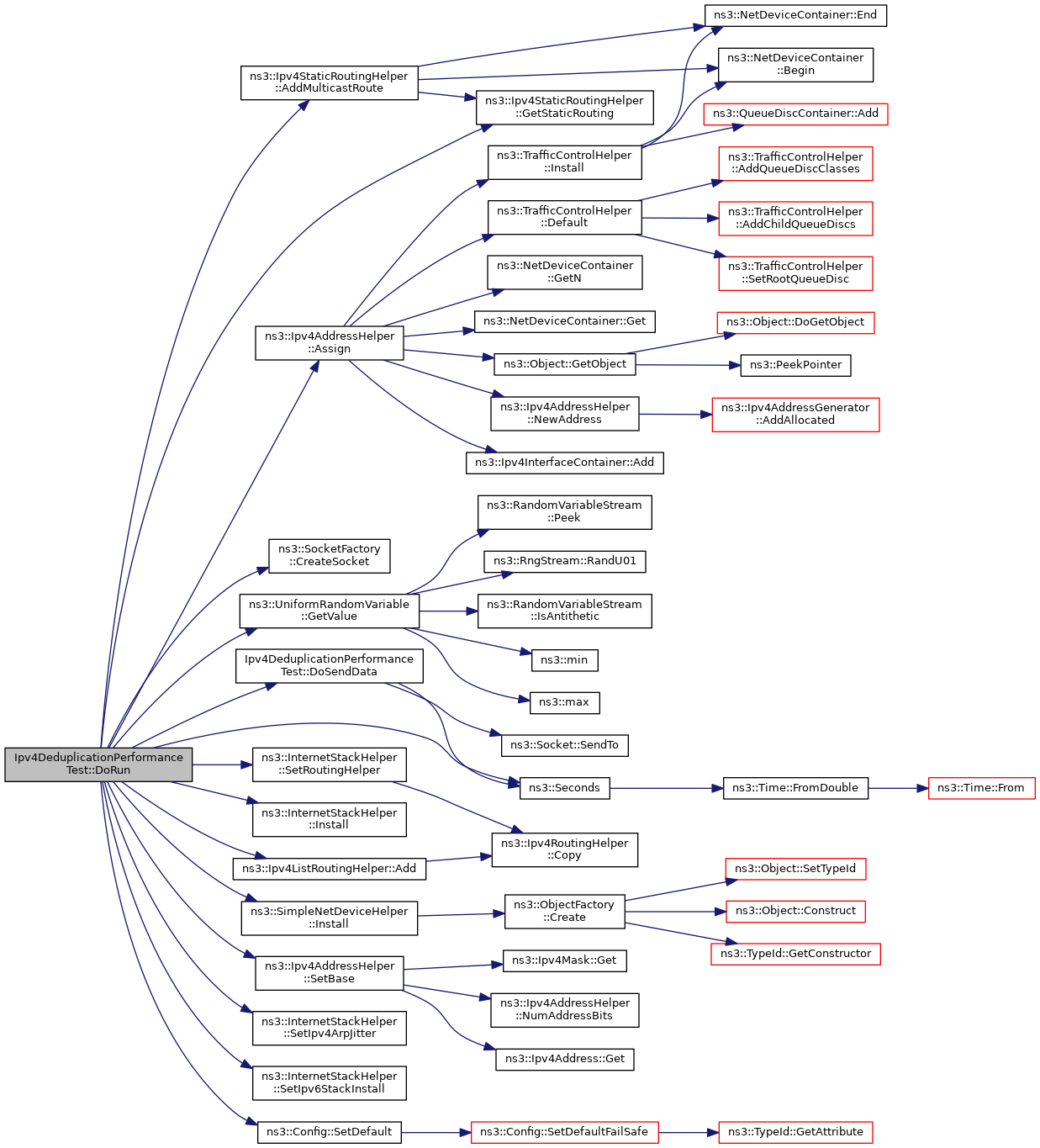

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_sockets

std::vector<Ptr<Socket> > Ipv4DeduplicationPerformanceTest::m_sockets

Definition at line 535 of file ipv4-deduplication-test.cc.

Referenced by DoRun(), and DoSendData().

◆ m_target

uint8_t Ipv4DeduplicationPerformanceTest::m_target

Definition at line 537 of file ipv4-deduplication-test.cc.

Referenced by DoSendData(), and Ipv4DeduplicationPerformanceTest().

◆ m_txPackets

std::vector<uint8_t> Ipv4DeduplicationPerformanceTest::m_txPackets

Definition at line 536 of file ipv4-deduplication-test.cc.

Referenced by DoRun(), and DoSendData().

The documentation for this class was generated from the following file:
