IPv4 Deduplication Test. More...

Inheritance diagram for Ipv4DeduplicationTest:

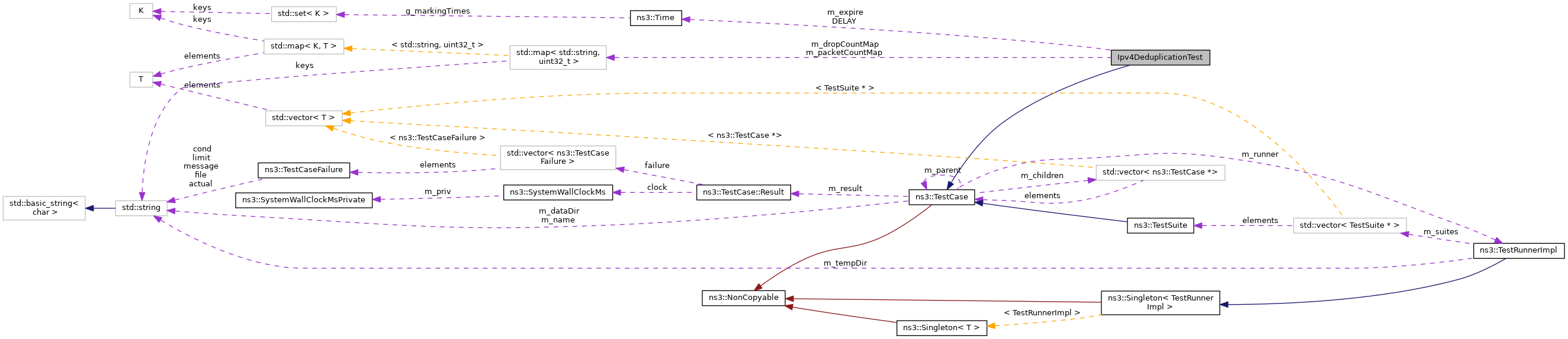

Collaboration diagram for Ipv4DeduplicationTest:

Public Member Functions
	Ipv4DeduplicationTest (bool enable, Time expire=Seconds(1))

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

void	DropPkt (const Ipv4Header &ipHeader, Ptr< const Packet > packet, Ipv4L3Protocol::DropReason reason, Ptr< Ipv4 > ipv4, uint32_t interface)
	Register dropped packet. More...

void	ReceivePkt (Ptr< Socket > socket)
	Receive data. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Types
enum	MODE { ENABLED = 0, DISABLED, DEGENERATE }

Private Member Functions
void	CheckDrops (const std::string &name)
	Check packet drops. More...

void	CheckPackets (const std::string &name)
	Check packet receptions. More...

void	DoSendData (Ptr< Socket > socket, std::string to)
	Send data. More...

void	DoSendPacket (Ptr< Socket > socket, Ptr< Packet > packet, std::string to)
	Send data. More...

void	SendData (Ptr< Socket > socket, std::string to)
	Send data. More...

void	SendPacket (Ptr< Socket > socket, Ptr< Packet > packet, std::string to)
	Send data. More...

Static Private Member Functions
static std::string	MakeName (bool enable, Time expire)

Private Attributes
std::map< std::string, uint32_t >	m_dropCountMap

Time	m_expire

MODE	m_mode

std::map< std::string, uint32_t >	m_packetCountMap

Static Private Attributes
static const Time	DELAY = MilliSeconds (1)

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

IPv4 Deduplication Test.

Tests topology:

   /---- B ----\

A -— | -— D -— E ---- C -—/

This test case counts the number of packets received and dropped at each node across the topology. Every node is configured to forward the multicast packet which originates at node A.

With RFC 6621 de-duplication enabled, one 1 packet is received while some number of duplicate relayed packets are dropped by RFC 6621 at each node.

When RFC6621 is disabled, the original packet has TTL = 4. Multiple packets are received at each node and several packets are dropped due to TTL expiry at each node.

Definition at line 87 of file ipv4-deduplication-test.cc.

Member Enumeration Documentation

◆ MODE

enum Ipv4DeduplicationTest::MODE

private

Enumerator
ENABLED
DISABLED
DEGENERATE

Definition at line 132 of file ipv4-deduplication-test.cc.

Constructor & Destructor Documentation

◆ Ipv4DeduplicationTest()

Ipv4DeduplicationTest::Ipv4DeduplicationTest	(	bool	enable,
		Time	expire = `Seconds (1)`
	)

Definition at line 166 of file ipv4-deduplication-test.cc.

References DEGENERATE, DELAY, DISABLED, m_expire, and m_mode.

Member Function Documentation

◆ CheckDrops()

void Ipv4DeduplicationTest::CheckDrops ( const std::string & name )

private

Check packet drops.

Parameters

name Node name

Definition at line 437 of file ipv4-deduplication-test.cc.

References DEGENERATE, DISABLED, ENABLED, m_dropCountMap, m_mode, NS_TEST_ASSERT_MSG_NE, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ CheckPackets()

void Ipv4DeduplicationTest::CheckPackets ( const std::string & name )

private

Check packet receptions.

Parameters

name Node name

Definition at line 405 of file ipv4-deduplication-test.cc.

References DEGENERATE, DISABLED, ENABLED, m_mode, m_packetCountMap, NS_TEST_ASSERT_MSG_NE, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ DoRun()

void Ipv4DeduplicationTest::DoRun ( void )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 266 of file ipv4-deduplication-test.cc.

References ns3::Ipv4StaticRoutingHelper::AddMulticastRoute(), ns3::Ipv4AddressHelper::Assign(), third::channel, CheckDrops(), CheckPackets(), ns3::Config::ConnectWithoutContext(), ns3::SocketFactory::CreateSocket(), DELAY, first::devices, DISABLED, DropPkt(), ns3::Object::GetObject(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::InternetStackHelper::Install(), m_expire, m_mode, m_packetCountMap, ns3::MakeCallback(), ns3::UdpSocket::MulticastJoinGroup(), first::nodes, NS_ASSERT_MSG, NS_TEST_EXPECT_MSG_EQ, ReceivePkt(), SendData(), ns3::ObjectBase::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::Config::SetDefault(), ns3::InternetStackHelper::SetIpv4ArpJitter(), ns3::InternetStackHelper::SetIpv6StackInstall(), and ns3::InternetStackHelper::SetRoutingHelper().

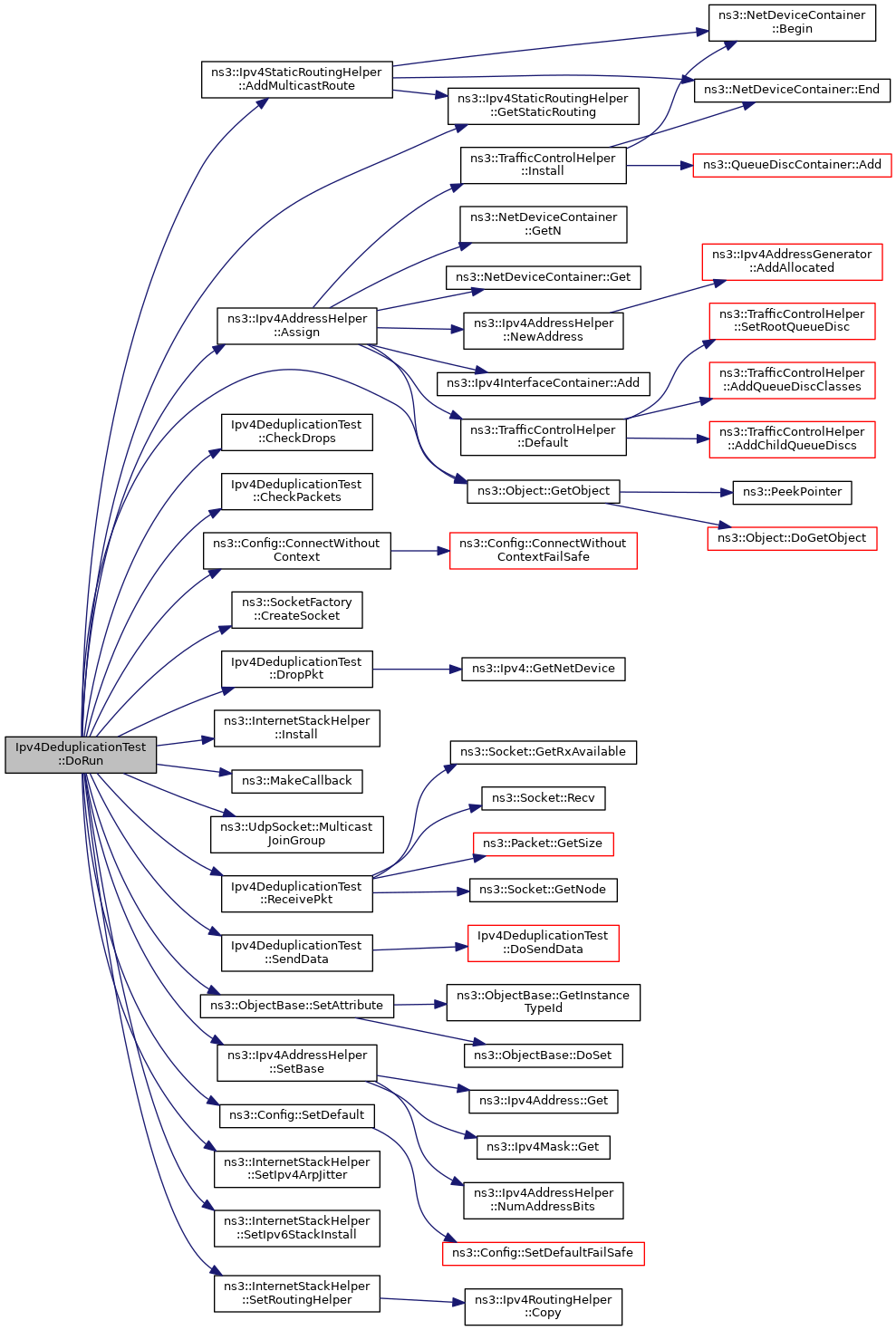

Here is the call graph for this function:

◆ DoSendData()

void Ipv4DeduplicationTest::DoSendData	(	Ptr< Socket >	socket,
		std::string	to
	)

private

Send data.

Parameters

socket	The sending socket.
to	Destination address.

Definition at line 218 of file ipv4-deduplication-test.cc.

References SendPacket().

Referenced by SendData().

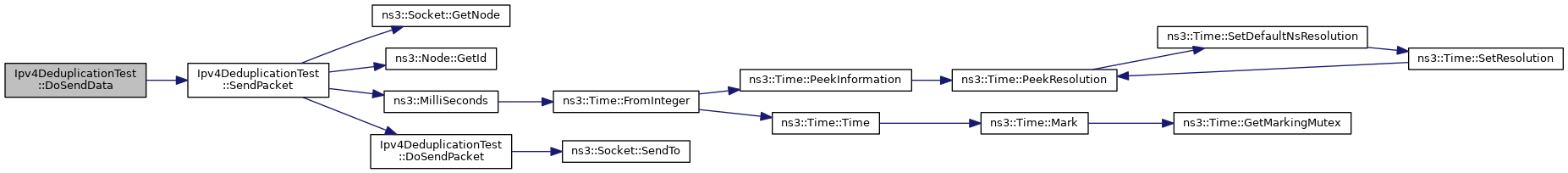

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSendPacket()

void Ipv4DeduplicationTest::DoSendPacket	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet,
		std::string	to
	)

private

Send data.

Parameters

socket	The sending socket.
packet	The packet to send.
to	Destination address.

Definition at line 224 of file ipv4-deduplication-test.cc.

References NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::SendTo().

Referenced by SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DropPkt()

void Ipv4DeduplicationTest::DropPkt	(	const Ipv4Header &	ipHeader,
		Ptr< const Packet >	packet,
		Ipv4L3Protocol::DropReason	reason,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interface
	)
