LenaDataPhyErrorModelTestCase Class Reference

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

#include "lte-test-phy-error-model.h"

+ Inheritance diagram for LenaDataPhyErrorModelTestCase:

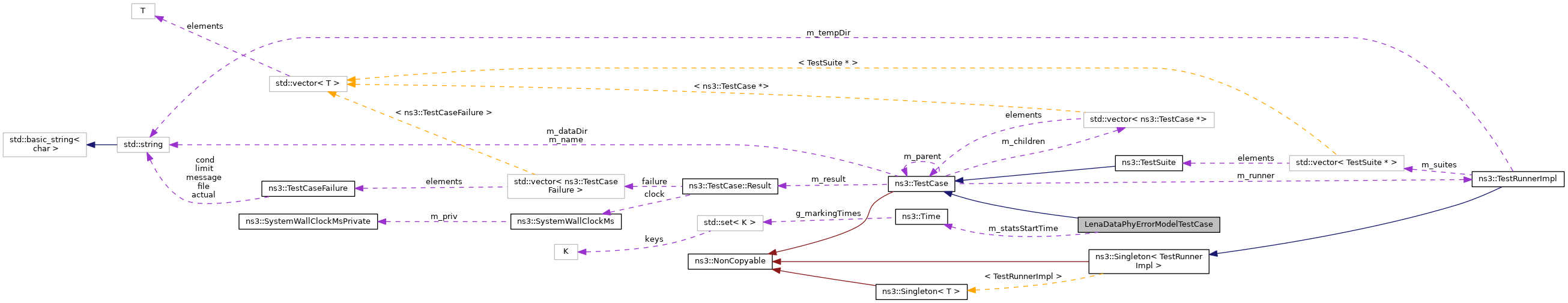

+ Collaboration diagram for LenaDataPhyErrorModelTestCase:

Public Member Functions

 LenaDataPhyErrorModelTestCase (uint16_t nUser, uint16_t dist, double blerRef, uint16_t toleranceRxPackets, Time statsStartTime, uint32_t rngRun)
 Constructor. More...

virtual ~LenaDataPhyErrorModelTestCase ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...


Static Private Member Functions

static std::string BuildNameString (uint16_t nUser, uint16_t dist, uint32_t rngRun)
 Builds the test name string based on provided parameter values. More...


Private Attributes

double m_blerRef
 the expected BLER More...

double m_dist
 the distance between nodes More...

uint16_t m_nUser
 number of UE nodes More...

uint32_t m_rngRun
 the rng run More...

Time m_statsStartTime
 Extra time in the beginning of simulation to allow RRC connection establishment + SRS. More...

uint16_t m_toleranceRxPackets
 receive packet tolerance loss More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.

In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on ...

Definition at line 42 of file lte-test-phy-error-model.h.

Constructor & Destructor Documentation

◆ LenaDataPhyErrorModelTestCase()

LenaDataPhyErrorModelTestCase::LenaDataPhyErrorModelTestCase ( uint16_t  nUser,
uint16_t  dist,
double  blerRef,
uint16_t  toleranceRxPackets,
Time  statsStartTime,
uint32_t  rngRun
)

Constructor.

Parameters
nUserthe number of UE nodes
distthe distance between nodes
blerRefexpected BLER
toleranceRxPacketsreceive packet loss tolerance
statsStartTimethe start time for collecting statistics
rngRunrng run

Definition at line 142 of file lte-test-phy-error-model.cc.

◆ ~LenaDataPhyErrorModelTestCase()

LenaDataPhyErrorModelTestCase::~LenaDataPhyErrorModelTestCase ( )
virtual

Definition at line 155 of file lte-test-phy-error-model.cc.

Member Function Documentation

◆ BuildNameString()

std::string LenaDataPhyErrorModelTestCase::BuildNameString ( uint16_t  nUser,
uint16_t  dist,
uint32_t  rngRun
)
staticprivate

Builds the test name string based on provided parameter values.

Parameters
nUserthe number of UE nodes
distthe distance between nodes
rngRunthe rng run
Returns
the name string

Definition at line 135 of file lte-test-phy-error-model.cc.

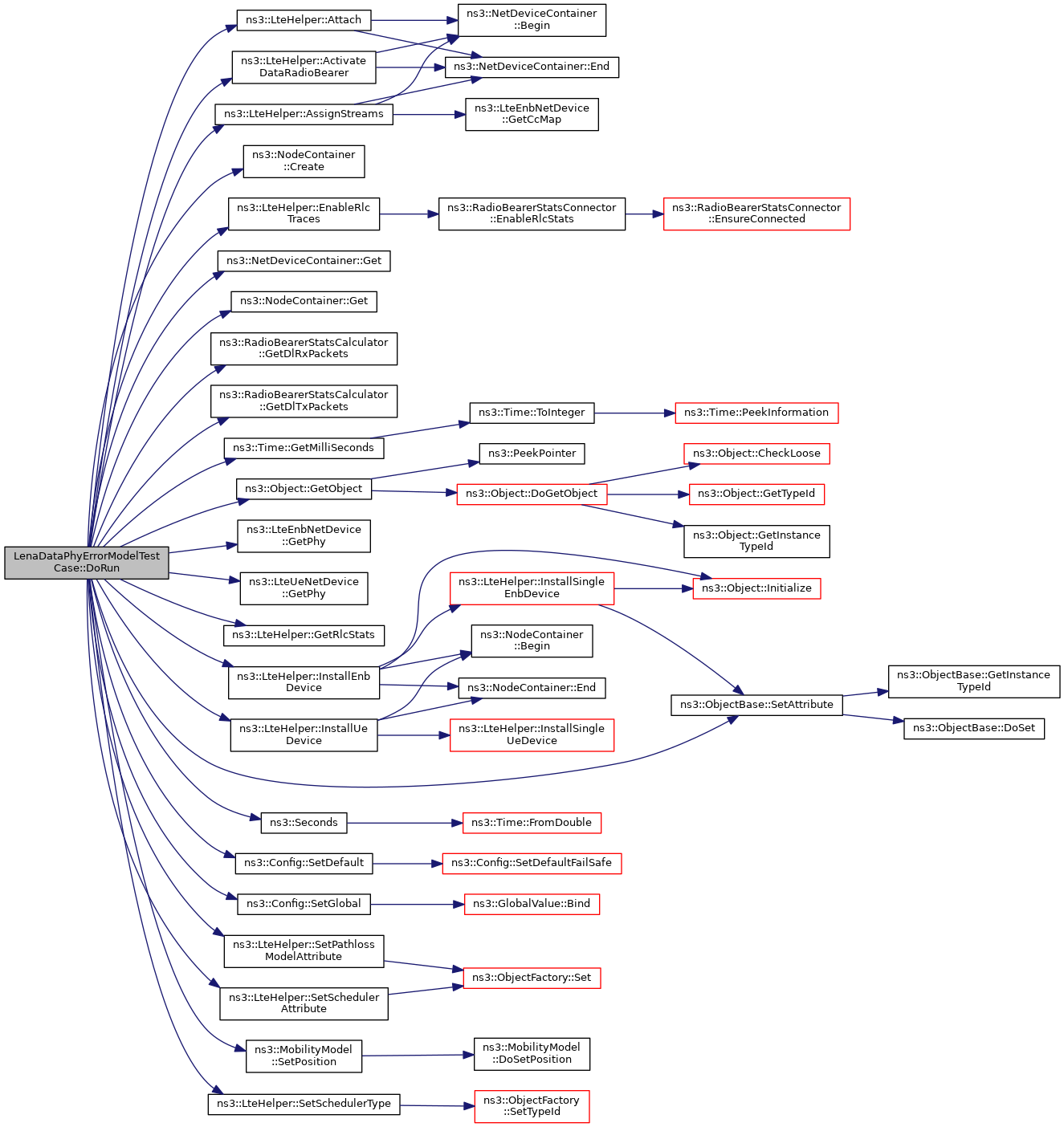

◆ DoRun()

Member Data Documentation

◆ m_blerRef

double LenaDataPhyErrorModelTestCase::m_blerRef
private

the expected BLER

Definition at line 72 of file lte-test-phy-error-model.h.

Referenced by DoRun().

◆ m_dist

double LenaDataPhyErrorModelTestCase::m_dist
private

the distance between nodes

Definition at line 71 of file lte-test-phy-error-model.h.

Referenced by DoRun().

◆ m_nUser

uint16_t LenaDataPhyErrorModelTestCase::m_nUser
private

number of UE nodes

Definition at line 70 of file lte-test-phy-error-model.h.

Referenced by DoRun().

◆ m_rngRun

uint32_t LenaDataPhyErrorModelTestCase::m_rngRun
private

the rng run

Definition at line 75 of file lte-test-phy-error-model.h.

Referenced by DoRun().

◆ m_statsStartTime

Time LenaDataPhyErrorModelTestCase::m_statsStartTime
private

Extra time in the beginning of simulation to allow RRC connection establishment + SRS.

Definition at line 74 of file lte-test-phy-error-model.h.

Referenced by DoRun().

◆ m_toleranceRxPackets

uint16_t LenaDataPhyErrorModelTestCase::m_toleranceRxPackets
private

receive packet tolerance loss

Definition at line 73 of file lte-test-phy-error-model.h.

Referenced by DoRun().
