LteFrTestCase Class Reference

Test frequency reuse algorithm. More...

#include "lte-test-frequency-reuse.h"

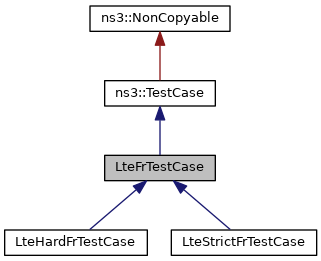

Inheritance diagram for LteFrTestCase:

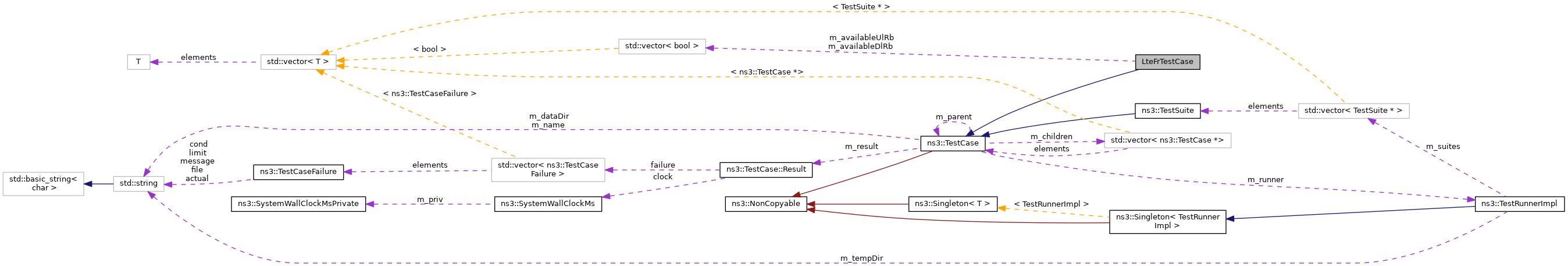

Collaboration diagram for LteFrTestCase:

Public Member Functions
	LteFrTestCase (std::string name, uint32_t userNum, uint16_t dlBandwidth, uint16_t ulBandwidth, std::vector< bool > availableDlRb, std::vector< bool > availableUlRb)
	Constructor. More...
virtual	~LteFrTestCase ()
void	DlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
	DL data receive start function. More...
void	UlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
	UL data receive start function. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Protected Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Protected Attributes
std::vector< bool >	m_availableDlRb
	the available DL for each RB More...
std::vector< bool >	m_availableUlRb
	the available UL for each RB More...
uint16_t	m_dlBandwidth
	the DL bandwidth More...
uint16_t	m_ulBandwidth
	the UL bandwidth More...
bool	m_usedMutedDlRbg
	used muted DL RBG? More...
bool	m_usedMutedUlRbg
	used muted UL RBG? More...
uint32_t	m_userNum
	the number of UE nodes More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Detailed Description

Test frequency reuse algorithm.

Test fails if the muted frequencies are being used.

Definition at line 53 of file lte-test-frequency-reuse.h.

Constructor & Destructor Documentation

LteFrTestCase()

LteFrTestCase::LteFrTestCase	(	std::string	name,
		uint32_t	userNum,
		uint16_t	dlBandwidth,
		uint16_t	ulBandwidth,
		std::vector< bool >	availableDlRb,
		std::vector< bool >	availableUlRb
	)

Constructor.

Parameters

name	the reference name
userNum	the number of UE nodes
dlBandwidth	the DL bandwidth
ulBandwidth	the UL bandwidth
availableDlRb	the available DL per RB
availableUlRb	the available UL per RB

Definition at line 177 of file lte-test-frequency-reuse.cc.

~LteFrTestCase()

LteFrTestCase::~LteFrTestCase ( )

virtual

Definition at line 191 of file lte-test-frequency-reuse.cc.

Member Function Documentation

DlDataRxStart()

void LteFrTestCase::DlDataRxStart

(

Ptr< const SpectrumValue >

spectrumValue

)

DL data receive start function.

Parameters

spectrumValue

the DL data reeive spectrum value

Definition at line 198 of file lte-test-frequency-reuse.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), m_availableDlRb, m_dlBandwidth, m_usedMutedDlRbg, and NS_LOG_DEBUG.

Referenced by DlDataRxStartNofitication().

Here is the call graph for this function:

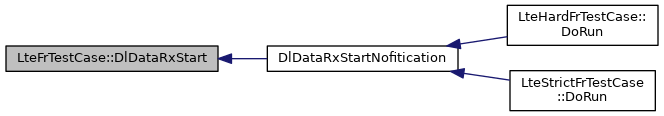

Here is the caller graph for this function:

DoRun()

void LteFrTestCase::DoRun ( void  )

protectedvirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Reimplemented in LteStrictFrTestCase, and LteHardFrTestCase.

Definition at line 237 of file lte-test-frequency-reuse.cc.

UlDataRxStart()

void LteFrTestCase::UlDataRxStart

(

Ptr< const SpectrumValue >

spectrumValue

)

UL data receive start function.

Parameters

spectrumValue

the UL data reeive spectrum value

Definition at line 217 of file lte-test-frequency-reuse.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), m_availableUlRb, m_ulBandwidth, m_usedMutedUlRbg, and NS_LOG_DEBUG.

Referenced by UlDataRxStartNofitication().

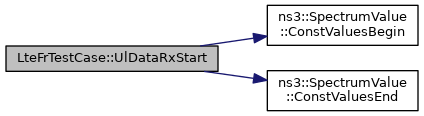

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_availableDlRb

std::vector<bool> LteFrTestCase::m_availableDlRb

protected

the available DL for each RB

Definition at line 89 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart().

m_availableUlRb

std::vector<bool> LteFrTestCase::m_availableUlRb

protected

the available UL for each RB

Definition at line 92 of file lte-test-frequency-reuse.h.

Referenced by UlDataRxStart().

m_dlBandwidth

uint16_t LteFrTestCase::m_dlBandwidth

protected

the DL bandwidth

Definition at line 86 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().

m_ulBandwidth

uint16_t LteFrTestCase::m_ulBandwidth

protected

the UL bandwidth

Definition at line 87 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), LteStrictFrTestCase::DoRun(), and UlDataRxStart().

m_usedMutedDlRbg

bool LteFrTestCase::m_usedMutedDlRbg

protected

used muted DL RBG?

Definition at line 90 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().

m_usedMutedUlRbg

bool LteFrTestCase::m_usedMutedUlRbg

protected

used muted UL RBG?

Definition at line 93 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), LteStrictFrTestCase::DoRun(), and UlDataRxStart().

m_userNum

uint32_t LteFrTestCase::m_userNum

protected

the number of UE nodes

Definition at line 85 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-frequency-reuse.h
• src/lte/test/lte-test-frequency-reuse.cc
