LteHandoverDelayTestCase Class Reference

Verifying that the time needed for handover is under a specified threshold. More...

Inheritance diagram for LteHandoverDelayTestCase:

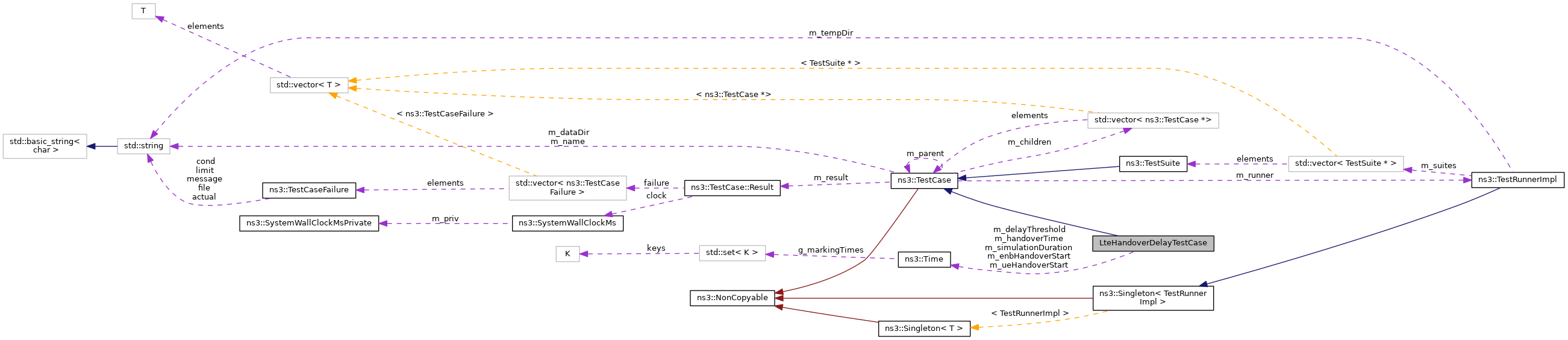

Collaboration diagram for LteHandoverDelayTestCase:

Public Member Functions
	LteHandoverDelayTestCase (uint8_t numberOfComponentCarriers, bool useIdealRrc, Time handoverTime, Time delayThreshold, Time simulationDuration)
	Constructor. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	EnbHandoverEndOkCallback (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	ENB handover end OK callback function. More...
void	EnbHandoverStartCallback (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti, uint16_t targetCellId)
	ENB handover start callback function. More...
void	UeHandoverEndOkCallback (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti)
	UE handover end OK callback function. More...
void	UeHandoverStartCallback (std::string context, uint64_t imsi, uint16_t cellid, uint16_t rnti, uint16_t targetCellId)
	UE handover start callback function. More...

Private Attributes
Time	m_delayThreshold
	the delay threshold More...
Time	m_enbHandoverStart
	ENB handover start time. More...
Time	m_handoverTime
	handover time More...
uint8_t	m_numberOfComponentCarriers
	Number of component carriers. More...
Time	m_simulationDuration
	the simulation duration More...
Time	m_ueHandoverStart
	UE handover start time. More...
bool	m_useIdealRrc
	use ideal RRC? More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Verifying that the time needed for handover is under a specified threshold.

Definition at line 60 of file test-lte-handover-delay.cc.

Constructor & Destructor Documentation

LteHandoverDelayTestCase()

LteHandoverDelayTestCase::LteHandoverDelayTestCase ( uint8_t  numberOfComponentCarriers, bool  useIdealRrc, Time  handoverTime, Time  delayThreshold, Time  simulationDuration  )

inline

Constructor.

Parameters

numberOfComponentCarriers	number of component carriers
useIdealRrc	if true, use the ideal RRC
handoverTime	the time of handover
delayThreshold	the delay threshold
simulationDuration	duration of the simulation

Definition at line 72 of file test-lte-handover-delay.cc.

Member Function Documentation

DoRun()

void LteHandoverDelayTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 138 of file test-lte-handover-delay.cc.

References ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::Simulator::Destroy(), EnbHandoverEndOkCallback(), EnbHandoverStartCallback(), ns3::InternetStackHelper::Install(), ns3::MobilityHelper::Install(), ns3::MakeCallback(), NS_LOG_INFO, ns3::Simulator::Run(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::Simulator::Stop(), UeHandoverEndOkCallback(), and UeHandoverStartCallback().

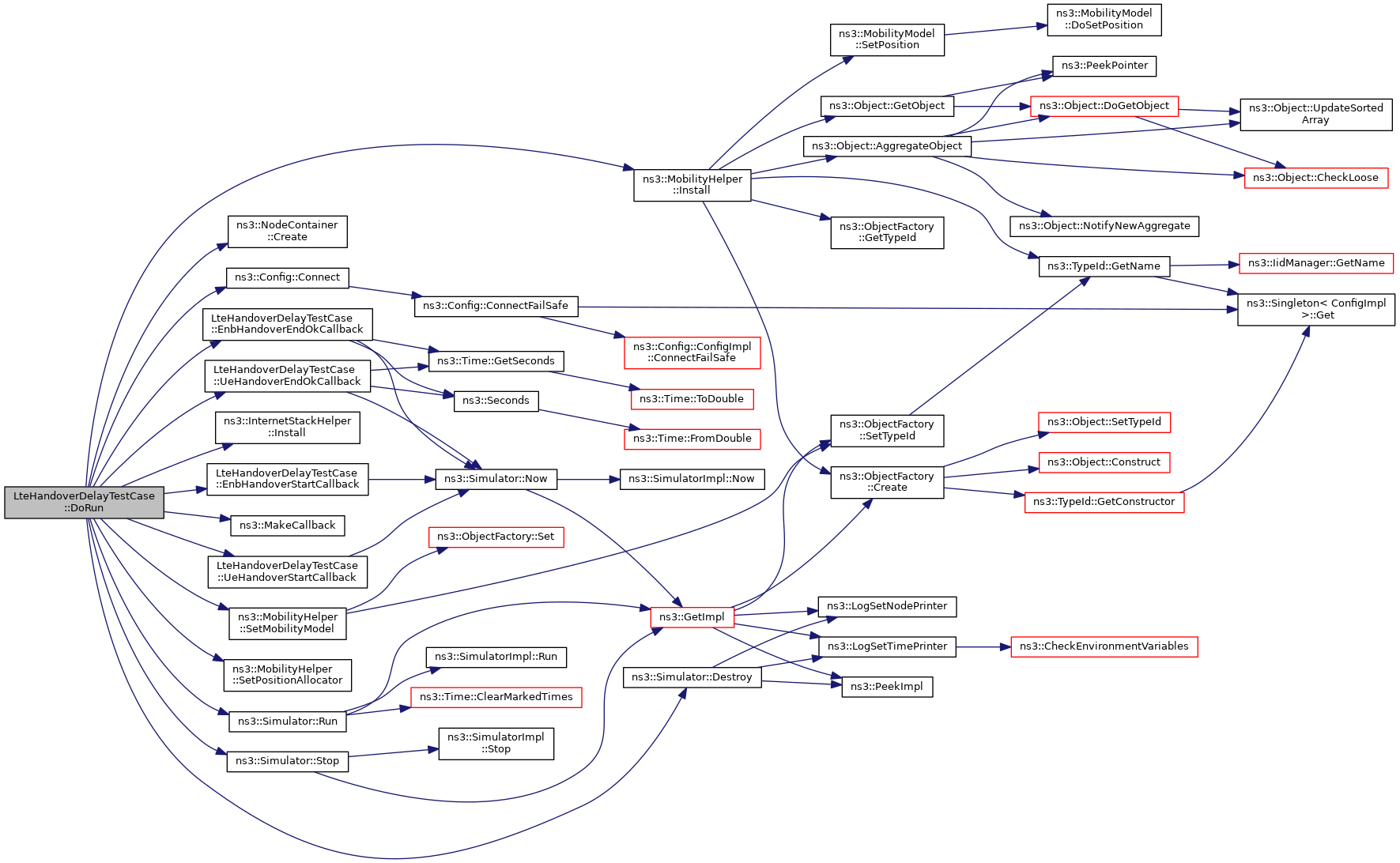

Here is the call graph for this function:

EnbHandoverEndOkCallback()

void LteHandoverDelayTestCase::EnbHandoverEndOkCallback ( std::string  context, uint64_t  imsi, uint16_t  cellid, uint16_t  rnti  )

private

ENB handover end OK callback function.

Parameters

context	the context string
imsi	the IMSI
cellid	the cell ID
rnti	the RNTI

Definition at line 255 of file test-lte-handover-delay.cc.

References ns3::Time::GetSeconds(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_TEST_ASSERT_MSG_LT, and ns3::Seconds().

Referenced by DoRun().

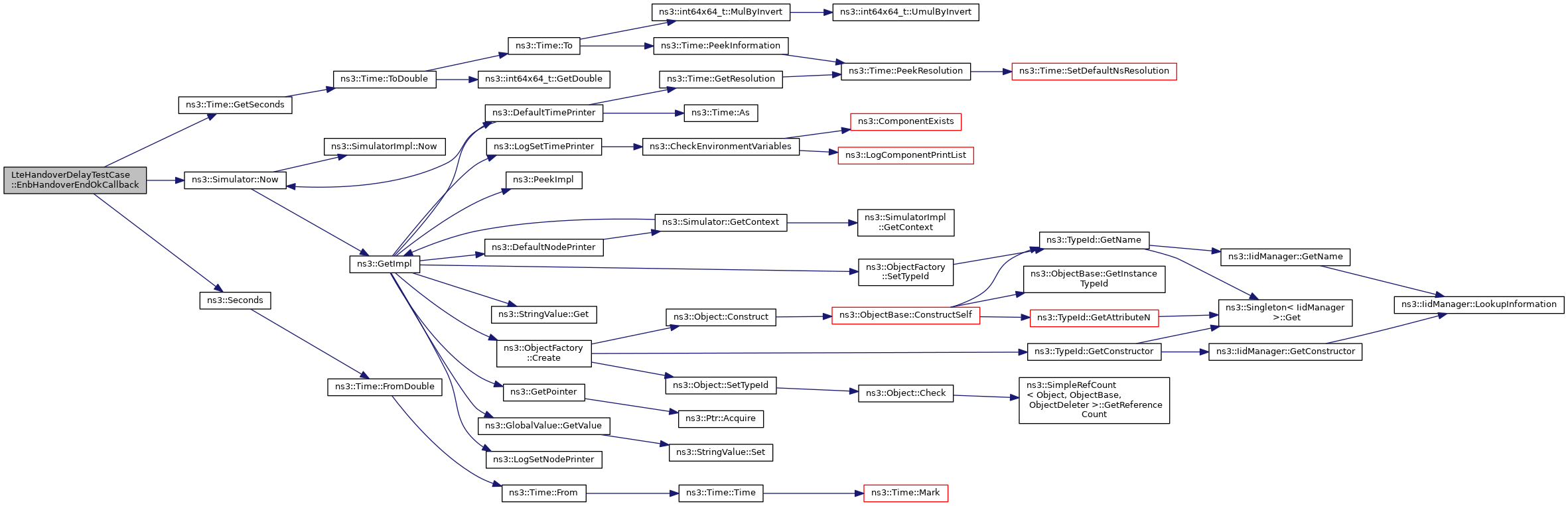

Here is the call graph for this function:

Here is the caller graph for this function:

EnbHandoverStartCallback()

void LteHandoverDelayTestCase::EnbHandoverStartCallback ( std::string  context, uint64_t  imsi, uint16_t  cellid, uint16_t  rnti, uint16_t  targetCellId  )

private

ENB handover start callback function.

Parameters

context	the context string
imsi	the IMSI
cellid	the cell ID
rnti	the RNTI
targetCellId	the target cell ID

Definition at line 247 of file test-lte-handover-delay.cc.

References ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by DoRun().

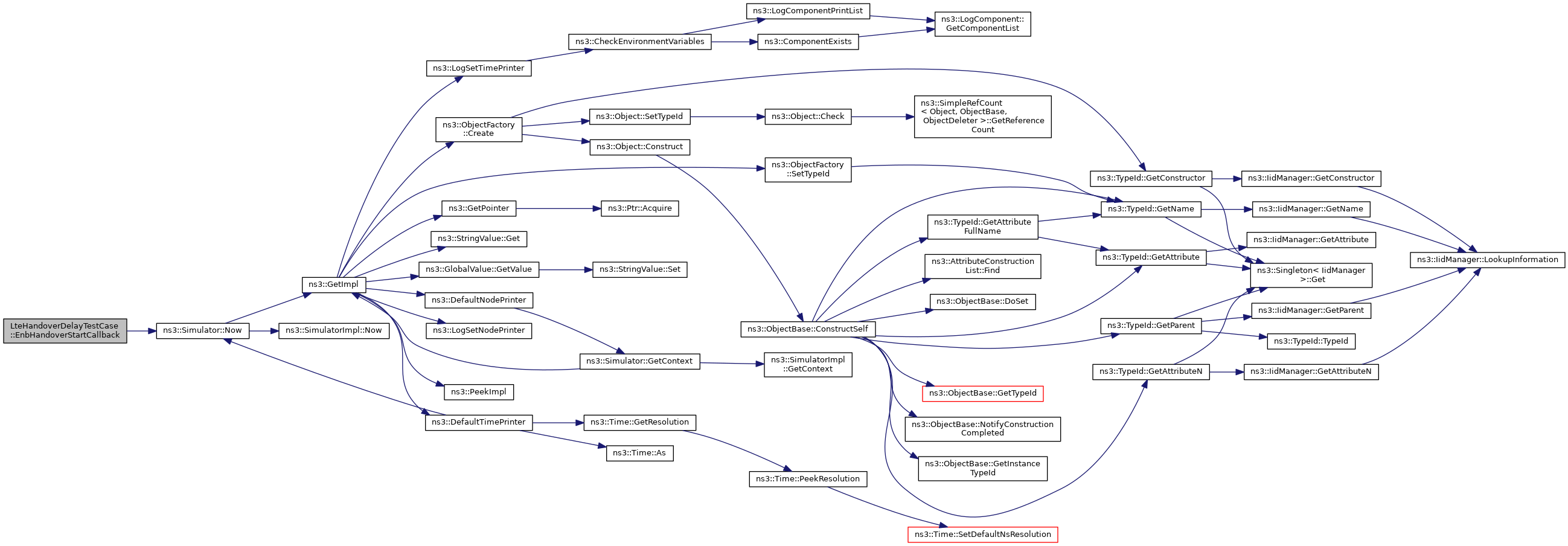

Here is the call graph for this function:

Here is the caller graph for this function:

UeHandoverEndOkCallback()

void LteHandoverDelayTestCase::UeHandoverEndOkCallback ( std::string  context, uint64_t  imsi, uint16_t  cellid, uint16_t  rnti  )

private

UE handover end OK callback function.

Parameters

context	the context string
imsi	the IMSI
cellid	the cell ID
rnti	the RNTI

Definition at line 232 of file test-lte-handover-delay.cc.

References ns3::Time::GetSeconds(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_TEST_ASSERT_MSG_LT, and ns3::Seconds().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

UeHandoverStartCallback()

void LteHandoverDelayTestCase::UeHandoverStartCallback ( std::string  context, uint64_t  imsi, uint16_t  cellid, uint16_t  rnti, uint16_t  targetCellId  )

private

UE handover start callback function.

Parameters

context	the context string
imsi	the IMSI
cellid	the cell ID
rnti	the RNTI
targetCellId	the target cell ID

Definition at line 224 of file test-lte-handover-delay.cc.

References ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_delayThreshold

Time LteHandoverDelayTestCase::m_delayThreshold

private

the delay threshold

Definition at line 129 of file test-lte-handover-delay.cc.

m_enbHandoverStart

Time LteHandoverDelayTestCase::m_enbHandoverStart

private

ENB handover start time.

Definition at line 133 of file test-lte-handover-delay.cc.

m_handoverTime

Time LteHandoverDelayTestCase::m_handoverTime

private

handover time

Definition at line 128 of file test-lte-handover-delay.cc.

m_numberOfComponentCarriers

uint8_t LteHandoverDelayTestCase::m_numberOfComponentCarriers

private

Number of component carriers.

Definition at line 126 of file test-lte-handover-delay.cc.

m_simulationDuration

Time LteHandoverDelayTestCase::m_simulationDuration

private

the simulation duration

Definition at line 130 of file test-lte-handover-delay.cc.

m_ueHandoverStart

Time LteHandoverDelayTestCase::m_ueHandoverStart

private

UE handover start time.

Definition at line 132 of file test-lte-handover-delay.cc.

m_useIdealRrc

bool LteHandoverDelayTestCase::m_useIdealRrc

private

use ideal RRC?

Definition at line 127 of file test-lte-handover-delay.cc.

---

The documentation for this class was generated from the following file:

• src/lte/test/test-lte-handover-delay.cc
