A Discrete-Event Network Simulator
API
LteRlcAmTransmitterTestCase Class Reference

Test case used by LteRlcAmTransmitterOneSduTestCase to create topology and to implement functionalities and check if data received corresponds to data sent. More...

#include "lte-test-rlc-am-transmitter.h"

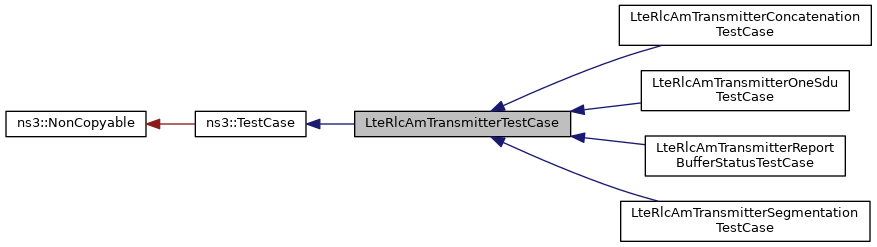

+ Inheritance diagram for LteRlcAmTransmitterTestCase:

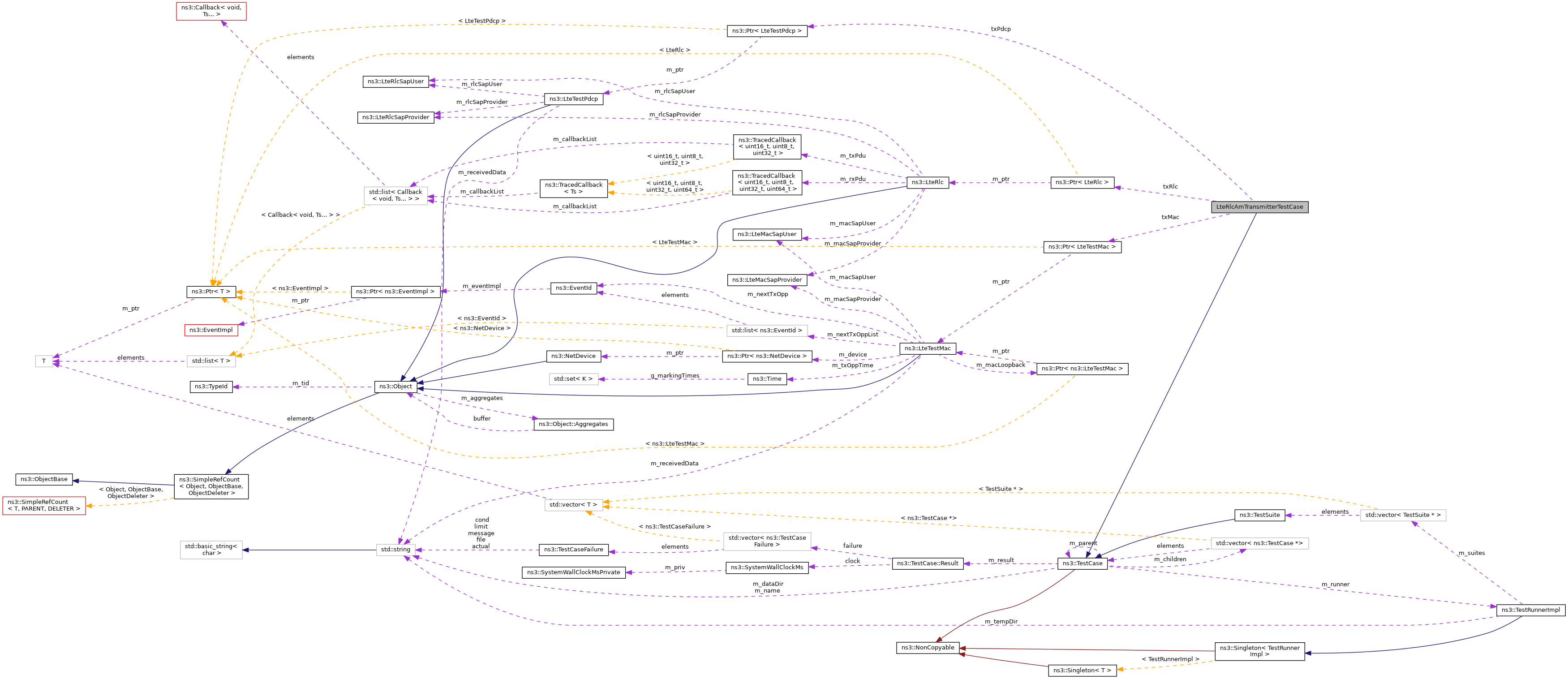

+ Collaboration diagram for LteRlcAmTransmitterTestCase:

Public Member Functions

 LteRlcAmTransmitterTestCase (std::string name)
 Constructor. More...

 LteRlcAmTransmitterTestCase ()

virtual ~LteRlcAmTransmitterTestCase ()

void CheckDataReceived (Time time, std::string shouldReceived, std::string assertMsg)
 Check data received function. More...

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Protected Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Protected Attributes

Ptr< LteTestMactxMac
 the MAC More...

Ptr< LteTestPdcptxPdcp
 the transmit PDCP More...

Ptr< LteRlctxRlc
 the RLC More...


Private Member Functions

void DoCheckDataReceived (std::string shouldReceived, std::string assertMsg)
 Check data received function. More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...


Detailed Description

Test case used by LteRlcAmTransmitterOneSduTestCase to create topology and to implement functionalities and check if data received corresponds to data sent.

Definition at line 57 of file lte-test-rlc-am-transmitter.h.

Constructor & Destructor Documentation

◆ LteRlcAmTransmitterTestCase() [1/2]

LteRlcAmTransmitterTestCase::LteRlcAmTransmitterTestCase ( std::string  name)

Constructor.

Parameters
namethe reference name

Definition at line 54 of file lte-test-rlc-am-transmitter.cc.

◆ LteRlcAmTransmitterTestCase() [2/2]

LteRlcAmTransmitterTestCase::LteRlcAmTransmitterTestCase ( )

◆ ~LteRlcAmTransmitterTestCase()

LteRlcAmTransmitterTestCase::~LteRlcAmTransmitterTestCase ( )
virtual

Definition at line 59 of file lte-test-rlc-am-transmitter.cc.

Member Function Documentation

◆ CheckDataReceived()

void LteRlcAmTransmitterTestCase::CheckDataReceived ( Time  time,
std::string  shouldReceived,
std::string  assertMsg
)

Check data received function.

Parameters
timethe time to check
shouldReceivedshoul dhave received indicator
assertMsgthe assert message

Definition at line 102 of file lte-test-rlc-am-transmitter.cc.

References DoCheckDataReceived().

Referenced by LteRlcAmTransmitterOneSduTestCase::DoRun(), LteRlcAmTransmitterSegmentationTestCase::DoRun(), LteRlcAmTransmitterConcatenationTestCase::DoRun(), and LteRlcAmTransmitterReportBufferStatusTestCase::DoRun().

+ Here is the call graph for this function:

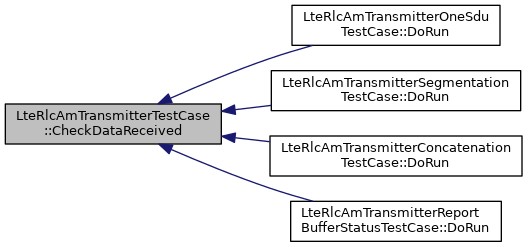

+ Here is the caller graph for this function:

◆ DoCheckDataReceived()

void LteRlcAmTransmitterTestCase::DoCheckDataReceived ( std::string  shouldReceived,
std::string  assertMsg
)
private

Check data received function.

Parameters
shouldReceivedshoul dhave received indicator
assertMsgthe assert message

Definition at line 108 of file lte-test-rlc-am-transmitter.cc.

References ns3::LteTestMac::GetDataReceived(), NS_TEST_ASSERT_MSG_EQ, and txMac.

Referenced by CheckDataReceived().

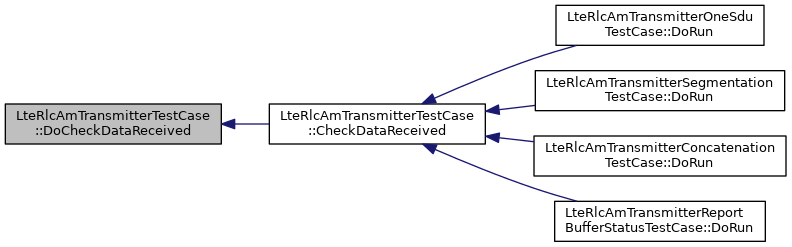

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoRun()

Member Data Documentation

◆ txMac

◆ txPdcp

◆ txRlc

Ptr<LteRlc> LteRlcAmTransmitterTestCase::txRlc
protected

the RLC

Definition at line 81 of file lte-test-rlc-am-transmitter.h.

Referenced by DoRun().


The documentation for this class was generated from the following files:
