A Discrete-Event Network Simulator
OutdoorRandomWalkTestCase Class Reference

Test case for the class OutdoorRandomWalkTestCase. More...

+ Inheritance diagram for OutdoorRandomWalkTestCase:

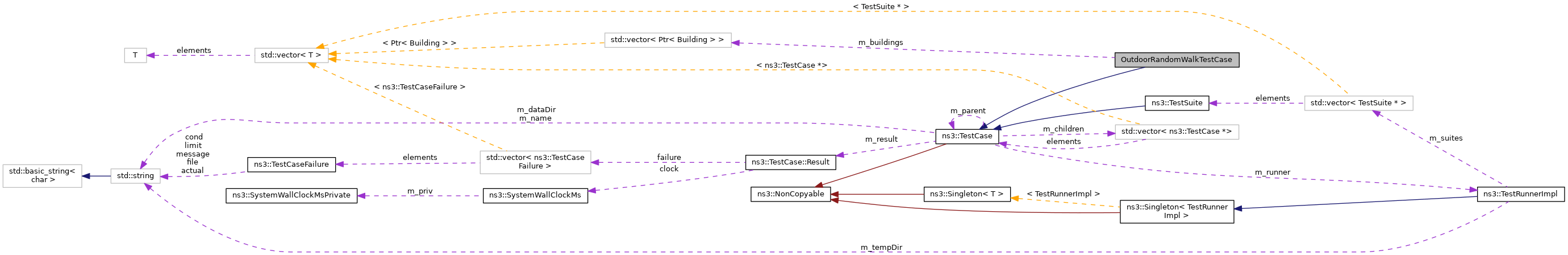

+ Collaboration diagram for OutdoorRandomWalkTestCase:

Public Member Functions

 OutdoorRandomWalkTestCase ()
 Constructor. More...
virtual ~OutdoorRandomWalkTestCase ()
 Destructor. More...
- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...
std::string GetName (void) const

Private Member Functions

void CheckPositionOutdoor (Ptr< RandomWalk2dOutdoorMobilityModel > model)
virtual void DoRun (void)
 Builds the simulation scenario and perform the tests. More...

Private Attributes

std::vector< Ptr< Building > > m_buildings

Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...
- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...
void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...
TestCaseGetParent () const
 Get the parent of this TestCsse. More...
bool IsStatusFailure (void) const
 Check if any tests failed. More...
bool IsStatusSuccess (void) const
 Check if all tests passed. More...
void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...
void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...
bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...
bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...
std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...
std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...

Detailed Description

Test case for the class OutdoorRandomWalkTestCase.

It checks if the positions visited by the user are outside buildings

Definition at line 40 of file outdoor-random-walk-test.cc.

Constructor & Destructor Documentation

◆ OutdoorRandomWalkTestCase()

OutdoorRandomWalkTestCase::OutdoorRandomWalkTestCase ( )


Definition at line 64 of file outdoor-random-walk-test.cc.

◆ ~OutdoorRandomWalkTestCase()

OutdoorRandomWalkTestCase::~OutdoorRandomWalkTestCase ( )


Definition at line 68 of file outdoor-random-walk-test.cc.

Member Function Documentation

◆ CheckPositionOutdoor()

void OutdoorRandomWalkTestCase::CheckPositionOutdoor ( Ptr< RandomWalk2dOutdoorMobilityModel model)

Definition at line 72 of file outdoor-random-walk-test.cc.

References ns3::MobilityModel::GetPosition(), m_buildings, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoRun()

void OutdoorRandomWalkTestCase::DoRun ( void  )

Builds the simulation scenario and perform the tests.

Implements ns3::TestCase.

Definition at line 82 of file outdoor-random-walk-test.cc.

References CheckPositionOutdoor(), m_buildings, third::mobility, first::nodes, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Building::SetBoundaries(), ns3::Building::SetNFloors(), ns3::Building::SetNRoomsX(), and ns3::Building::SetNRoomsY().

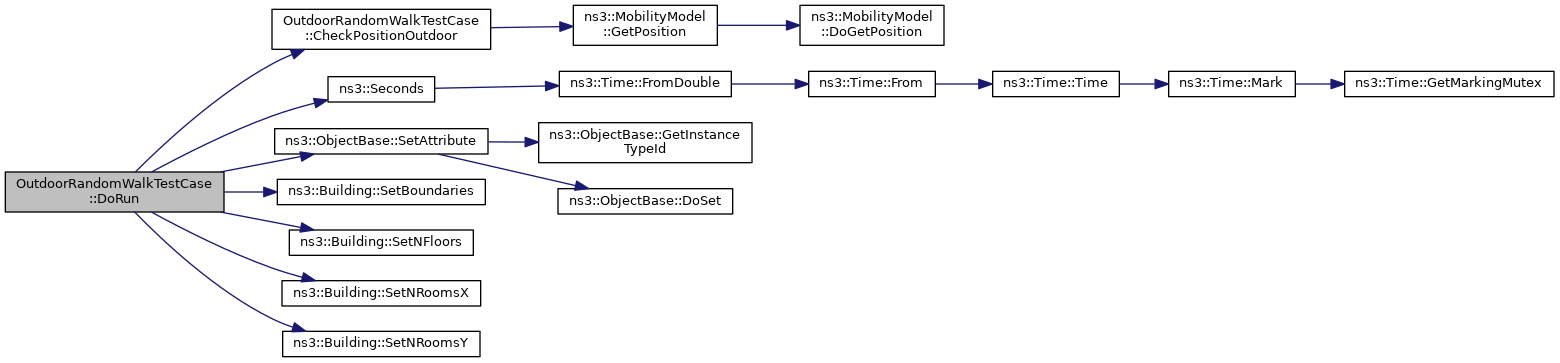

+ Here is the call graph for this function:

Member Data Documentation

◆ m_buildings

std::vector<Ptr<Building> > OutdoorRandomWalkTestCase::m_buildings

Definition at line 61 of file outdoor-random-walk-test.cc.

Referenced by CheckPositionOutdoor(), and DoRun().

The documentation for this class was generated from the following file:
