PeerManagementProtocolRegressionTest Class Reference

Peering Management Protocol regression test More...

#include "pmp-regression.h"

Inheritance diagram for PeerManagementProtocolRegressionTest:

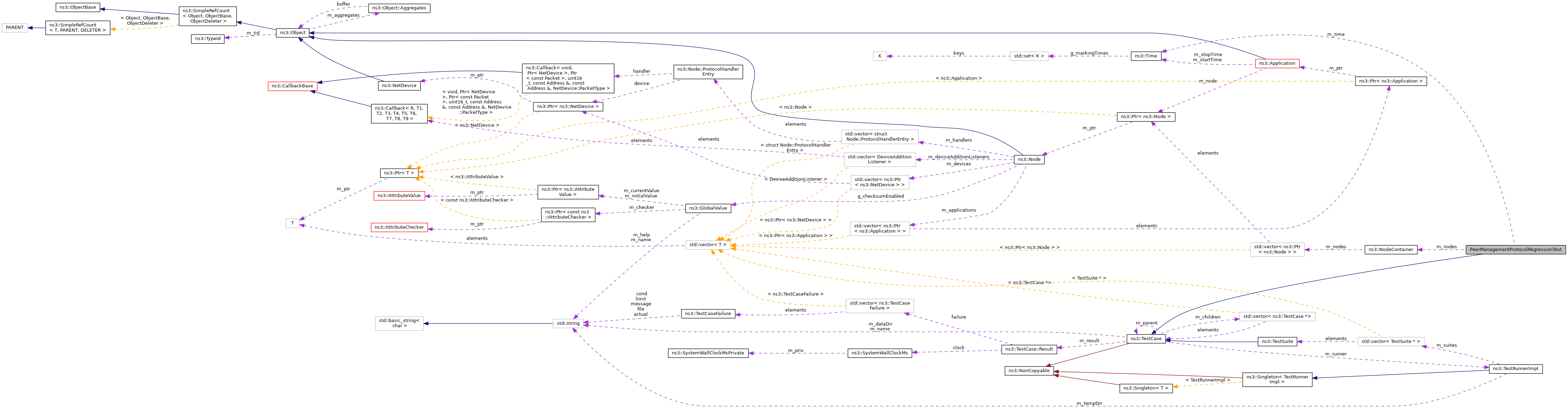

Collaboration diagram for PeerManagementProtocolRegressionTest:

Public Member Functions
	PeerManagementProtocolRegressionTest ()
	~PeerManagementProtocolRegressionTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	CheckResults ()
	Check results function. More...
void	CreateDevices ()
	Create devices function. More...
void	CreateNodes ()
	Create nodes function. More...
void	DoRun ()
	Implementation to actually run this TestCase. More...

Private Attributes
NodeContainer *	m_nodes
Time	m_time
	Simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Peering Management Protocol regression test

Initiate scenario with 2 stations. Procedure of opening peer link is the following:

* |----------->|  Beacon
* |<-----------|  Peer Link Open frame
* |----------->|  Peer Link Open frame
* |----------->|  Peer Link Confirm frame
* |<-----------|  Peer Link Confirm frame
* |............|
* |<---------->|  Other beacons
*

Definition at line 46 of file pmp-regression.h.

Constructor & Destructor Documentation

PeerManagementProtocolRegressionTest()

PeerManagementProtocolRegressionTest::PeerManagementProtocolRegressionTest

(

)

Definition at line 42 of file pmp-regression.cc.

~PeerManagementProtocolRegressionTest()

PeerManagementProtocolRegressionTest::~PeerManagementProtocolRegressionTest

(

)

Definition at line 48 of file pmp-regression.cc.

References m_nodes.

Member Function Documentation

CheckResults()

void PeerManagementProtocolRegressionTest::CheckResults ( )

private

Check results function.

Definition at line 112 of file pmp-regression.cc.

References NS_PCAP_TEST_EXPECT_EQ, and PREFIX.

Referenced by DoRun().

Here is the caller graph for this function:

CreateDevices()

void PeerManagementProtocolRegressionTest::CreateDevices ( )

private

Create devices function.

Definition at line 88 of file pmp-regression.cc.

References ns3::YansWifiChannelHelper::AssignStreams(), ns3::MeshHelper::AssignStreams(), ns3::YansWifiChannelHelper::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NetDeviceContainer::GetN(), ns3::MeshHelper::Install(), m_nodes, NS_TEST_ASSERT_MSG_EQ, PREFIX, ns3::Seconds(), ns3::YansWifiPhyHelper::SetChannel(), ns3::MeshHelper::SetMacType(), ns3::MeshHelper::SetNumberOfInterfaces(), and ns3::MeshHelper::SetStackInstaller().

Referenced by DoRun().

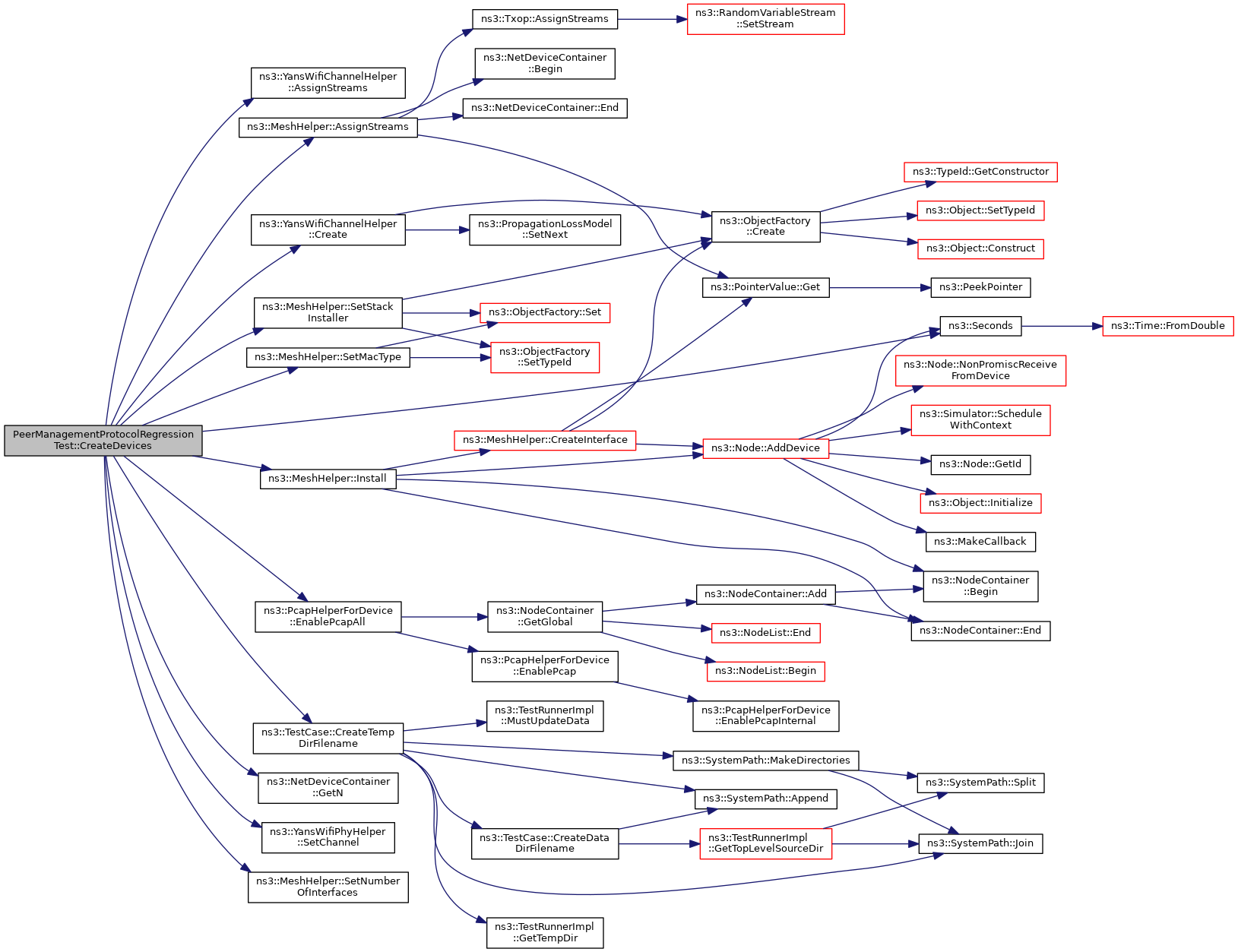

Here is the call graph for this function:

Here is the caller graph for this function:

CreateNodes()

void PeerManagementProtocolRegressionTest::CreateNodes ( )

private

Create nodes function.

Definition at line 71 of file pmp-regression.cc.

References ns3::NodeContainer::Create(), m_nodes, and third::mobility.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void PeerManagementProtocolRegressionTest::DoRun ( )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 54 of file pmp-regression.cc.

References CheckResults(), CreateDevices(), CreateNodes(), m_nodes, and m_time.

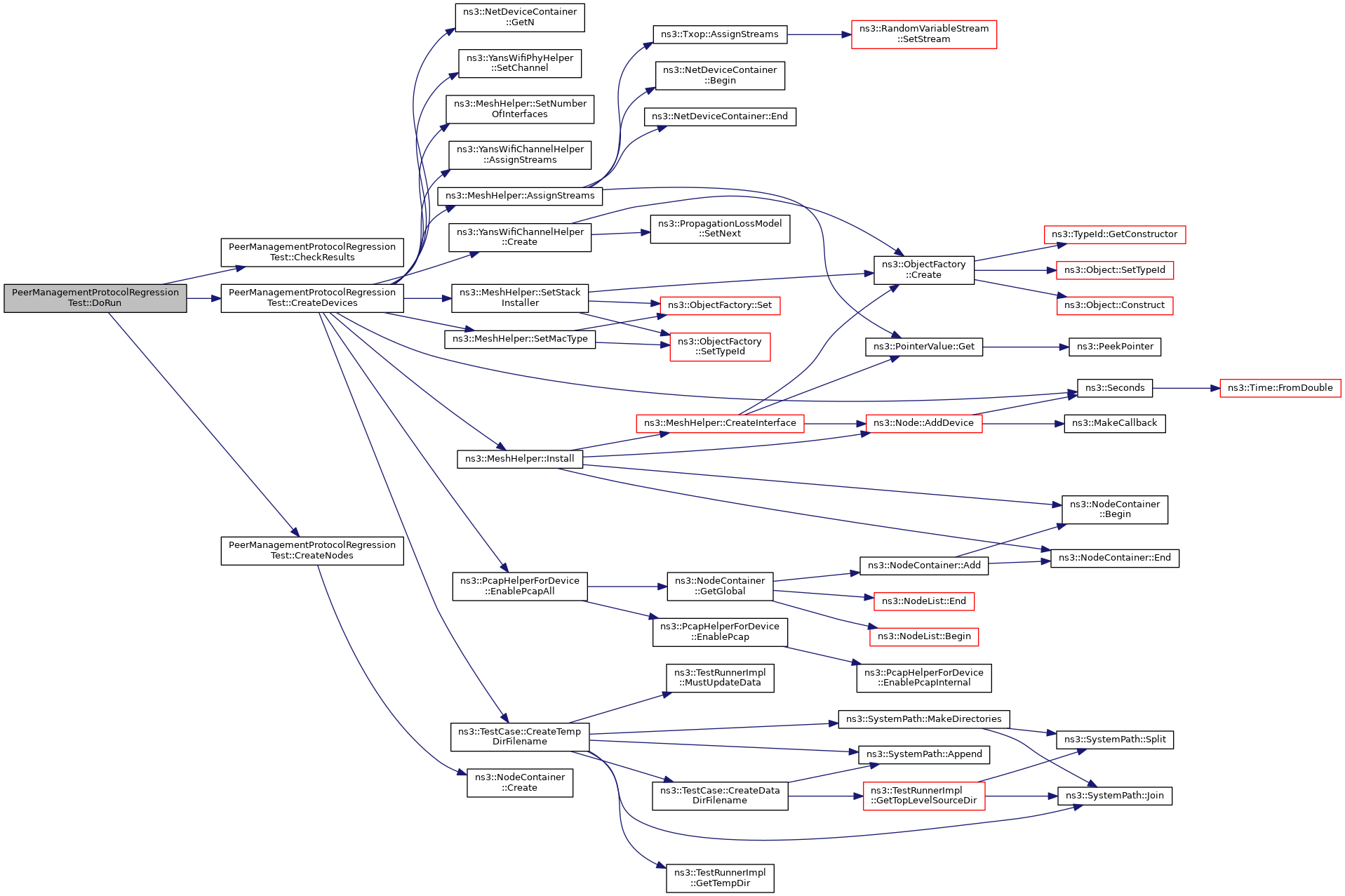

Here is the call graph for this function:

Member Data Documentation

m_nodes

NodeContainer* PeerManagementProtocolRegressionTest::m_nodes

private

Internal: It is important to have pointers here

Definition at line 54 of file pmp-regression.h.

Referenced by CreateDevices(), CreateNodes(), DoRun(), and ~PeerManagementProtocolRegressionTest().

m_time

Time PeerManagementProtocolRegressionTest::m_time

private

Simulation time.

Definition at line 56 of file pmp-regression.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/mesh/test/dot11s/pmp-regression.h
• src/mesh/test/dot11s/pmp-regression.cc
