SpectrumWifiPhyListenerTest Class Reference

Spectrum Wifi Phy Listener Test. More...

+ Inheritance diagram for SpectrumWifiPhyListenerTest:

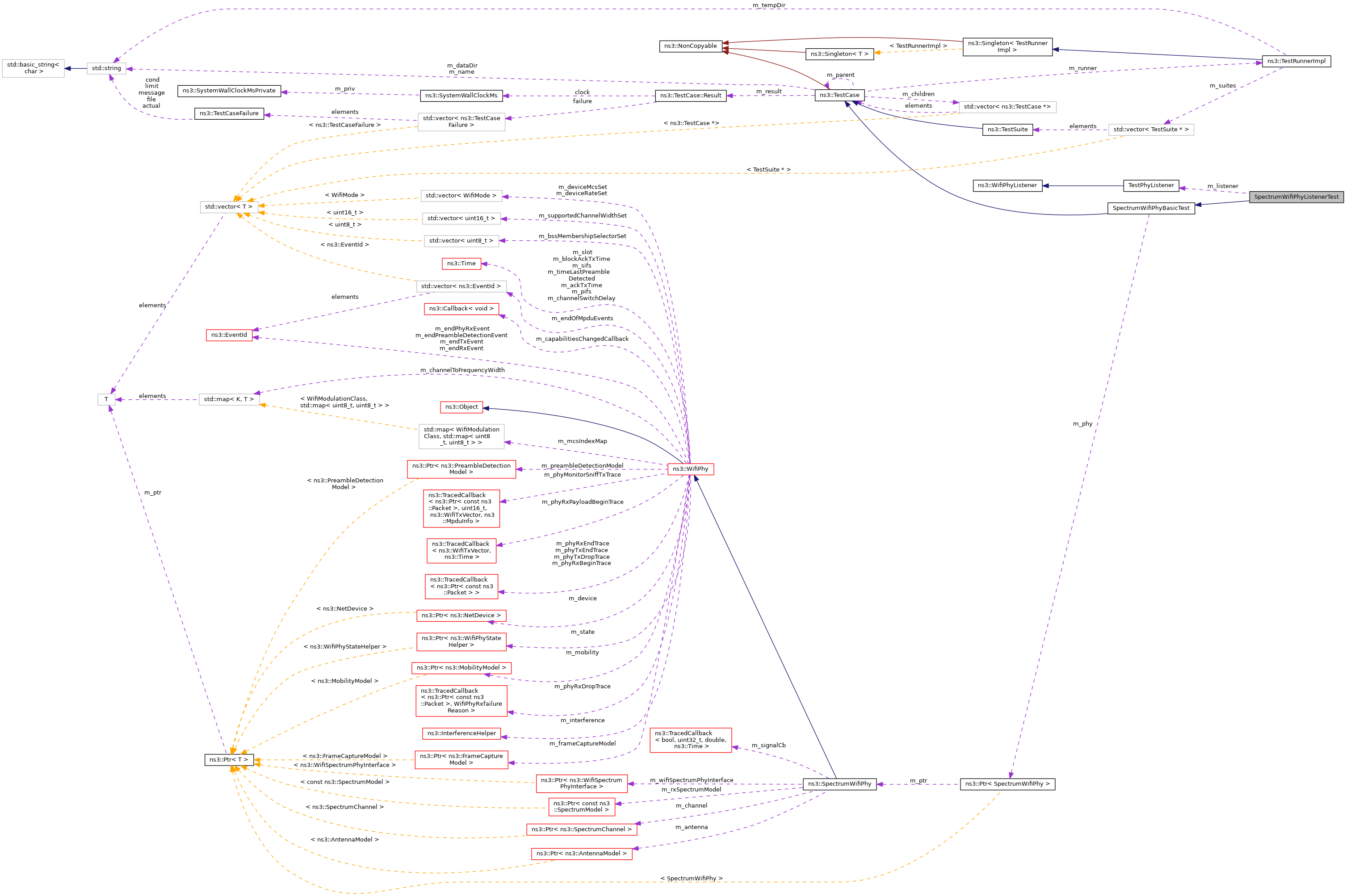

+ Collaboration diagram for SpectrumWifiPhyListenerTest:

Public Member Functions

 SpectrumWifiPhyListenerTest ()

virtual ~SpectrumWifiPhyListenerTest ()

- Public Member Functions inherited from SpectrumWifiPhyBasicTest
 SpectrumWifiPhyBasicTest ()

 SpectrumWifiPhyBasicTest (std::string name)
 Constructor. More...

virtual ~SpectrumWifiPhyBasicTest ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

virtual void DoSetup (void)
 Implementation to do any local setup required for this TestCase. More...


Private Attributes

TestPhyListenerm_listener
 listener More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from SpectrumWifiPhyBasicTest
Ptr< SpectrumSignalParametersMakeSignal (double txPowerWatts)
 Make signal function. More...

void SendSignal (double txPowerWatts)
 Send signal function. More...

void SpectrumWifiPhyRxFailure (Ptr< WifiPsdu > psdu)

Spectrum wifi receive failure function More...

void SpectrumWifiPhyRxSuccess (Ptr< WifiPsdu > psdu, double snr, WifiTxVector txVector, std::vector< bool > statusPerMpdu)
 Spectrum wifi receive success function. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...

- Protected Attributes inherited from SpectrumWifiPhyBasicTest
uint32_t m_count
 count More...

Ptr< SpectrumWifiPhym_phy
 Phy. More...


Detailed Description

Spectrum Wifi Phy Listener Test.

Definition at line 264 of file spectrum-wifi-phy-test.cc.

Constructor & Destructor Documentation

◆ SpectrumWifiPhyListenerTest()

SpectrumWifiPhyListenerTest::SpectrumWifiPhyListenerTest ( )

Definition at line 275 of file spectrum-wifi-phy-test.cc.

◆ ~SpectrumWifiPhyListenerTest()

SpectrumWifiPhyListenerTest::~SpectrumWifiPhyListenerTest ( )
virtual

Definition at line 280 of file spectrum-wifi-phy-test.cc.

Member Function Documentation

◆ DoRun()

void SpectrumWifiPhyListenerTest::DoRun ( void  )
privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Reimplemented from SpectrumWifiPhyBasicTest.

Definition at line 293 of file spectrum-wifi-phy-test.cc.

References SpectrumWifiPhyBasicTest::m_count, m_listener, TestPhyListener::m_notifyMaybeCcaBusyStart, TestPhyListener::m_notifyRxEndOk, TestPhyListener::m_notifyRxStart, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), and SpectrumWifiPhyBasicTest::SendSignal().

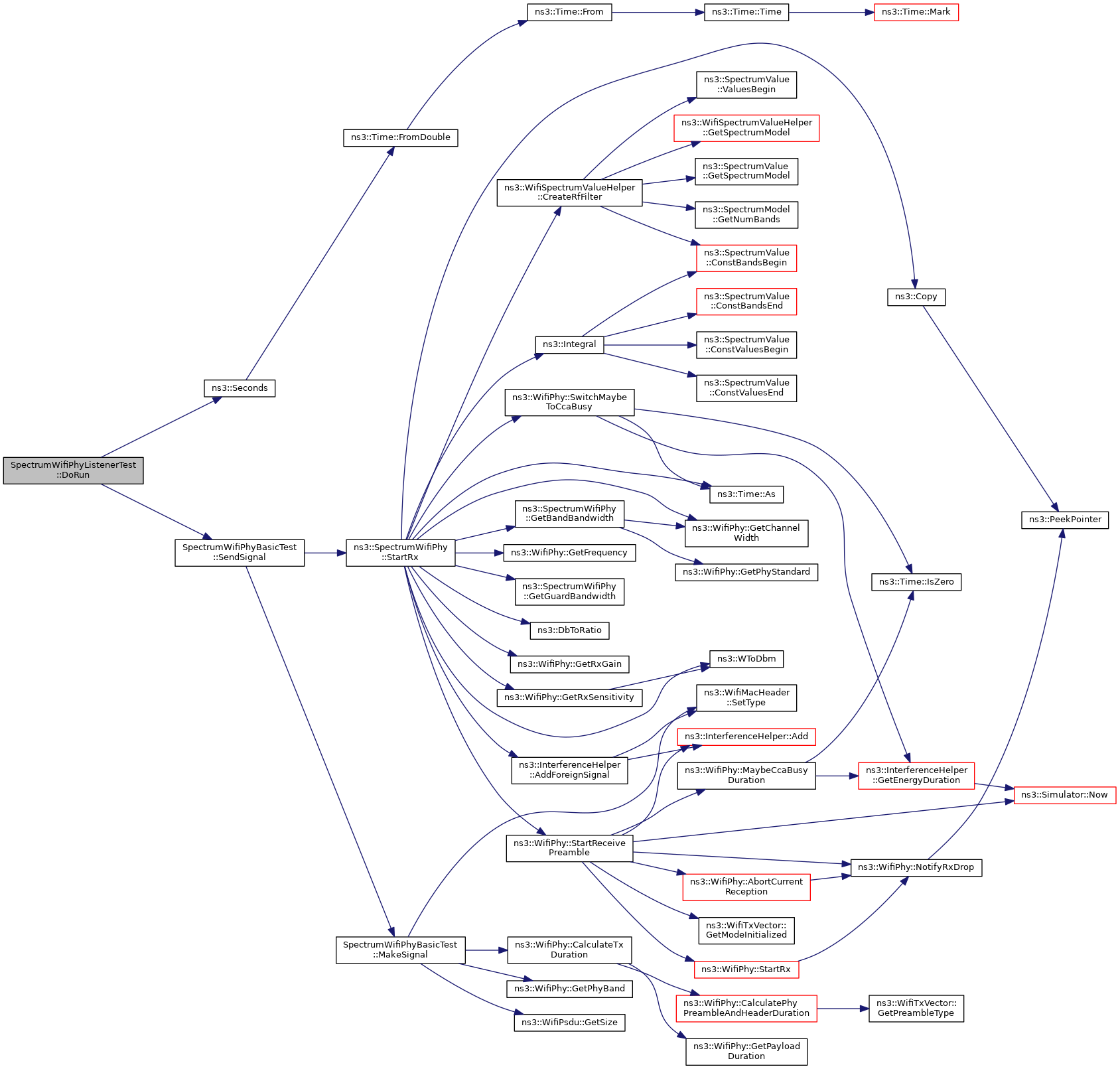

+ Here is the call graph for this function:

◆ DoSetup()

void SpectrumWifiPhyListenerTest::DoSetup ( void  )
privatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from SpectrumWifiPhyBasicTest.

Definition at line 285 of file spectrum-wifi-phy-test.cc.

References SpectrumWifiPhyBasicTest::DoSetup(), m_listener, SpectrumWifiPhyBasicTest::m_phy, and ns3::WifiPhy::RegisterListener().

+ Here is the call graph for this function:

Member Data Documentation

◆ m_listener

TestPhyListener* SpectrumWifiPhyListenerTest::m_listener
private

listener

Definition at line 272 of file spectrum-wifi-phy-test.cc.

Referenced by DoRun(), and DoSetup().


The documentation for this class was generated from the following file:
