TcpRateLinuxBasicTest Class Reference

The TcpRateLinux Basic Test. More...

Inheritance diagram for TcpRateLinuxBasicTest:

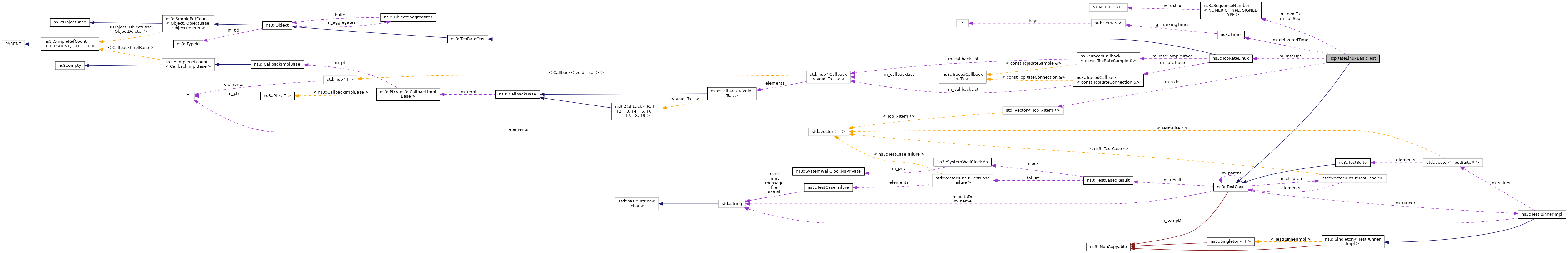

Collaboration diagram for TcpRateLinuxBasicTest:

Public Member Functions
	TcpRateLinuxBasicTest (uint32_t cWnd, SequenceNumber32 tailSeq, SequenceNumber32 nextTx, uint32_t lostOut, uint32_t retransOut, uint32_t testCase, std::string testName)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	SendSkb (TcpTxItem *skb)
void	SkbDelivered (TcpTxItem *skb)

Private Attributes
uint32_t	m_cWnd
uint32_t	m_delivered
Time	m_deliveredTime
uint32_t	m_inFlight
SequenceNumber32	m_nextTx
TcpRateLinux	m_rateOps
uint32_t	m_segmentSize
std::vector< TcpTxItem * >	m_skbs
SequenceNumber32	m_tailSeq
uint32_t	m_testCase

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

The TcpRateLinux Basic Test.

Definition at line 44 of file tcp-rate-ops-test.cc.

Constructor & Destructor Documentation

TcpRateLinuxBasicTest()

TcpRateLinuxBasicTest::TcpRateLinuxBasicTest	(	uint32_t	cWnd,
		SequenceNumber32	tailSeq,
		SequenceNumber32	nextTx,
		uint32_t	lostOut,
		uint32_t	retransOut,
		uint32_t	testCase,
		std::string	testName
	)

Definition at line 69 of file tcp-rate-ops-test.cc.

Member Function Documentation

DoRun()

void TcpRateLinuxBasicTest::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 85 of file tcp-rate-ops-test.cc.

References m_skbs, ns3::Seconds(), SendSkb(), and SkbDelivered().

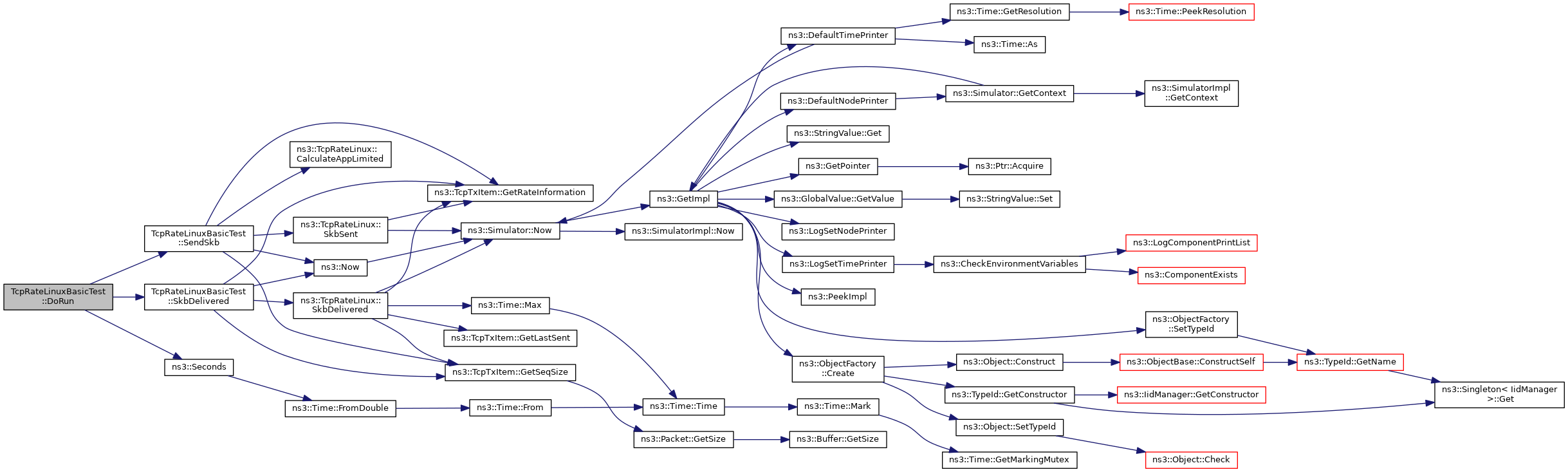

Here is the call graph for this function:

SendSkb()

void TcpRateLinuxBasicTest::SendSkb ( TcpTxItem *  skb )

private

Definition at line 108 of file tcp-rate-ops-test.cc.

References ns3::TcpRateLinux::CalculateAppLimited(), ns3::TcpTxItem::GetRateInformation(), ns3::TcpTxItem::GetSeqSize(), m_cWnd, m_delivered, ns3::TcpTxItem::RateInformation::m_delivered, m_deliveredTime, ns3::TcpTxItem::RateInformation::m_deliveredTime, m_inFlight, m_nextTx, m_rateOps, m_segmentSize, m_tailSeq, ns3::Now(), NS_TEST_ASSERT_MSG_EQ, and ns3::TcpRateLinux::SkbSent().

Referenced by DoRun().

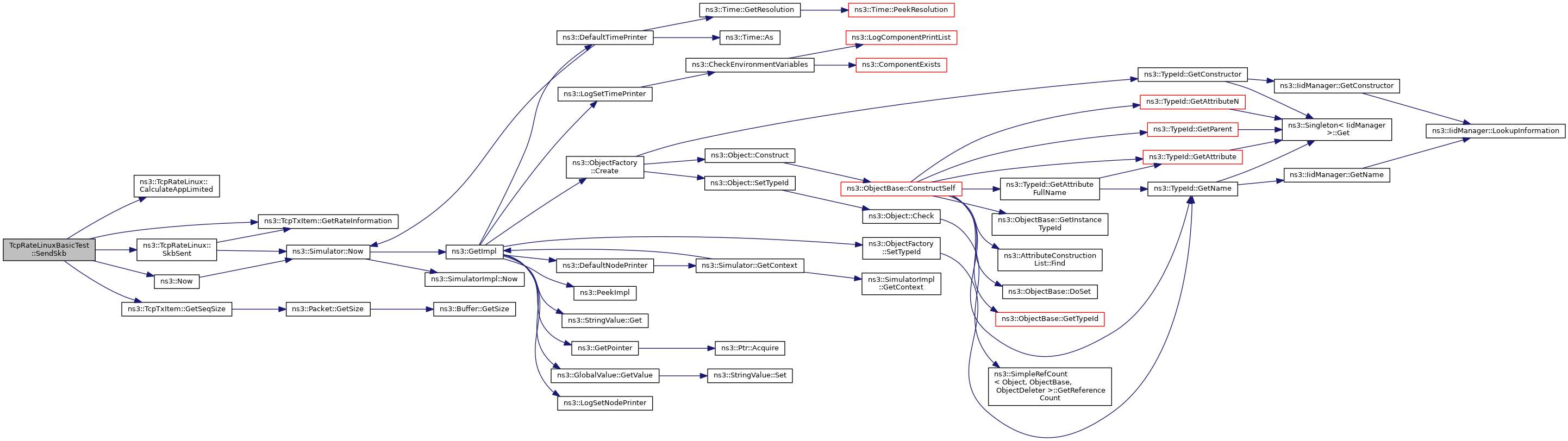

Here is the call graph for this function:

Here is the caller graph for this function:

SkbDelivered()

void TcpRateLinuxBasicTest::SkbDelivered ( TcpTxItem *  skb )

private

Definition at line 128 of file tcp-rate-ops-test.cc.

References ns3::TcpTxItem::GetRateInformation(), ns3::TcpTxItem::GetSeqSize(), m_delivered, m_deliveredTime, ns3::TcpTxItem::RateInformation::m_deliveredTime, m_inFlight, ns3::TcpTxItem::RateInformation::m_isAppLimited, m_rateOps, m_testCase, Max, ns3::Now(), NS_TEST_ASSERT_MSG_EQ, and ns3::TcpRateLinux::SkbDelivered().

Referenced by DoRun().

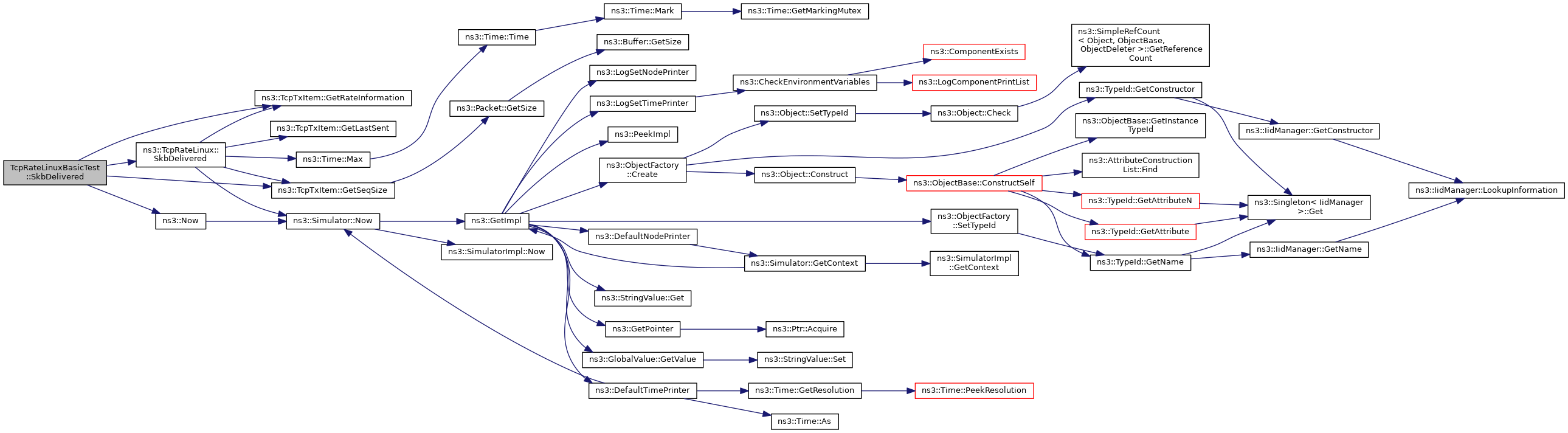

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_cWnd

uint32_t TcpRateLinuxBasicTest::m_cWnd

private

Definition at line 58 of file tcp-rate-ops-test.cc.

Referenced by SendSkb().

m_delivered

uint32_t TcpRateLinuxBasicTest::m_delivered

private

Definition at line 61 of file tcp-rate-ops-test.cc.

Referenced by SendSkb(), and SkbDelivered().

m_deliveredTime

Time TcpRateLinuxBasicTest::m_deliveredTime

private

Definition at line 62 of file tcp-rate-ops-test.cc.

Referenced by SendSkb(), and SkbDelivered().

m_inFlight

uint32_t TcpRateLinuxBasicTest::m_inFlight

private

Definition at line 59 of file tcp-rate-ops-test.cc.

Referenced by SendSkb(), and SkbDelivered().

m_nextTx

SequenceNumber32 TcpRateLinuxBasicTest::m_nextTx

private

Definition at line 64 of file tcp-rate-ops-test.cc.

Referenced by SendSkb().

m_rateOps

TcpRateLinux TcpRateLinuxBasicTest::m_rateOps

private

Definition at line 57 of file tcp-rate-ops-test.cc.

Referenced by SendSkb(), and SkbDelivered().

m_segmentSize

uint32_t TcpRateLinuxBasicTest::m_segmentSize

private

Definition at line 60 of file tcp-rate-ops-test.cc.

Referenced by SendSkb().

m_skbs

std::vector<TcpTxItem *> TcpRateLinuxBasicTest::m_skbs

private

Definition at line 66 of file tcp-rate-ops-test.cc.

Referenced by DoRun().

m_tailSeq

SequenceNumber32 TcpRateLinuxBasicTest::m_tailSeq

private

Definition at line 63 of file tcp-rate-ops-test.cc.

Referenced by SendSkb().

m_testCase

uint32_t TcpRateLinuxBasicTest::m_testCase

private

Definition at line 65 of file tcp-rate-ops-test.cc.

Referenced by SkbDelivered().

---

The documentation for this class was generated from the following file:

• src/internet/test/tcp-rate-ops-test.cc
