The TcpTxBuffer Test. More...

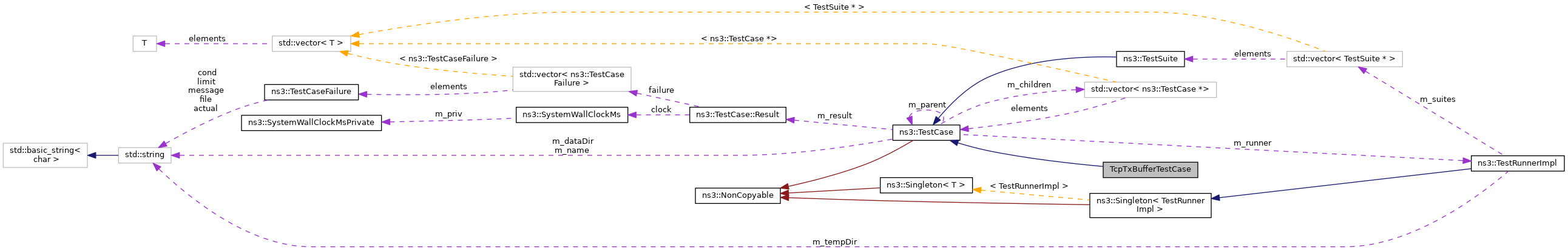

Inheritance diagram for TcpTxBufferTestCase: Collaboration diagram for TcpTxBufferTestCase:Public Member Functions | |
| TcpTxBufferTestCase () | |
| Constructor. More... | |
| Public Member Functions inherited from ns3::TestCase | |
| virtual | ~TestCase () |
| Destructor. More... | |
| std::string | GetName (void) const |
Private Member Functions | |
| virtual void | DoRun (void) |
| Implementation to actually run this TestCase. More... | |
| virtual void | DoTeardown (void) |
| Implementation to do any local setup required for this TestCase. More... | |
| uint32_t | GetRWnd (void) const |
| Callback to provide a value of receiver window. More... | |
| void | TestIsLost () |
| Test if a segment is really set as lost. More... | |
| void | TestMergeItemsWhenGetTransmittedSegment () |
| Test the logic of merging items in GetTransmittedSegment() which is triggered by CopyFromSequence() More... | |
| void | TestNewBlock () |
| Test the generation of an unsent block. More... | |
| void | TestNextSeg () |
| Test the generation of the "next" block. More... | |
| void | TestTransmittedBlock () |
| Test the generation of a previously sent block. More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::TestCase | |
| enum | TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 } |
| How long the test takes to execute. More... | |
| Protected Member Functions inherited from ns3::TestCase | |
| TestCase (std::string name) | |
| Constructor. More... | |
| void | AddTestCase (TestCase *testCase, TestDuration duration=QUICK) |
| Add an individual child TestCase to this test suite. More... | |
| TestCase * | GetParent () const |
| Get the parent of this TestCsse. More... | |
| bool | IsStatusFailure (void) const |
| Check if any tests failed. More... | |
| bool | IsStatusSuccess (void) const |
| Check if all tests passed. More... | |
| void | SetDataDir (std::string directory) |
| Set the data directory where reference trace files can be found. More... | |
| void | ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line) |
| Log the failure of this TestCase. More... | |
| bool | MustAssertOnFailure (void) const |
| Check if this run should assert on failure. More... | |
| bool | MustContinueOnFailure (void) const |
| Check if this run should continue on failure. More... | |
| std::string | CreateDataDirFilename (std::string filename) |
| Construct the full path to a file in the data directory. More... | |
| std::string | CreateTempDirFilename (std::string filename) |
| Construct the full path to a file in a temporary directory. More... | |
The TcpTxBuffer Test.
Definition at line 35 of file tcp-tx-buffer-test.cc.
| TcpTxBufferTestCase::TcpTxBufferTestCase | ( | ) |
Constructor.
Definition at line 60 of file tcp-tx-buffer-test.cc.
|
privatevirtual |
Implementation to actually run this TestCase.
Subclasses should override this method to conduct their tests.
Implements ns3::TestCase.
Definition at line 66 of file tcp-tx-buffer-test.cc.
References ns3::Seconds(), TestIsLost(), TestMergeItemsWhenGetTransmittedSegment(), TestNewBlock(), TestNextSeg(), and TestTransmittedBlock().

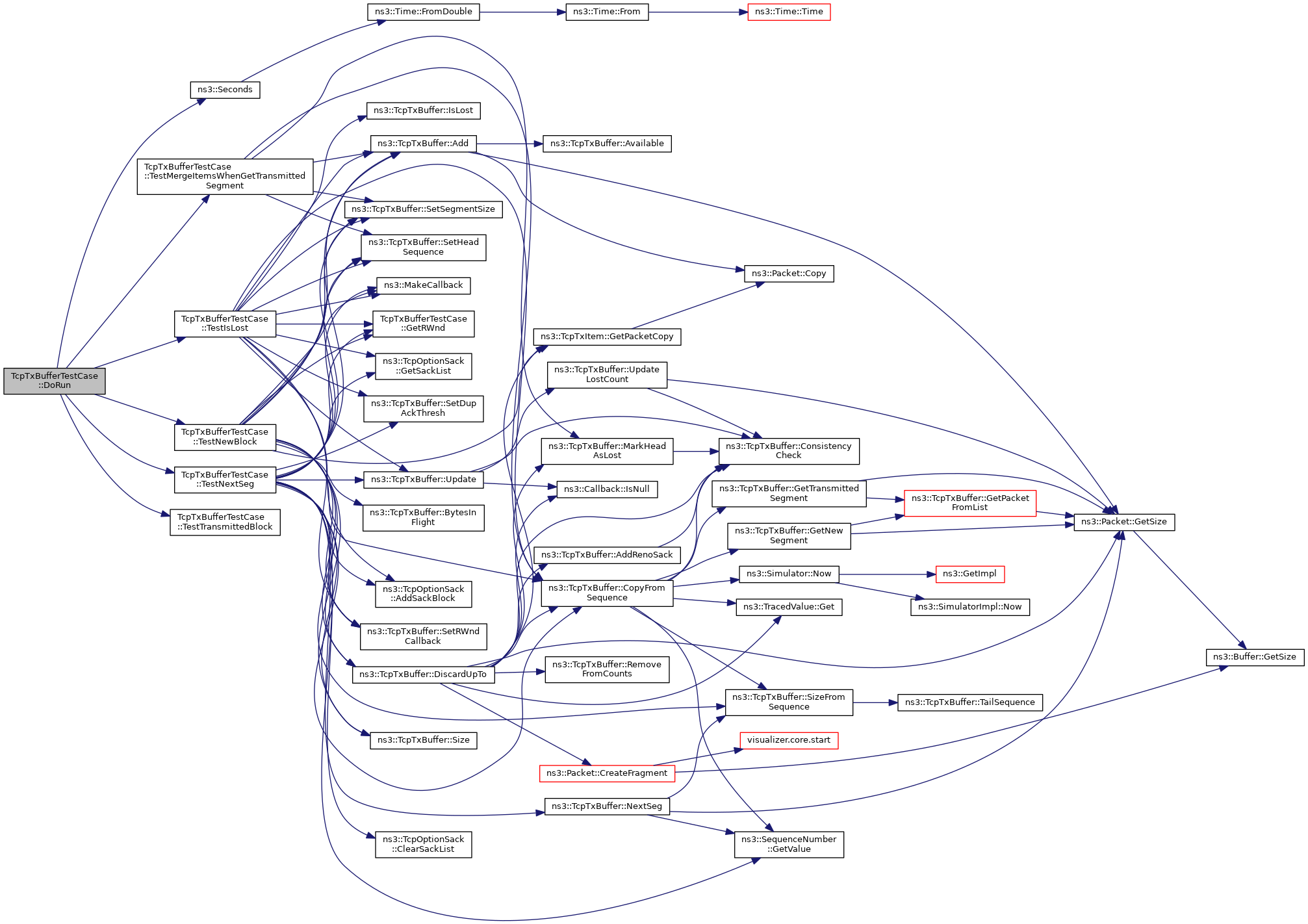

Here is the call graph for this function:
|
privatevirtual |
Implementation to do any local setup required for this TestCase.
Subclasses should override this method to perform any costly per-test teardown
Reimplemented from ns3::TestCase.
Definition at line 391 of file tcp-tx-buffer-test.cc.
|
private |
Callback to provide a value of receiver window.
Definition at line 154 of file tcp-tx-buffer-test.cc.
References max.
Referenced by TestIsLost(), TestNewBlock(), and TestNextSeg().

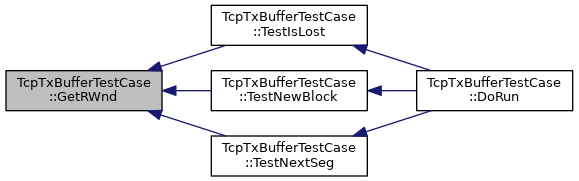

Here is the caller graph for this function:
|
private |
Test if a segment is really set as lost.
Definition at line 106 of file tcp-tx-buffer-test.cc.
References ns3::TcpTxBuffer::Add(), ns3::TcpOptionSack::AddSackBlock(), ns3::TcpTxBuffer::CopyFromSequence(), GetRWnd(), ns3::TcpOptionSack::GetSackList(), ns3::TcpTxBuffer::IsLost(), ns3::MakeCallback(), NS_TEST_ASSERT_MSG_EQ, ns3::TcpTxBuffer::SetDupAckThresh(), ns3::TcpTxBuffer::SetHeadSequence(), ns3::TcpTxBuffer::SetRWndCallback(), ns3::TcpTxBuffer::SetSegmentSize(), and ns3::TcpTxBuffer::Update().
Referenced by DoRun().

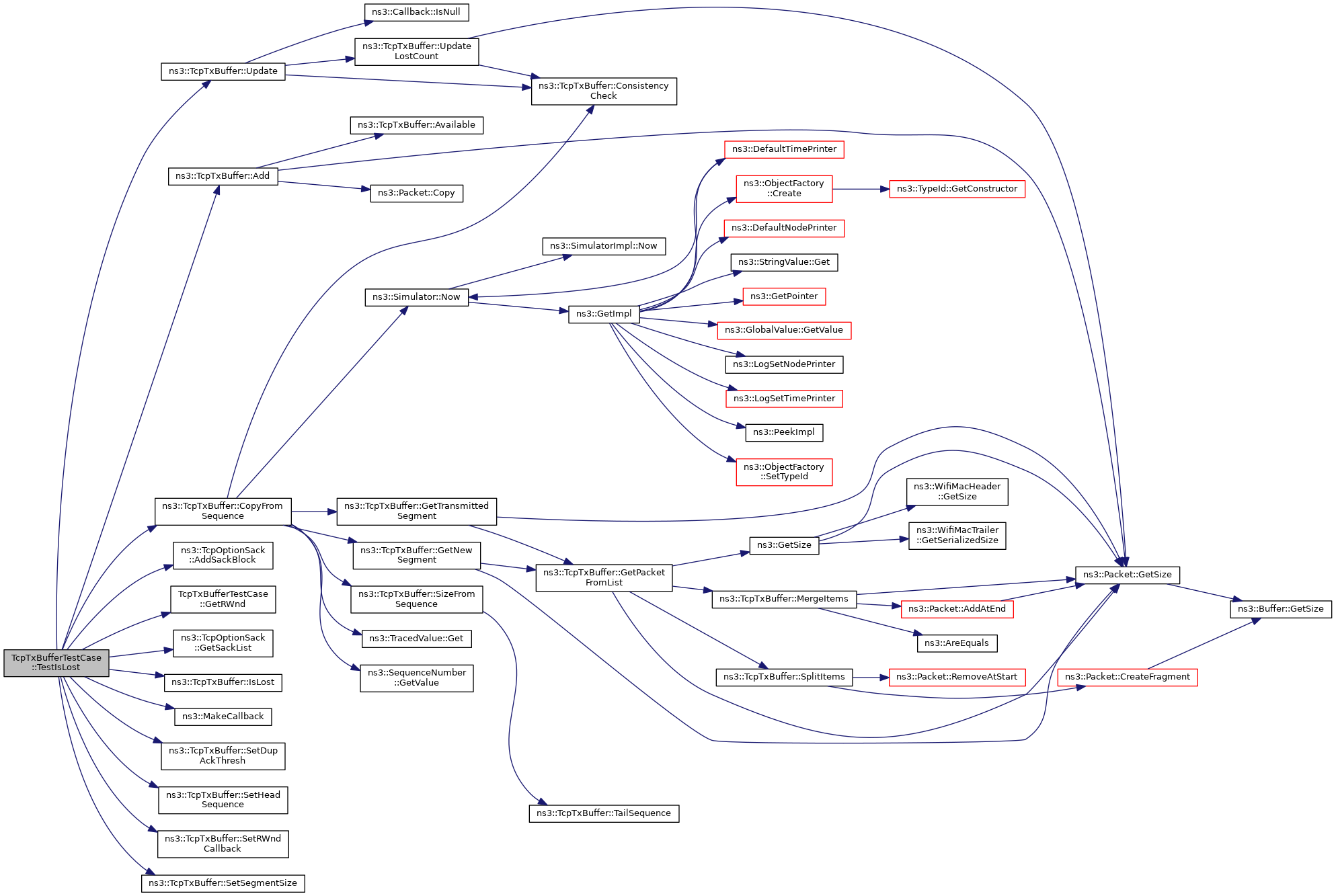

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Test the logic of merging items in GetTransmittedSegment() which is triggered by CopyFromSequence()
Definition at line 368 of file tcp-tx-buffer-test.cc.
References ns3::TcpTxBuffer::Add(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::TcpTxBuffer::MarkHeadAsLost(), ns3::TcpTxBuffer::SetHeadSequence(), and ns3::TcpTxBuffer::SetSegmentSize().
Referenced by DoRun().

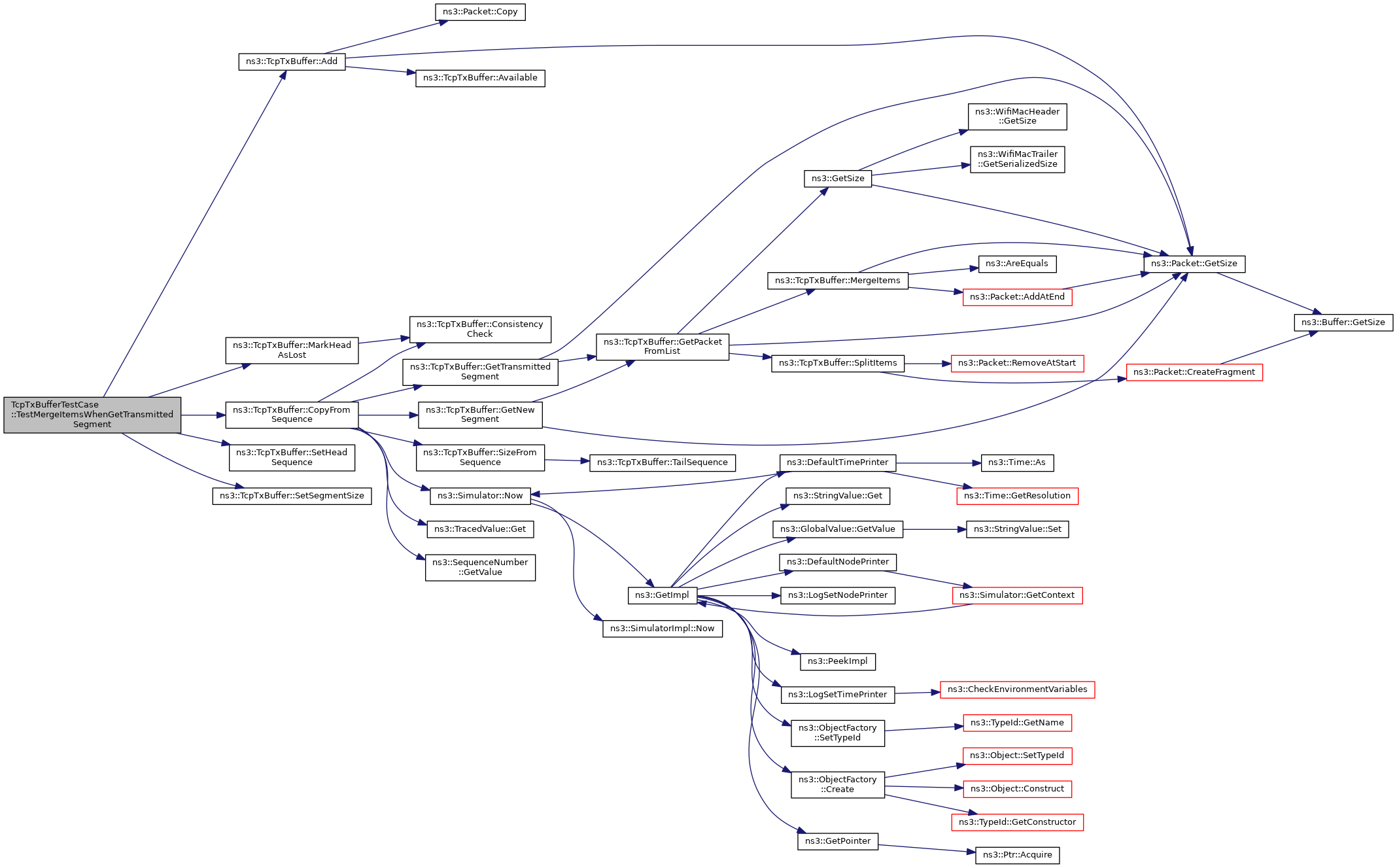

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Test the generation of an unsent block.
Definition at line 297 of file tcp-tx-buffer-test.cc.
References ns3::TcpTxBuffer::Add(), ns3::TcpTxBuffer::BytesInFlight(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::TcpTxBuffer::DiscardUpTo(), ns3::TcpTxItem::GetPacketCopy(), GetRWnd(), ns3::MakeCallback(), NS_TEST_ASSERT_MSG_EQ, ns3::TcpTxBuffer::SetHeadSequence(), ns3::TcpTxBuffer::SetRWndCallback(), ns3::TcpTxBuffer::SetSegmentSize(), ns3::TcpTxBuffer::Size(), and ns3::TcpTxBuffer::SizeFromSequence().
Referenced by DoRun().

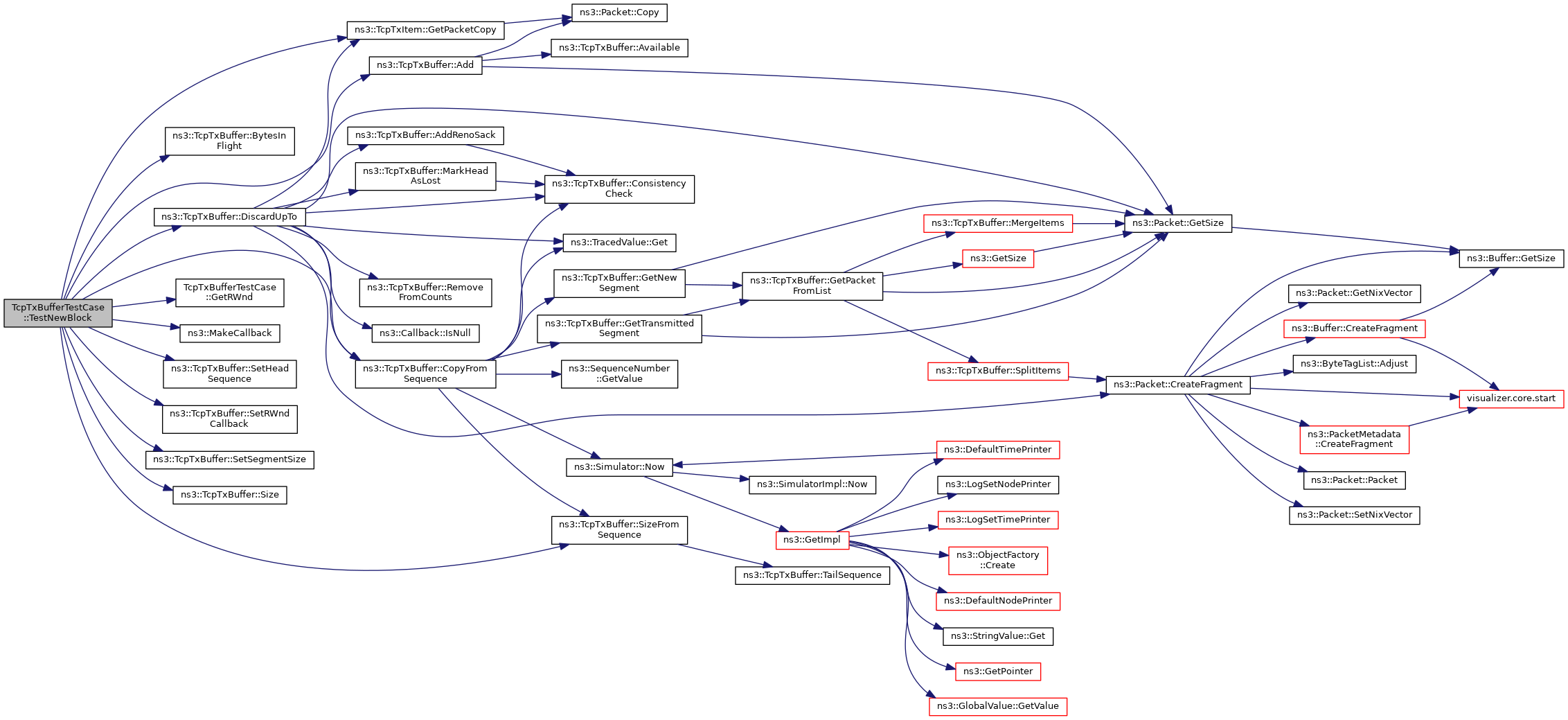

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Test the generation of the "next" block.
Definition at line 161 of file tcp-tx-buffer-test.cc.
References ns3::TcpTxBuffer::Add(), ns3::TcpOptionSack::AddSackBlock(), ns3::TcpOptionSack::ClearSackList(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::TcpTxBuffer::DiscardUpTo(), GetRWnd(), ns3::TcpOptionSack::GetSackList(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::MakeCallback(), ns3::TcpTxBuffer::NextSeg(), NS_TEST_ASSERT_MSG_EQ, segmentSize, ns3::TcpTxBuffer::SetDupAckThresh(), ns3::TcpTxBuffer::SetHeadSequence(), ns3::TcpTxBuffer::SetRWndCallback(), ns3::TcpTxBuffer::SetSegmentSize(), ns3::TcpTxBuffer::Size(), and ns3::TcpTxBuffer::Update().
Referenced by DoRun().

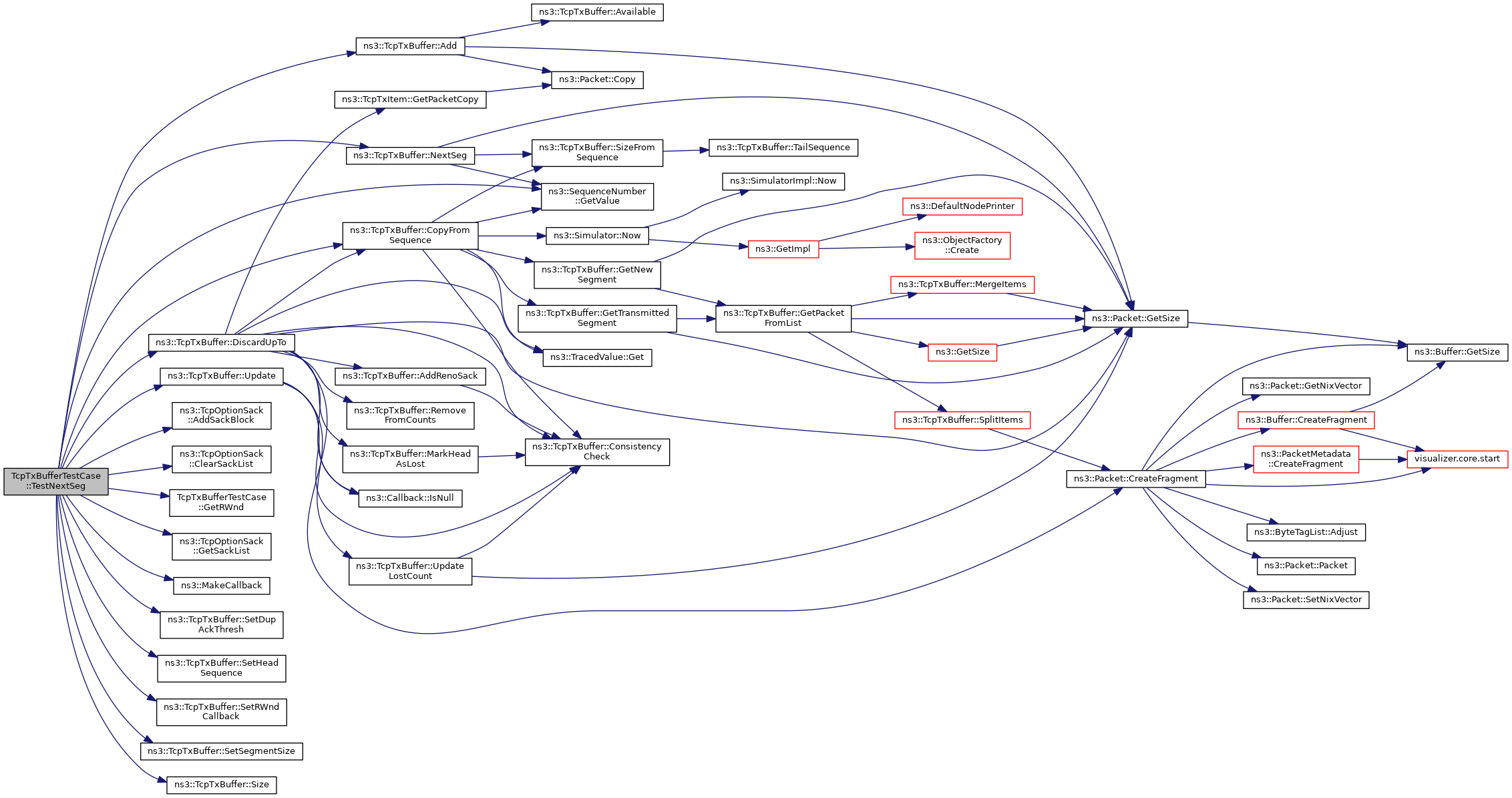

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Test the generation of a previously sent block.
Definition at line 386 of file tcp-tx-buffer-test.cc.
Referenced by DoRun().
Here is the caller graph for this function:
