Tunnel Class Reference

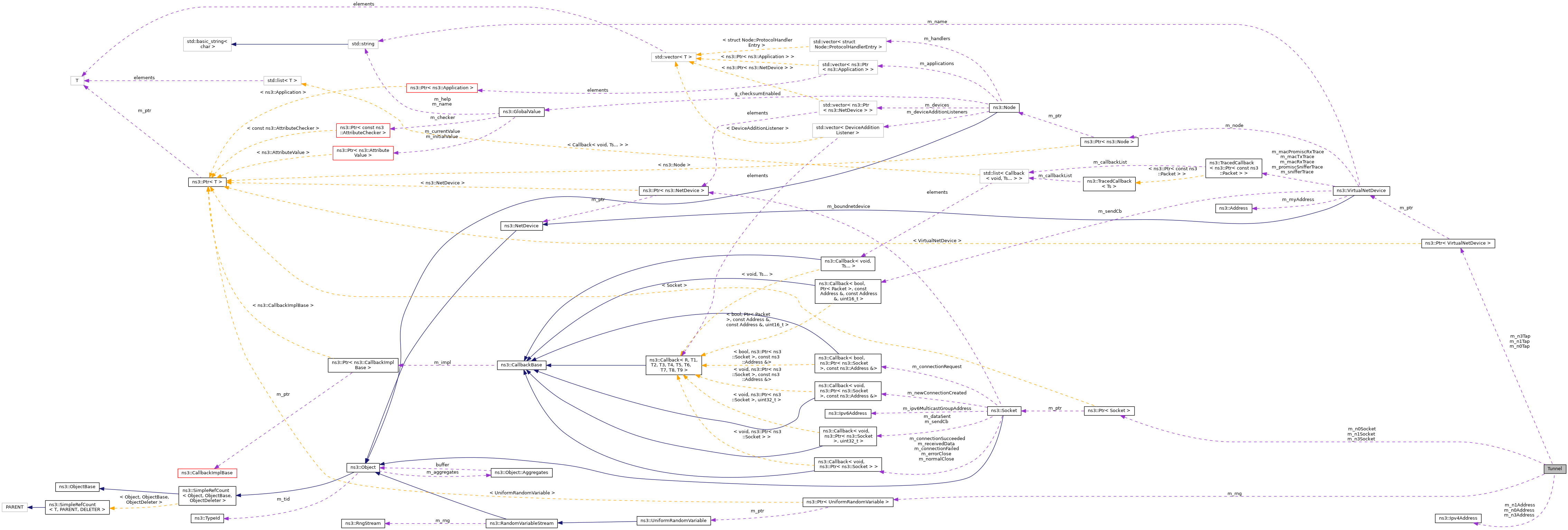

Collaboration diagram for Tunnel:

Public Member Functions
	Tunnel (Ptr< Node > n3, Ptr< Node > n0, Ptr< Node > n1, Ipv4Address n3Addr, Ipv4Address n0Addr, Ipv4Address n1Addr)

Private Member Functions
void	N0SocketRecv (Ptr< Socket > socket)
bool	N0VirtualSend (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
void	N1SocketRecv (Ptr< Socket > socket)
bool	N1VirtualSend (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
void	N3SocketRecv (Ptr< Socket > socket)
bool	N3VirtualSend (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

Private Attributes
Ipv4Address	m_n0Address
Ptr< Socket >	m_n0Socket
Ptr< VirtualNetDevice >	m_n0Tap
Ipv4Address	m_n1Address
Ptr< Socket >	m_n1Socket
Ptr< VirtualNetDevice >	m_n1Tap
Ipv4Address	m_n3Address
Ptr< Socket >	m_n3Socket
Ptr< VirtualNetDevice >	m_n3Tap
Ptr< UniformRandomVariable >	m_rng

Detailed Description

Definition at line 61 of file virtual-net-device.cc.

Constructor & Destructor Documentation

Tunnel()

Tunnel::Tunnel ( Ptr< Node >  n3, Ptr< Node >  n0, Ptr< Node >  n1, Ipv4Address  n3Addr, Ipv4Address  n0Addr, Ipv4Address  n1Addr  )

inline

Definition at line 130 of file virtual-net-device.cc.

References ns3::Ipv4::AddAddress(), ns3::Node::AddDevice(), ns3::Ipv4::AddInterface(), ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), ns3::Object::GetObject(), ns3::TypeId::LookupByName(), ns3::MakeCallback(), N0SocketRecv(), N0VirtualSend(), N1SocketRecv(), N1VirtualSend(), N3SocketRecv(), N3VirtualSend(), ns3::VirtualNetDevice::SetAddress(), ns3::Socket::SetRecvCallback(), ns3::VirtualNetDevice::SetSendCallback(), and ns3::Ipv4::SetUp().

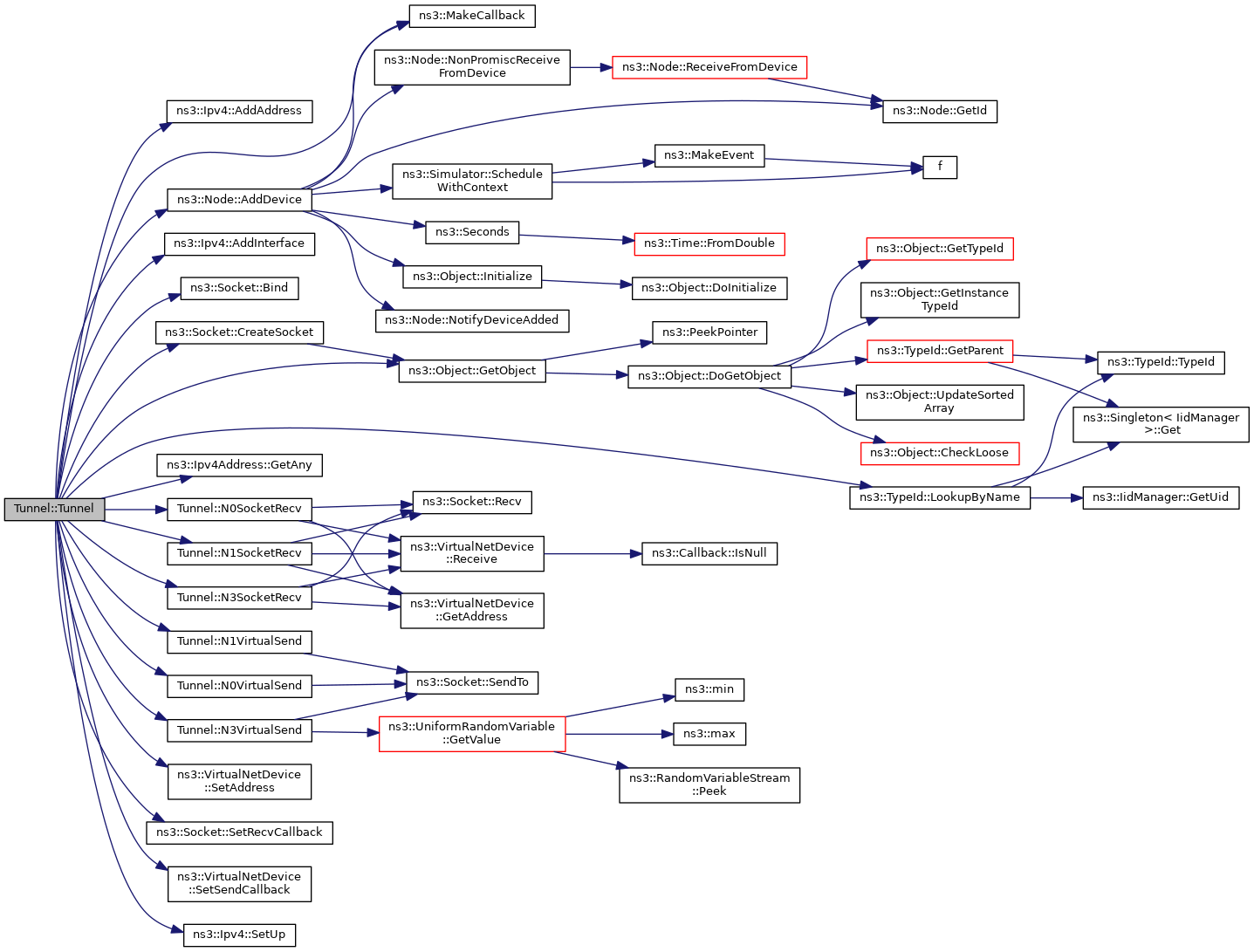

Here is the call graph for this function:

Member Function Documentation

N0SocketRecv()

void Tunnel::N0SocketRecv ( Ptr< Socket >  socket )

inlineprivate

Definition at line 114 of file virtual-net-device.cc.

References ns3::VirtualNetDevice::GetAddress(), NS_LOG_DEBUG, ns3::NetDevice::PACKET_HOST, ns3::VirtualNetDevice::Receive(), and ns3::Socket::Recv().

Referenced by Tunnel().

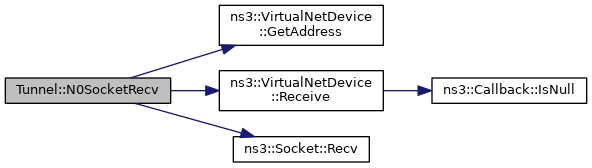

Here is the call graph for this function:

Here is the caller graph for this function:

N0VirtualSend()

bool Tunnel::N0VirtualSend ( Ptr< Packet >  packet, const Address &  source, const Address &  dest, uint16_t  protocolNumber  )

inlineprivate

Definition at line 76 of file virtual-net-device.cc.

References NS_LOG_DEBUG, and ns3::Socket::SendTo().

Referenced by Tunnel().

Here is the call graph for this function:

Here is the caller graph for this function:

N1SocketRecv()

void Tunnel::N1SocketRecv ( Ptr< Socket >  socket )

inlineprivate

Definition at line 121 of file virtual-net-device.cc.

References ns3::VirtualNetDevice::GetAddress(), NS_LOG_DEBUG, ns3::NetDevice::PACKET_HOST, ns3::VirtualNetDevice::Receive(), and ns3::Socket::Recv().

Referenced by Tunnel().

Here is the call graph for this function:

Here is the caller graph for this function:

N1VirtualSend()

bool Tunnel::N1VirtualSend ( Ptr< Packet >  packet, const Address &  source, const Address &  dest, uint16_t  protocolNumber  )

inlineprivate

Definition at line 84 of file virtual-net-device.cc.

References NS_LOG_DEBUG, and ns3::Socket::SendTo().

Referenced by Tunnel().

Here is the call graph for this function:

Here is the caller graph for this function:

N3SocketRecv()

void Tunnel::N3SocketRecv ( Ptr< Socket >  socket )

inlineprivate

Definition at line 107 of file virtual-net-device.cc.

References ns3::VirtualNetDevice::GetAddress(), NS_LOG_DEBUG, ns3::NetDevice::PACKET_HOST, ns3::VirtualNetDevice::Receive(), and ns3::Socket::Recv().

Referenced by Tunnel().

Here is the call graph for this function:

Here is the caller graph for this function:

N3VirtualSend()

bool Tunnel::N3VirtualSend ( Ptr< Packet >  packet, const Address &  source, const Address &  dest, uint16_t  protocolNumber  )

inlineprivate

Definition at line 92 of file virtual-net-device.cc.

References ns3::UniformRandomVariable::GetValue(), NS_LOG_DEBUG, and ns3::Socket::SendTo().

Referenced by Tunnel().

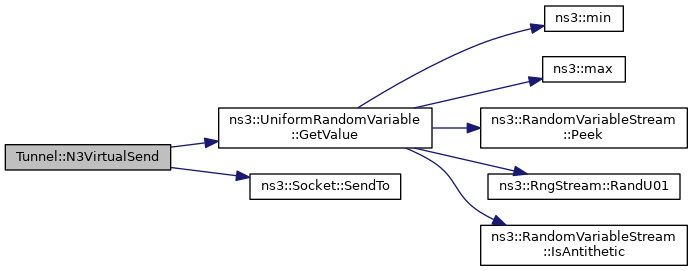

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_n0Address

Ipv4Address Tunnel::m_n0Address

private

Definition at line 67 of file virtual-net-device.cc.

m_n0Socket

Ptr<Socket> Tunnel::m_n0Socket

private

Definition at line 64 of file virtual-net-device.cc.

m_n0Tap

Ptr<VirtualNetDevice> Tunnel::m_n0Tap

private

Definition at line 70 of file virtual-net-device.cc.

m_n1Address

Ipv4Address Tunnel::m_n1Address

private

Definition at line 68 of file virtual-net-device.cc.

m_n1Socket

Ptr<Socket> Tunnel::m_n1Socket

private

Definition at line 65 of file virtual-net-device.cc.

m_n1Tap

Ptr<VirtualNetDevice> Tunnel::m_n1Tap

private

Definition at line 71 of file virtual-net-device.cc.

m_n3Address

Ipv4Address Tunnel::m_n3Address

private

Definition at line 66 of file virtual-net-device.cc.

m_n3Socket

Ptr<Socket> Tunnel::m_n3Socket

private

Definition at line 63 of file virtual-net-device.cc.

m_n3Tap

Ptr<VirtualNetDevice> Tunnel::m_n3Tap

private

Definition at line 72 of file virtual-net-device.cc.

m_rng

Ptr<UniformRandomVariable> Tunnel::m_rng

private

Definition at line 69 of file virtual-net-device.cc.

---

The documentation for this class was generated from the following file:

• src/virtual-net-device/examples/virtual-net-device.cc
