A record that that holds information about an ArpCache entry. More...

#include "arp-cache.h"

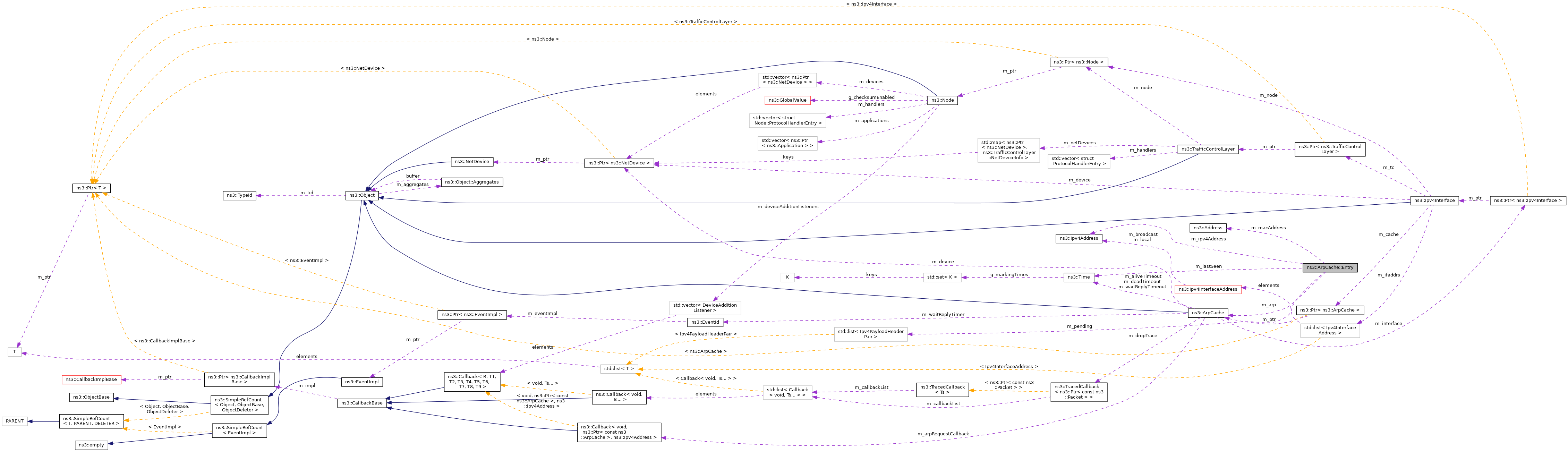

Collaboration diagram for ns3::ArpCache::Entry:

Public Member Functions
	Entry (ArpCache *arp)
	Constructor. More...

void	ClearPendingPacket (void)
	Clear the pending packet list. More...

void	ClearRetries (void)
	Zero the counter of number of retries for an entry. More...

Ipv4PayloadHeaderPair	DequeuePending (void)

Ipv4Address	GetIpv4Address (void) const

Address	GetMacAddress (void) const

uint32_t	GetRetries (void) const

void	IncrementRetries (void)
	Increment the counter of number of retries for an entry. More...

bool	IsAlive (void)

bool	IsDead (void)

bool	IsExpired (void) const

bool	IsPermanent (void)

bool	IsWaitReply (void)

void	MarkAlive (Address macAddress)

void	MarkDead (void)
	Changes the state of this entry to dead. More...

void	MarkPermanent (void)
	Changes the state of this entry to Permanent. More...

void	MarkWaitReply (Ipv4PayloadHeaderPair waiting)

void	SetIpv4Address (Ipv4Address destination)

void	SetMacAddress (Address macAddress)

void	UpdateSeen (void)
	Update the entry when seeing a packet. More...

bool	UpdateWaitReply (Ipv4PayloadHeaderPair waiting)

Private Types
enum	ArpCacheEntryState_e { ALIVE, WAIT_REPLY, DEAD, PERMANENT }
	ARP cache entry states. More...

Private Member Functions
Time	GetTimeout (void) const
	Returns the entry timeout. More...

Private Attributes
ArpCache *	m_arp
	pointer to the ARP cache owning the entry More...

Ipv4Address	m_ipv4Address
	entry's IP address More...

Time	m_lastSeen
	last moment a packet from that address has been seen More...

Address	m_macAddress
	entry's MAC address More...

std::list< Ipv4PayloadHeaderPair >	m_pending
	list of pending packets for the entry's IP More...

uint32_t	m_retries
	rerty counter More...

ArpCacheEntryState_e	m_state
	state of the entry More...

Detailed Description

A record that that holds information about an ArpCache entry.

Definition at line 188 of file arp-cache.h.

Member Enumeration Documentation

◆ ArpCacheEntryState_e

enum ns3::ArpCache::Entry::ArpCacheEntryState_e

private

ARP cache entry states.

Enumerator
ALIVE
WAIT_REPLY
DEAD
PERMANENT

Definition at line 290 of file arp-cache.h.

Constructor & Destructor Documentation

◆ Entry()

ns3::ArpCache::Entry::Entry ( ArpCache * arp )

Constructor.

Parameters

arp	The ArpCache this entry belongs to

Definition at line 359 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ClearPendingPacket()

void ns3::ArpCache::Entry::ClearPendingPacket ( void )

Clear the pending packet list.

Definition at line 526 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::Remove().

Here is the caller graph for this function:

◆ ClearRetries()

void ns3::ArpCache::Entry::ClearRetries ( void )

Zero the counter of number of retries for an entry.

Definition at line 551 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ DequeuePending()

ArpCache::Ipv4PayloadHeaderPair ns3::ArpCache::Entry::DequeuePending ( void )

Returns: 0 is no packet is pending, the next packet to send if packets are pending.

Definition at line 510 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout(), and ns3::ArpL3Protocol::Receive().

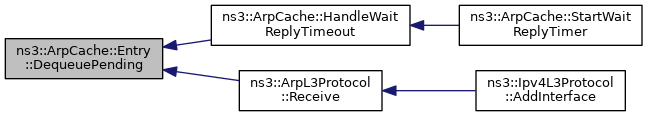

Here is the caller graph for this function:

◆ GetIpv4Address()

Ipv4Address ns3::ArpCache::Entry::GetIpv4Address ( void ) const

Returns: The Ipv4Address for this entry

Definition at line 466 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ GetMacAddress()

Address ns3::ArpCache::Entry::GetMacAddress ( void ) const

Returns: The MacAddress of this entry

Definition at line 454 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::ArpCache::LookupInverse(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::DsrRouteCache::LookupMacAddress().

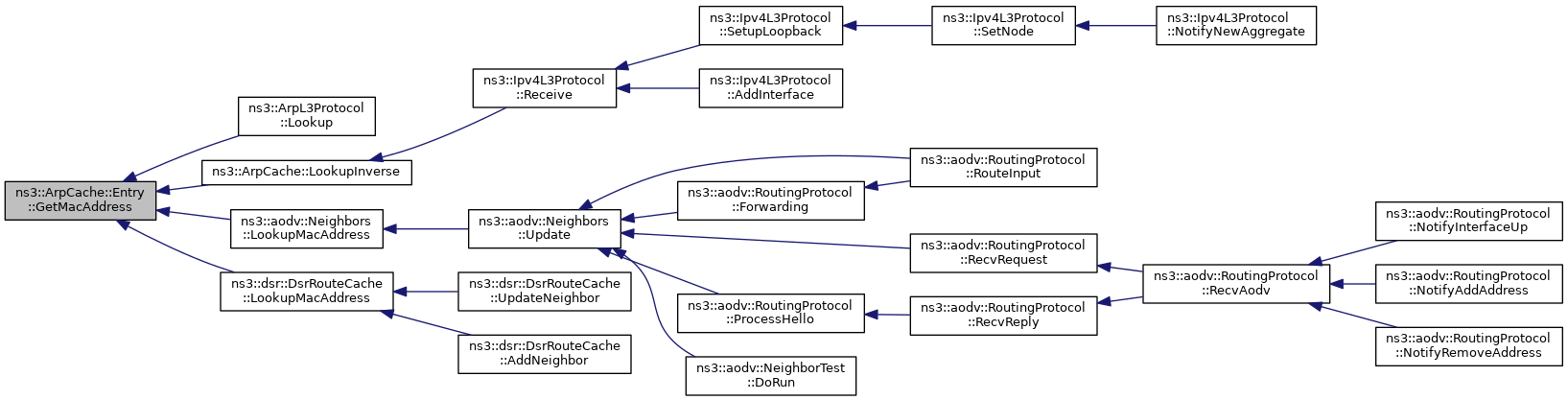

Here is the caller graph for this function:

◆ GetRetries()

uint32_t ns3::ArpCache::Entry::GetRetries ( void ) const

Returns: number of retries that have been sent for an ArpRequest in WaitReply state.

Definition at line 538 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ GetTimeout()

Time ns3::ArpCache::Entry::GetTimeout ( void ) const

private

Returns the entry timeout.

Returns: the entry timeout

Definition at line 478 of file arp-cache.cc.

References ALIVE, DEAD, ns3::Time::Max(), NS_ASSERT, NS_LOG_FUNCTION, PERMANENT, ns3::Seconds(), and WAIT_REPLY.

Here is the call graph for this function:

◆ IncrementRetries()

void ns3::ArpCache::Entry::IncrementRetries ( void )

Increment the counter of number of retries for an entry.

Definition at line 544 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ IsAlive()

bool ns3::ArpCache::Entry::IsAlive ( void )

Returns: True if the state of this entry is alive; false otherwise.

Definition at line 375 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), ns3::dsr::DsrRouteCache::LookupMacAddress(), and ns3::Ipv4L3Protocol::Receive().

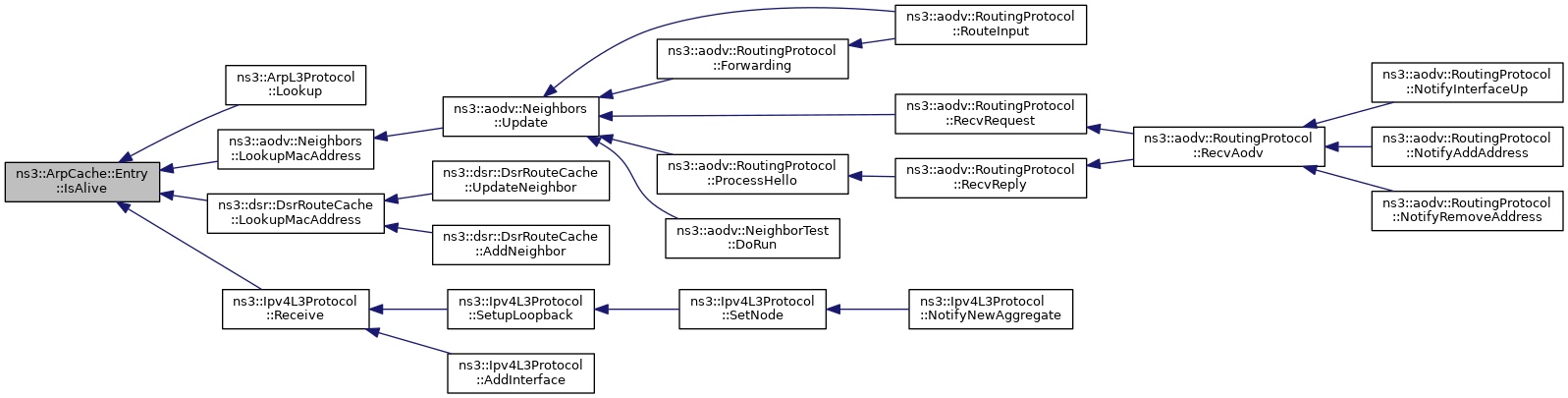

Here is the caller graph for this function:

◆ IsDead()

bool ns3::ArpCache::Entry::IsDead ( void )

Returns: True if the state of this entry is dead; false otherwise.

Definition at line 369 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

◆ IsExpired()

bool ns3::ArpCache::Entry::IsExpired ( void ) const

Returns: True if this entry has timed out; false otherwise.

This function returns true if the time elapsed strictly exceeds the timeout value (i.e., is not less than or equal to the timeout).

Definition at line 497 of file arp-cache.cc.

References ns3::Time::GetSeconds(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and timeout.

Referenced by ns3::ArpL3Protocol::Lookup(), ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::DsrRouteCache::LookupMacAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsPermanent()

bool ns3::ArpCache::Entry::IsPermanent ( void )

Returns: True if the state of this entry is permanent; false otherwise.

Definition at line 387 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::aodv::Neighbors::LookupMacAddress(), and ns3::dsr::DsrRouteCache::LookupMacAddress().

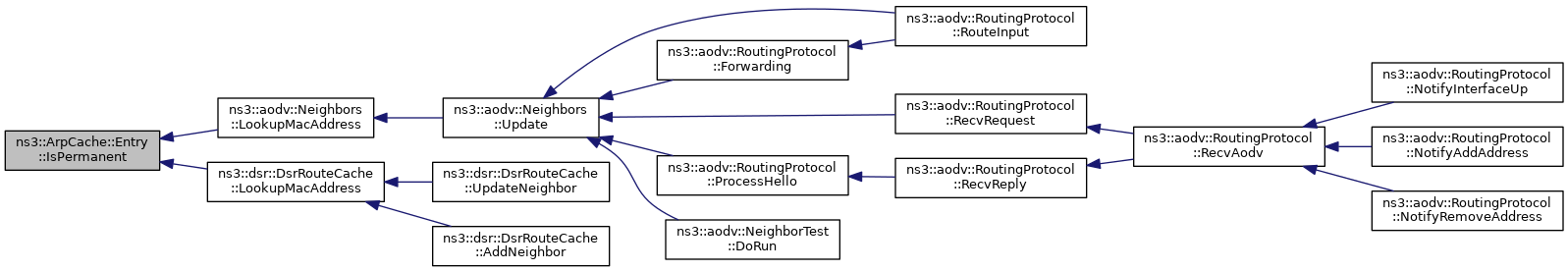

Here is the caller graph for this function:

◆ IsWaitReply()

bool ns3::ArpCache::Entry::IsWaitReply ( void )

Returns: True if the state of this entry is wait_reply; false otherwise.

Definition at line 381 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout(), ns3::ArpL3Protocol::Lookup(), and ns3::ArpL3Protocol::Receive().

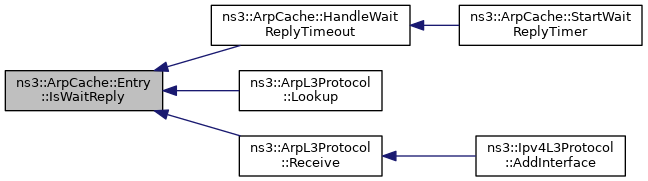

Here is the caller graph for this function:

◆ MarkAlive()

void ns3::ArpCache::Entry::MarkAlive ( Address macAddress )

Parameters

macAddress

Definition at line 404 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Receive().

Here is the caller graph for this function:

◆ MarkDead()

void ns3::ArpCache::Entry::MarkDead ( void )

Changes the state of this entry to dead.

Definition at line 395 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpCache::HandleWaitReplyTimeout().

Here is the caller graph for this function:

◆ MarkPermanent()

void ns3::ArpCache::Entry::MarkPermanent ( void )

Changes the state of this entry to Permanent.

The entry must have a valid MacAddress.

Definition at line 414 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by EpcS1uUlTestCase::DoRun().

Here is the caller graph for this function:

◆ MarkWaitReply()

void ns3::ArpCache::Entry::MarkWaitReply ( Ipv4PayloadHeaderPair waiting )

Parameters

waiting

Definition at line 440 of file arp-cache.cc.

References NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

◆ SetIpv4Address()

void ns3::ArpCache::Entry::SetIpv4Address ( Ipv4Address destination )

Parameters

destination The Ipv4Address for this entry

Definition at line 472 of file arp-cache.cc.

References NS_LOG_FUNCTION.

◆ SetMacAddress()

void ns3::ArpCache::Entry::SetMacAddress ( Address macAddress )

Parameters

macAddress The MacAddress for this entry

Definition at line 460 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Referenced by EpcS1uUlTestCase::DoRun().

Here is the caller graph for this function:

◆ UpdateSeen()

void ns3::ArpCache::Entry::UpdateSeen ( void )

Update the entry when seeing a packet.

Definition at line 532 of file arp-cache.cc.

References ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::Receive().

Here is the call graph for this function:

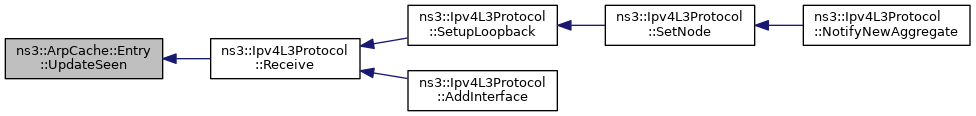

Here is the caller graph for this function:

◆ UpdateWaitReply()

bool ns3::ArpCache::Entry::UpdateWaitReply ( Ipv4PayloadHeaderPair waiting )

Parameters

waiting

Returns

Definition at line 424 of file arp-cache.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

Member Data Documentation

◆ m_arp

ArpCache* ns3::ArpCache::Entry::m_arp

private

pointer to the ARP cache owning the entry

Definition at line 303 of file arp-cache.h.

◆ m_ipv4Address

Ipv4Address ns3::ArpCache::Entry::m_ipv4Address

private

entry's IP address

Definition at line 307 of file arp-cache.h.

◆ m_lastSeen

Time ns3::ArpCache::Entry::m_lastSeen

private

last moment a packet from that address has been seen

Definition at line 305 of file arp-cache.h.

◆ m_macAddress

Address ns3::ArpCache::Entry::m_macAddress

private

entry's MAC address

Definition at line 306 of file arp-cache.h.

◆ m_pending

std::list<Ipv4PayloadHeaderPair> ns3::ArpCache::Entry::m_pending

private

list of pending packets for the entry's IP

Definition at line 308 of file arp-cache.h.

◆ m_retries

uint32_t ns3::ArpCache::Entry::m_retries

private

rerty counter

Definition at line 309 of file arp-cache.h.

◆ m_state

ArpCacheEntryState_e ns3::ArpCache::Entry::m_state

private

state of the entry

Definition at line 304 of file arp-cache.h.

The documentation for this class was generated from the following files:

src/internet/model/arp-cache.h
src/internet/model/arp-cache.cc
