ns3::BuildingsHelper Class Reference

#include "buildings-helper.h"

Static Public Member Functions
static void	Install (Ptr< Node > node)
	Install the MobilityBuildingInfo to a node. More...
static void	Install (NodeContainer c)
	Install the MobilityBuildingInfo to the set of nodes in a NodeContainer. More...
static NS_DEPRECATED void	MakeConsistent (Ptr< MobilityModel > mm)
	Make the given mobility model consistent, by determining whether its position falls inside any of the building in BuildingList, and updating accordingly the BuildingInfo aggregated with the MobilityModel. More...
static NS_DEPRECATED_3_31 void	MakeMobilityModelConsistent ()
	This method goes through the whole NodeList and, for each node in the list, calls BuildingsHelper::MakeConsistent() passing to it the MobilityModel of that node. More...

Detailed Description

Definition at line 36 of file buildings-helper.h.

Member Function Documentation

Install() [1/2]

void ns3::BuildingsHelper::Install ( Ptr< Node >  node )

static

Install the MobilityBuildingInfo to a node.

Parameters

node	the mobility model of the node to be updated

Definition at line 47 of file buildings-helper.cc.

References ns3::Object::AggregateObject(), ns3::Node::GetId(), ns3::Object::GetObject(), and NS_ABORT_MSG_UNLESS.

Referenced by Install().

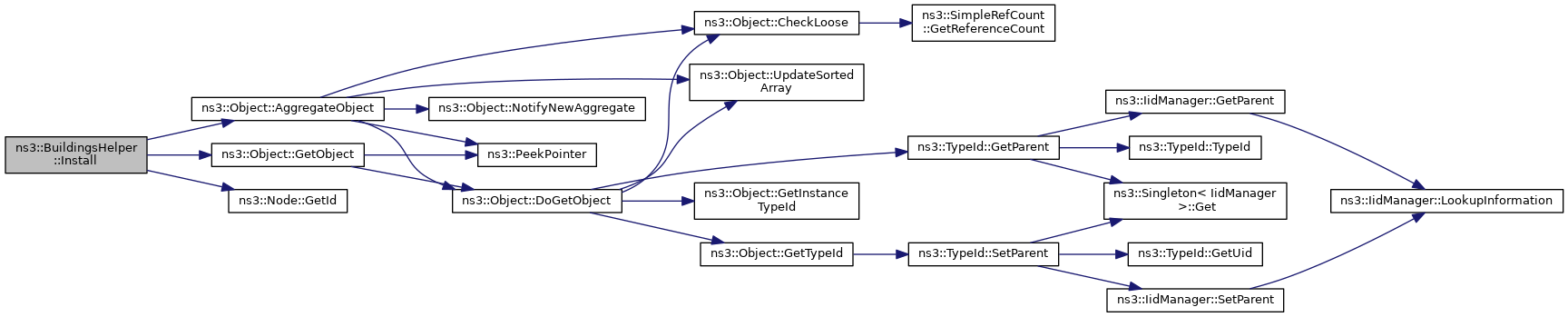

Here is the call graph for this function:

Here is the caller graph for this function:

Install() [2/2]

void ns3::BuildingsHelper::Install ( NodeContainer  c )

static

Install the MobilityBuildingInfo to the set of nodes in a NodeContainer.

Parameters

c	the NodeContainer including the nodes to be updated

Definition at line 37 of file buildings-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and Install().

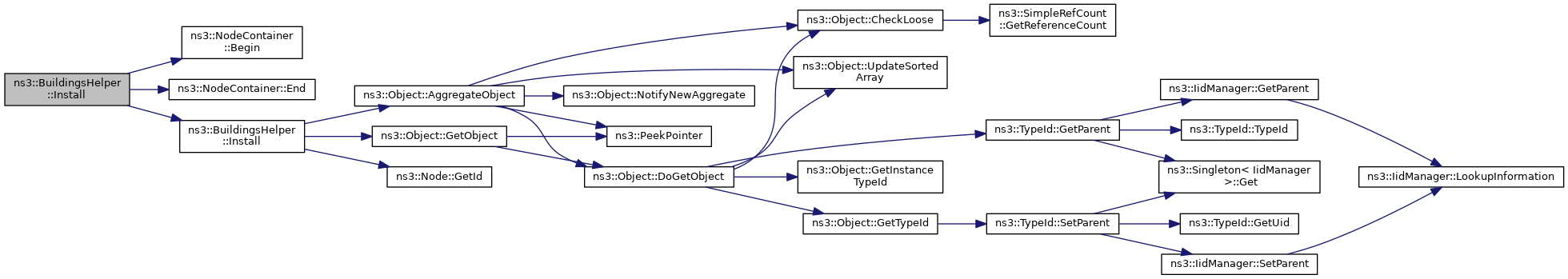

Here is the call graph for this function:

MakeConsistent()

void ns3::BuildingsHelper::MakeConsistent ( Ptr< MobilityModel >  mm )

static

Make the given mobility model consistent, by determining whether its position falls inside any of the building in BuildingList, and updating accordingly the BuildingInfo aggregated with the MobilityModel.

Parameters

mm	the mobility model to be made consistent

Deprecated:

This method will go away in future release of ns-3. See instead MakeConsistent method of MobilityBuildingInfo class.

Definition at line 80 of file buildings-helper.cc.

References ns3::BuildingList::Begin(), ns3::BuildingList::End(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), NS_ABORT_MSG_UNLESS, and NS_LOG_LOGIC.

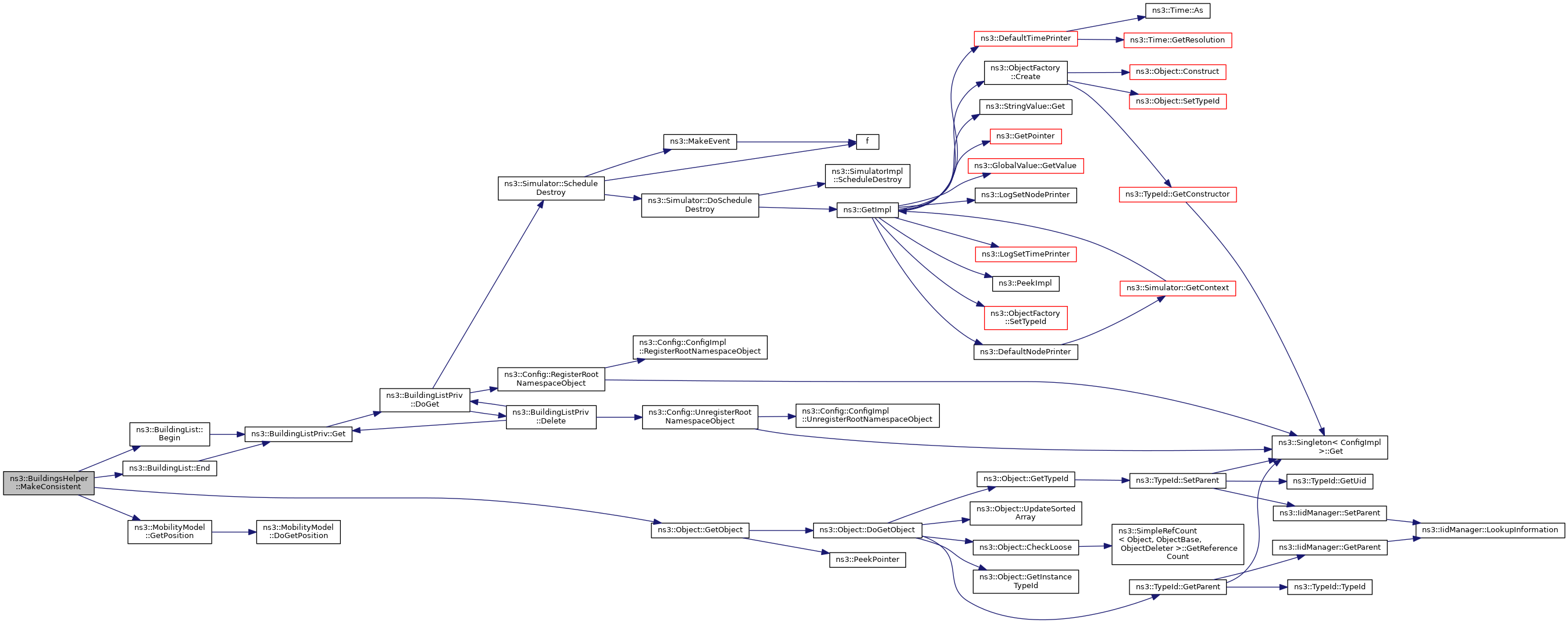

Here is the call graph for this function:

MakeMobilityModelConsistent()

void ns3::BuildingsHelper::MakeMobilityModelConsistent ( )

static

This method goes through the whole NodeList and, for each node in the list, calls BuildingsHelper::MakeConsistent() passing to it the MobilityModel of that node.

Deprecated:

This method will go away in future release of ns-3. A node position will be make consistent by the method IsInside () of MobilityBuildingInfo class.

Definition at line 63 of file buildings-helper.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION_NOARGS.

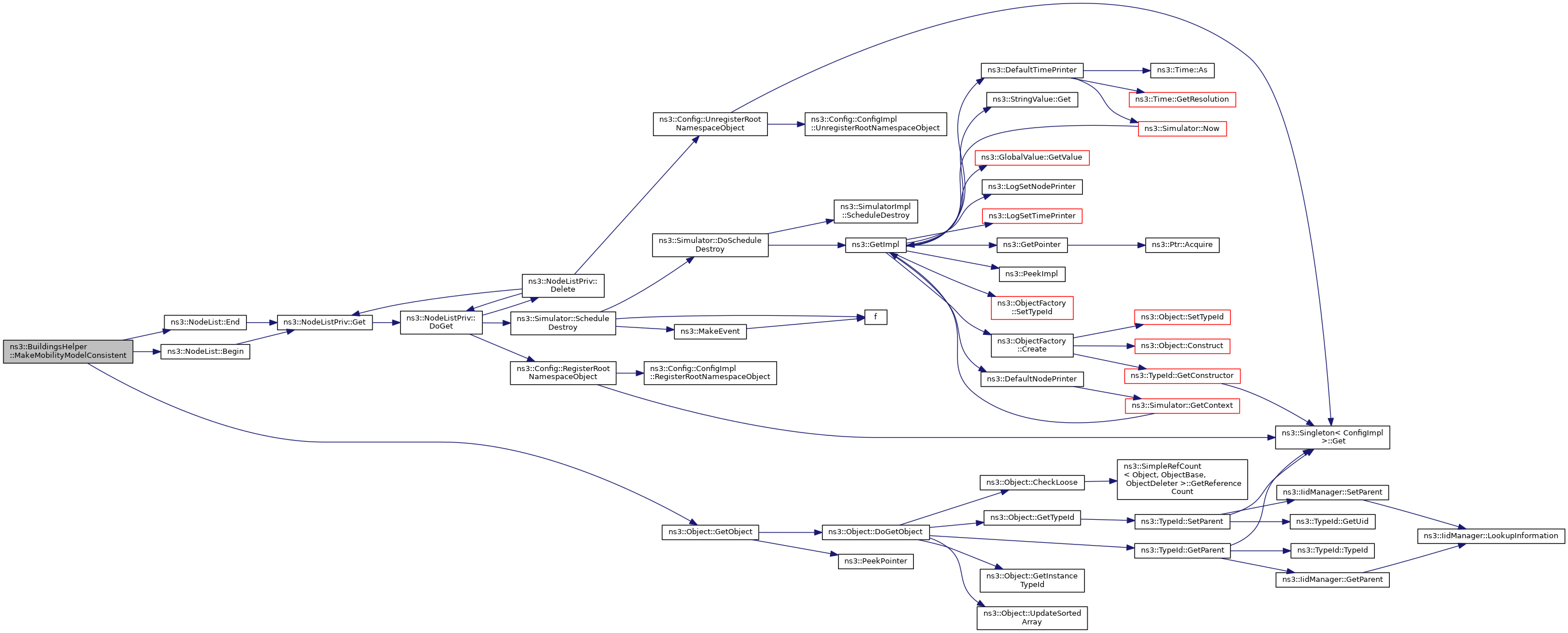

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/buildings/helper/buildings-helper.h
• src/buildings/helper/buildings-helper.cc
